AVer TR335 8 Megapixel Indoor 4K Network Camera - Color - TAA Compliant - PATR335V3
Key Features
- 12x optical zoom for desired image clarity and maximum capturing convenience
- 46.80 mm maximum focal length for dependable identification distances with better coverage
- 4K recording format for stunning, vivid video results with maximum efficiency
- Auto camera iris automatically adjusts the iris in order to regulate and optimize the amount of light or infrared energy a camera receives
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- f/1.6 maximum aperture for better light absorption and dependable, better-quality results
- Network camera - Helps achieve high-quality video results
- Revolutionary image sensor - Joins multiple exposed patterns together and advanced planarization for minimized fluctuation
- Up to 3840 x 2160 resolution for surveillance in real-time
- Varifocal lens type to ensure maximum surveillance dependability and optimal performance
Product Overview
Exceptional Video Quality with Zero Compromises
The AVer TR335 AI Auto Tracking Camera delivers professional-grade lectures, sermons, trainings or whatever you need to stream! The 30X optical zoom, powerful 8MP camera and 4K resolution offer the range and picture quality to produce the highest quality productions. The advanced artificial intelligence (AI) technology allows you to track your speaker (full or half body) or pre-set shoot zone without a dedicated camera operator. The TR335 includes a number of impressive upgrades from the previous generation TR333V2, including improved performance and simultaneous output on USB and IP.
Harness the Magic of NDI/HX3
Includes the most recent edition of the NDI protocol is NDI®version 3 (NDI®|HX3). Features 4Kp60 NDI output with latency less than 100ms.
Presenter tracking
- Capture every interaction
- Either track full body or half body
- Simple click to track and manually follow an additional presenter via remote control or Web UI
Zone tracking
- Establish preset zones
- Create video focused on content
- Enhance the capture of content on multiple displays
General Information
- Manufacturer: AVer Information Inc
- Manufacturer Part Number: PATR335V3
- Brand Name: AVer
- Product Model: TR335
- Product Name: 30X 4K PTZ Streaming Camera
- Product Type: Network Camera
Technical Information
- HD Recording: Yes
- Recording Formats: 4K
- Camera Iris:
- Auto
- Manual
- AI-powered: Yes
Display & Graphics
- Image Sensor Type: Exmor CMOS
- Image Sensor Size: 1/2.8"
- Color Supported: Color
- Field of View: DFOV : 69.2° (Wide) to 2.8° (Tele) HFOV : 62.3° (Wide) to 2.5° (Tele)VFOV : 37.3° (Wide) to 1.4° (Tele)
- Effective Camera Resolution: 8 Megapixel
Video
- Video Formats:
- H.264
- H.265
- MJPEG
- Maximum Video Resolution: 3840 x 2160
- Maximum Frame Rate: 60 fps
- Analog Video Signal Format: 3G-SDI
Audio
- Audio Support: Yes
Lens
- Lens Type: Varifocal
- Minimum Focal Length: 3.90 mm
- Maximum Focal Length: 46.80 mm
- Lens Included: Yes
- Minimum Aperture: f/4.8
- Maximum Aperture: f/1.6
- Optical Zoom: 12x
Exposure
- Shortest Shutter Speed: 1/10000 Second
- Longest Shutter Speed: 1/1 Second
Network & Communication
- Connectivity Technology: Wired
- Remote Management: Yes
- Ethernet Technology: Gigabit Ethernet
- Protocols:
- IPv4
- TCP
- UDP
- ARP
- ICMP
- IGMP
- HTTP
- HTTPS
- DHCP
- RTP/RTCP
- RTSP
- RTMP
- LLDP
- VISCA over IP

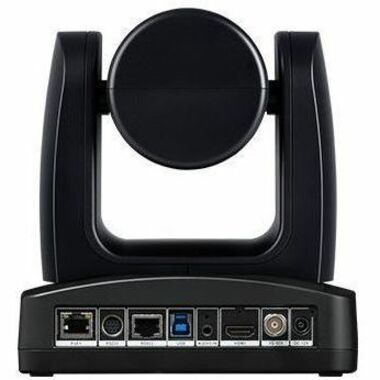

Interfaces/Ports

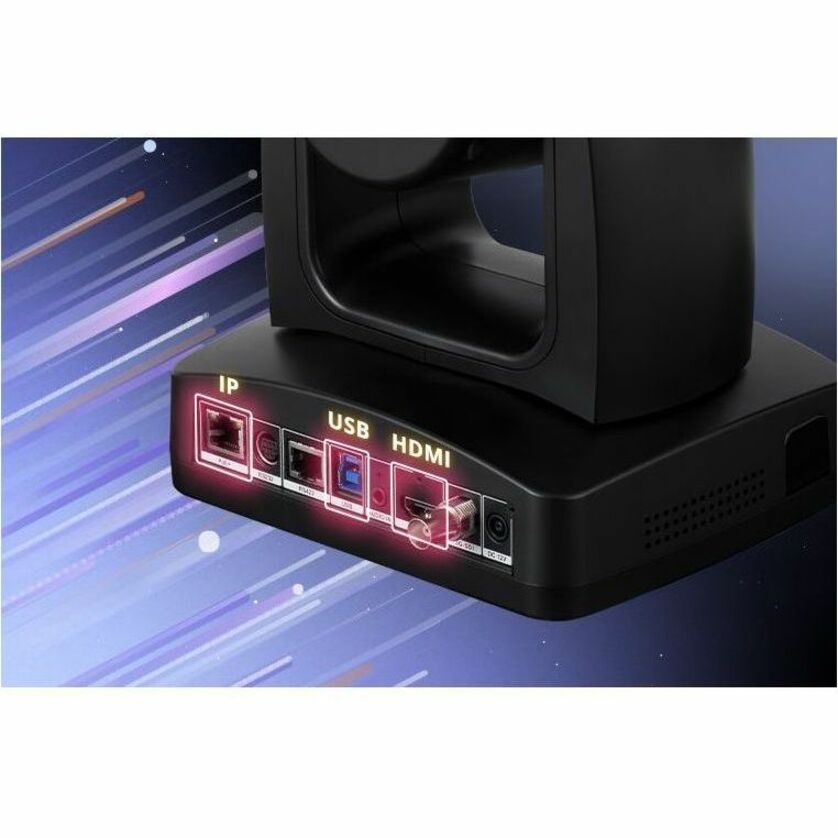

- USB: Yes
- HDMI: Yes
- Network (RJ-45): Yes
Power Description
- Maximum Power Consumption: 18 W
- Input Voltage: 12 V
- Power Source Type: PoE+
Physical Characteristics
- Mount Type: Ceiling Mount
- Height: 7.6"
- Width: 7.1"
- Depth: 5.7"
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Minimum Storage Temperature: -4°F (-20°C)
- Maximum Storage Temperature: 140°F (60°C)
- Minimum Operating Humidity: 20%
- Maximum Operating Humidity: 80%
- Minimum Storage Humidity: 20%
- Maximum Storage Humidity: 95%
Miscellaneous
- Features:
- Auto Tracking
- Back Light Compensation (BLC)
- Wide Dynamic Range
- Auto Gain Control
- Noise Reduction
- Mirror
- 2D Noise Reduction
- 3D Noise Reduction
- White Balance
- PTZ
- Indoor/Outdoor: Indoor
- Package Contents:
- 30X 4K PTZ Streaming Camera
- Remote Control
- RS-232 In/Out Cable
- Din 8 To D-Sub 9 Cable
- Power Adapter
- Power Cord
- 4 x Cable Ties
- 3 x M2 x 4 mm Screws
- 3 x M3 x 6 mm Screws
- 2 x 1/4'-20L 6.5mm Screws
- Cable Fixing Plate
- 2 x Ceiling Mount Brackets
- Drilling Paper
- Quick Start Guide
- TAA Compliant: Yes
Warranty
- Limited Warranty: 5 Year
- Additional Warranty Information:
Accessories 1 year
