BE5100 WiFi 7 Dual-Radio Outdoor Access Point With Bridge and Mesh Support. Free Nebula Cloud Management (TAA Compliant) - NWA55BE
Key Features
- BE5100 (2.4GHz: 2x2:2, 5GHz: 2x2:2) dual-radio access point offers blazingly fast WiFi 7 speeds of up to 5.1Gbps
- Built for harsh outdoors with IP55 rating and -25°C to 65°C temperature range
- Captive portal and IEEE 802.1X authentication support provides enterprise-level security
- Smart Mesh MLO with dual-radio backhaul enables dynamic, cable-free deployment while delivering higher performance
- The detachable antenna design allows users to attach alternative antennas to better suit different needs
Product Overview
Powered by a Qualcomm quad-core CPU, the dual-radio BE5100 (2.4GHz: 2x2:2, 5GHz: 2x2:2) delivers up to 5.1Gbps WiFi 7 speeds for enterprise-grade performance. Its 2.5GbE port ensures a cost-effective, high-speed upgrade that works with your existing setup.
Built for tough outdoor conditions, the NWA55BE features IP55 weatherproofing and operates from -25°C to 65°C.
The downward-facing antenna design helps protect against moisture, while the detachable antennas let users swap in alternatives to meet different coverage needs.
General Information
- Manufacturer: ZYXEL Communications Corp.
- Manufacturer Part Number: NWA55BE
- Brand Name: ZYXEL
- Product Line: NebulaFlex
- Product Model: NWA55BE
- Product Name: BE5100 4-Stream WiFi 7 Dual-Radio NebulaFlex Outdoor Access Point
- Product Type: Wireless Access Point
Technical Information
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
- Network Band: Dual Band
- Frequency Band:
- 2.40 GHz
- 5 GHz
- Total Number of Antennas: 2
- Number of External Antennas: 2
- Indoor/Outdoor: Outdoor
- Wireless Transmission Speed: 5.10 Gbit/s
- MIMO Technology: Yes
- MIMO Type: Multi User MIMO
- Number of Bandwidth Streams: 4
- Data Encryption: Yes
- Encryption Standard:
- WEP
- WPA
- WPA2
- WPA3
- Ingress Protection (IP) Rating: IP55
- Mesh Supported: Yes
Interfaces/Ports
- Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Number of Network (RJ-45) Ports: 1
- PoE PD Port: Yes
Network & Communication
- Wi-Fi Generation: Wi-Fi 7
- Communication Protocols:
- RADIUS
- IPv6
Physical Characteristics
- Antenna Form Factor: External
- Height: 2"
- Width: 12.1"
- Depth: 5.4"
- Weight (Approximate): 1.27 lb
Miscellaneous

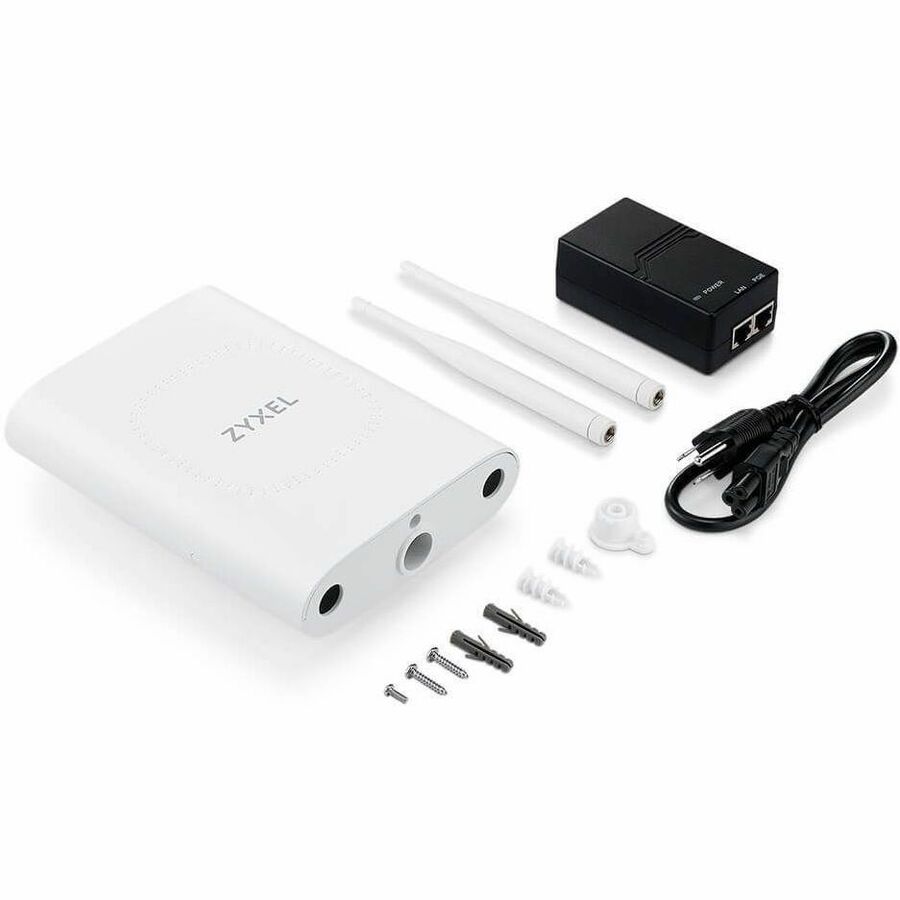

- Package Contents:
- BE5100 4-Stream WiFi 7 Dual-Radio NebulaFlex Outdoor Access Point
- PoE Injector
- Mounting Screws
- Application/Usage:
- Office
- Campus
- TAA Compliant: Yes
Warranty
- Limited Warranty: Lifetime
