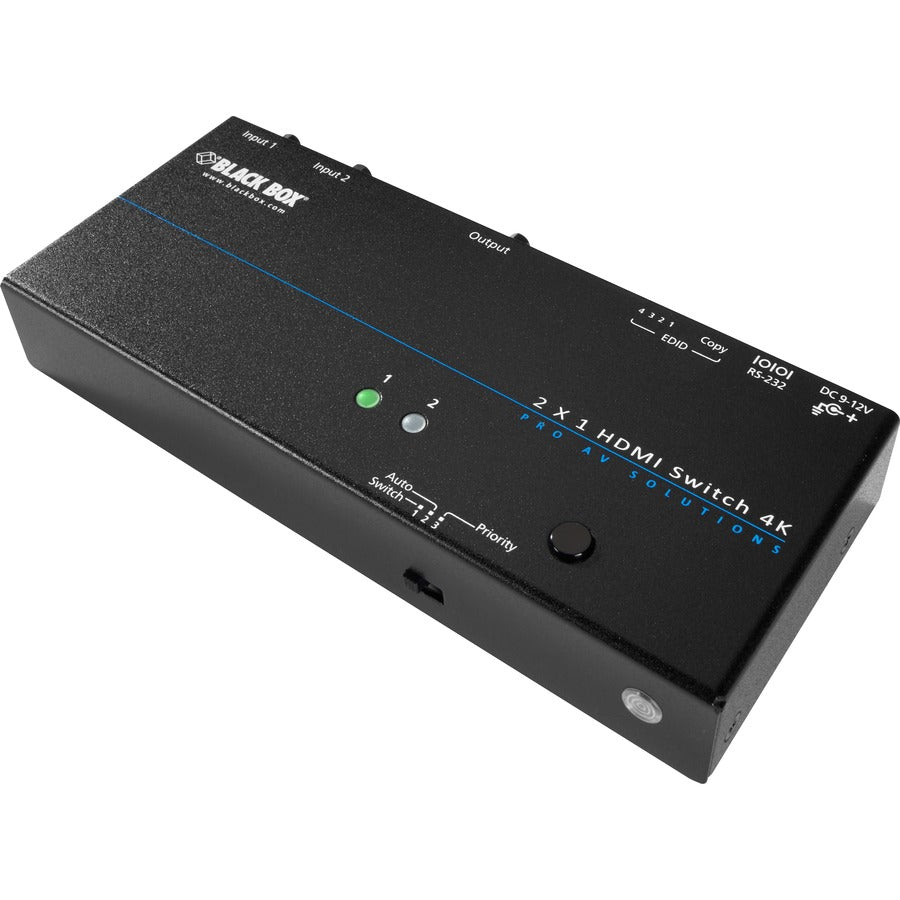

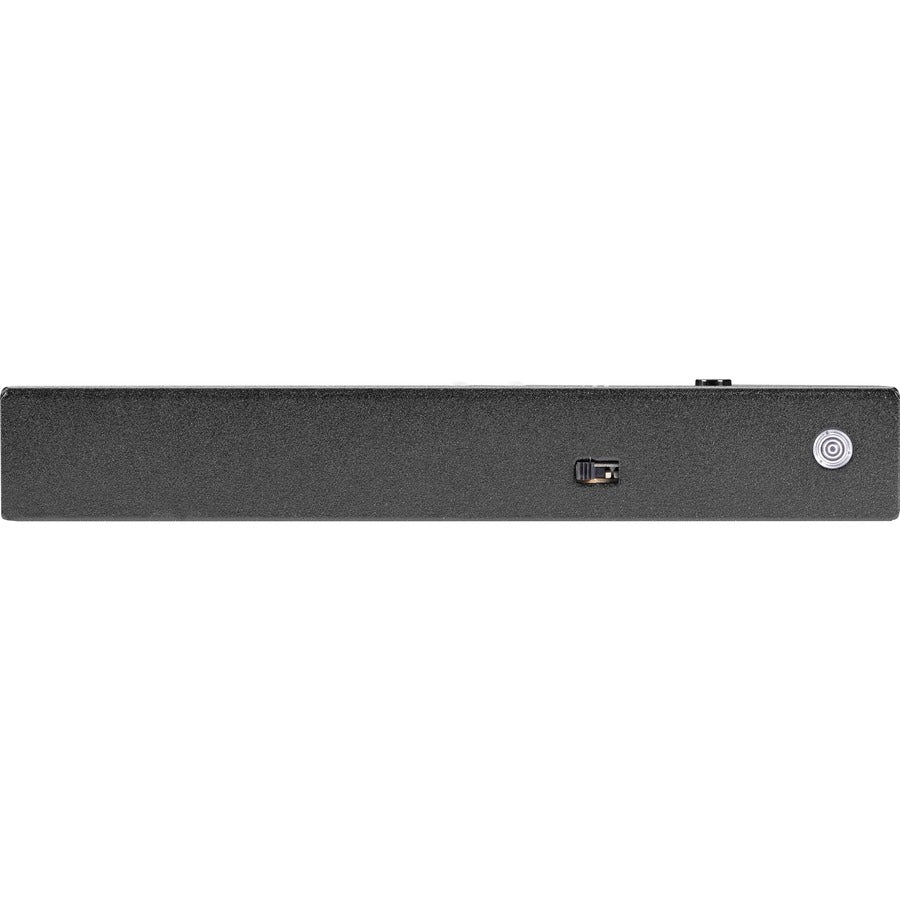

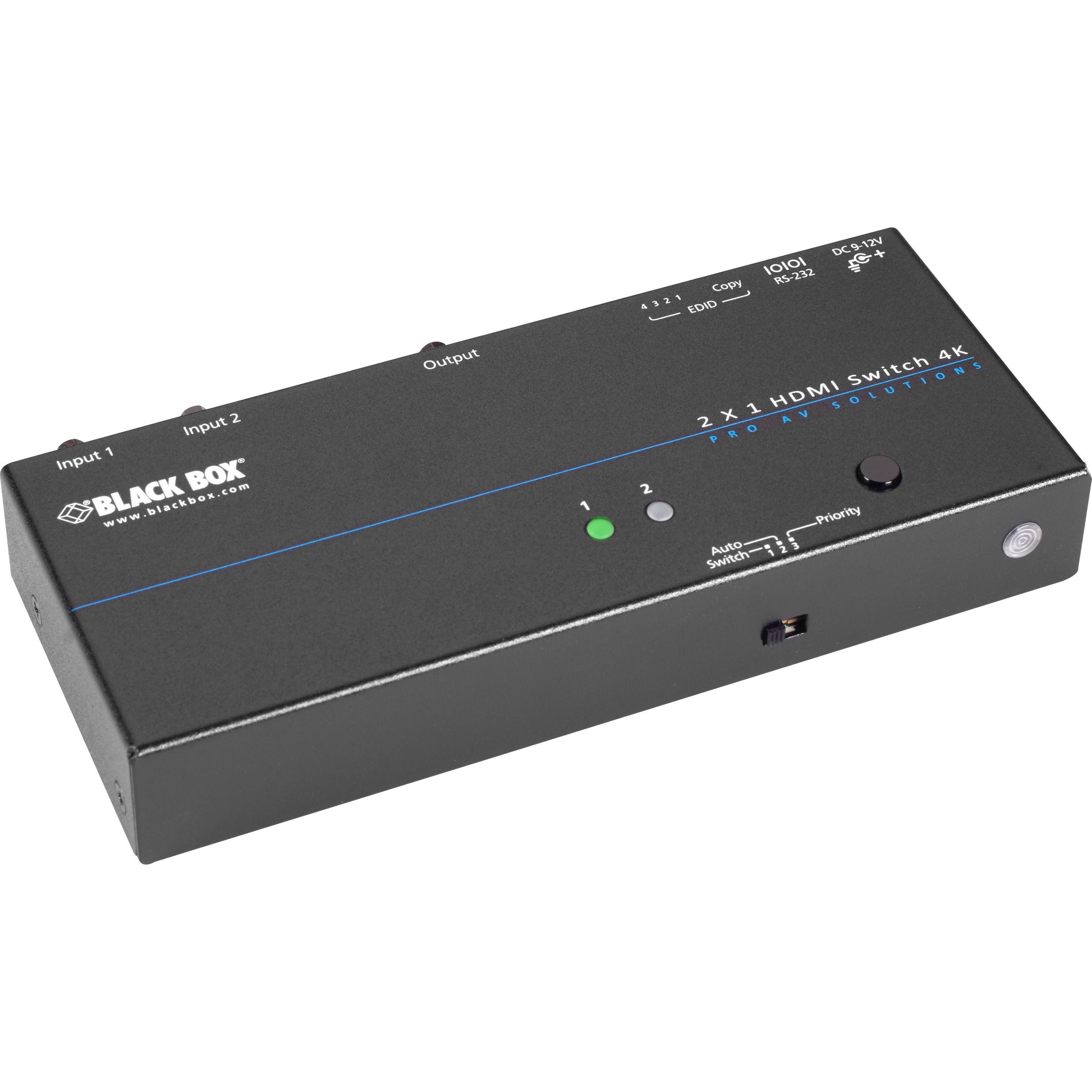

Black Box 4K HDMI Switch - 2 x 1 - VSW-HDMI2X1-4K
Key Features
- Advanced EDID functionality ensures accurate output display.
- Control via front panel push buttons, IR remote control, serial connection.
- Mandatory 3D-video, HDCP compliant, and Blu-ray ready.
- Smart auto switching function that enables device to automatically switch to a source when it becomes active.
- Supports up to 4K/30 resolution (UHD 3840 x 2160).
- Switch between different HDMI sources to a single display.
Product Overview
The 4K HDMI Switch enables switching between HDMI sources to a single display. The switch supports resolutions up to 4K (UHD) and has a smart auto switching function that enables the device to automatically switch to a source when it becomes active. Advanced EDID functionality enables the switch to either read and copy EDID automatically from screens, or audio/video EDID information can be copied manually.General Information
- Manufacturer: Black Box Corporation
- Manufacturer Part Number: VSW-HDMI2X1-4K
- Brand Name: Black Box
- Product Model: VSW-HDMI2X1-4K
- Product Name: 4K HDMI Switch - 2 x 1
- Packaged Quantity: 1
- Product Type: Audio/Video Switchbox
Technical Information
- Connectivity Technology: Cable
- Number of Input Devices Supported: 2
- Device Supported:
- Display
- Blu-ray Disc Player
- Number of Displays Supported: 1
Video
- Graphics Modes:
- 4K
- 2K
- Maximum Video Resolution: 3840 × 2160

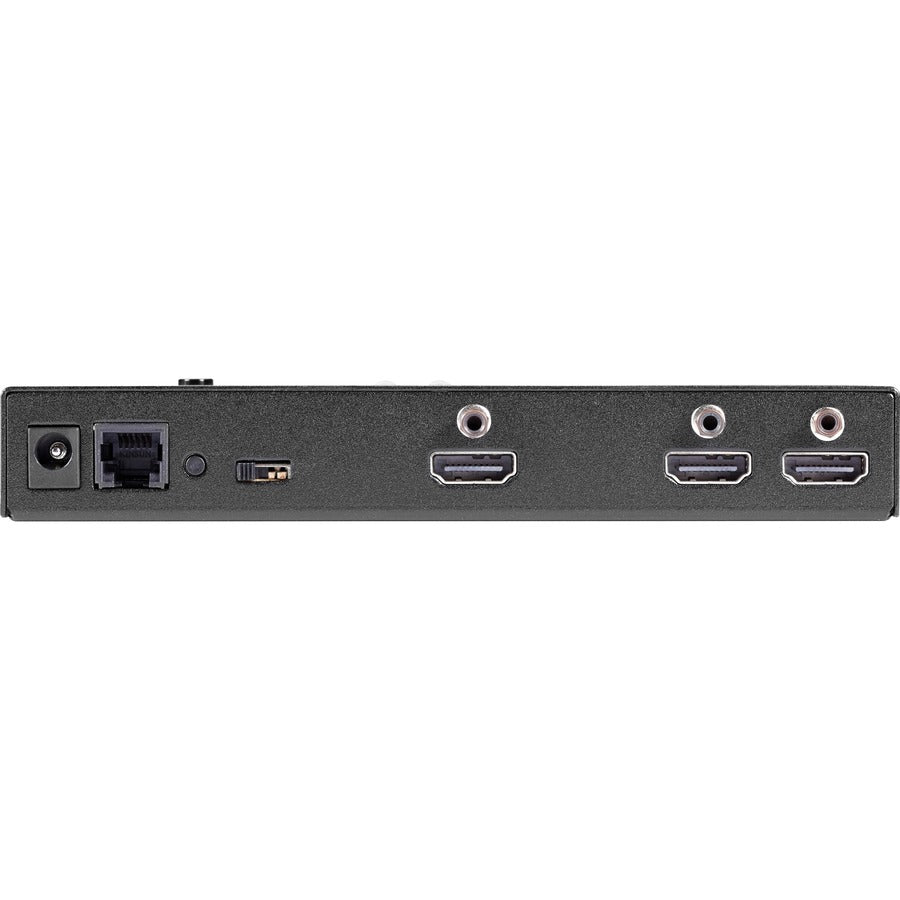

Interfaces/Ports
- HDMI In: Yes
- HDMI Out: Yes
- Number of HDMI Inputs: 2
- Number of HDMI Outputs: 1
Physical Characteristics
- Form Factor: Rack-mountable
- Height: 0.8"
- Width: 6.1"
- Depth: 2.6"
- Weight (Approximate): 1.50 lb
Miscellaneous

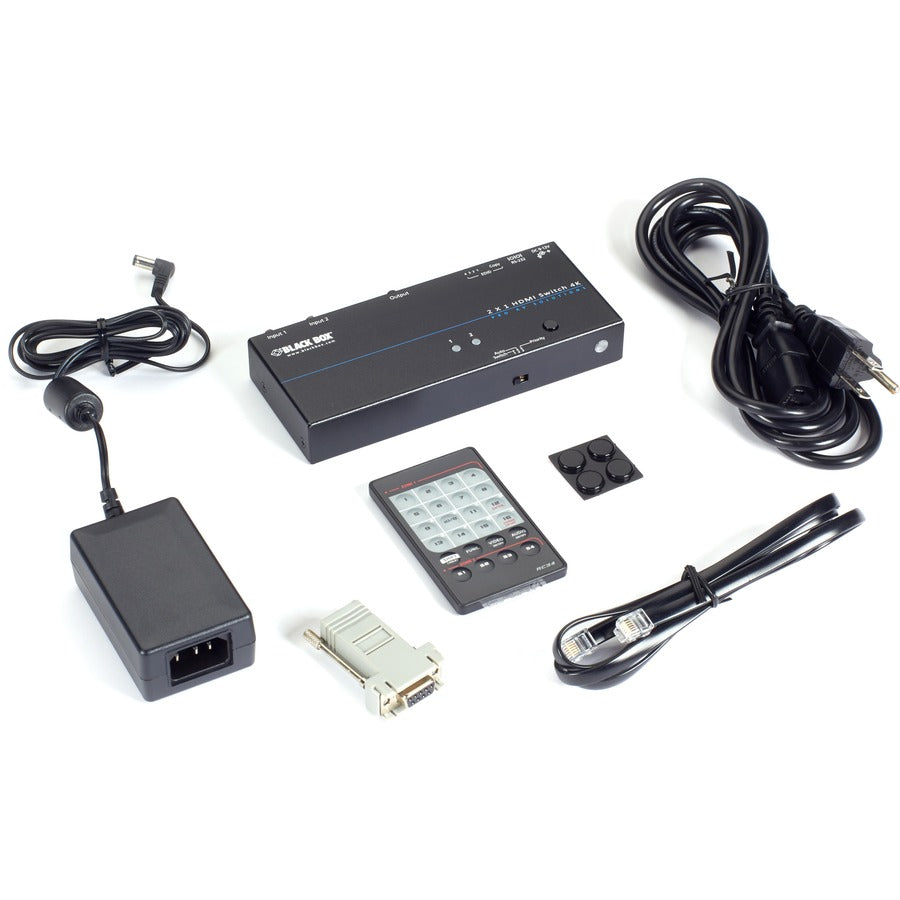

- Package Contents:
- 4K HDMI Switch - 2 x 1
- 1 x Remote Control
- 1 x Universal Power Supply
- 1 x Power Cord
- User Manual
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2
- Country of Origin: Taiwan
Warranty
- Limited Warranty: 3 Year
