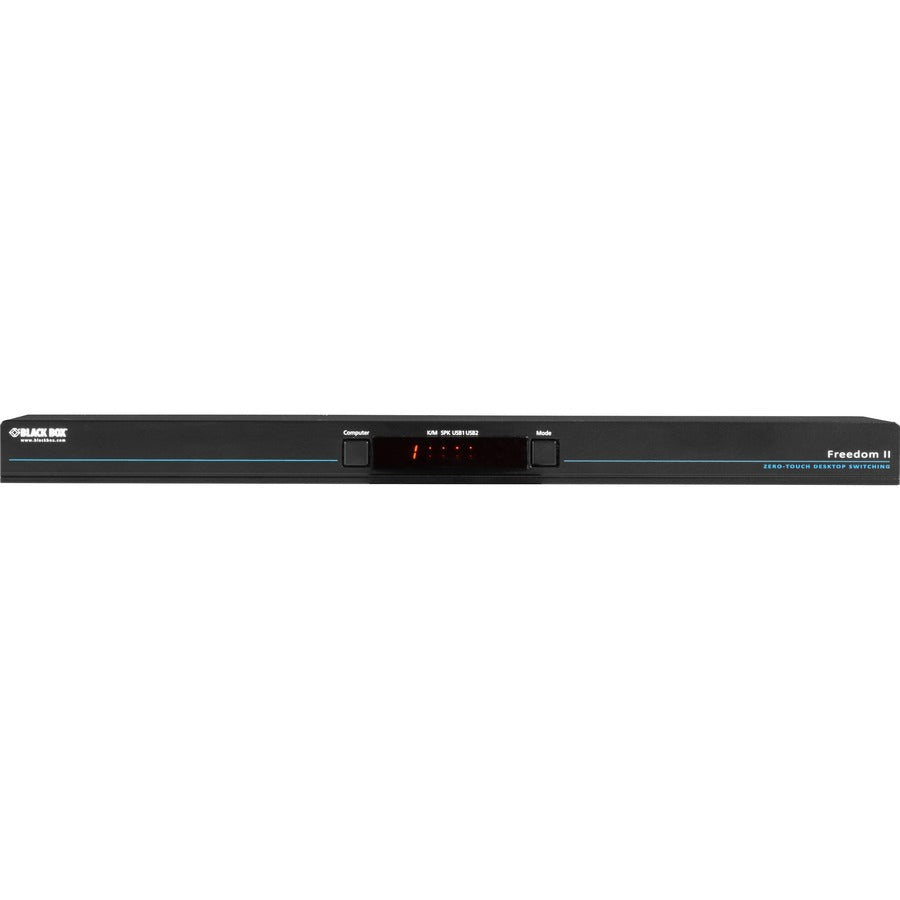

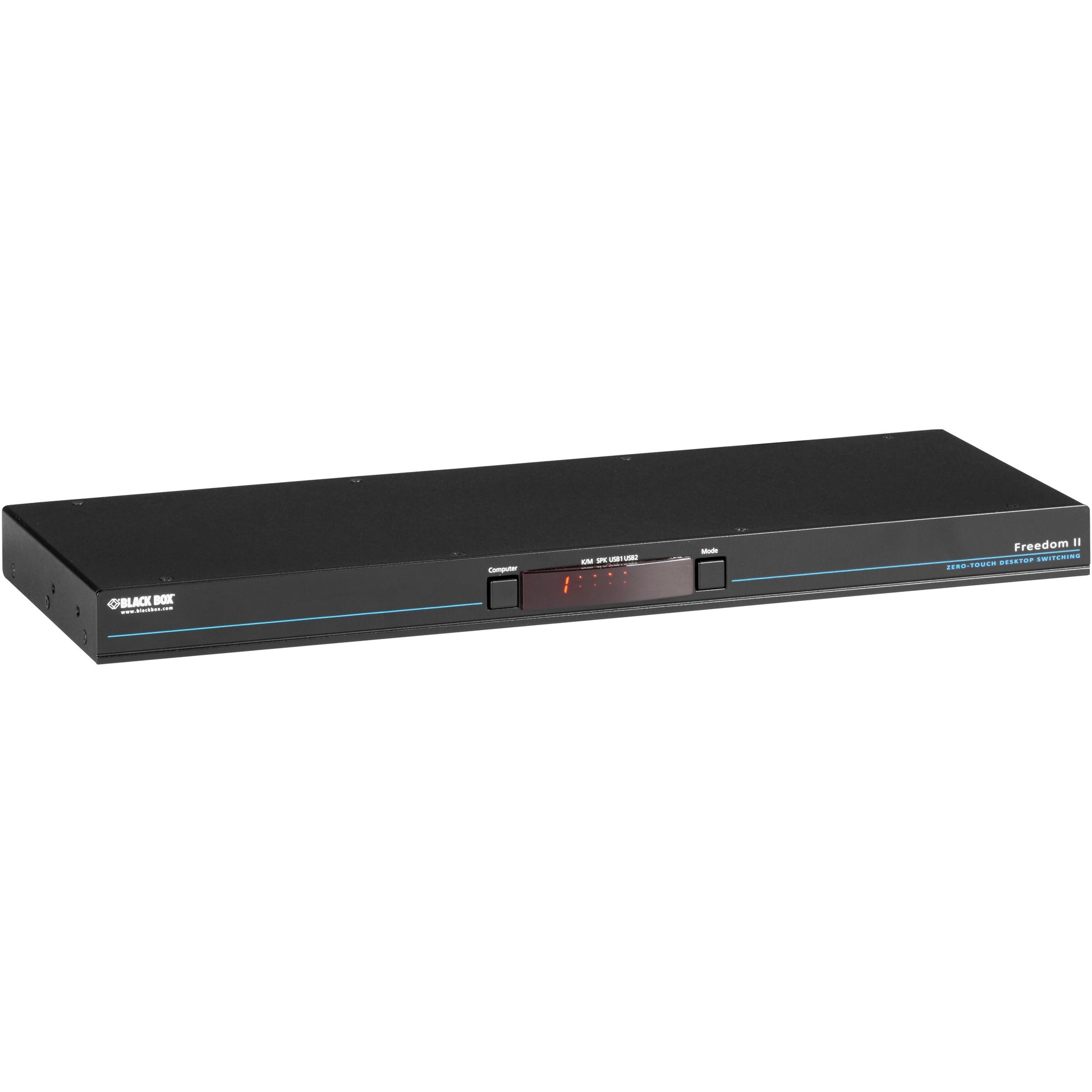

Black Box Freedom II KM Switch - 8-Port - KV0008A-R2
Key Features
- Automatically switch between channels by monitoring the mouse pointer position
- Easy configuration and management using a built-in web server
- Enables a single user to switch between monitors and attached CPUs, and share USB peripherals between them
- Improved desk ergonomic design allows for less clutter on the desk and increases efficiency
- LED Channel Indicators
- Multiple Switching Options using Mouse, Hotkeys or Front Panel
- Supports up to eight external displays
- True USB emulation
- Works with Windows & Mac OS
Product Overview
The Freedom II KM Switch with Glide & Switch enables a single user to easily access information and control operations across the computer systems and monitors, saving time, money, and space. The Freedom II works like an extended desktop switch on a single computer. Once you configure your screen layout for the attached PCs with up to eight external displays, switching ports is as simple as moving your mouse cursor over the screens' X and Y borders.
Freedom is ideal in command and control applications, such as those in finance on a trading room floor. Not only can users switch between several computers just by moving the mouse, but they can also simultaneously access a mix of USB peripherals, including high-speed USB 2.0 devices.
Additionally, the Freedom II KVM Switch integrates with the Black Box Agility IP-based KVM system. This Freedom II KM Switch can interface with Agility receivers, and then switch the Agility targets using just one keyboard and mouse.
The Freedom II KM Switch is ideal for command and control applications such as in:
- Broadcasting
- Public safety
- Industrial
- Defense
- Transportation
General Information
- Manufacturer: Black Box Corporation
- Manufacturer Part Number: KV0008A-R2
- Brand Name: Black Box
- Product Line: Freedom II
- Product Model: KV0008A-R2
- Product Name: Freedom II KM Switch - 8-Port
- Product Type: KM Switchbox
Technical Information
- Number of Computers Supported: 8
- Number of Local Users Supported: 1

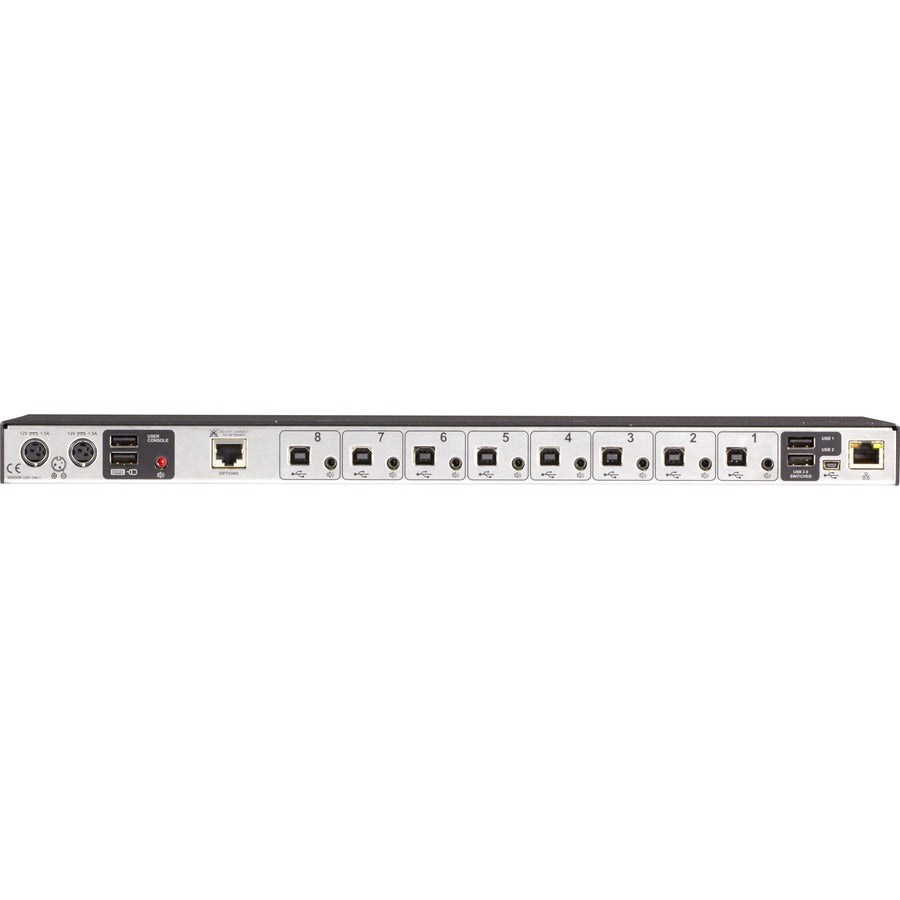

Interfaces/Ports
- Network (RJ-45): Yes
- PS/2 Port: Yes
- USB: Yes
- Number of Network (RJ-45) Ports: 2
- Number of PS/2 Ports: 2
- Number of USB Ports: 13
Power Description
- Input Voltage Range: 120V AC to 230V AC
Physical Characteristics
- Height: 0.2"
- Width: 17.1"
- Depth: 6.2"
Miscellaneous
- Package Contents:
- Freedom II KM Switch - 8-Port
- Power Adapter and Power Cord
- Flash Upgrade Adapter
- 4 x Self-Adhesive Feet
- Compatibility:
Operating Systems Compatible:
- Windows 10
- Windows 11
- Mac OS
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: United Kingdom
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
