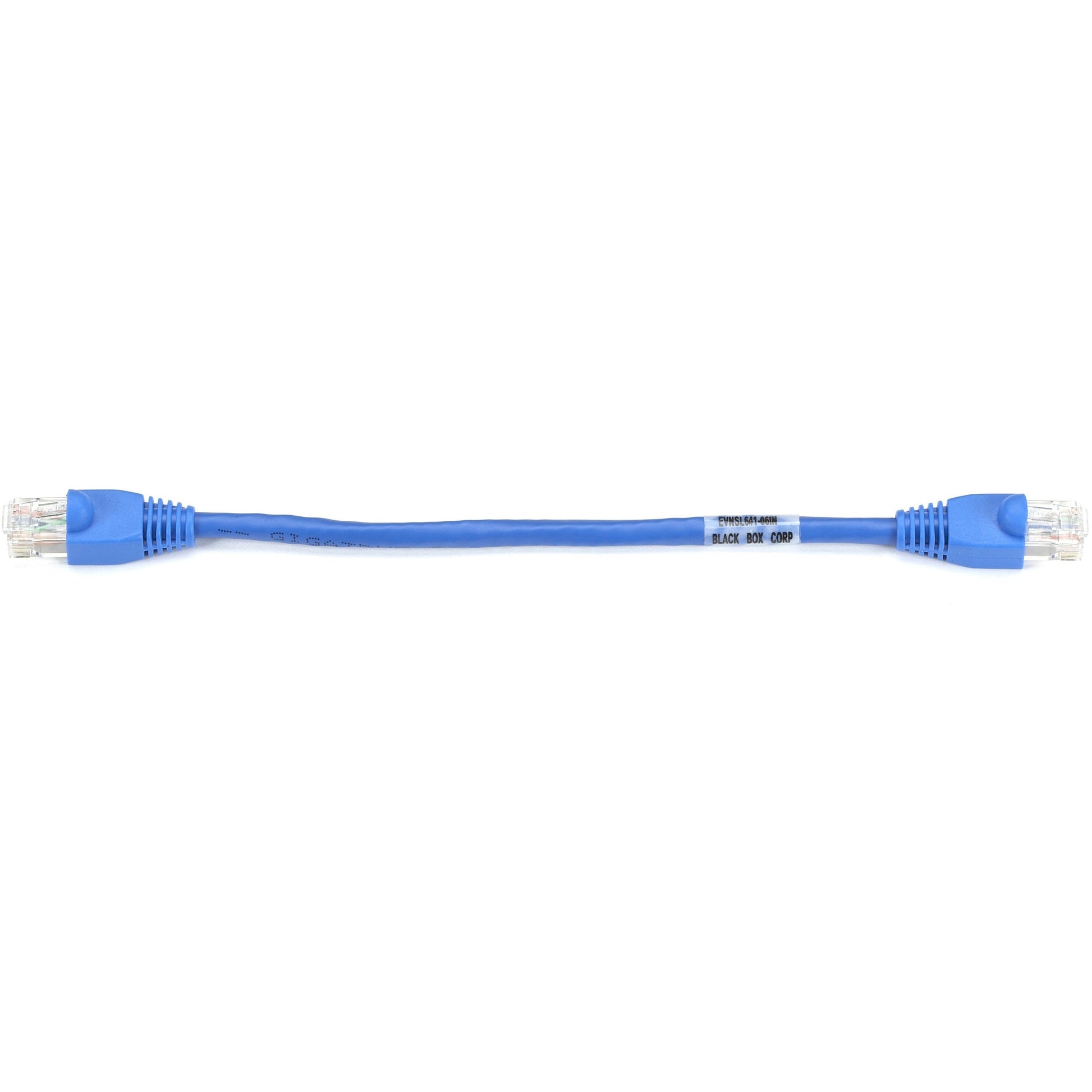

Black Box GigaTrue Cat.6 UTP Patch Network Cable - EVNSL641-06IN
Key Features
- 50-micron gold-plated contacts provide superior conductivity
- Cable Tested to 550 MHz, surpassing 250-MHz CAT6 standard
- Cabling ETL verified to ANSI/TIA-568-C2
- Connector designed for an insertion and extraction life of 750 cycles
- GigaTrue Premium cable constructed to exceed industry standards
- Snagless boots prevent connector damage due to snags during installation
- This cable is ideal for 1000BASE-T, 100BASE-TX, 10BASE-T and other high-speed applications
- This cable offers superior near-end crosstalk (NEXT) compared to standard CAT6 cable
Product Overview
Black Box GigaTrue Premium CAT6 patch cables are constructed to exceed ANSI/TIA industry standards, ensuring optimal performance in bandwidth-intensive Gigabit Ethernet applications and guaranteeing the transmission of your voice, data, audio/video and/or PoE signals. Tested to 550-MHz and 1-Gbps performance, these cables exceed the 250-MHz CAT6 spec, greatly reducing impedance, structural return loss, and near-end crosstalk (NEXT). A robust four-pair 24-AWG construction features 50-micron gold-plated contacts for superior conductivity.
These cables have connectors designed for the insertion and extraction life of 750 cycles, making for an ultra-reliable solution that you can count on to perform. They also feature snagless boots that provide extra strain relief and prevent connector damage due to cable snags during installation. Available in a variety of lengths and colors, Black Box's GigaTrue line of cabling gives you the flexibility to build your install however you want.
General Information
- Manufacturer: Black Box Corporation
- Manufacturer Part Number: EVNSL641-06IN
- Brand Name: Black Box
- Product Line: GigaTrue
- Product Name: GigaTrue Cat.6 UTP Patch Network Cable
- Packaged Quantity: 1 Each
- Product Type: Network Cable
Technical Information
- Cable Type: Category 6
- Cable Characteristic: Patch Cable
- Cable Length: 9"
- Connector Type on First End: RJ-45 Network - Male
- Connector on First End Details: 1 x RJ-45 Network - Male
- Connector Type on Second End: RJ-45 Network - Male
- Connector on Second End Details: 1 x RJ-45 Network - Male
- Contact Plating: Gold
- Shielding: No
- Jacket Type: CM
- Device Supported:
- Patch Panel
- Wallplate
- Network Device
- American Wire Gauge: 24 AWG
- Data Transfer Rate: 1 Gbit/s
- Boot Type: Snagless
- Features:
- Stranded
- Booted
- Strain Relief
- Damage Resistant
- Near End Cross Talk (NEXT)
- PoE
Physical Characteristics
- Color Family: Blue
- Product Color: Blue
- Jacket Material: Polyvinyl Chloride (PVC)
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
