Black Box MediaCento IPX HD Extender Transmitter - HDMI-over-IP - VX-HDMI-HDIP-TX

Black Box MediaCento IPX HD Extender Transmitter - HDMI-over-IP - VX-HDMI-HDIP-TX

Key Features

• Any source to any screen, over IP
• Create eye-catching video walls of up to 8x8 displays
• Extend HDMI video signals over a Gigabit Ethernet network
• Intercompatible with the MediaCento 4k
• Maximum latency 2 frames or 33ms
• PoE power eliminates external power supplies

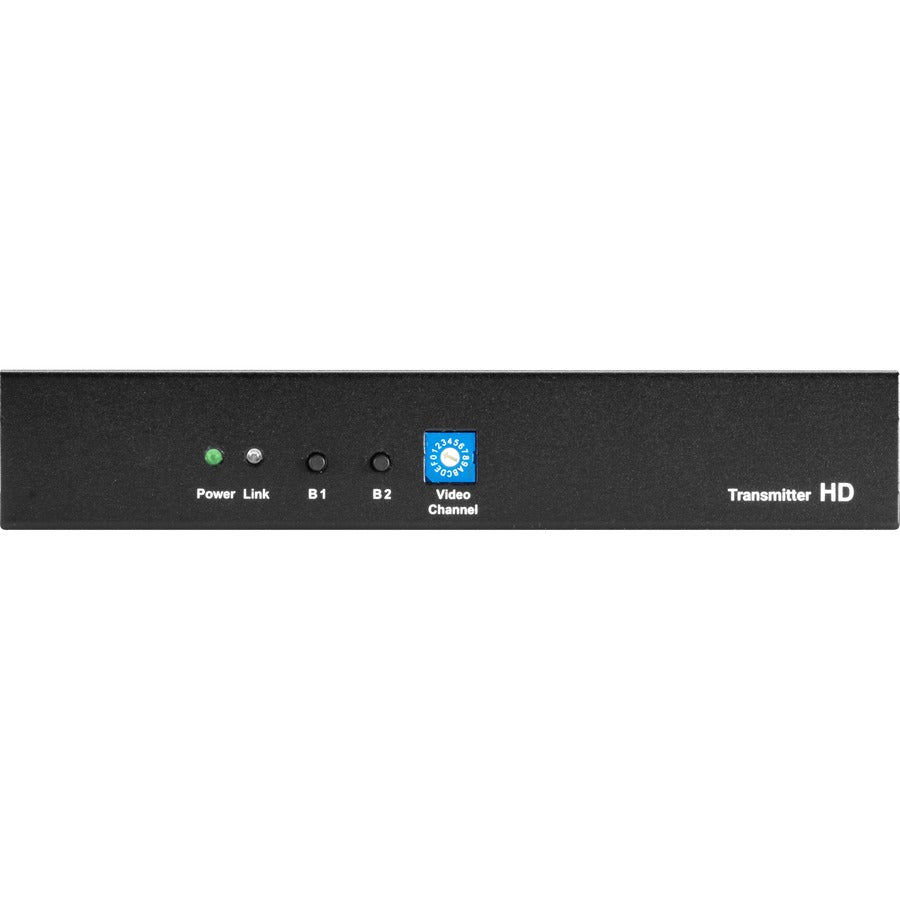

• Setup units using only the front panel interface, no additional configuration required
• Supports up to 1080p HD
• Use with the MediaCento Controller for matrix switching and video wall control

Product Overview

Scalable HD Video Distribution Over Your Existing IP Network

The MediaCento IPX HD is a robust and flexible solution for distributing High Definition (1080p) HDMI video and audio over your existing, standards-based Gigabit Ethernet network using TCP/IP protocols. Its primary benefit is enabling scalable video extension in applications like digital signage, corporate training, classroom streaming, and control room video sharing. It supports both basic point-to-point and large-scale point-to-multipoint configurations, utilizing a multicast setup where one transmitter can drive many receivers without placing extra burden on the network.

Simplified Setup

Setup is significantly simplified by its plug-and-play nature and its PoE power support, which eliminates the need for separate external power supplies. The system ensures excellent picture quality with 1080p HD resolution, an EDID copy function for optimal PC-to-screen performance, and is HDCP 2.2 compliant. It also allows for the creation of video walls up to 8x8 displays and extends signals far beyond the standard 328 feet (100 m) point-to-point distance when network switches are introduced.
