Black Box Pure Networking Transceiver Media Converter - LGC211A-R2
Key Features
- Compliant to EN60950, UL62368, and EN62368
- Converts 10/100/1000BASE-TX to 1000BASE-SX
- Maximum transmission distance up to 550 m
- Supports frame size of 9000 bytes
- Use as a standalone unit or with available chassis (LHGC-RACK)
Product Overview
10/100/1000BASE-TX to 1000BASE-SX
Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-SX. Includes broadcast storm control, flow control, and CRC error checking.
Auto-negotiation
Completely compatible with IEEE802.3/802.3u auto-negotiation function.
Complies with Standards
The media converter meets EN60950, UL62368, and EN62368 standards.
General Information
- Manufacturer: Black Box Corporation
- Manufacturer Part Number: LGC211A-R2
- Brand Name: Black Box
- Product Line: Pure Networking
- Product Name: Pure Networking Transceiver Media Converter
- Packaged Quantity: 1
- Product Type: Transceiver/Media Converter
Interfaces/Ports
- Total Number of Ports: 2
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 1
- Number of SC Ports: 1
- SC Port Type: Duplex
Media & Performance
- Media Type Supported:
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported: Multi-mode
- Fiber Optic Cable Wavelength: 850 nm
- Maximum Distance Supported: 0.55 km
- Fiber Optic Cable Core/Cladding Specification:
- 50/125 µm
- 62.5/125 µm
Network & Communication
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-TX
- 1000Base-SX
Power Description
- Power Source: AC Adapter
- Plug/Connector Type: Barrel
Physical Characteristics
- Form Factor:
- Standalone
- Rack-mountable
- Height: 1"
- Width: 3.7"
- Depth: 2.7"
- Weight (Approximate): 11.20 oz
Miscellaneous

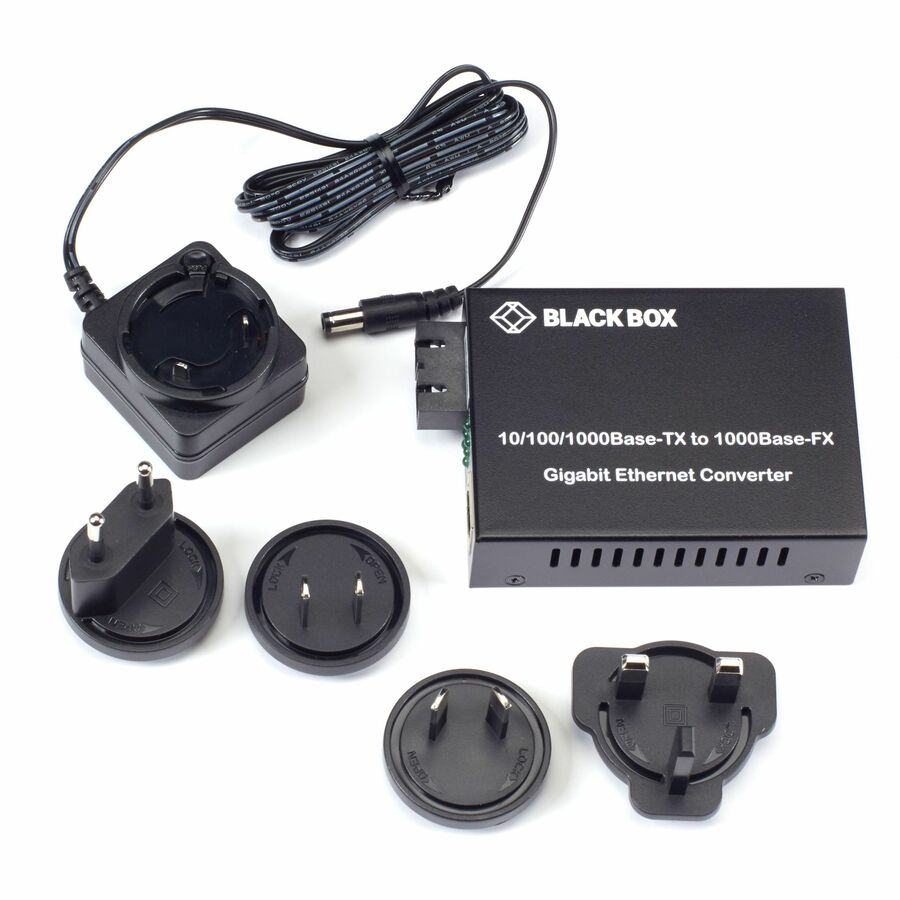

- Package Contents:
- Pure Networking Transceiver Media Converter
- 1 x 5-VDC Power Adapter (US, EU, UK and AU Power Clips)
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Double Diamond Warranty (Standard)
