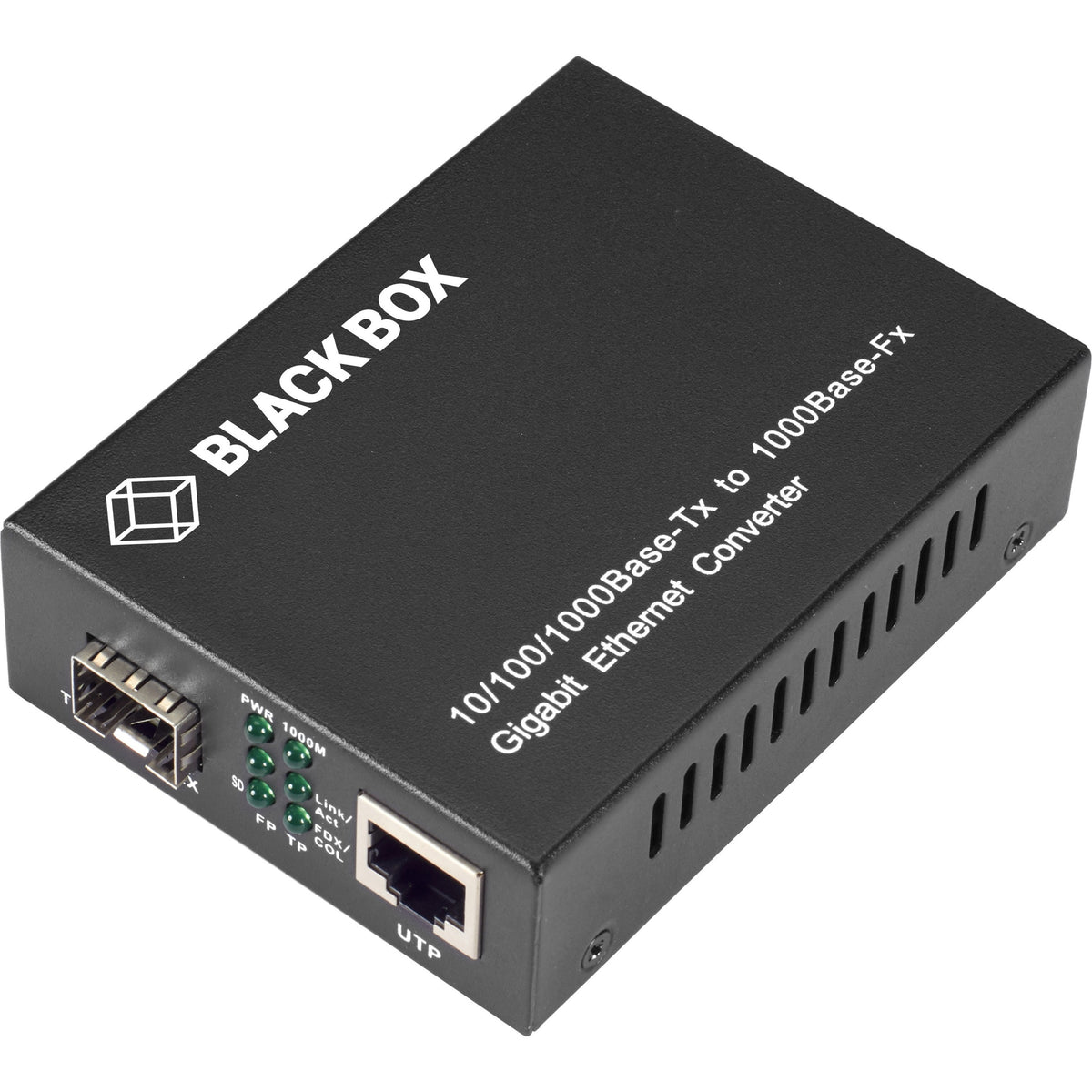

Black Box Pure Networking Transceiver/Media Converter - LGC210A-R2
Key Features
- Compliant to EN62368

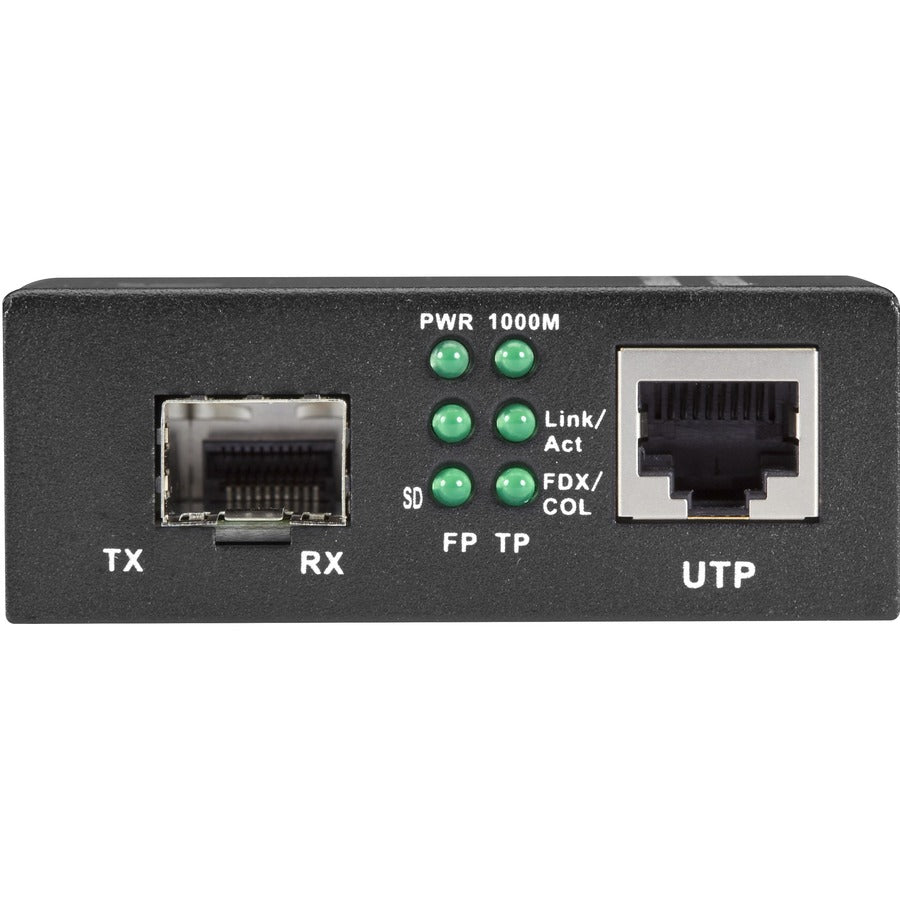

- Diagnostic LEDs on the front panel
- Extend a copper-based network via fiber for a maximum distance of 80 km
- One RJ45 connector
- One SFP slot
- Quick and easy installation
- Use as a standalone unit or with available chassis (LHGC-RACK)
Product Overview
Extend your networkMeet your massive networking needs. This media converter lets you extend your copper-based network via fiber to a maximum distance of 80 km through the use of an SFP. Also, it's quick and easy to install.
Support multiple standards
It meets the standard you need it to. It's fully compliant with IEEE802.3, IEEE802.3U, 10/100/1000BASE-TX, and 1000BASE-FX standards.
Status updates
Know how your media converter is performing. Operation status can be locally monitored through a set of diagnostic LEDs located on the front panel.
General Information
- Manufacturer: Black Box Corporation
- Manufacturer Part Number: LGC210A-R2
- Brand Name: Black Box
- Product Line: Pure Networking
- Product Name: Pure Networking Transceiver/Media Converter
- Packaged Quantity: 1
- Product Type: Transceiver/Media Converter
Interfaces/Ports
- Total Number of Ports: 1
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 1
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported:
- Single-mode
- Multi-mode
- Maximum Distance Supported: 0.10 km
- Fiber Optic Cable Core/Cladding Specification:
- 50/125 µm
- 62.5/125 µm
- 8.3/125 µm
- 9/125 µm
- 10/125 µm
I/O Expansions
- Total Number of Expansion Slots: 1
- Expansion Slot Type: SFP (mini-GBIC)
- Number of SFP Slots: 1
Network & Communication
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-TX
- 1000Base-FX

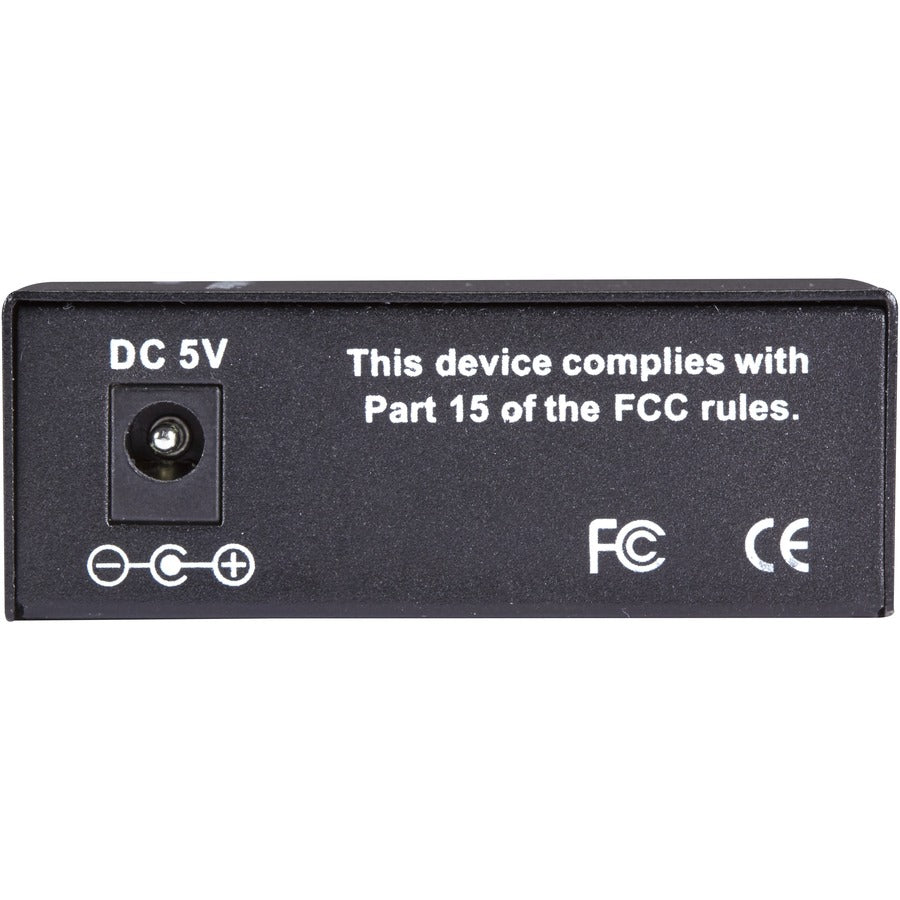

Power Description
- Power Source: Power Adapter
- Plug/Connector Type: Barrel
Physical Characteristics
- Form Factor:
- Standalone
- Rack-mountable
- Height: 1.1"
- Width: 1.8"
- Depth: 7.8"
- Weight (Approximate): 2.56 lb
Miscellaneous

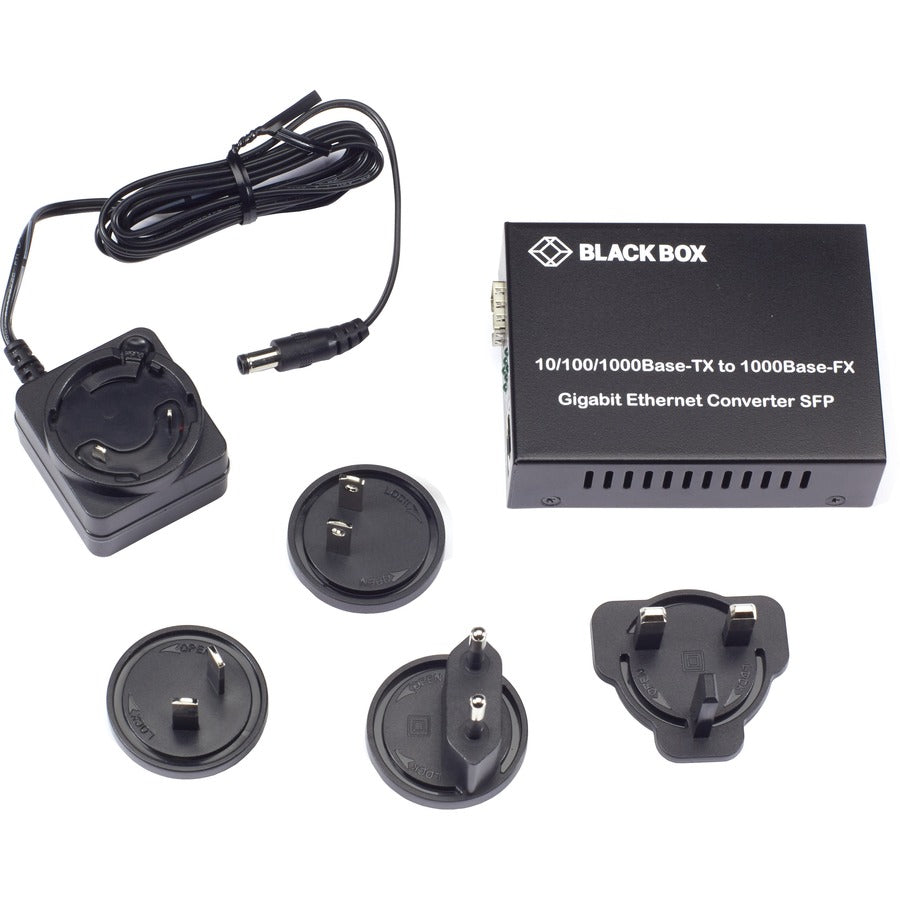

- Package Contents:
- Pure Networking Transceiver/Media Converter
- 1 x 5-VDC Power Adapter
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
Warranty
- Limited Warranty: 1 Year
- Additional Warranty Information: 45 Day Standard Returns Policy
