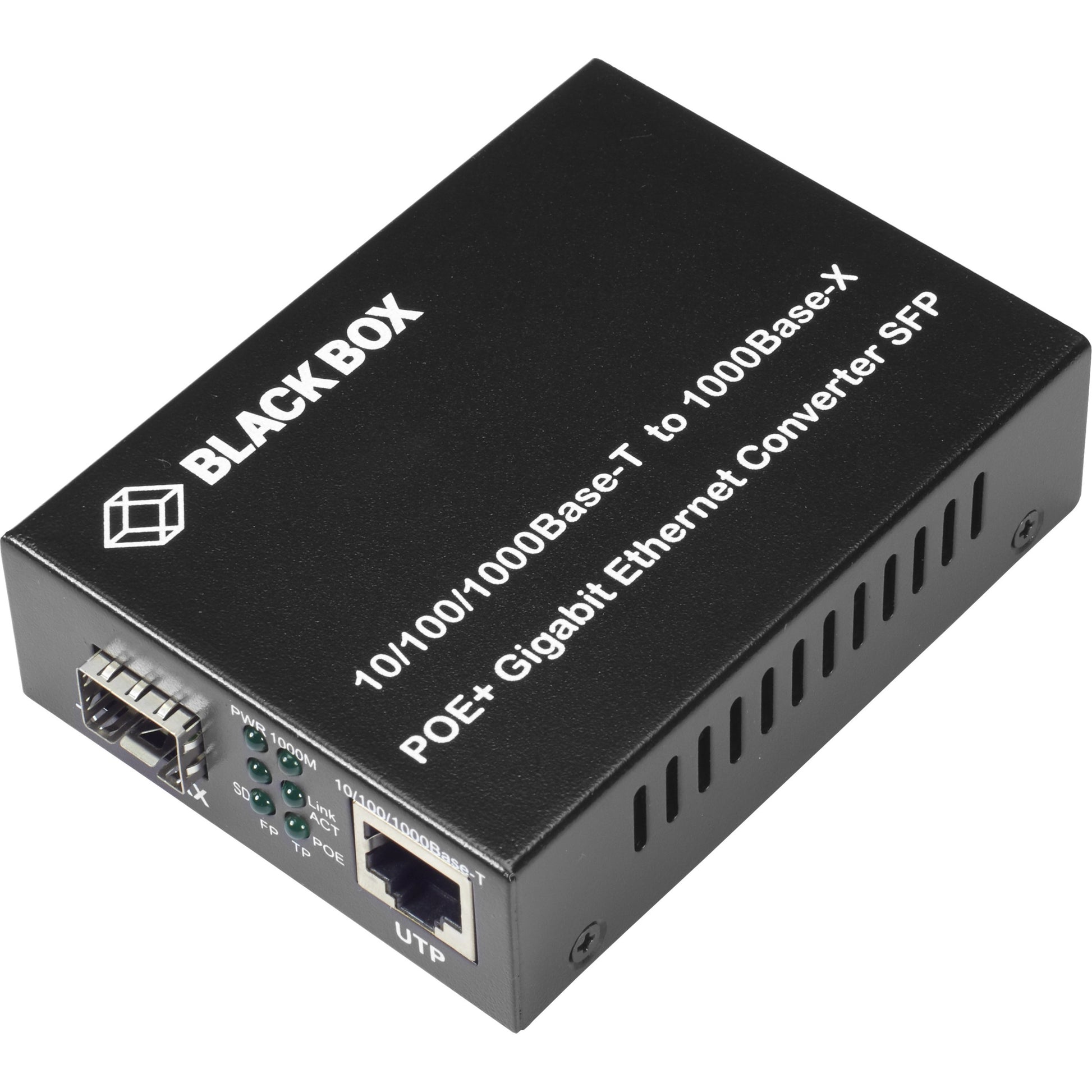

Black Box Pure Networking Transceiver/Media Converter - LGC215A-R2
Key Features
- Compliant to EN62368
- Converts 10/100/1000BASE-T to 1000BASE-X 802.3af/at Ethernet
- Link fault pass-through functionality
- Link Loss Carry Forward and Link Loss Return functionality

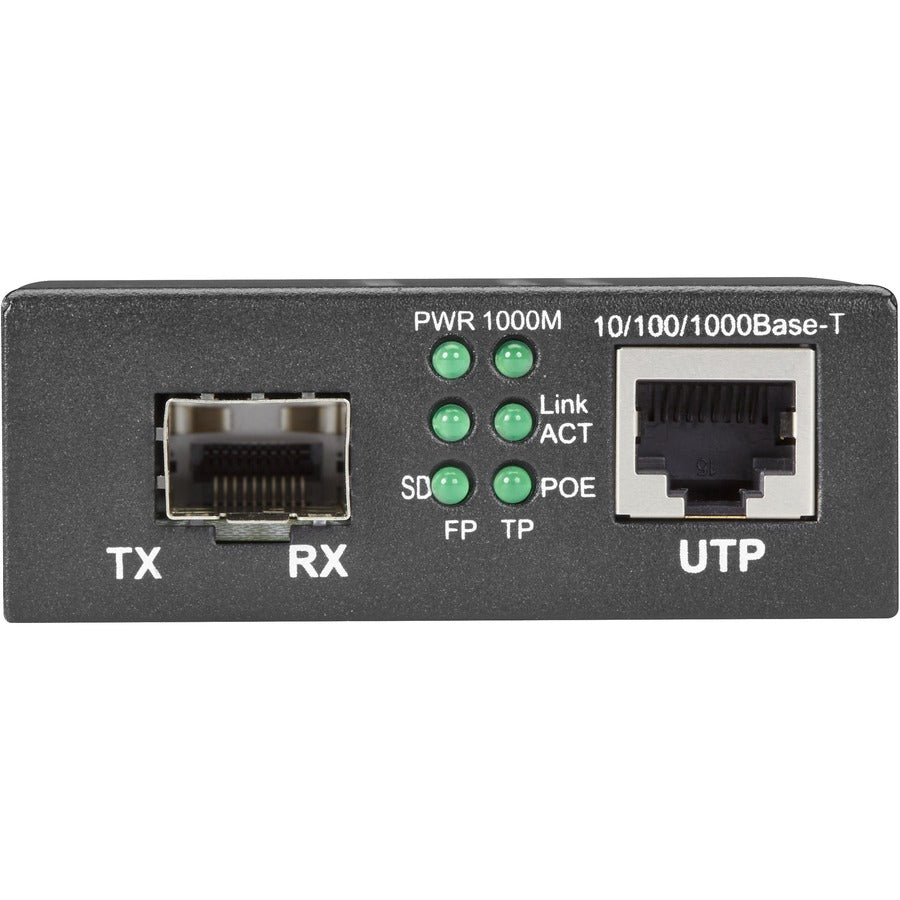

- One RJ45 twisted-pair jack, one fiber-optic connector and four LED indicators
- PoE function
- Standalone media converter (not to be used with chassis)
Product Overview
10/100/1000BASE-T to 1000BASE-X 802.3af/atEasily convert 10/100/1000BASE-T to 1000BASE-X 802.3af/at Ethernet with this PoE converter.
Know link media issues immediately
Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net.
Know where connections are down
Link Loss Carry Forward (LLCF) informs you of failing links. LLCF means when a device connected to the converter and the TP line lose the link, the converter's fiber will disconnect the link of transmit.
General Information
- Manufacturer: Black Box Corporation
- Manufacturer Part Number: LGC215A-R2
- Brand Name: Black Box
- Product Line: Pure Networking
- Product Name: Pure Networking Transceiver/Media Converter
- Packaged Quantity: 1
- Product Type: Transceiver/Media Converter
Interfaces/Ports
- Total Number of Ports: 1
- Network (RJ-45): Yes
- Number of PoE+ (RJ-45) Ports: 1
- PoE Port Type: PD
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported:
- Single-mode
- Multi-mode
- Maximum Distance Supported: 0.10 km
- Fiber Optic Cable Core/Cladding Specification:
- 50/125 µm
- 62.5/125 µm
- 8.3/125 µm
- 9/125 µm
- 10/125 µm
I/O Expansions
- Total Number of Expansion Slots: 1
- Expansion Slot Type: SFP (mini-GBIC)
- Number of SFP Slots: 1
Network & Communication
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 1000Base-T
- 1000Base-X
- 100Base-FX
Power Description
- Power Source: Power Adapter
- Power Consumption: 33 W
- Plug/Connector Type:
- Barrel
- C13/C14
Physical Characteristics
- Form Factor: Standalone
- Height: 1"
- Width: 3.7"
- Depth: 2.7"
- Weight (Approximate): 11.20 oz
Miscellaneous

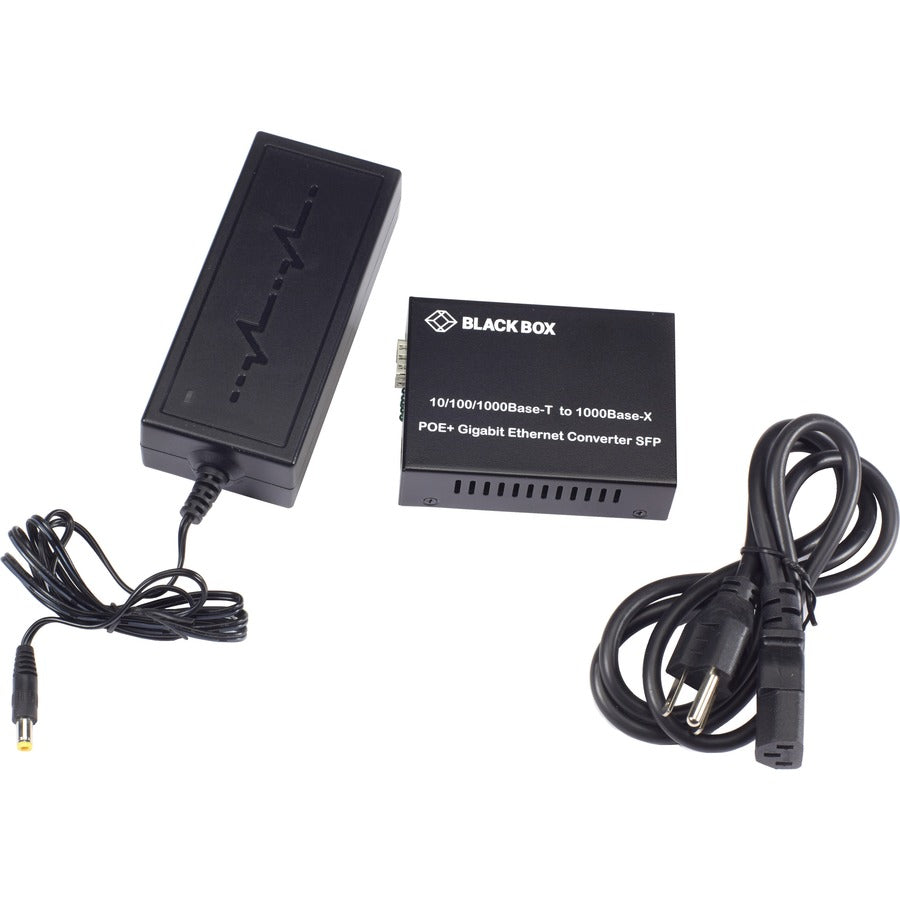

- Package Contents:
- Pure Networking Transceiver/Media Converter
- 1 x 48-VDC Power Supply
- 1 x Power Cord
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: 45 Day Standard Returns Policy
