BrightSign XT2145 Digital Signage Appliance - XT2145
Key Features
- Delivers the highest quality video in resolutions from 1080p to brilliant 8K60p 10-bit video
- Dual HDMI 4K outputs
- Dual USB, serial, GPIO, IR, digital/analog audio
- HDMI Input for live TV
- Offers a comprehensive set of connectivity options
- Power over Ethernet POE+
- Runs BrightSignOSTM delivering security, reliability & longevity
- Runs highly responsive motion graphics at high frame rates
- Supports dual 4K video decoding to drive two screens at once

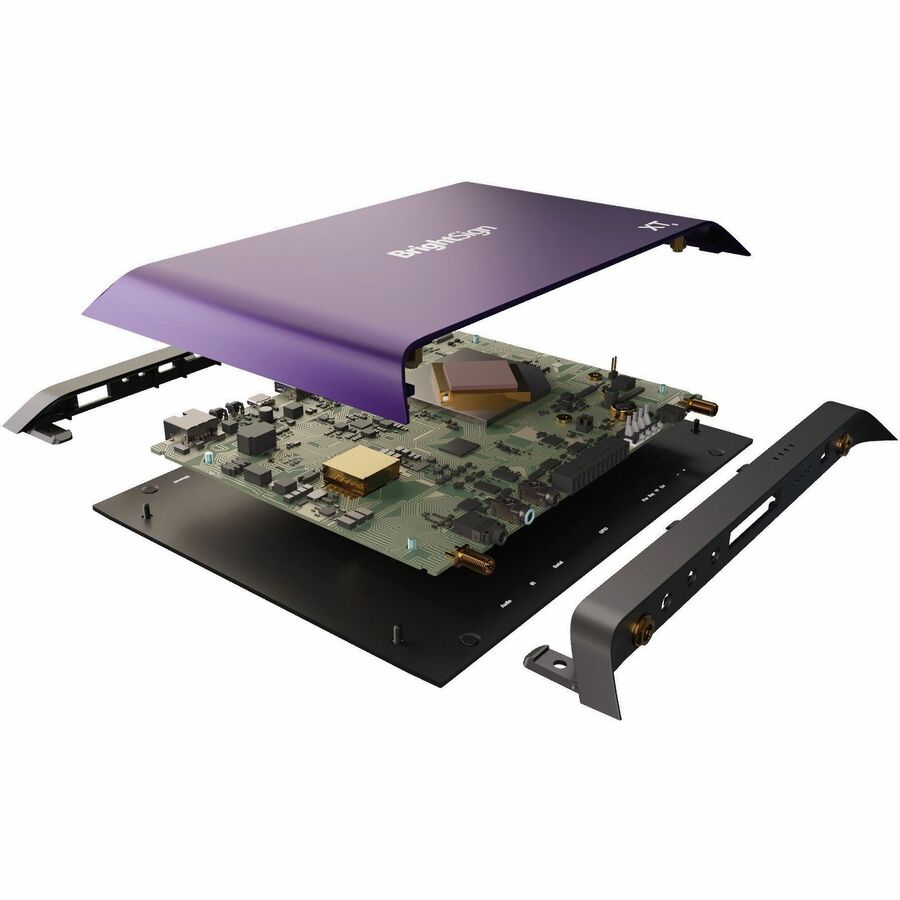

- Ultra-thin design with anodized aluminum enclosure
Product Overview
BRIGHTSIGN XT5 | THE PERFECT COMBINATION OF POWER AND PERFORMANCE
BrightSign XT5 future proofs deployments with confidence by delivering power, performance, and flexibility to create captivating experiences. This product line consists of three ultra-thin models, all capable of playing the highest quality video up to 8K resolution and running sophisticated HTML motion graphics with remarkable o performance. XT5 offers the most extensive set of HDMI and connectivity ports. Its HDMI input option plays live TV or video from outside sources. Dual HDMI outputs can power two screens simultaneously for video walls or dual-screen signage applications. Streamline installations with Power over Ethernet PoE+ and utili[e a comprehensive set of I/Os for add-on devices and engagement. BrightSign XT5's versatility and power guarantees exceptional signage experiences for years to come.
General Information
- Manufacturer: BrightSign, LLC
- Manufacturer Part Number: XT2145
- Brand Name: BrightSign
- Product Series: XT5
- Product Model: XT2145
- Product Name: XT2145 Digital Signage Appliance
- Product Type: Digital Signage Appliance
Technical Information
- Video Wall Compatible: Yes
Display & Graphics
- High Dynamic Range (HDR): Yes
- High Dynamic Range (HDR) Type:
- Dolby Vision
- HDR10+
Video
- Scan Format: 2160p
Network & Communication
- Ethernet: Yes
Interfaces/Ports
- USB: Yes
- HDMI: Yes
- Serial: Yes
- Number of HDMI Outputs: 2
Software
- Operating System: BrightSign OS
Power Description
- Input Voltage: 12 V DC
Physical Characteristics
- Height: 0.8"
- Width: 9.4"
- Depth: 7.3"
- Weight (Approximate): 1.39 lb
Environmental Conditions
- Minimum Operating Temperature: 14°F (-10°C)
- Maximum Operating Temperature: 122°F (50°C)
