Purpose-Built Playback Hardware That Runs for Years Without a Reboot

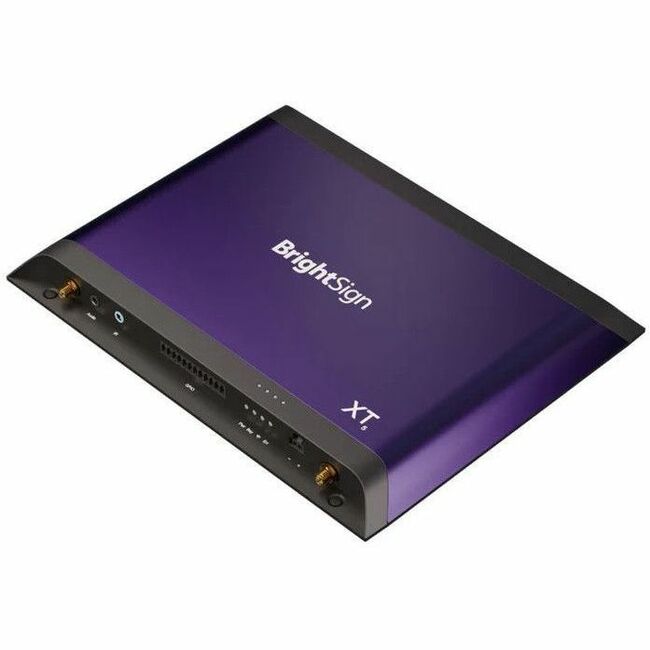

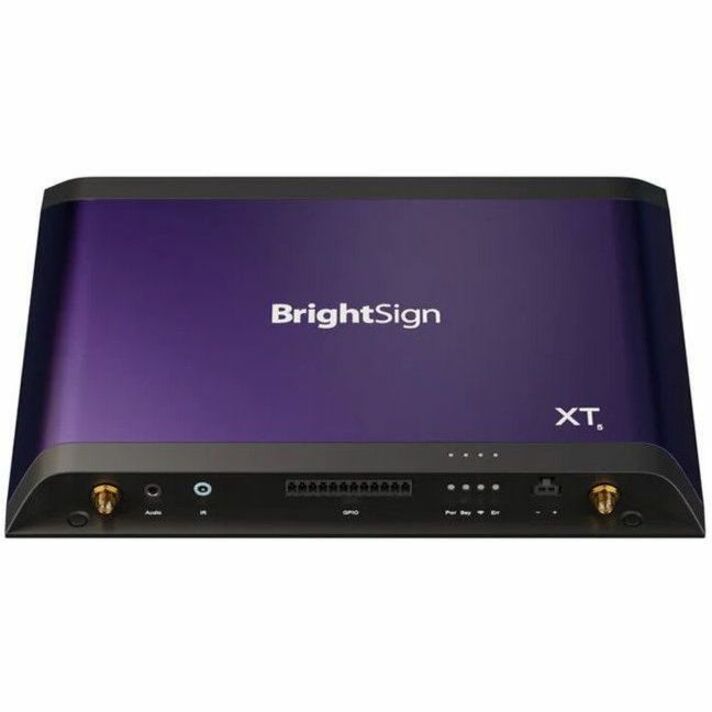

A digital signage player is the small appliance that sits behind the screen and does one job: pull content, decode it, and put it on the display without drifting, crashing, or needing a person to touch it. The XT245 is BrightSign's Standard I/O entry into the XT5 series, running BrightSign OS rather than Windows or Android, which is why signage deployments choose this class of hardware over a repurposed PC. It decodes HDR content up to 7680 x 4320 with Dolby Vision, HDR10+, and HDR10 support, and it is rated for video wall configurations. See the rest of the digital signage and commercial displays range, or browse related pro video and signal gear, at Island Electrical Supply.
How It Works
Content is delivered to the player over the RJ-45 Ethernet port or loaded via USB, then decoded and sent out over HDMI to the attached display. Because the unit draws Power over Ethernet, a single run of cable can carry both the content and the power to a screen position, which removes the need for an outlet behind every display. Where a local supply is preferred, the player accepts 12 V DC instead.
Deployment Notes
- The chassis measures 9.4 by 7.3 by 0.8 inches and weighs 1.5 lb, so it mounts behind a panel or inside a fixture rather than occupying rack space.
- Operating range runs from 14 to 122 degrees Fahrenheit, which covers unconditioned back-of-house spaces, vestibules, and enclosed display housings.
- Serial and USB connections are available for peripheral control and local media, alongside the network port.
- Video wall compatibility means multiple units can be configured to drive a tiled array of screens.
Highlights
- 8K-class decoding: display resolution support to 7680 x 4320, scaling down cleanly to 1080p signage content.
- Full HDR stack: Dolby Vision, HDR10+, and HDR10 for accurate color and contrast on capable panels.
- BrightSign OS: a purpose-built signage operating system, not a general-purpose desktop OS repurposed for playback.
- Power over Ethernet: one cable for data and power, with a 12 V DC input as the alternative.
- One-year limited warranty from BrightSign.
