C2G 2-Port 4K HDMI Splitter - 41057
Key Features
- HDCP 1.4 Compliant
- One HDMI input and two HDMI outputs
- Supports 340MHz/3.4Gbps per channel
- Supports 3D formats
- Supports 8, 10 & 12bit per channel deep color
- Supports DTS-HD, Dolby TrueHD, DTS, Dolby AC3 & DSD Audio
- Supports resolutions up to 3840 x 2160 at 30hz
Product Overview
The 2-Port HDMI Distribution Amplifier Splitter 4K 30Hz is a 1-Input 2-Output splitter supporting up to 4K (4096 x 2160 at 30hz, 4:4:4) video, ideal for applications utilizing the HDMI 1.4 standard. A perfect solution for connecting a computer, Blu-ray™ player, gaming console, media server, or A/V receiver to two HDMI displays.The HDMI distribution amplifier splitter is HDCP 1.4 compliant and supports exceptional 4K UltraHD resolutions up to 4096 x 2160 at 30hz, handling total HDMI data rates up to 10.2Gbps.
Supported resolutions
4096 x 2160 at 30Hz, 4:4:4
4096 x 2160 at 60Hz, 4:2:0
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: 41057
- Brand Name: C2G
- Product Name: 2-Port HDMI Splitter - 4K 30Hz (TAA)
- Product Type: Signal Splitter
Video
- Maximum Video Resolution: 3840 × 2160
- Maximum Video Bandwidth: 340 MHz
Interfaces/Ports
- HDMI In: Yes
- HDMI Out: Yes
- Number of HDMI Inputs: 1
- Number of HDMI Outputs: 2
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
- Height: 0.9"
- Width: 2.2"
- Depth: 4.1"
- Weight (Approximate): 12.06 oz
Miscellaneous
- Package Contents:
- 2-Port HDMI Splitter - 4K 30Hz (TAA)

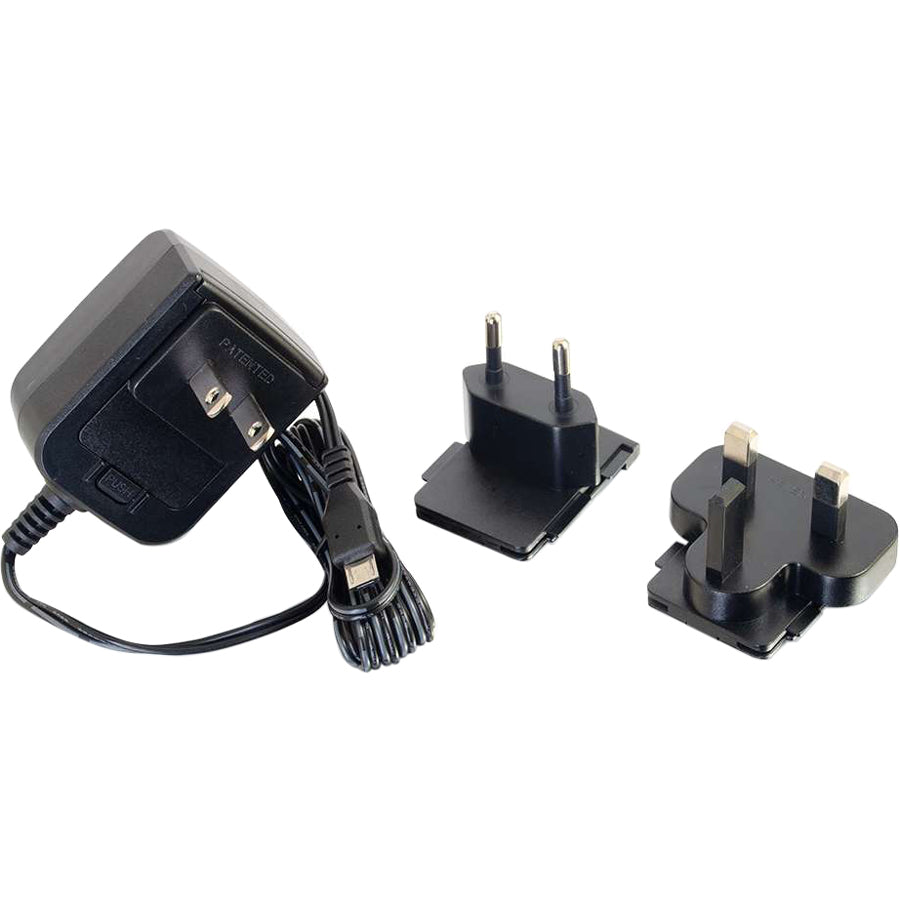

- Universal Power Adapter (US/UK/EU)
- Quick Start Guide
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2
Warranty
- Limited Warranty: 3 Year
