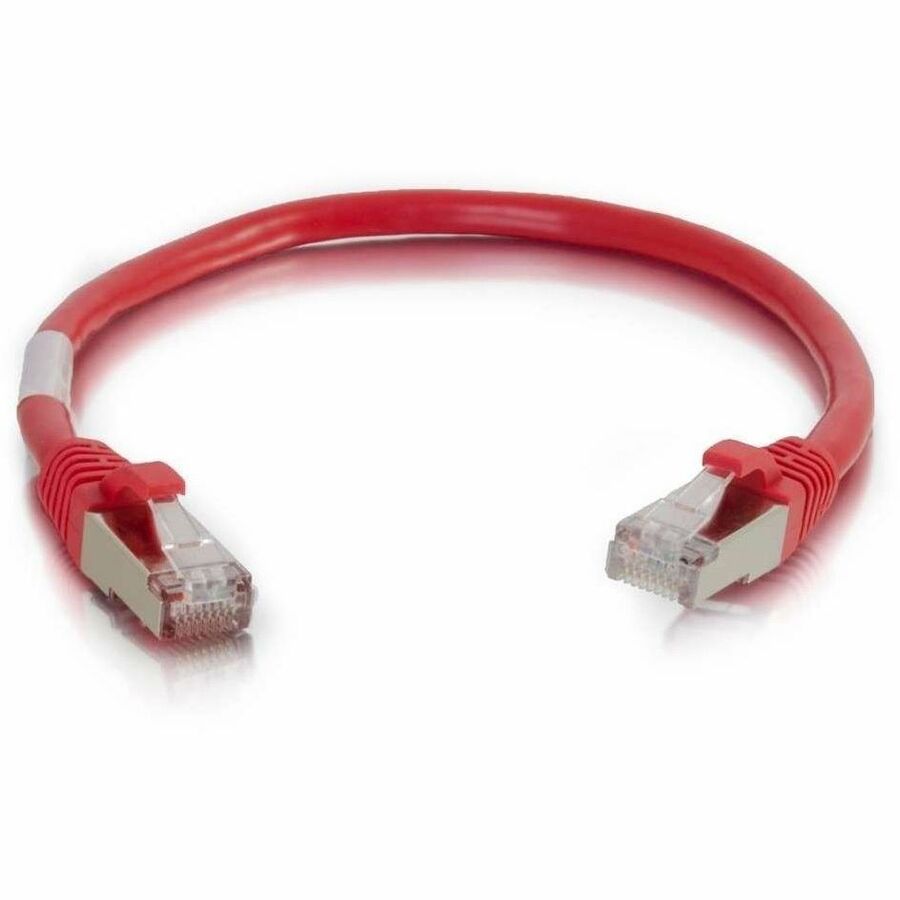

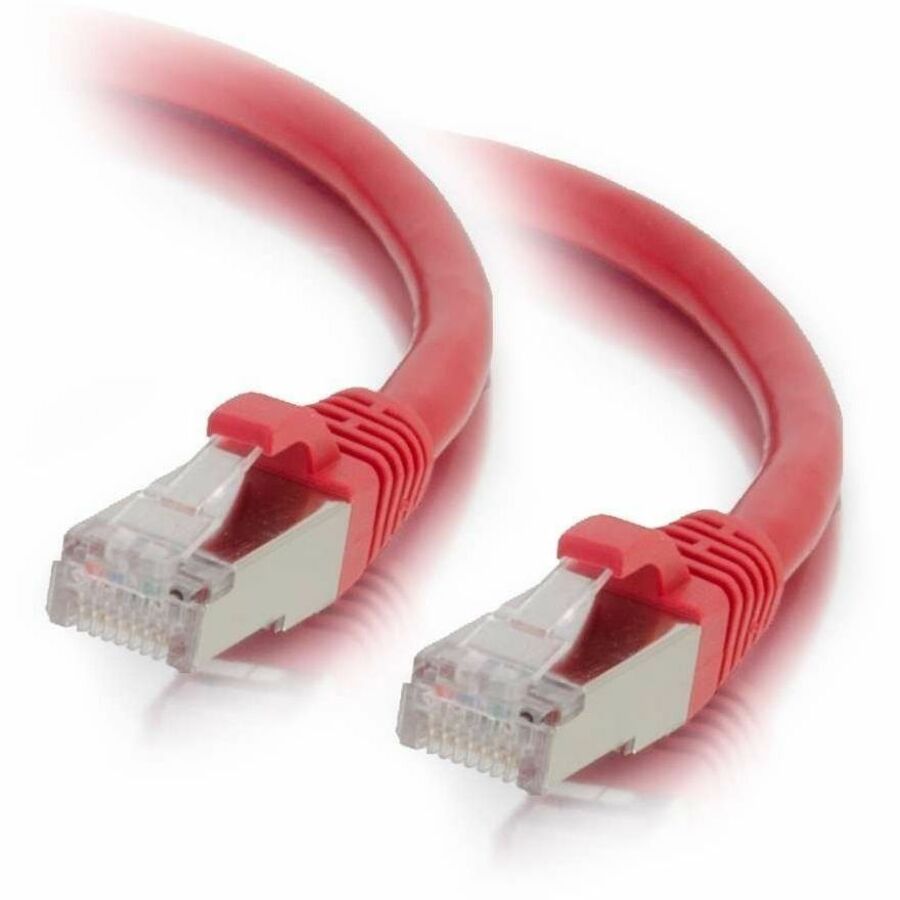

C2G 6ft Cat6 Ethernet Cable - Snagless Shielded (STP) - Red - 00847
Key Features
- Available in a variety of colors to color-code a network
- Constructed with shielded twisted pair (STP) wires, designed to protect a high speed network from noise and electromagnetic interference
- Designed for network adapters, hubs, switches, routers, HDBaseT applications and more
- Meets the ANSI/TIA-568-C.2 Cat6 requirements for supporting a wide variety of applications

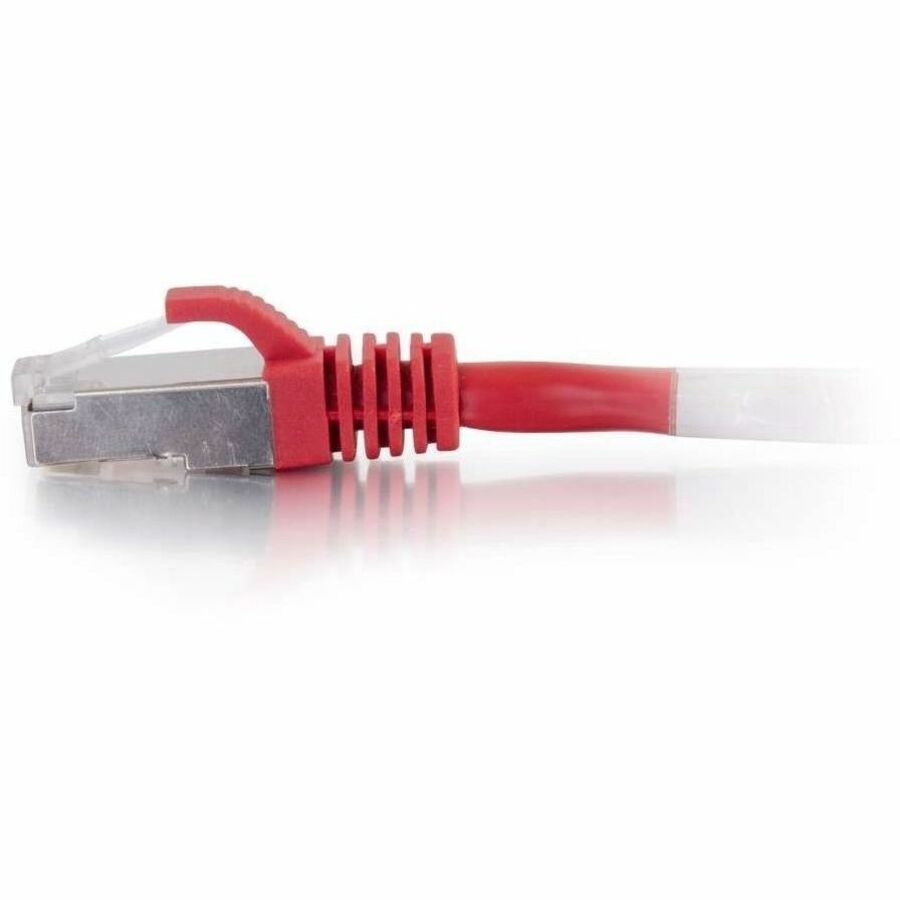

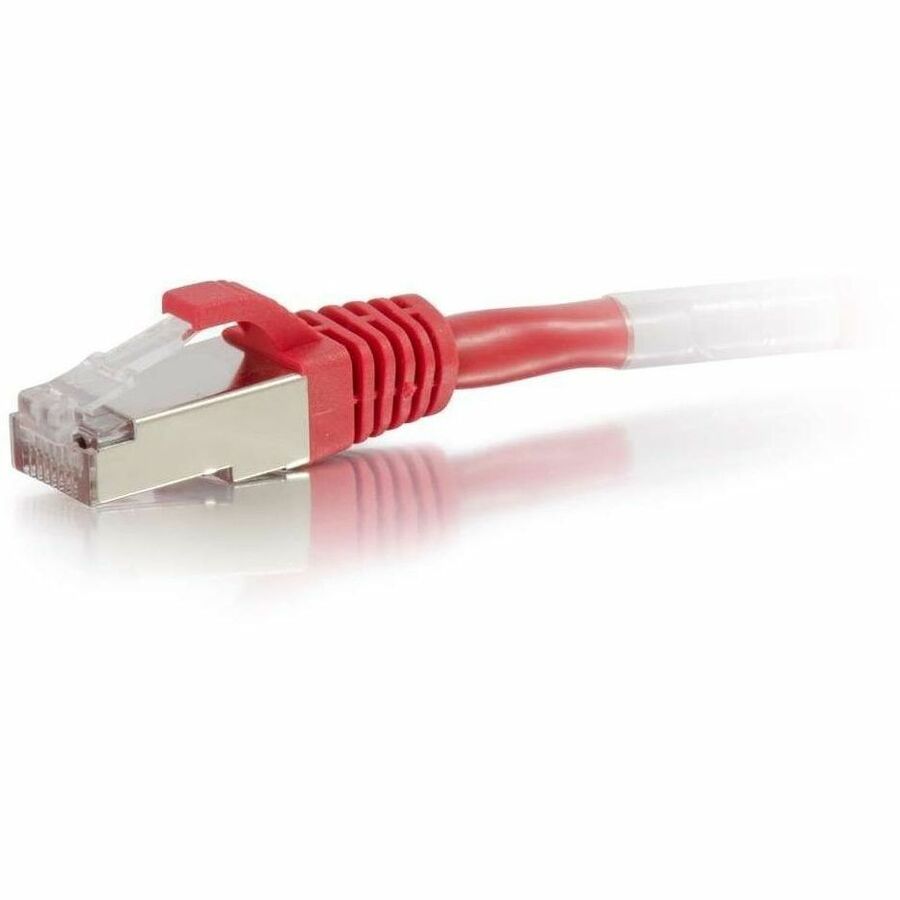

- Snagless connector design for high density environments and protecting the RJ-45 connector's lock
- Supports 10 Gigabit networks up to 180ft for fast data transmission and maximum performance and supports 1 Gigabit up to 328ft
Product Overview
Protect a high speed network from noise and electromagnetic interference when connecting with our Snagless Shielded Cat6 patch cable. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: 00847
- Brand Name: C2G
- Product Name: 6ft Cat6 Snagless Shielded STP Ethernet Network Patch Cable - Red
- Product Type: Network Cable
Technical Information
- Cable Type: Category 6
- Cable Characteristic: Patch Cable
- Cable Length: 6 ft
- Connector Type on First End: RJ-45 Network - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x RJ-45 Network - Male
- Connector Type on Second End: RJ-45 Network - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x RJ-45 Network - Male
- Connector Plating:
- Gold
- Nickel
- Shielding: Yes
- Jacket Type: Standard Non-rated
- Device Supported:
- Network Device
- Hub
- Switch
- Router
- Network Adapter
- Data Transfer Rate: 10 Gbit/s
- Boot Type:
- Snagless
- Molded
- Features:
- Stranded
- Molded
- Minimized Near-End Crosstalk (NEXT)
- EMI Protection
- Noise Reducing
Physical Characteristics
- Color Family: Red
- Product Color: Red
- Jacket Material: Polyvinyl Chloride (PVC)
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin: Vietnam
Warranty
- Limited Warranty: Lifetime
