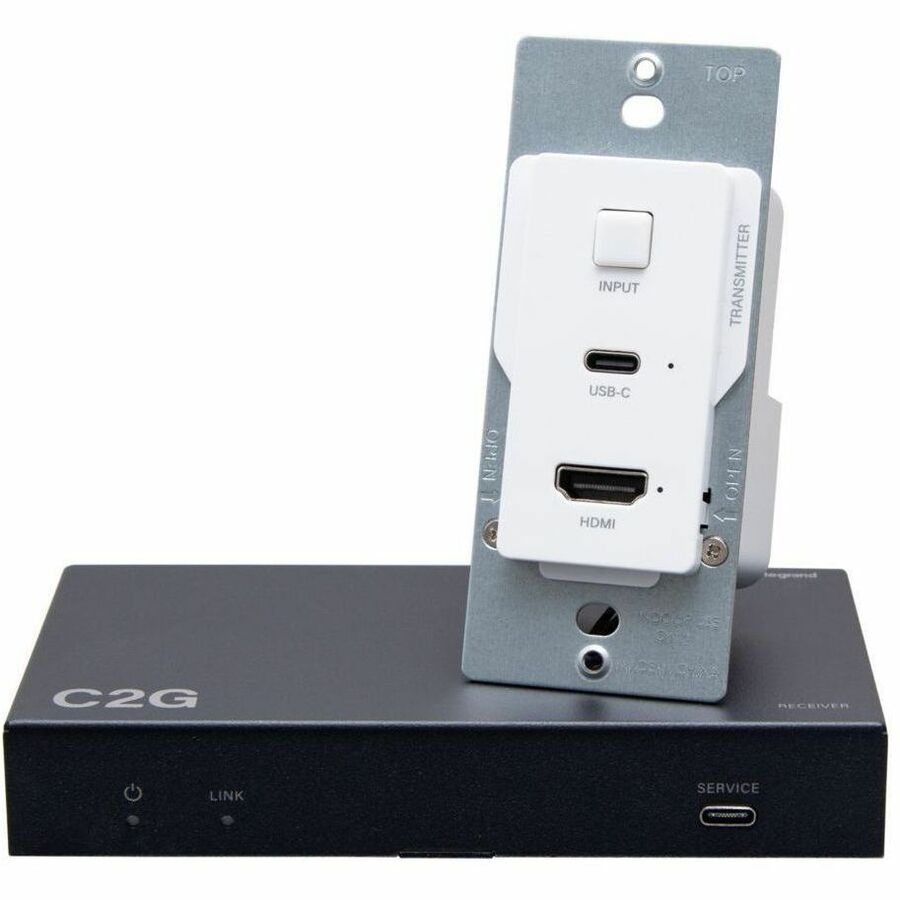

C2G HDMI® HDBaseT + USB-C® Data and Video over Cat Extender Wall Plate Transmitter to Box Receiver - 4K - C2G31029
Key Features
- 18V/2.5A Universal Power Supply with US/EU/UK/AU Plug Converters Included
- Extends uncompressed HDMI and USB-C video signals, RS-232 control, and USB 2.0 data over a single CAT6a cable, supporting distances up to 230 ft (70 m) for 1080p or 130 ft (40 m) for 4K@60Hz HDMI and 4K@30Hz USB signals.
- HDCP 2.2 compliant ensures a secure connection between the source and display
- HDMI output on the receiver supports downscaling from 4K 60Hz to 1080p, without frame rate conversion
- Transmitter supports manual and automatic switching (following the last-in-first-out rule)
- Two USB-A ports on the receiver supporting output power up to 5V/1.4A
- USB-C port supports 4K 30Hz video transmission via DP Alt Mode (v1.2a) and USB 2.0 data transfer.
Product Overview
The HDMI™ HDBaseT + USB-C® Data and Video over Cat Extender Wall Plate Transmitter to Box Receiver - 4K extends a 4K HDMI source, USB 2.0, and RS-232 control signals over a single Cat6a Ethernet cable.It supports distances of up to 230ft (70m) for 1080p output or 130ft (40m) for 4K60Hz HDMI and 4K30Hz USB output.This is an ideal solution where USB Video and Data signals must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling. This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure.
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: C2G31029
- Brand Name: C2G
- Product Name: C2G HDMI® HDBaseT + USB-C® Data and Video over Cat Extender Wall Plate Transmitter to Box Receiver - 4K
- Product Type: Video Extender Transmitter/Receiver
Technical Information
- Connectivity Technology: Wired
- Maximum Operating Distance: 229.66 ft
- HDBase-T: Yes
Video
- Graphics Modes: 4K
- Supported Video Modes: 1080p
- Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
- Network (RJ-45): Yes
- HDMI In: Yes
- HDMI Out: Yes
- USB: Yes
- Number of Network (RJ-45) Ports: 2
- Number of USB Ports: 4
- Number of HDMI Inputs: 1
- Number of HDMI Outputs: 1
Media & Performance
- Twisted Pair Cable Standard: Category 6a
Physical Characteristics
- Product Color: White/Black
- Transmitter Height: 4.19"
- Receiver Height: 0.91"
- Receiver Depth: 2.95"
- Form Factor:
- Wall Mountable
- Wall Plate
- Transmitter Weight (Approximate): 4.97 oz
- Receiver Weight (Approximate): 11.04 oz
Miscellaneous
- Package Contents:
- Mounting Hardware
- Power Adapter
- Wall Plate
- Application/Usage:
- Commercial
- Conference Room
- Classroom
- Lecture Hall
- Display
- Country of Origin: China
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
