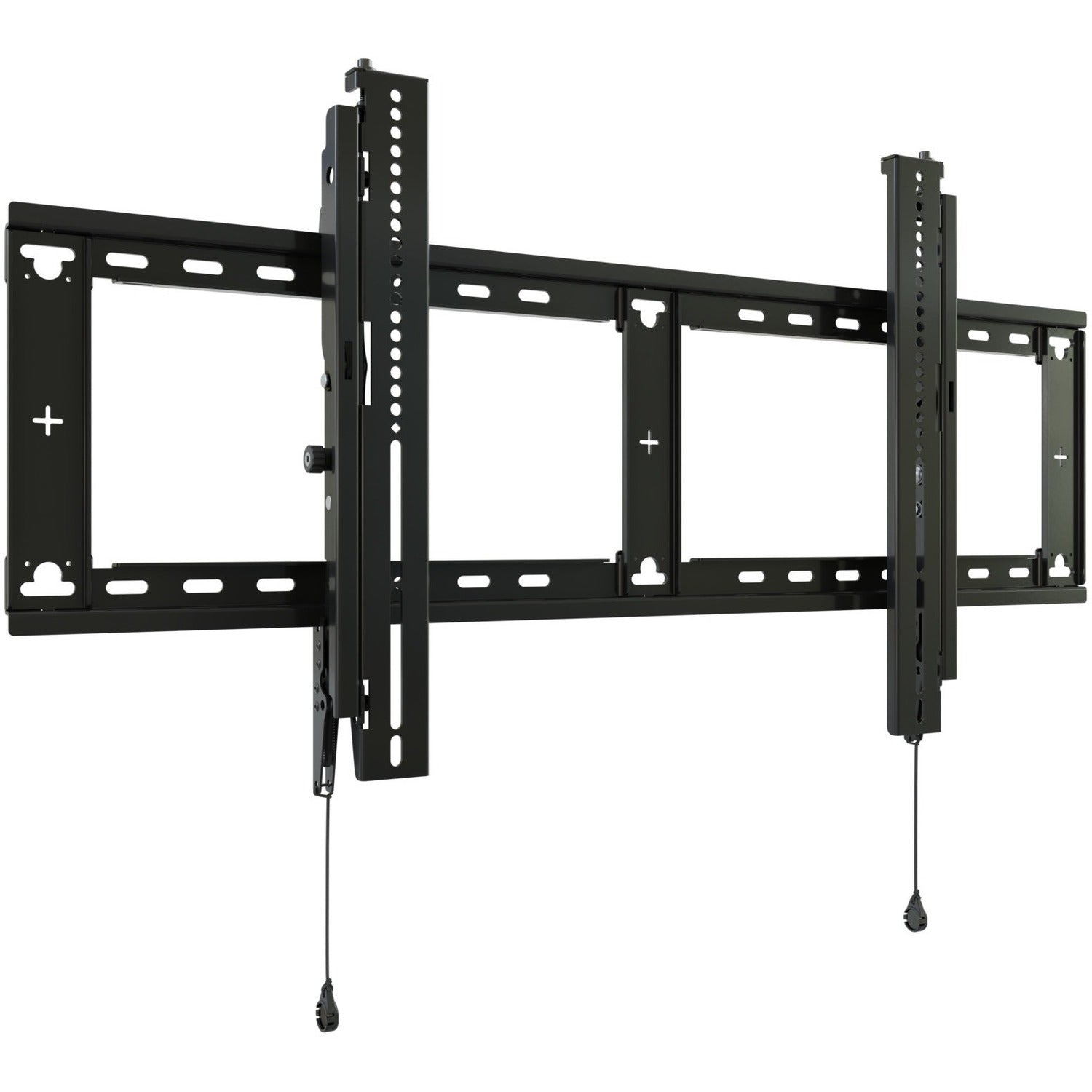

Chief Fit Large Tilt Display Wall Mount - For 43-86 inch Displays - Tilt TV Mount - VESA Wall Mount - RLT3
Key Features

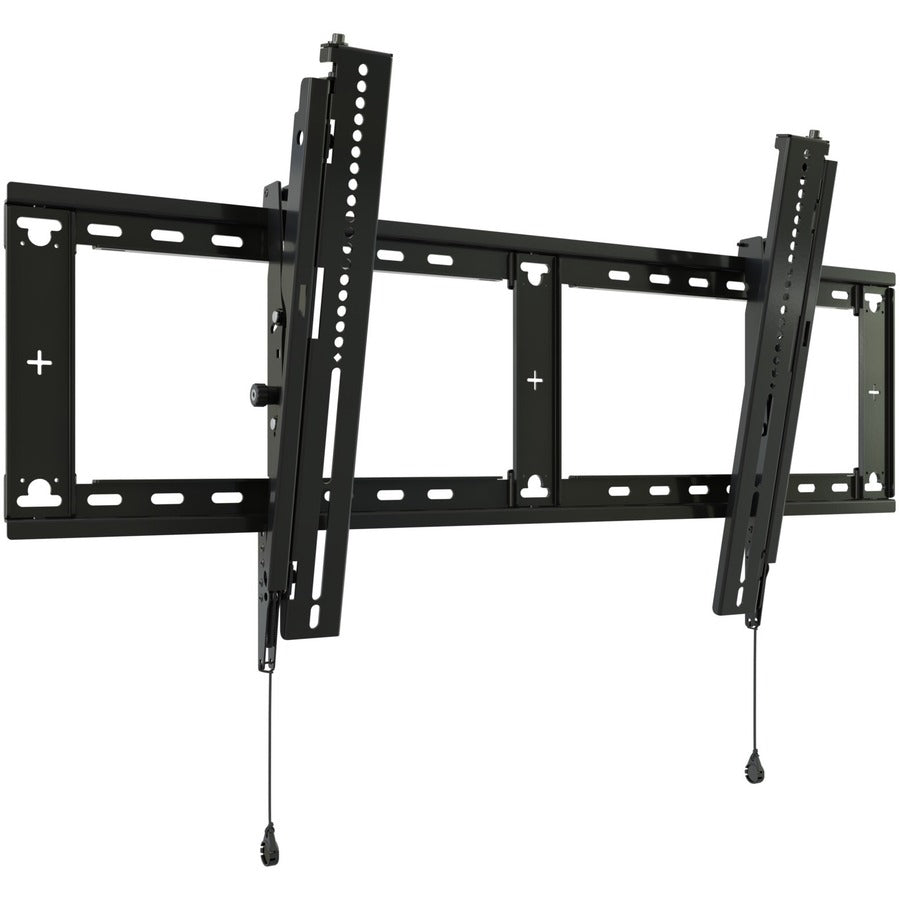

- Display can be tilted up to 12° to set the optimal viewing angle
- Easy access magnetic quick-store release pullcords
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Kickstand for easy access to power and signal connections
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
- Open wall plate allows for flexible positioning around power and data wall boxes
- Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Supports display mounting patterns up to 915 x 450 mm
- Theft deterrent security options (not included)
Product Overview

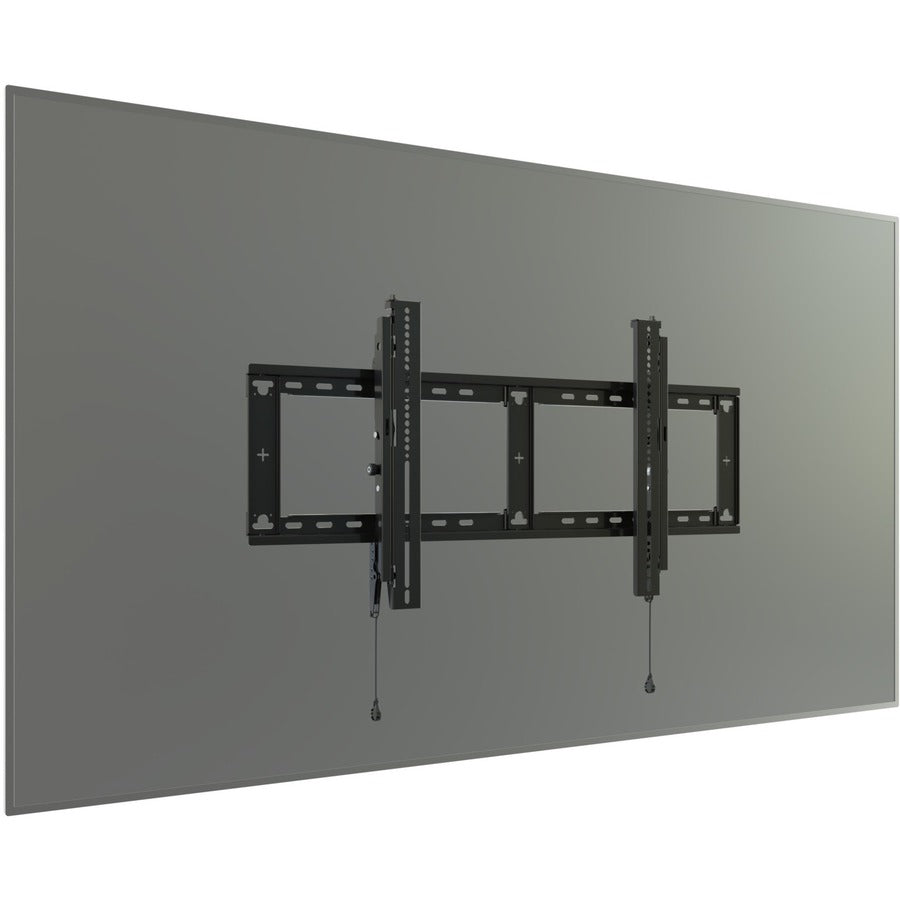

The Fit series RLT3 is a large tilt display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2" (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: RLT3
- Brand Name: Chief
- Product Line: Large FIT
- Product Model: RLT3
- Product Name: Large Fit Tilt Display Wall Mount
- Product Type: Wall Mount
Product Information
- Device Supported:
- Display
- Flat Panel Display
- Mounting Panel
- Storage Box
- Sound Bar Mount
- Maximum Load Capacity: 200 lb
- Minimum Screen Size Supported: 43"
- Maximum Screen Size Supported: 86"
- Height Adjustable: Yes
- Features:
- Tilt
- Leveling System
- Robust
- 12° Tilt
- Flexible
- Lateral Adjustment
- Tool-less Adjustment
- Pull Cord
- Kickstand
- Landscape Mounting
- Adjustable Tilt
- -12° Tilt
- Mount Profile: Low Profile
- Durability: Theft Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern: 915 x 450
- Height: 19.18"
- Width: 38"
- Depth: 2"
Miscellaneous
- Package Contents:
- Large Fit Tilt Display Wall Mount
- Post-Installation Leveling Screw
- Ball End Hex-Key
- Application/Usage:
- Wall
- Stud
- Compatibility:
Chief Storage Boxes:
- PAC525
- PAC526
Chief Mounting Panels:
- CSMP9X12
- CSSLP15X10
Warranty
- Limited Warranty: 10 Year
