Chief Fit Medium Fixed Display Wall Mount - For 32-65 inch Displays - Fixed TV Mount - VESA Wall Mount - RMF3
Key Features
- Easy access magnetic quick-store release pullcords
- Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
- Kickstand for easy access to power and signal connections
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Low-profile 1" (25 mm) depth facilitates ADA compliance for typical AV design requirements
- Open wall plate allows for flexible positioning around power and data wall boxes
- Re-designed rigid wall plate supports up to 125 lbs (56.7 kg) and has additional mounting slots for improved installation experience
- Supports display mounting patterns up to 550 x 450 mm
- Theft deterrent security options (not included)
- UL and TUV safety standards compliant
Product Overview

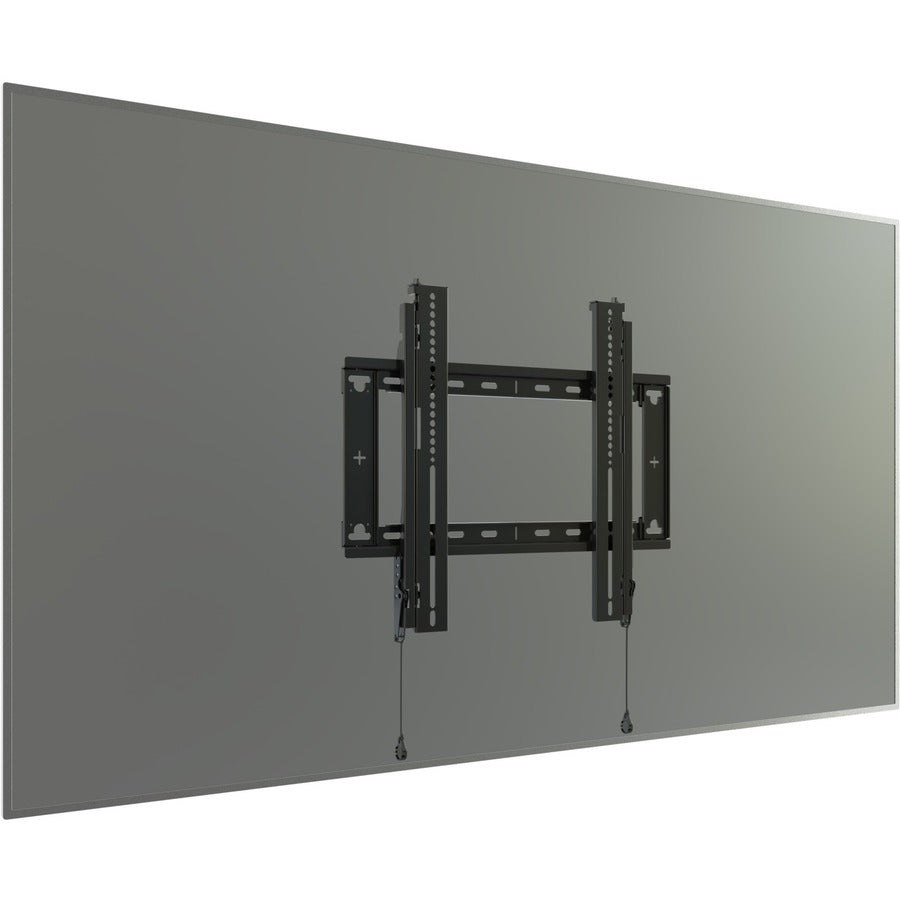

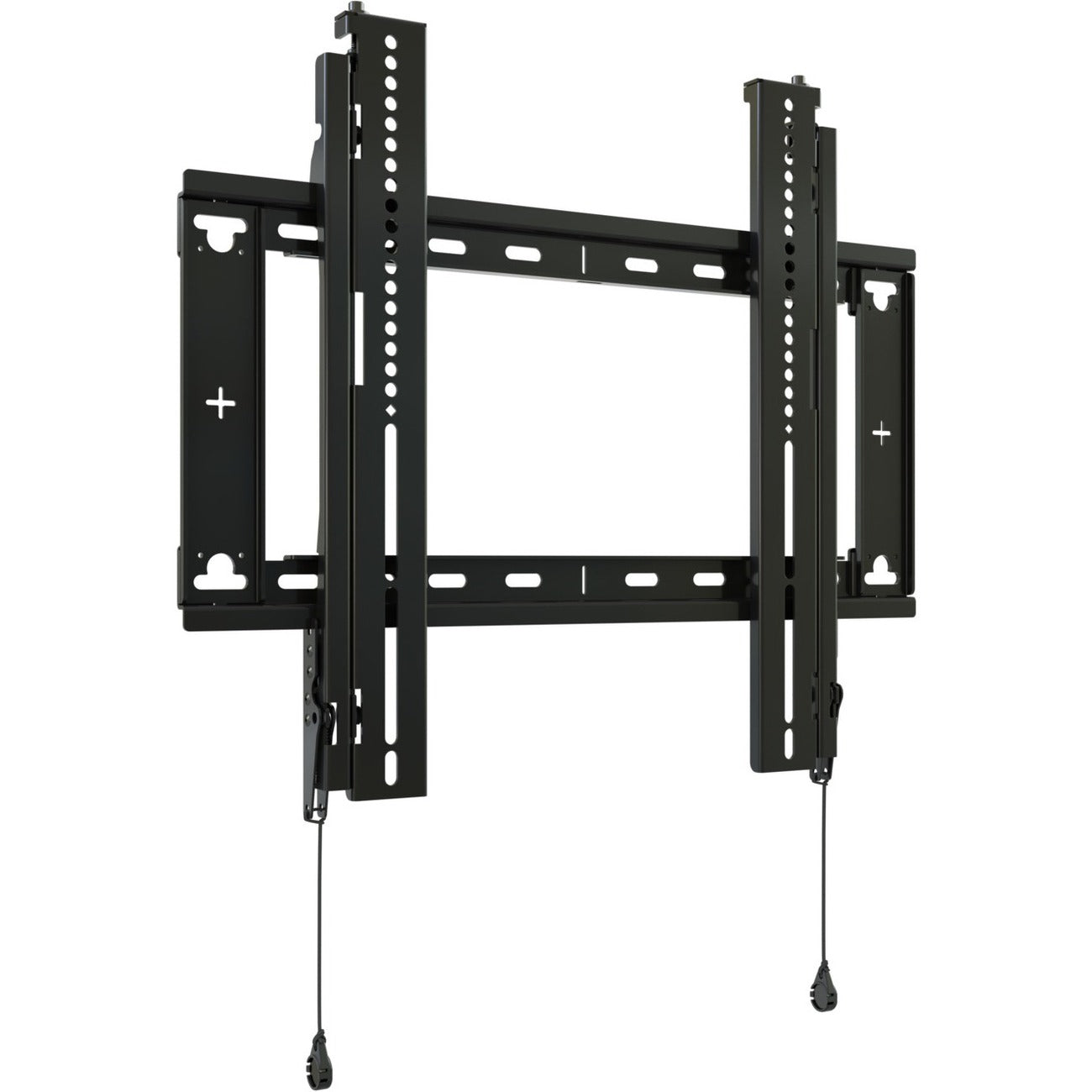

The Fit series RMF3 is a medium fixed display wall mount for 32" to 65" typical display sizes and supports mounting patterns up to 550 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 125 lbs (56.7 kg), 1" (25 mm) low-profile depth, and UL and TUV safety standard approvals.
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: RMF3
- Brand Name: Chief
- Product Line: Medium FIT
- Product Model: RMF3
- Product Name: Medium Fit Fixed Display Wall Mount
- Product Type: Wall Mount
Product Information
- Device Supported: Display
- Maximum Load Capacity: 125 lb
- Minimum Screen Size Supported: 32"
- Maximum Screen Size Supported: 65"
- Height Adjustable: Yes
- Features:
- Robust
- Magnetic Pull/Release System
- Mount Profile: Low Profile
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern: 550 x 450
- Height: 22.01"
- Width: 19.17"
- Depth: 0.98"
Miscellaneous
- Application/Usage: Wall
Warranty
- Limited Warranty: 10 Year
