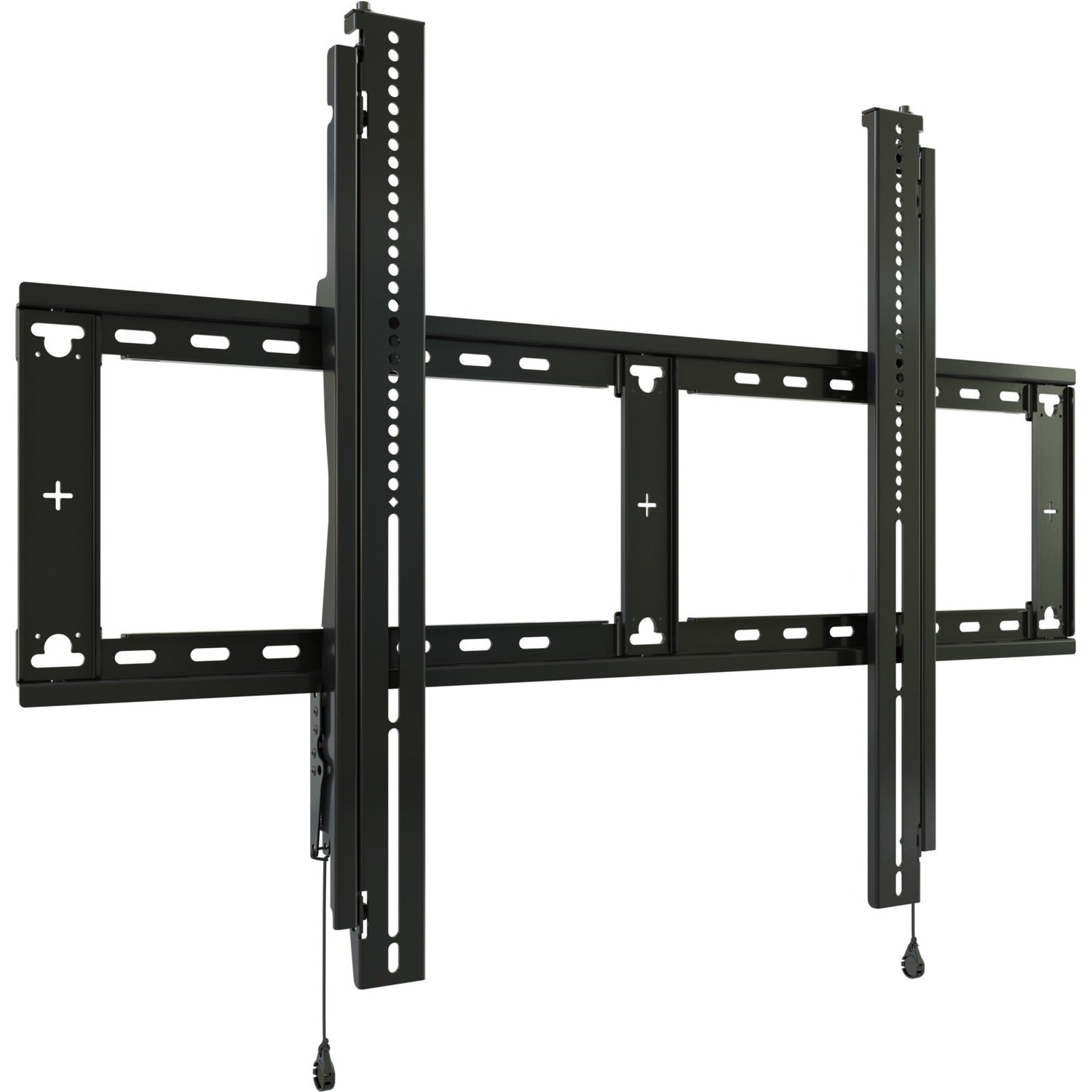

Chief Fit X-Large Fixed Display Wall Mount - For 49-98 inch Displays - Fixed TV Mount - VESA Wall Mount - RXF3

Chief Fit X-Large Fixed Display Wall Mount - For 49-98 inch Displays - Fixed TV Mount - VESA Wall Mount - RXF3

SKU: RXF3

Regular price $154.99 USD
Regular price Sale price $154.99 USD
Sale Sold out

 6 in stock

View full details

Chief Fit X-Large Fixed Display Wall Mount - For 49-98 inch Displays - Fixed TV Mount - VESA Wall Mount - RXF3

Key Features

  • Easy access magnetic quick-store release pullcords
  • Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
  • Kickstand for easy access to power and signal connections
  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
  • Low profile 1.5" (38 mm) depth facilitates ADA compliance for typical AV design requirements
  • Open wall plate allows for flexible positioning around power and data wall boxes
  • Re-designed rigid wall plate support up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience
  • Supports display mounting patterns up to 960 x 650 mm
  • Theft deterrent security option (not included)
  • UL and TUV safety standards compliant

Product Overview

The Fit series RXF3 is an extra-large fixed display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5" (38 mm) low-profile depth, and UL and TUV safety standard approvals.

General Information

  • Manufacturer: Legrand Group
  • Manufacturer Part Number: RXF3
  • Brand Name: Chief
  • Product Line: Extra-Large Fit
  • Product Name: Extra-Large Fit Fixed Display Wall Mount
  • Product Type: Wall Mount

Product Information

  • Device Supported: Display
  • Maximum Load Capacity: 250 lb
  • Minimum Screen Size Supported: 49"
  • Maximum Screen Size Supported: 98"
  • Height Adjustable: Yes
  • Features:
    • Lateral Adjustment
    • Magnetic Pull/Release System
    • Flexible

  • Mount Profile: Low Profile
  • Durability: Theft Resistant

Physical Characteristics

  • Color Family: Black
  • Product Color: Black
  • Height: 27.05"
  • Width: 38"
  • Depth: 1.50"

Miscellaneous

  • Package Contents:
    • Extra-Large Fit Fixed Display Wall Mount
    • Leveling Screw
    • Ball end Hex-Key

  • Application/Usage: Wall

Accessories:
