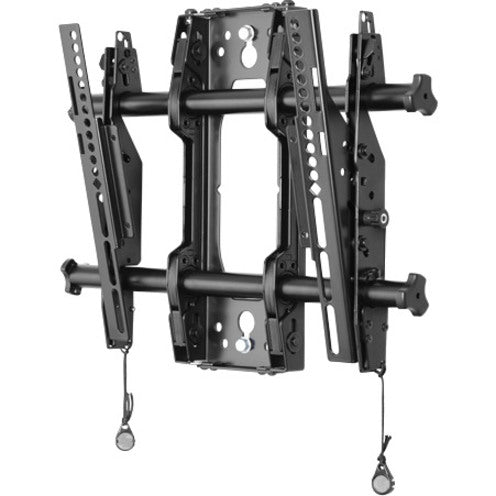

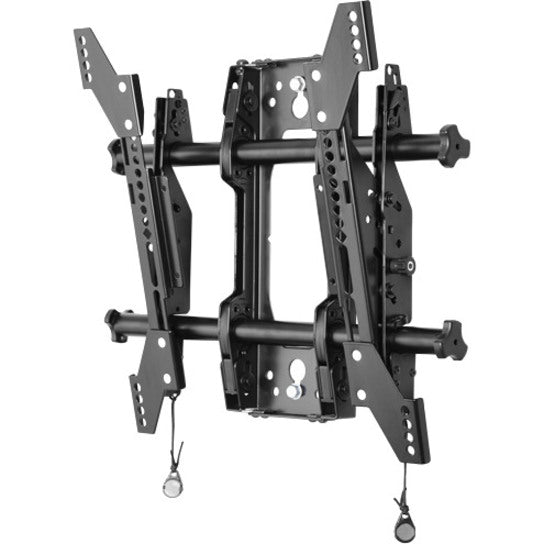

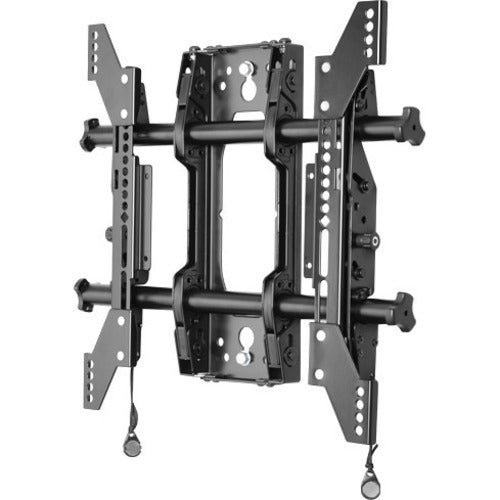

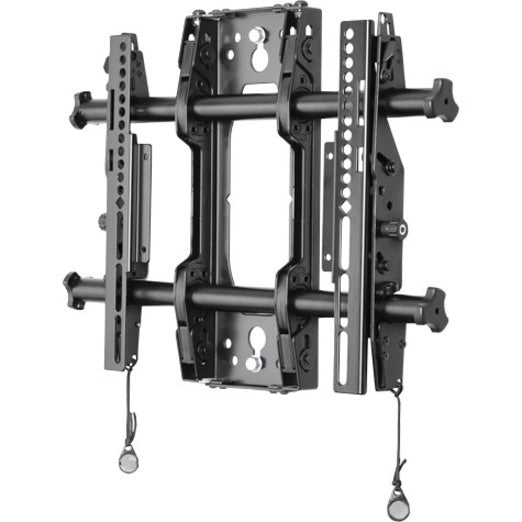

Chief Fusion Medium Single-Stud Adjustable Tilt Wall Mount - For 32-65 inch Displays - VESA Wall Mount - MTMS1U
Key Features
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- ClickConnect offers an audible click when the display safely engages with the mount
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- Exclusive nesting spacers can be stacked to achieve any depth
- Integrated Security
- Post-installation lateral positioning
- Quick-Store Cords use magnets to easily store and access pull cords
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Tilt can be locked at 0°, -6° or -12°
Product Overview
Installer-inspired Fusion tilt wall mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-47" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The display mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching. Centris tilt uses the center of gravity to balance the screen while maintaining a low profile. ControlZone leveling allows for post-installation fine-tuning of height and leveling and the ClickConnect latching offers and audible click when the display safely engages with the mount.
General Information
- Manufacturer: Legrand Group
- Manufacturer Part Number: MTMS1U
- Brand Name: Chief
- Product Line: Fusion
- Product Model: MTMS1U
- Product Name: Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud
- Packaged Quantity: 1
- Product Type: Wall Mount
Product Information
- Device Supported:
- Monitor
- TV
- Number of Displays Supported: 1
- Maximum Load Capacity: 75 lb
- Maximum Screen Size Supported: 47"
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Mounting Pattern:
- 200 x 200
- 400 x 400
- 400 x 200
- 300 x 200
- 300 x 300
- 400 x 300
- 450 x 400
- Height: 14.14"
- Width: 18.25"
- Depth: 2"
Miscellaneous
- Package Contents:
- Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud
- Custom Hardware Kit
- Country of Origin: China
Warranty
- Limited Warranty: 10 Year
