Cooler Master Effortless Efficiency Elite 502 - E502-KGNN-SAZ
Key Features
- 4 bays for a tailor-made PC configuration
- Support ITX motherboard to build a perfect symmetry of hardware components required in media server or NAS box
- The high air flow mid-tower casing to protect the hardware components
Product Overview

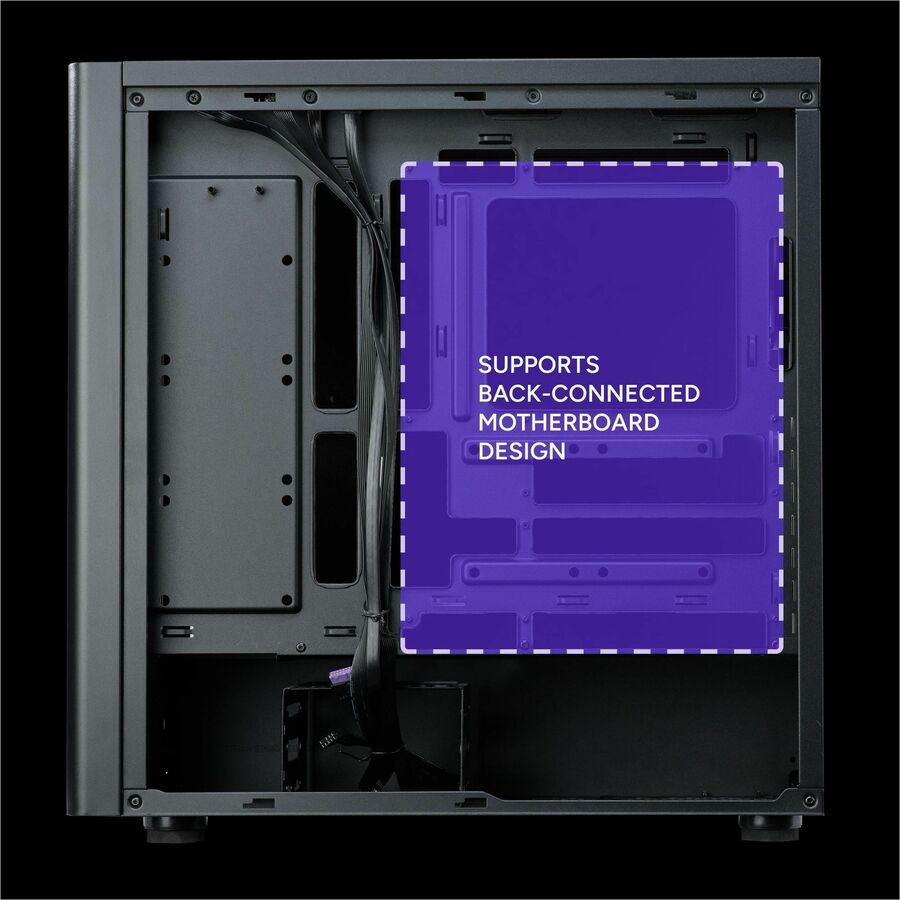

Back-Connected Motherboard Support
Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.

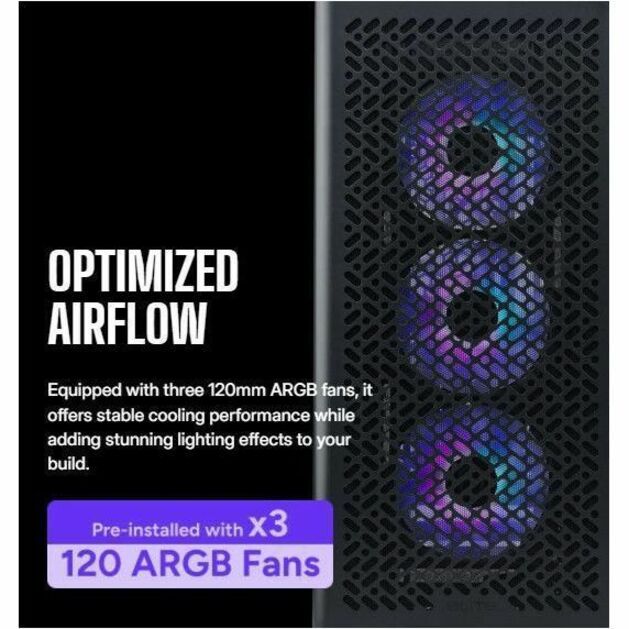

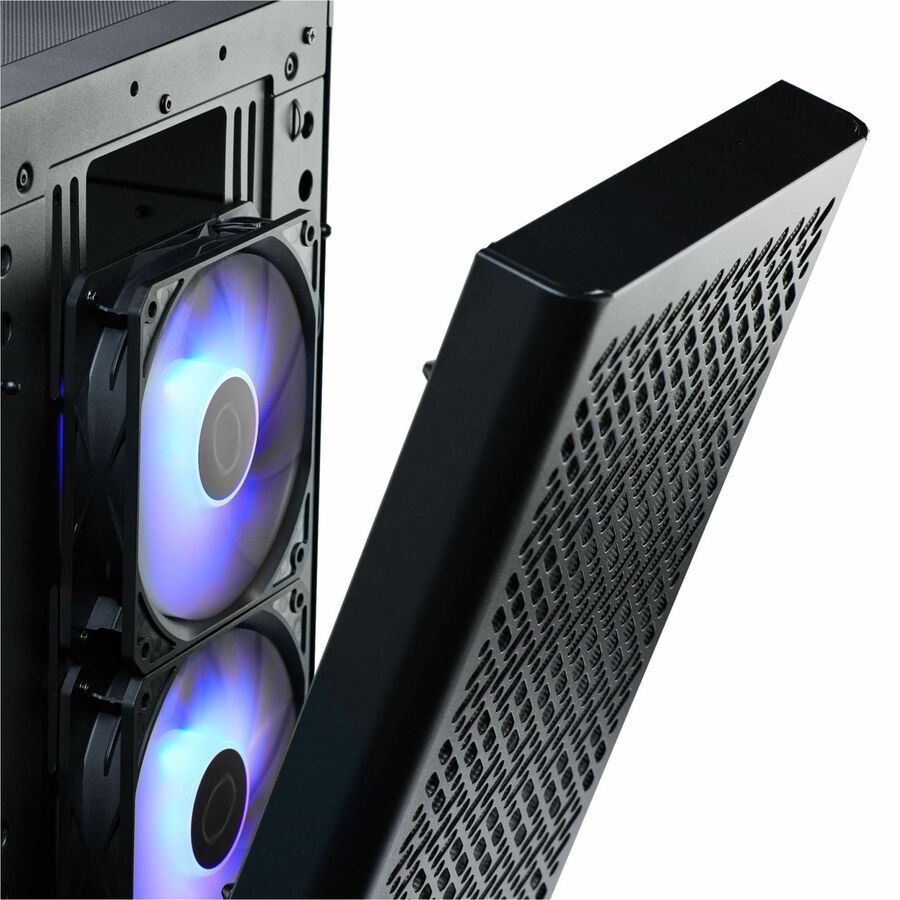

Optimized Airflow
Equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.
USB Type-C Upgrade
USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
Room For Updates
Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.
Versatile Thermal Options
Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.
Removable HDD Cage
The HDD cage is completely removable, providing better access during assembly and system upgrades.
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: E502-KGNN-SAZ
- Brand Name: Cooler Master
- Product Series: Elite Series
- Product Model: E502-WGNN-SAZ
- Product Name: Effortless Efficiency Elite 502
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- ITX
- Micro ATX
- ATX
- EATX
- Number of Fans Supported: 7
- Number of Fans Installed: 3
- Fan Size Supported:
- 4.72"
- 5.51"
- Installed Fan Size: 4.72"
- Installed Fan Size Details: 3 × 120mm
- Features:
- Cable Management
- Dust Filter
- ARGB Fan
- Window Panel: Yes
- Window Panel Location: Left Side
Bays
- Number of Internal 3.5" Bays: 2
- Number of Internal 2.5" Bays: 2
- Number of Total Expansion Bays: 4
I/O Expansions
- Total Number of Expansion Slots: 7
Interfaces/Ports
- Total Number of USB Ports: 2
- USB Port Details:
- 1 x USB 3.2 Gen 1 Type-A
- 1 x USB 3.2 Gen 1 Type-C
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
Power Description
- Power Supply Installed: No
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Steel
- Tempered Glass
- Mesh
- Cooler Type: Fan Cooler
- Form Factor: Mid-tower
- Maximum CPU Cooler Height: 6.69"
- Maximum PSU Length: 8.27"
- Maximum GPU Length: 16.14"
- Height: 18.9"
- Width: 9.1"
- Depth: 18.7"
Warranty
- Limited Warranty: 2 Year
