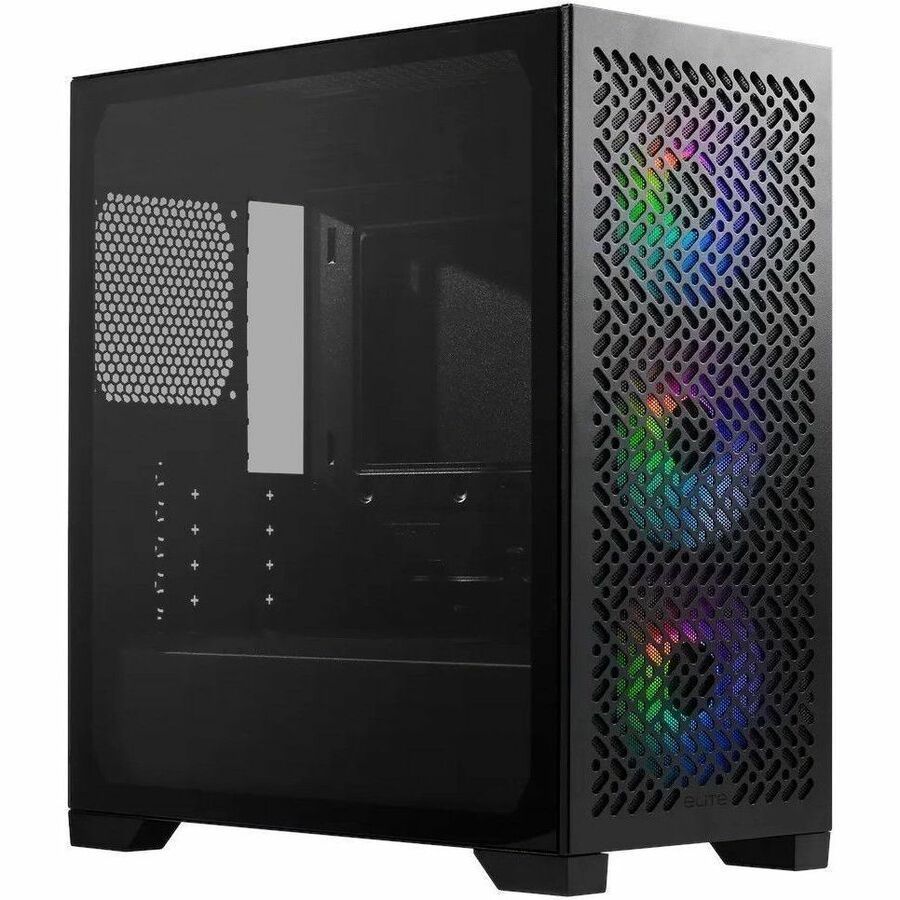

Cooler Master Elite 302 - E302-KGNN-S00
Key Features
- 3 bays help in upgrading the system by increasing number of hardware components
- Freely install the casing anywhere using mini-tower structure that supports up to 6 fan(s) to maintain the casing ambient
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
Product Overview

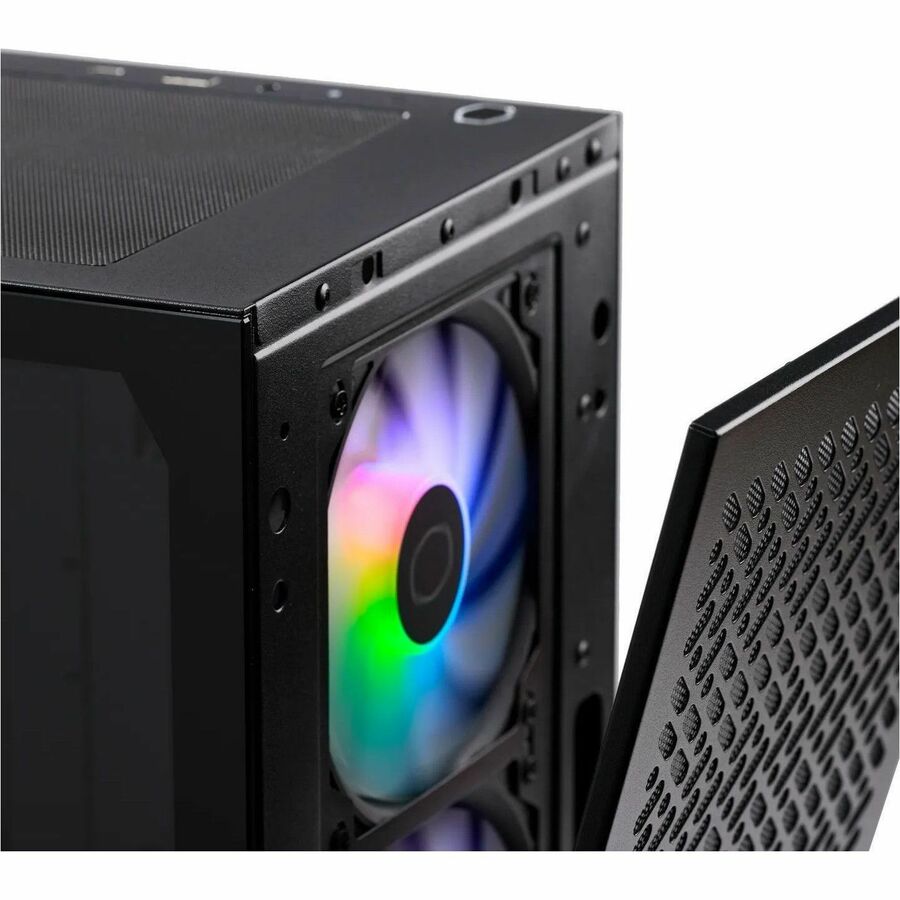

TOOL-LESS MAGNETIC FRONT PANEL
Quick and easy maintenance with a tool-free magnetic mesh front panel - engineered for airflow and effortless access.
READY FOR HIGH-PERFORMANCE COOLING
Accommodates up to 6 fans and supports 280mm or 360mm radiators to keep your system performing at its peak.

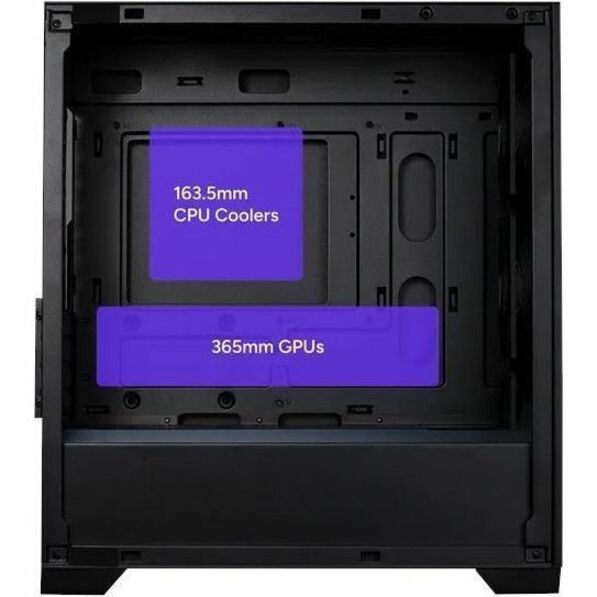

COMPACT SIZE, MAXIMUM COMPATIBILITY
Supports up to 365mm GPUs and 163.5mm CPU coolers - ideal for powerful setups without the bulk.
FRONT I/O USB TYPE-C SUPPORT
Modern connectivity with a built-in USB Type-C port for faster, streamlined data transmission.
ARGB STYLE MEETS PERFORMANCE
Three pre-installed 120mm ARGB fans deliver strong airflow while adding a touch of vibrant lighting to your build.
BREATHABLE PSU SHROUD
Ventilated power supply cover supports both active and passive cooling - offering flexibility and thermal efficiency.
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: E302-KGNN-S00
- Brand Name: Cooler Master
- Product Series: Elite Series
- Product Model: E302-KGNN-S00
- Product Name: Elite 302
- Product Type: Gaming Computer Case
Technical Information
- Motherboard Supported:
- Mini ITX
- Micro ATX
- Number of Fans Supported: 6
- Number of Fans Installed: 3
- Fan Size Supported:
- 4.72"
- 5.51"
- Installed Fan Size: 4.72"
- Installed Fan Size Details: 3 × 120mm
- Features:
- ARGB Fan
- Dust Filter
- Window Panel: Yes
- Window Panel Location:
- Side Panel
- Right Side
- Left Side
Bays
- Number of Internal 3.5" Bays: 1
- Number of Internal 2.5" Bays: 2
- Number of Total Expansion Bays: 3
I/O Expansions
- Total Number of Expansion Slots: 4
Interfaces/Ports
- Total Number of USB Ports: 2
- USB Port Details:
- 1 x USB 3.2 Gen 1 Type-C
- 1 x USB 3.2 Gen 1 Type-A
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
- Microphone: Yes
- Headphone/Microphone Combo Port: Yes
Power Description
- Power Supply Installed: No
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Mesh
- Steel
- Tempered Glass
- Cooler Type: Fan Cooler
- Form Factor: Mini-tower
- Maximum CPU Cooler Height: 6.44"
- Maximum PSU Length: 6.30"
- Maximum GPU Length: 14.37"
- Height: 16.9"
- Width: 8"
- Depth: 15.4"
- Weight (Approximate): 11.86 lb
Miscellaneous
- Package Contents:
- Elite 302
- PSU cover
Warranty
- Limited Warranty: 2 Year
