Cooler Master Elite Liquid 360 Cooling Fan/Radiator/Pump - ELW-D36M-A21DA-R1
Key Features
- Dual chamber pump
- Extensive tubing length
- Flexible, customizable pump design
- Pre-applied CryoFuze thermal paste
- Quick and easy installation
- Unique aesthetic

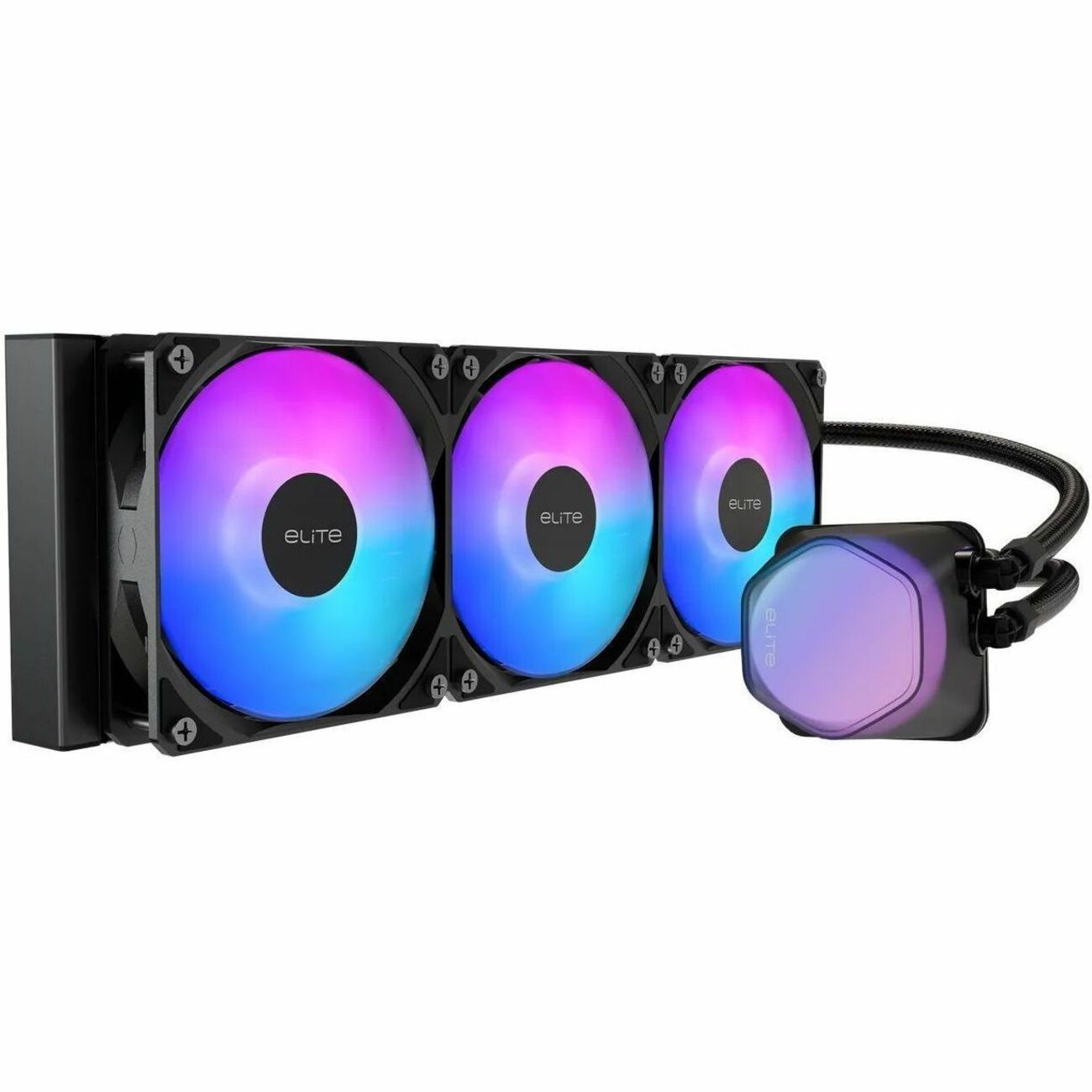

Product Overview
Elite Liquid Series
Elevate your build with a perfect blend of style, performance, and customization. Featuring an exclusive hexagonal, crystal-clear outlook, Elite Liquid 240/360 offers easy personalization with tool-free, adjustable pump design. With support for both Intel and AMD brackets and pre-installed fans, Elite Liquid 240/360 ensures a smooth installation experience at an accessible value. Enjoy reliable and convenient cooling with standout style - all with Elite Liquid 240/360.

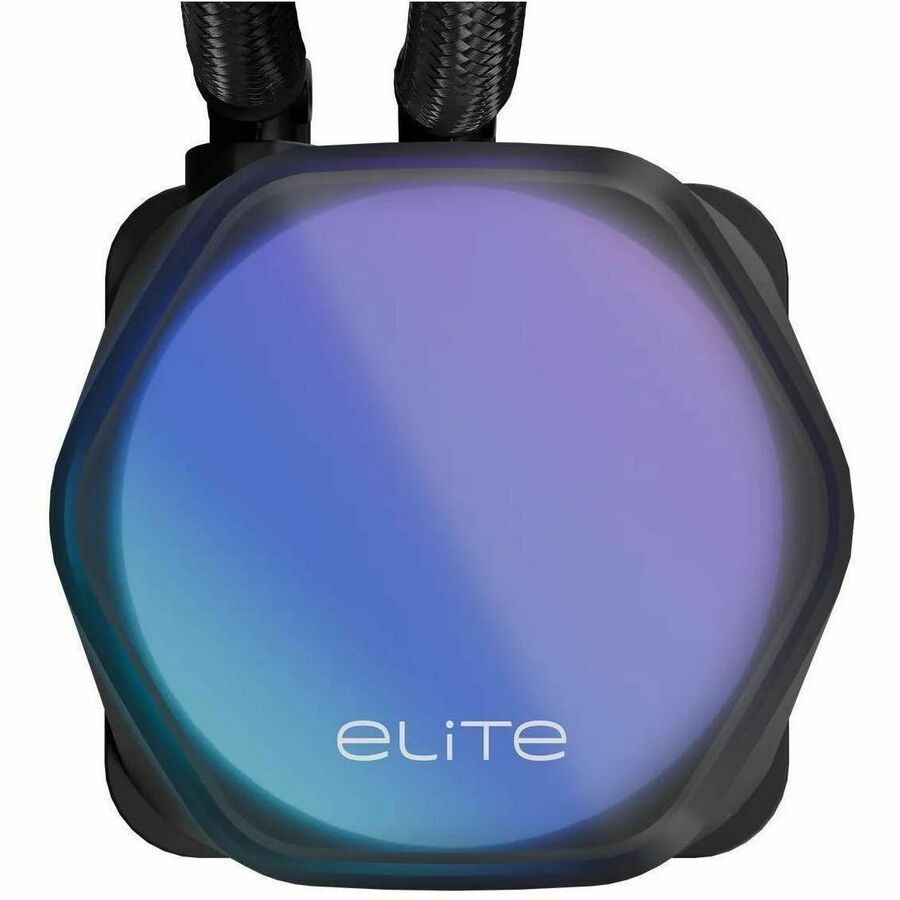

FLEXIBLE, CUSTOMIZABLE PUMP DESIGN
The tool-free, removable top cover offers unmatched flexibility, allowing you to adjust the internal logo orientation for personalized branding. With the ability to rotate the inner cap by 90 degrees, you can further tailor the appearance to your preference.
Additionally, the decorative caps provide an extra layer of customization, making it easy to showcase your unique logos and design choices. This versatile pump design ensures that every cooler is as distinctive as your brand.
QUICK AND EASY INSTALLATION
A unified mounting bracket comes pre-installed and supports both Intel and AMD sockets. The included fans further simplify setup, making installation fast and hassle-free.
Extensive Tubing Length
The 400 mm tubing length ensures effortless cooler installation in any orientation, offering flexibility and ease during setup.
Dual Chamber Pump
The upgraded dual-chamber pump design delivers a more compact cooler without compromising on performance, ensuring optimal cooling efficiency.
Revamped Fans
The fan blades and revamped aesthetics provide optimized cooling and a fresh look.
Pre-Applied Cryofuze Thermal Paste
Pre-applied thermal paste ensures a mess-free application and simplifies installation, making it ideal for those new to PC building by removing the guesswork of applying the correct amount.
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: ELW-D36M-A21DA-R1
- Brand Name: Cooler Master
- Product Line: Elite Liquid 360
- Product Name: Elite Liquid 360 Cooling Fan/Radiator/Pump
- Product Type: Cooling Fan/Radiator/Pump
Fan Information
- Number of Fans: 3
- Fan Bearing Type: Rifle Bearing
- Fan Speed (Min): 600 rpm
- Fan Speed (Max): 2100 rpm
- Maximum Airflow: 84.20 CFM
- Noise Levels (A-Weighted): 39.5 dB(A)
- Fan Life: 4.6 Year
- LED Color: ARGB
- Maximum Air Pressure: 2.71mmH2O
- Pulse-width Modulation (PWM) Support: Yes
Heatsink Information
- Cooler Type: Liquid Cooler
- Compatible Intel Socket:
- Socket LGA-1851
- LGA-1700
- LGA-1200
- H3 LGA-1150
- H4 LGA-1151
- H2 LGA-1155
- H LGA-1156
- Compatible AMD Socket:
- AM5
- AM4
Interfaces/Ports
- Connectors:
- 3-Pin ARGB + 4-Pin PWM
- 7-Pin PWM + ARGB
Power Description
- Rated Current: 330 mA
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Radiator Material: Aluminum
- Maximum Fan Diameter: 4.72"
- Radiator Height: 15.51"
- Radiator Width: 4.71"
- Radiator Depth: 1.07"
- Fan Height: 0.98"
- Fan Width: 4.72"
Miscellaneous
- Application/Usage:
- Processor
- CPU
- PC
Warranty
- Limited Warranty: 3 Year
