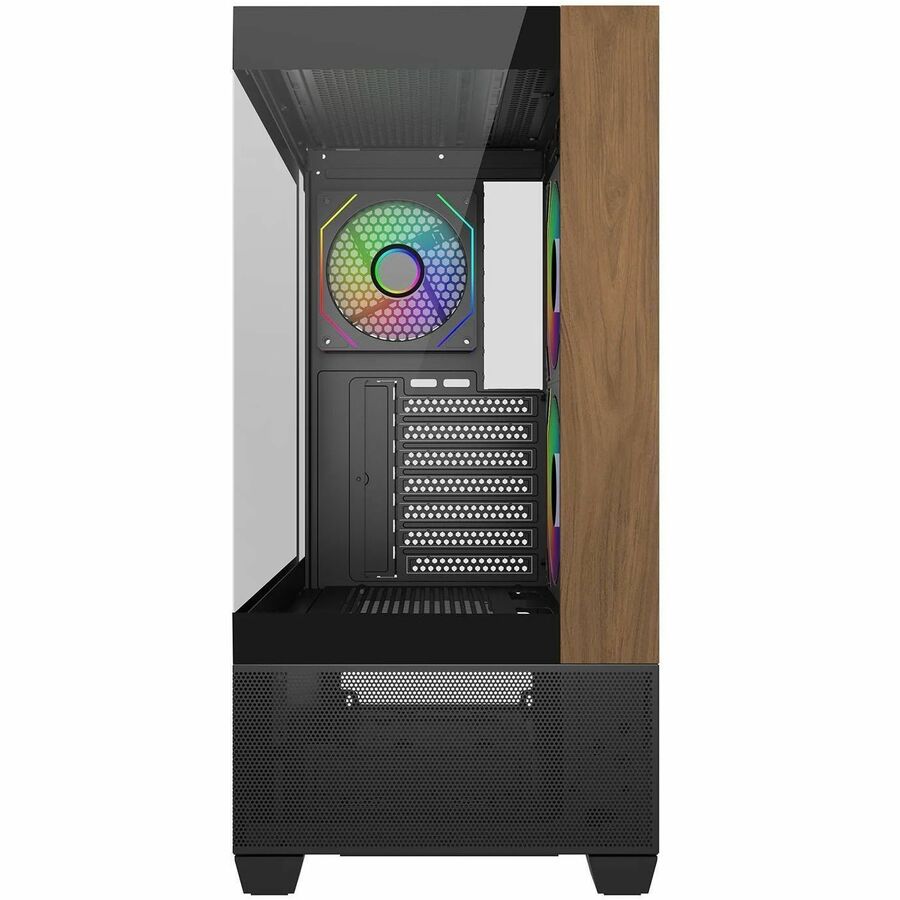

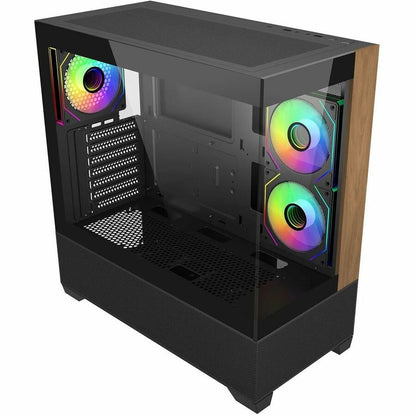

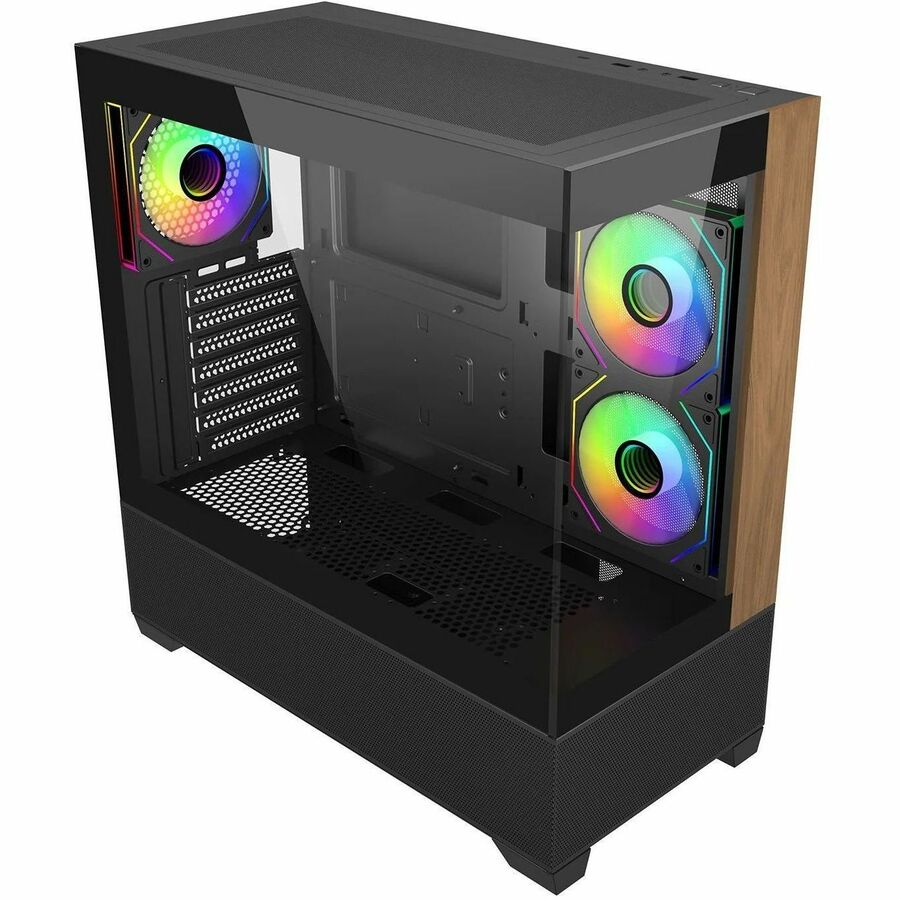

Cooler Master Elite Series E690-KHNN-S00 Computer Case - E690-KHNN-S00
Key Features
- 4 bays mean more PC components can be added to enhance system's performance
- Mid-tower structure offers a cooler place for other hardware components by supporting up to 10 fan(s)
- Support ITX motherboard to build a perfect symmetry of hardware components required in media server or NAS box
Product Overview
The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and bottom ventilation for vertical cooling, it supports versatile fan and radiator setups-perfect for performance-driven or style-focused builds.
270° Panoramic Tempered Glass
Beveled glass panels create an immersive, seamless showcase of your build.
Optimized Tower with PSU Chamber
Vertical layout separates thermal zones for better airflow and cleaner cable routing.
Vertical Cooling Architecture
Up to 10 fans in a bottom-to-top layout maximize airflow and cooling.
Natural Wood Front Panel
Crafted from real wood, the front panel adds a warm, organic touch to any space.
High-Performance Radiator Support
Top 360mm and side 240mm radiator support for powerful cooling setups.
Pre-installed ARGB Fans with Sync
Includes 3 daisy-chainable ARGB fans with full motherboard lighting sync support.
Top & Bottom Mesh Ventilation
Mesh panels ensure enhanced airflow and system-wide thermal performance.
Next-Gen GPU Ready
Supports up to 425mm GPUs-ready for RTX 50 Series and beyond.
High-Speed I/O Panel
USB 3.2 Gen 2x2 Type-C and dual USB 3.0 ports for blazing-fast connectivity.
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: E690-KHNN-S00
- Brand Name: Cooler Master
- Product Series: Elite Series
- Product Model: E690-KHNN-S00
- Product Name: Elite Series E690-KHNN-S00 Computer Case
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- ITX
- Micro ATX
- ATX
- Number of Fans Supported: 10
- Number of Fans Installed: 3
- Fan Size Supported:
- 4.72"
- 5.51"
- Installed Fan Size: 4.72"
- Installed Fan Size Details: 3 × 120mm
- Features: ARGB Fan
- Window Panel: Yes
- Window Panel Location:
- Front
- Left Side
Bays
- Number of Internal 3.5" Bays: 2
- Number of Internal 2.5" Bays: 2
- Number of Total Expansion Bays: 4
I/O Expansions
- Total Number of Expansion Slots: 7
Interfaces/Ports
- Total Number of USB Ports: 3
- USB Port Details:
- 2 x USB 3.0
- 1 x USB 3.2 Gen 2x2 Type C
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
- Microphone: Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Wood
- Tempered Glass
- Mesh
- Steel
- Cooler Type: Fan/Liquid Cooler
- Form Factor: Mid-tower
- Maximum CPU Cooler Height: 6.69"
- Maximum PSU Length: 9.84"
- Maximum GPU Length: 16.73"
- Height: 17.1"
- Width: 8.6"
- Depth: 16.9"
Warranty
- Limited Warranty: 2 Year
