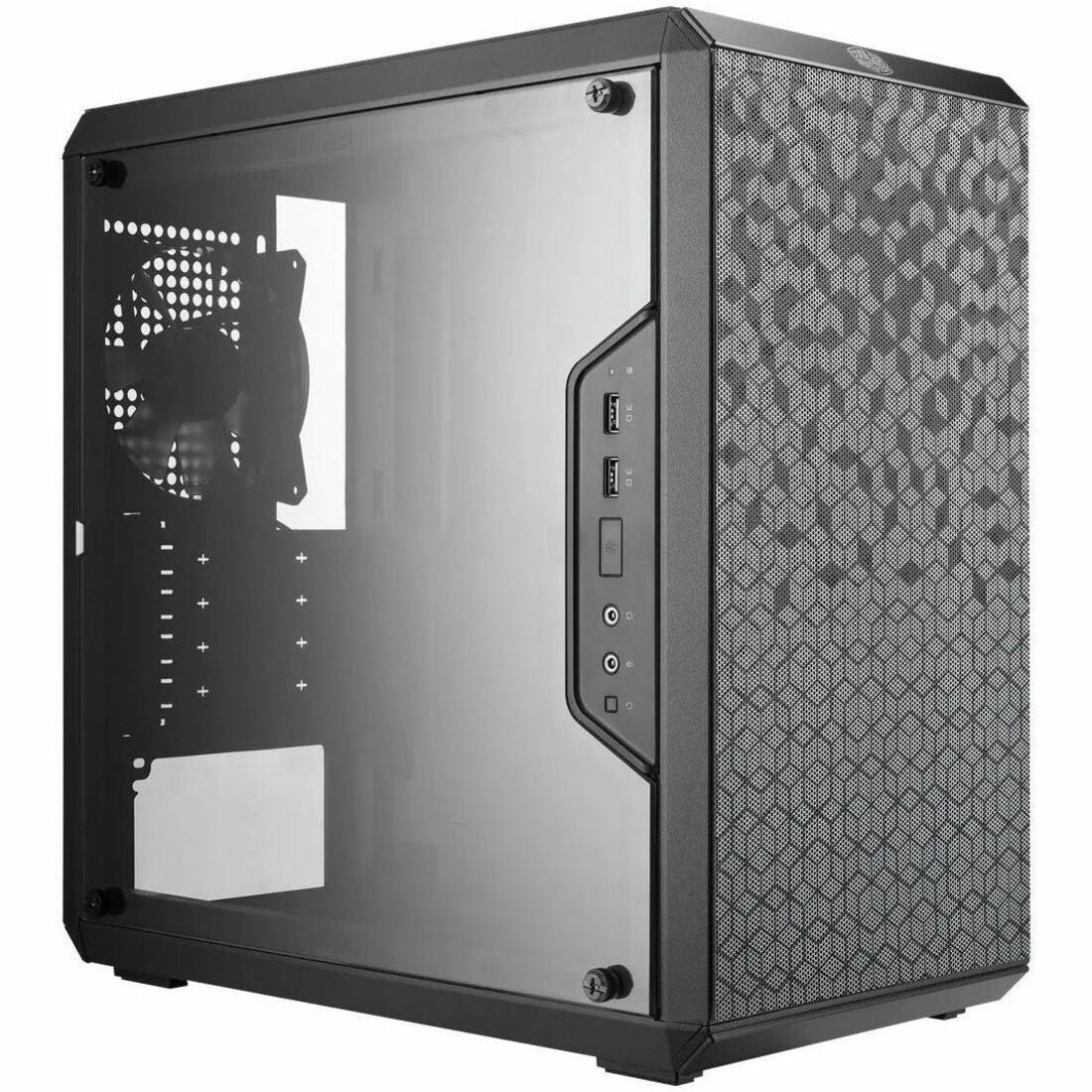

Cooler Master MasterBox MCB-Q300L-KANN-S00 Computer Case - MCB-Q300L-KANN-S00
Key Features
- Clean Routing Space
- Edge-to-Edge Acrylic Transparent Side Panel
- Excellent Thermal Performance
- High Flexibility for System Building
- Minimized Dimension with ATX PSU Support
- Patterned Dust Filter
- Vertical and Horizontal position

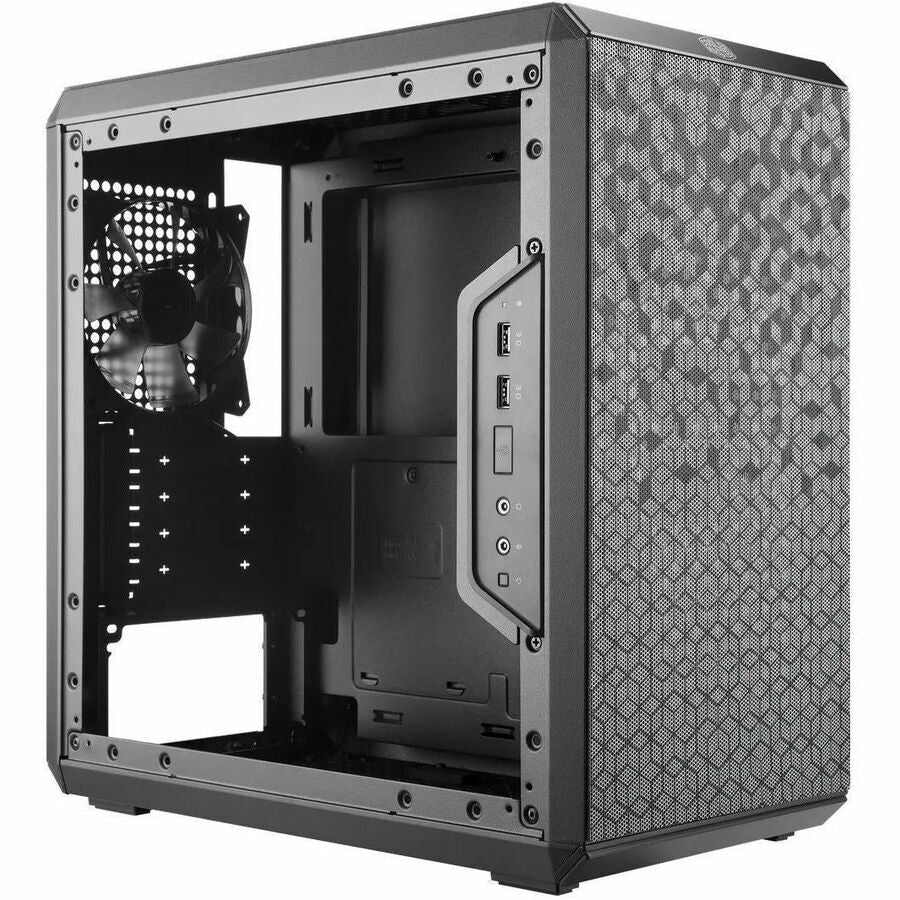

Product Overview

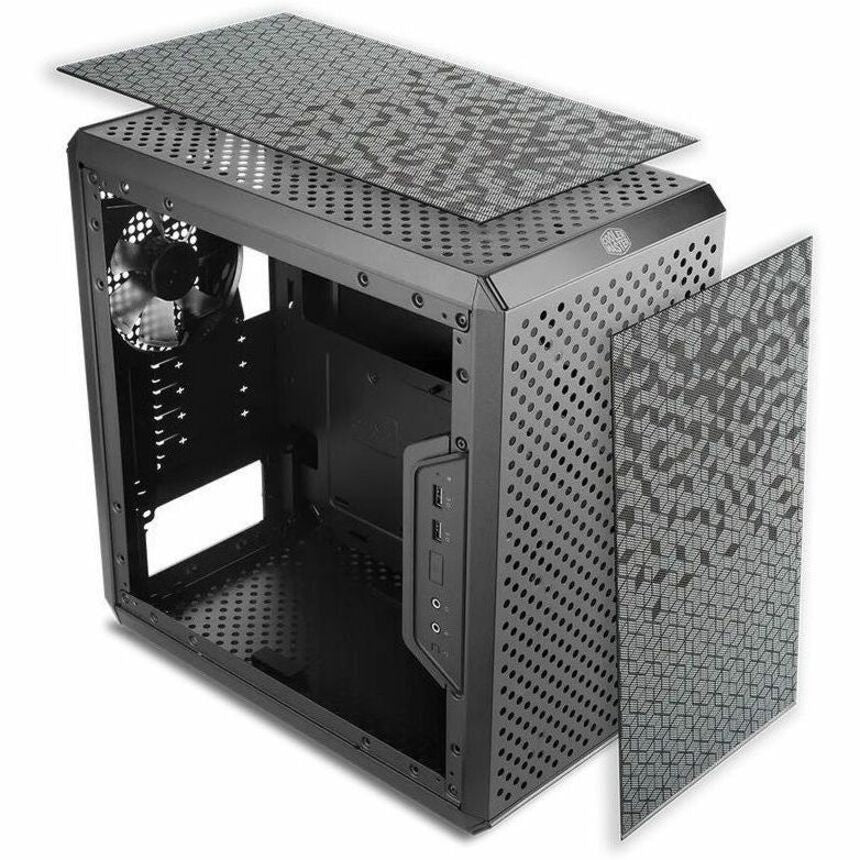

Patterned Magnetic Dustfilters
Special pattern on the dust filter creates a unique outlook for the chassis.

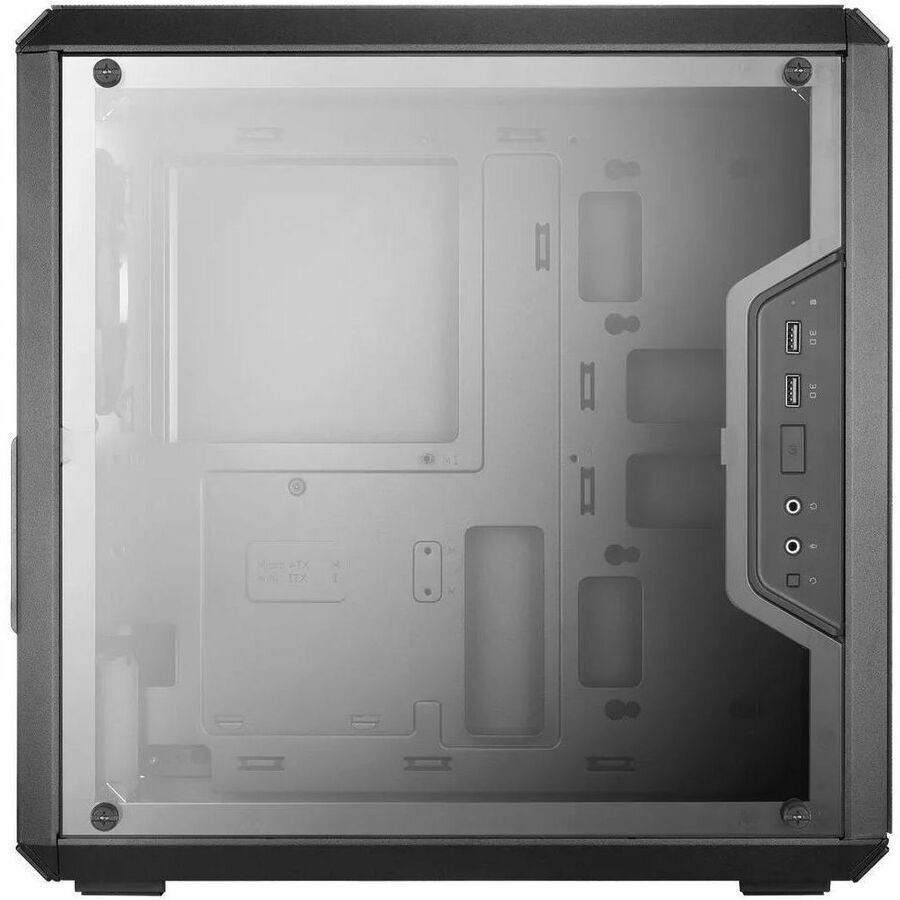

Modular I/O Panel
The I/O panel can be adjusted to six different locations. On both side of the body you can install the I/O panel at the front, top or bottom.

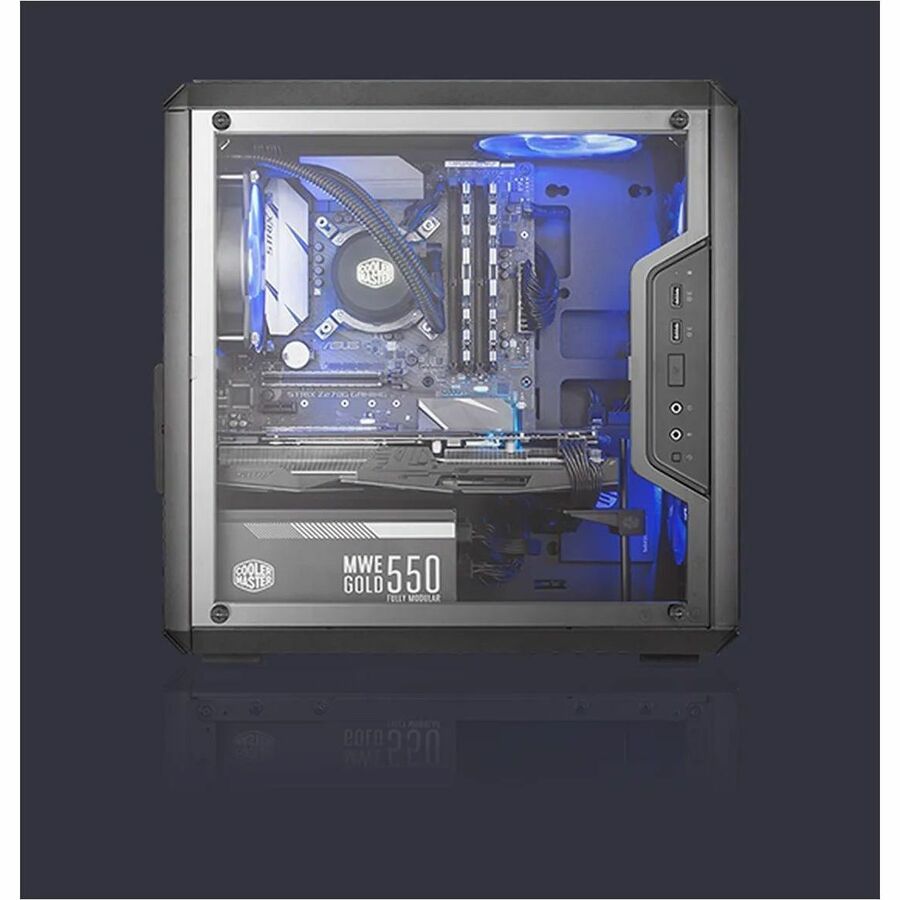

Edge-To-Edge Side Panel
Show off your build through the full size transparent side panel.
Multiple Positioning Options
The case can be put in vertical or horizontal position.
Excellent Thermal Performance
The open design of the perforated front, top and bottom guarantees excellent thermal performance

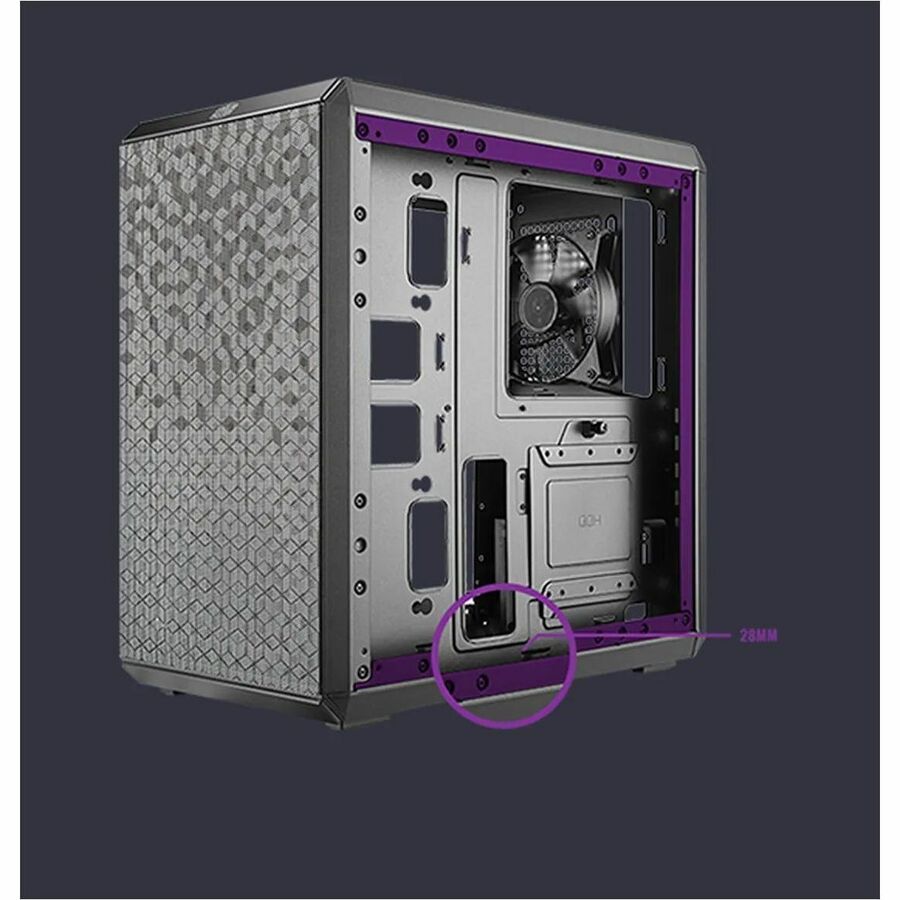

Clean Routing Space
Behind the motherboard tray, 28mm of space is offered for cable management.

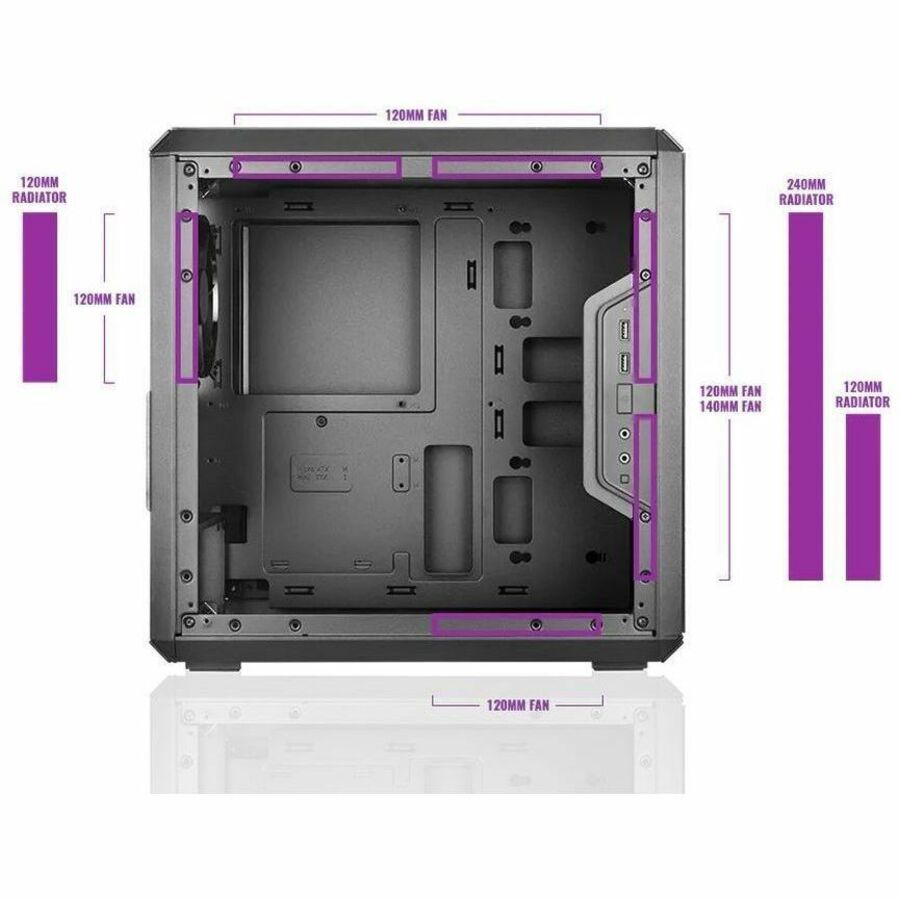

Fan and Radiator Support
The front supports up to two 140mm fans and up to a 240mm radiator. The rear supports a 120mm fan or radiator and the top two 120mm fans. All to ensure you don't have to compromise on performance.
Main Components Clearance
The MasterBox Q300L case supports CPU coolers up to a height of 159mm, graphics cards up to a length of 360mm, and power supplies up to a length of 160mm.
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: MCB-Q300L-KANN-S00
- Brand Name: Cooler Master
- Product Line: MasterBox
- Product Model: MCB-Q300L-KANN-S00
- Product Name: MasterBox MCB-Q300L-KANN-S00 Computer Case
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- Micro ATX
- Mini ITX
- Number of Fans Supported: 6
- Number of Fans Installed: 1
- Fan Size Supported:
- 4.72"
- 5.51"
- Installed Fan Size: 4.72"
- Installed Fan Size Details: 1 x 120mm
- Features:
- Dust Filter
- Cable Management
- Window Panel: Yes
- Window Panel Location: Side Panel
Bays
- Number of Internal 3.5" Bays: 1
- Number of Internal 2.5" Bays: 2
- Number of Total Expansion Bays: 3
I/O Expansions
- Total Number of Expansion Slots: 4
Interfaces/Ports
- Total Number of USB Ports: 2
- USB Port Details: 2 x USB 3.0
- Front USB: Yes
- Total Number of Audio In Ports: 2
- Front Audio In: Yes
- Total Number of Audio Out Ports: 2
- Front Audio Out: Yes
- Microphone: Yes
- Headphone/Microphone Combo Port: Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Steel
- Plastic
- Acrylic
- Form Factor: Mini-tower
- Maximum CPU Cooler Height: 6.26"
- Maximum PSU Length: 6.30"
- Maximum GPU Length: 14.17"
- Height: 15"
- Width: 9.1"
- Depth: 15.2"
Warranty
- Limited Warranty: 2 Year
