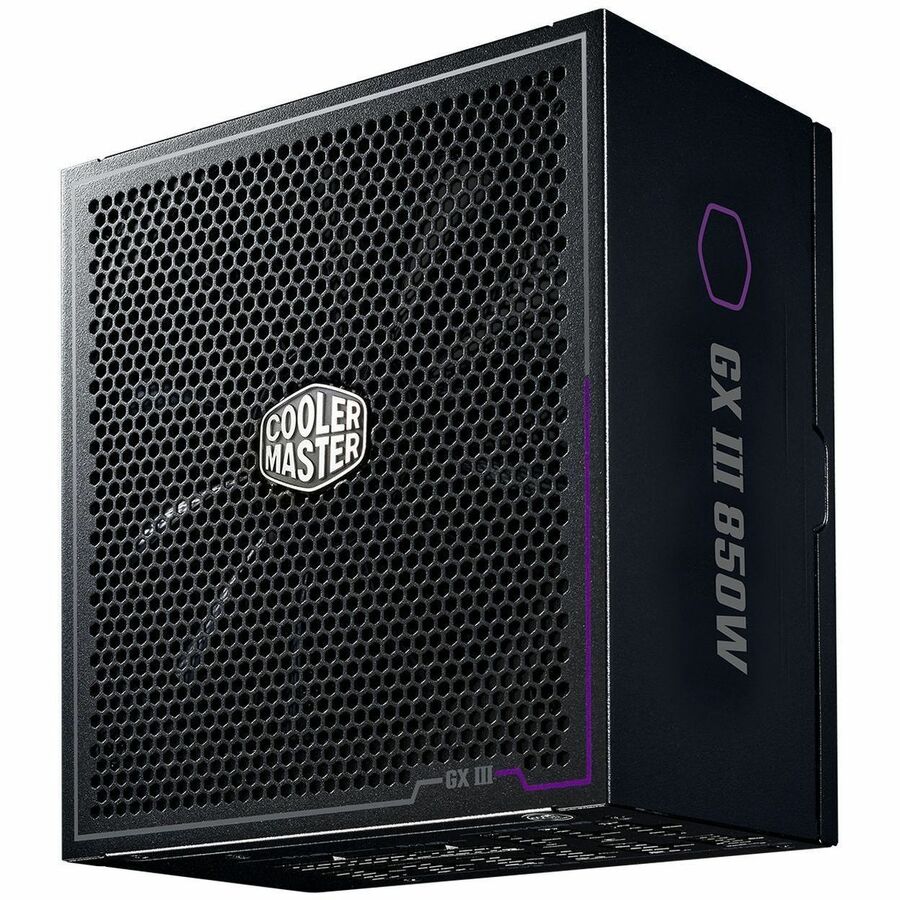

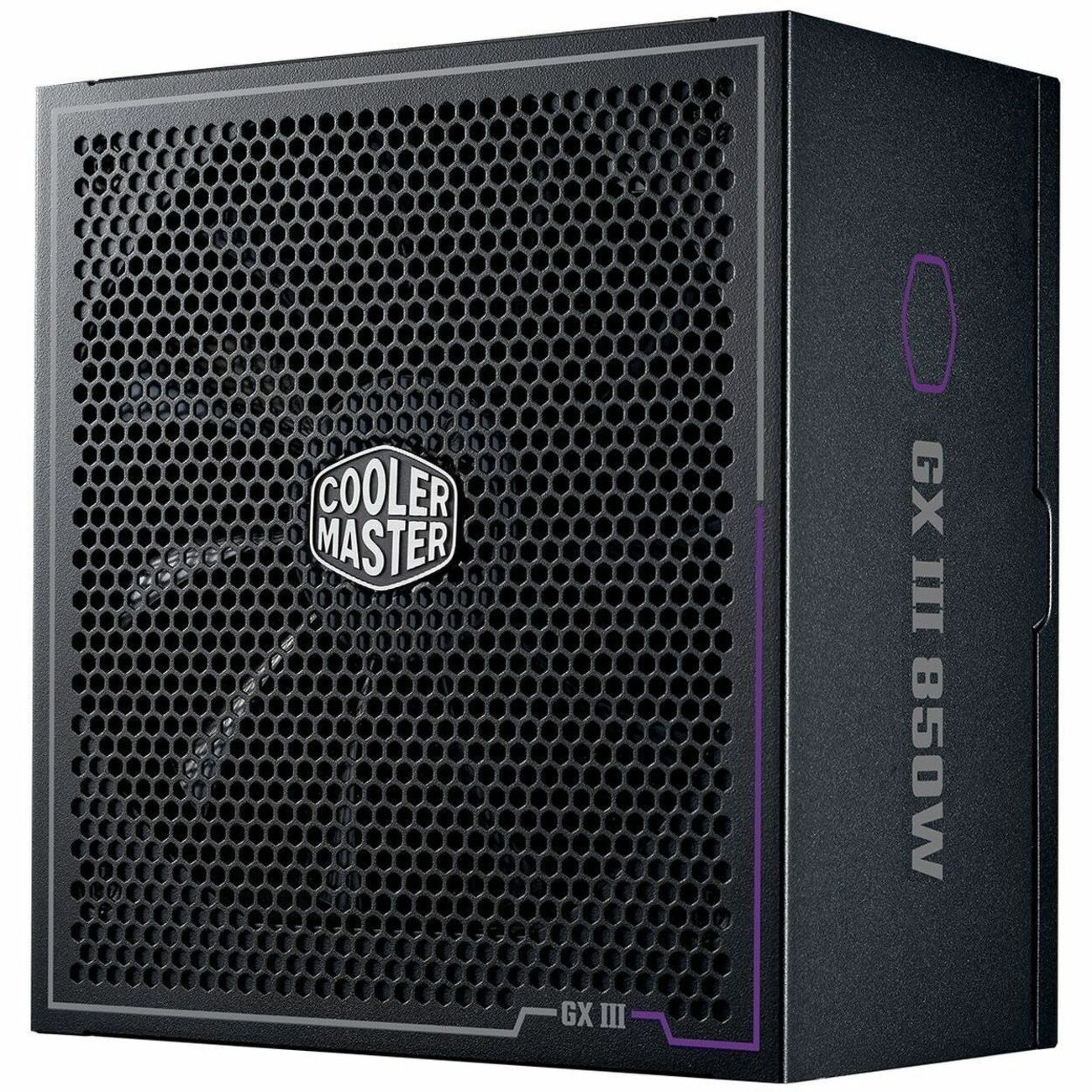

Cooler Master MWE Gold MPX-8503-AFAG 850W Power Supply - MPX-8503-AFAG-2BUV
Key Features
- 10-year warranty
- 80 Plus Gold certified efficiency
- ATX 3.1 support & a durable 12V-2x6 cable
- Fully modular cabling
- Separated thermal technologies
- Silent fan performance with a zero-RPM mode
Product Overview
BUILT TO LAST
The GX II Gold brings a new standard of durability and efficiency to Cooler Master's lineup of power supply units combined with ATX 3.1 support.
ATX 3.1 SUPPORT & A DURABLE 12V-2x6 CABLE
Includes ATX 3.1 support and a 90-degree 12+4pin (12V-2x6) PCIe 5.1 connector featuring higher electrical durability, lower temperatures, and improved safety.
CERTIFIED EFFICIENCY
The GX II Gold is certified to achieve more than 90% efficiency at typical loads.

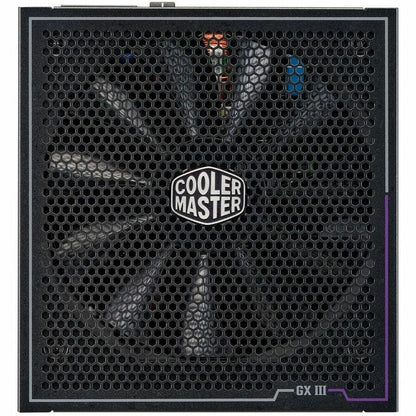

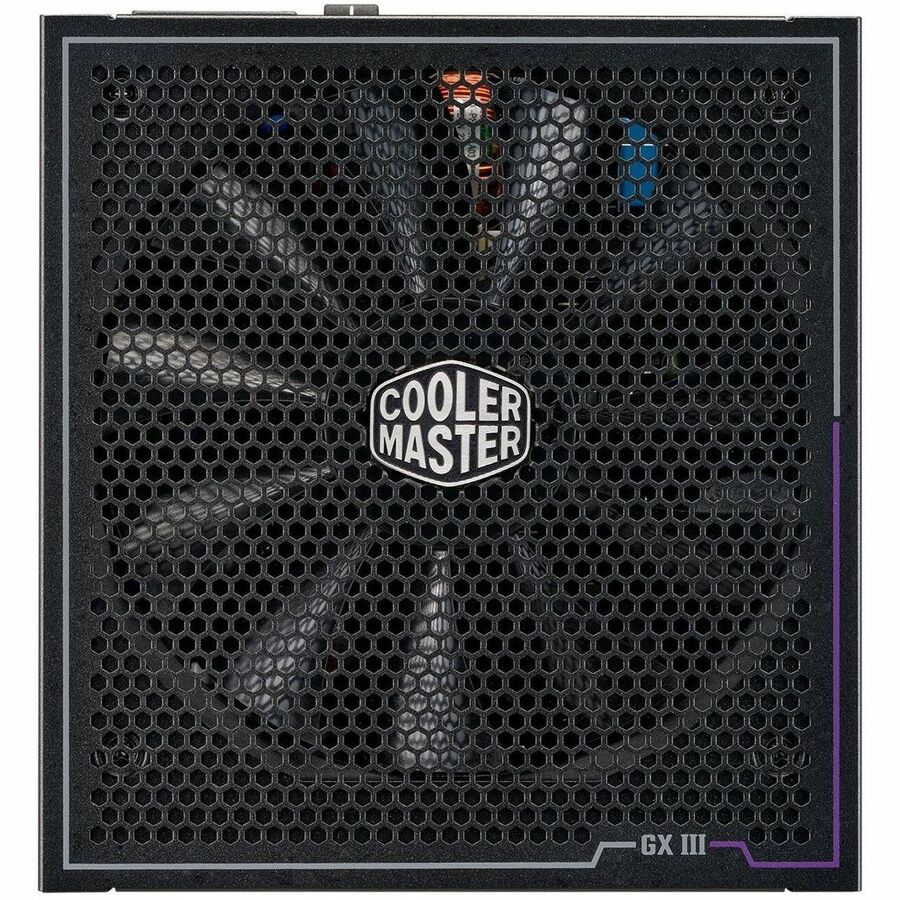

SILENT FAN PERFORMANCE WITH A ZERO-RPM MODE
A zero-RPM default mode automatically turns the fan on when your PC reaches a specific temperature.
SEPARATED THERMAL TECHNOLOGIES
Separated thermal technologies provide improved thermal performance and a large, high-quality Japanese capacitor features reduced ripple noise and enhanced reliability.

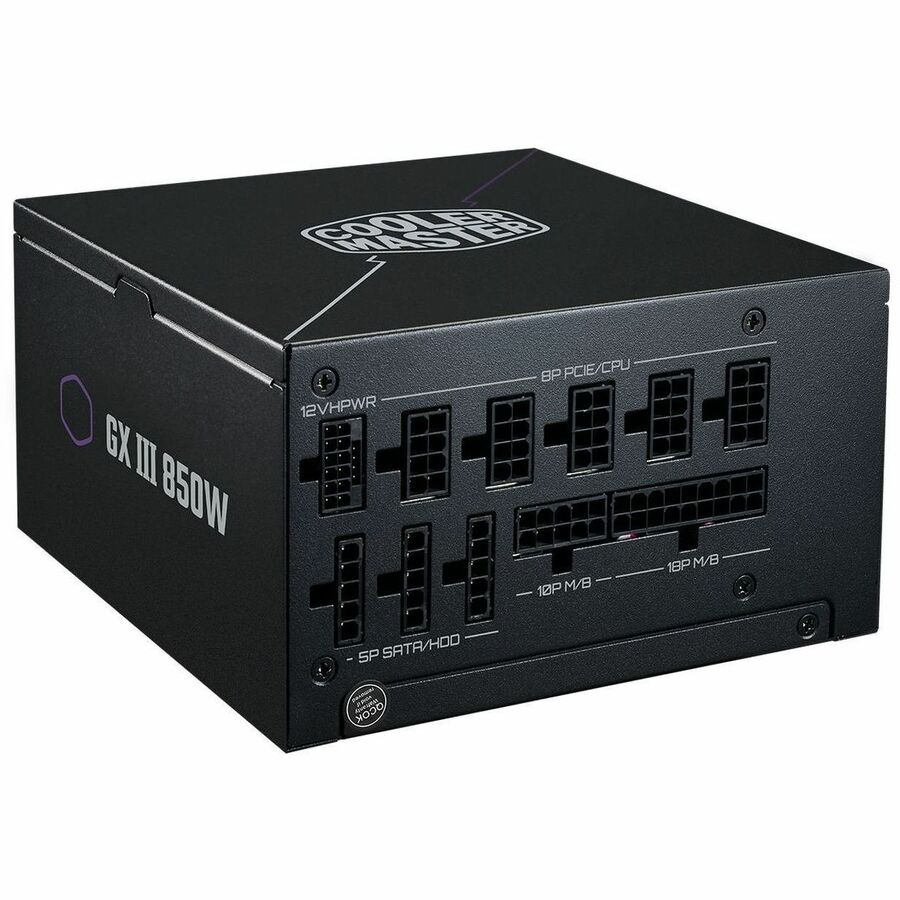

FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: MPX-8503-AFAG-2BUV
- Brand Name: Cooler Master
- Product Line: MWE Gold
- Product Model: MPX-8503-AFAG
- Product Name: MWE Gold MPX-8503-AFAG 850W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX12V v3.1
- Efficiency: 90%
- Power Factor Correction (PFC): Active
- Number of Fans: 1
- Fan Bearing Type: Fluid Bearing
- Fan Diameter: 120 mm
- Protection Type:
- Over Voltage
- Over Power
- Over Temperature
- Short Circuit
- Over Current
- Under Voltage
- Surge
- Inrush Current
- Modular: Yes
Reliability
- MTBF: 100000 Hour
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 3.3 V DC @ 20 A
- 5 V DC @ 20 A
- -12 V DC @ 0.3 A
- 5 V DC @ 3 A
- 12 V DC @ 70.8 A
- Output Power: 850 W
Interfaces/Ports
- Number of SATA Power Connectors: 6
- PCI Express Connector: Yes
- Number of (6+2 pin) PCI Express Power Connectors: 4
- Number of (4+4 pin) CPU Power Connectors: 1
Physical Characteristics
- Form Factor: ATX
- Height: 3.4"
- Width: 5.9"
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
Miscellaneous
- Energy Efficiency Certification: 80 Plus Gold
- Energy Efficiency Compliance: Energy-related Products Directive Lot 3 (ErP Lot 3)
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 2
- Waste Electrical and Electronic Equipment Directive (WEEE)
- China Restriction of Hazardous Substances (China RoHS)
Warranty
- Limited Warranty: 10 Year
