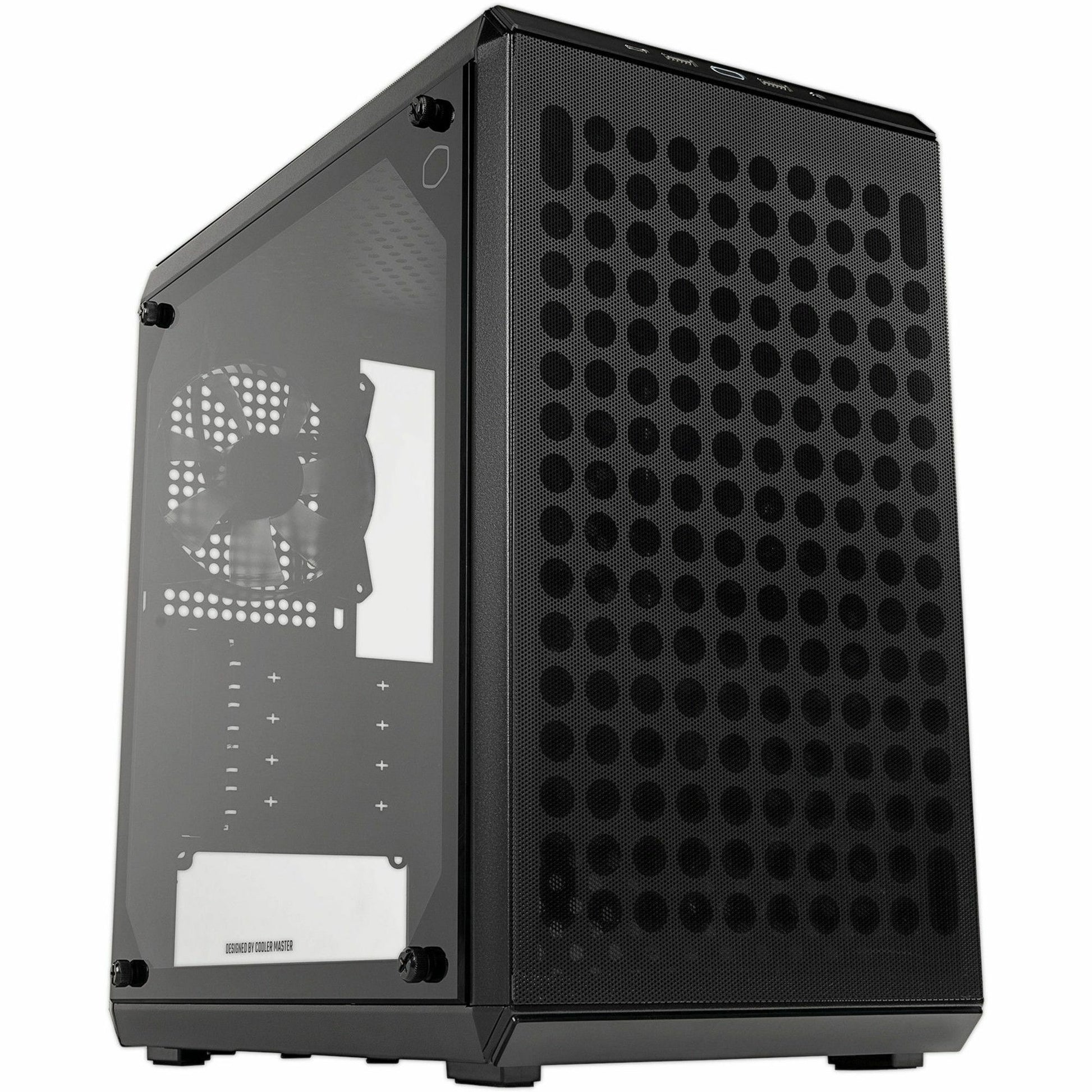

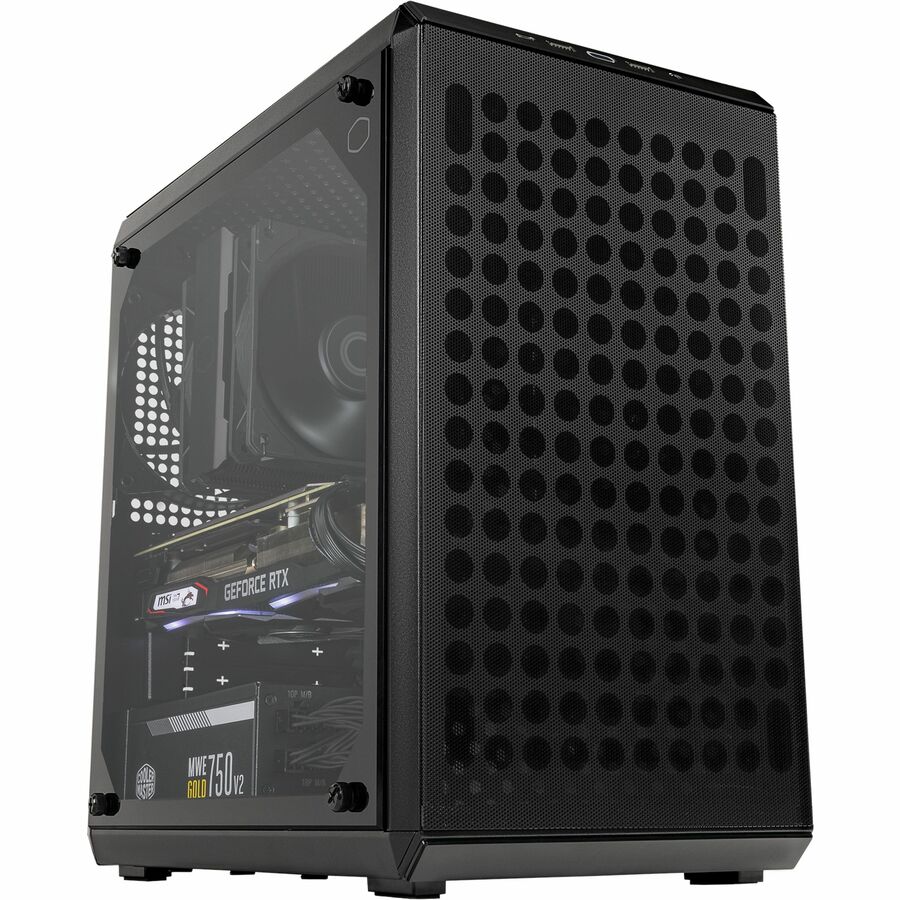

Cooler Master QUBE Q300L V2 Computer Case - Q300LV2-KGNN-S00
Key Features
- Freely install the casing anywhere using mini-tower structure that supports up to 8 fan(s) to maintain the casing ambient
- Supports micro ATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
Product Overview
- High Flexibility for System Building
- Minimized Dimension with ATX PSU Support
- Redesigned Patterned Dust Filter
- Clean Routing Space
- Excellent Thermal Performance

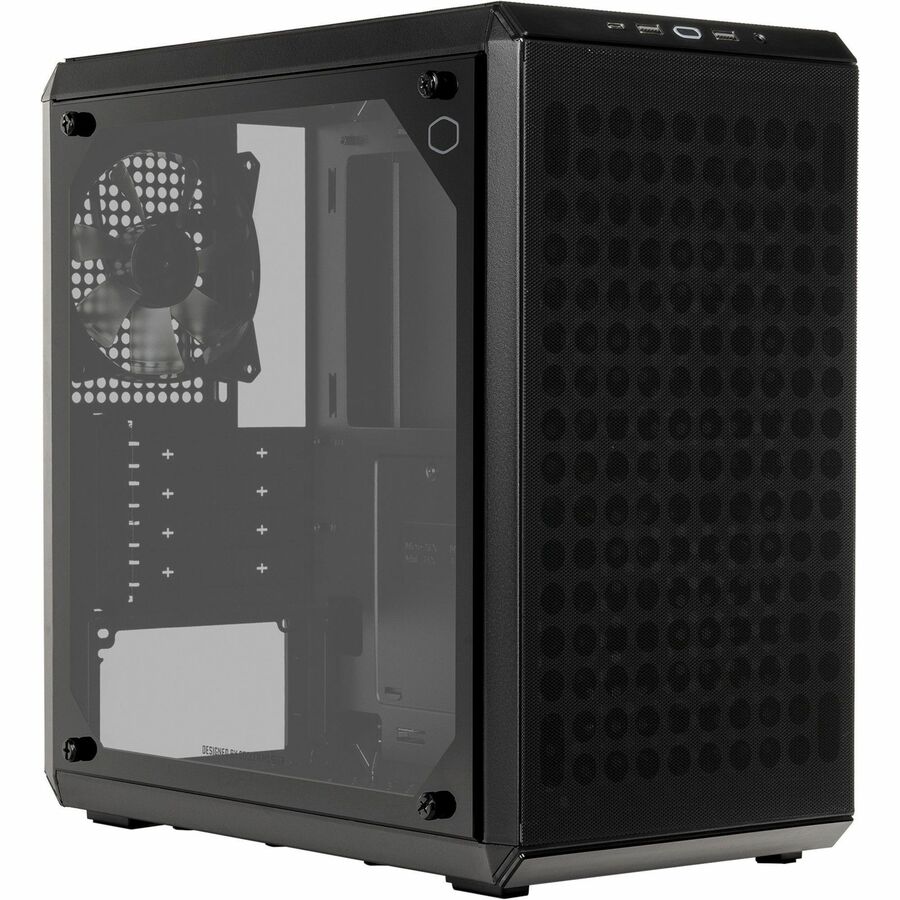

- Edge-to-Edge Temper-Glass Side Panel
REDESIGNED MAGNETIC DUST FILTER
The redesigned dust filter keeps your PC breathing easy with a refreshed patterned design.

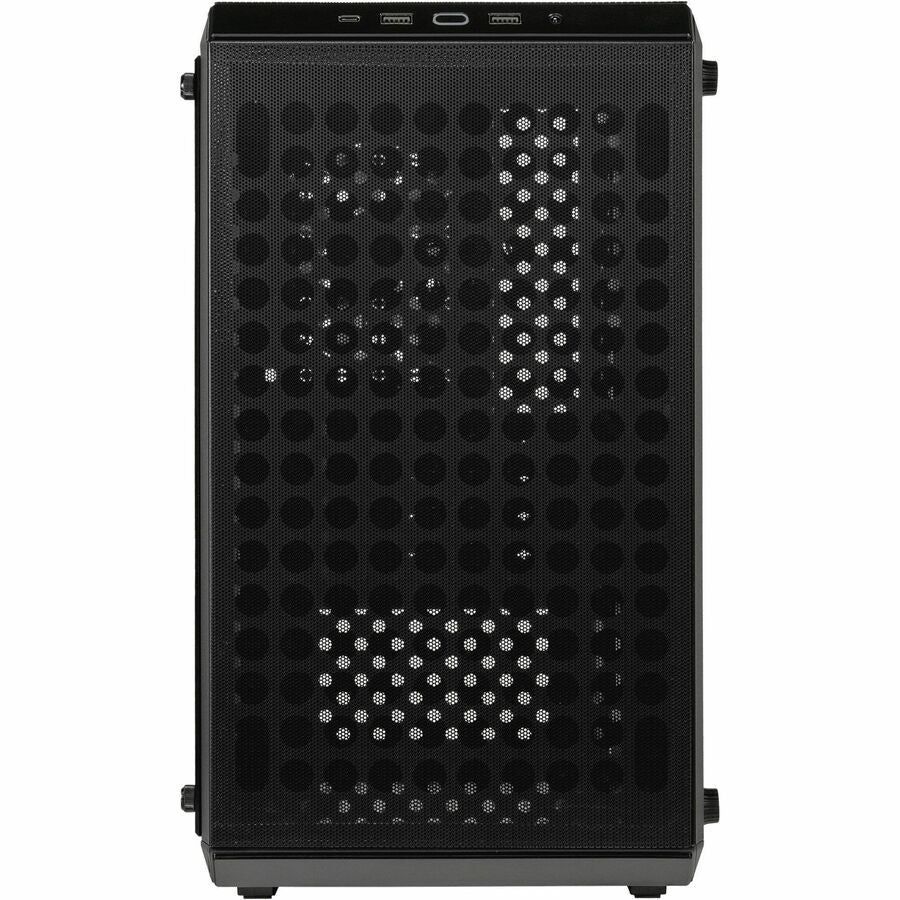

USB 3.2 GEN2X2 (20Gbps) SUPPORTED
USB 3.2 Gen 2x2 Type C port built into the I/O panel with data transfer speeds up to 20Gbps.
EXCELLENT THERMAL PERFORMANCE

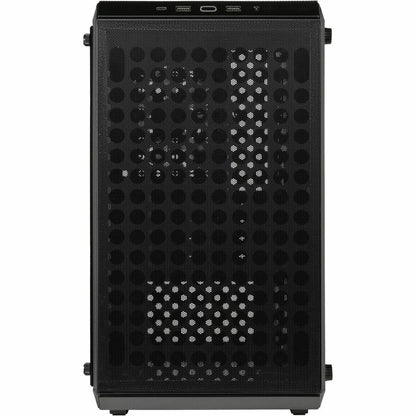

The open design of the perforated front, top, and bottom guarantees excellent thermal performance.

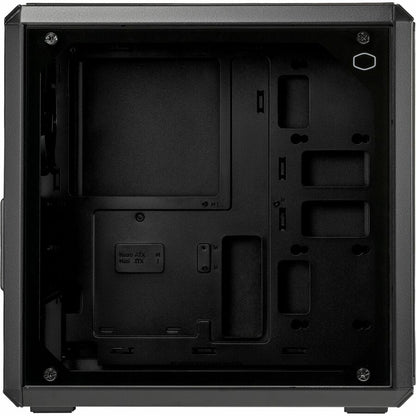

CLEAN ROUTING SPACE

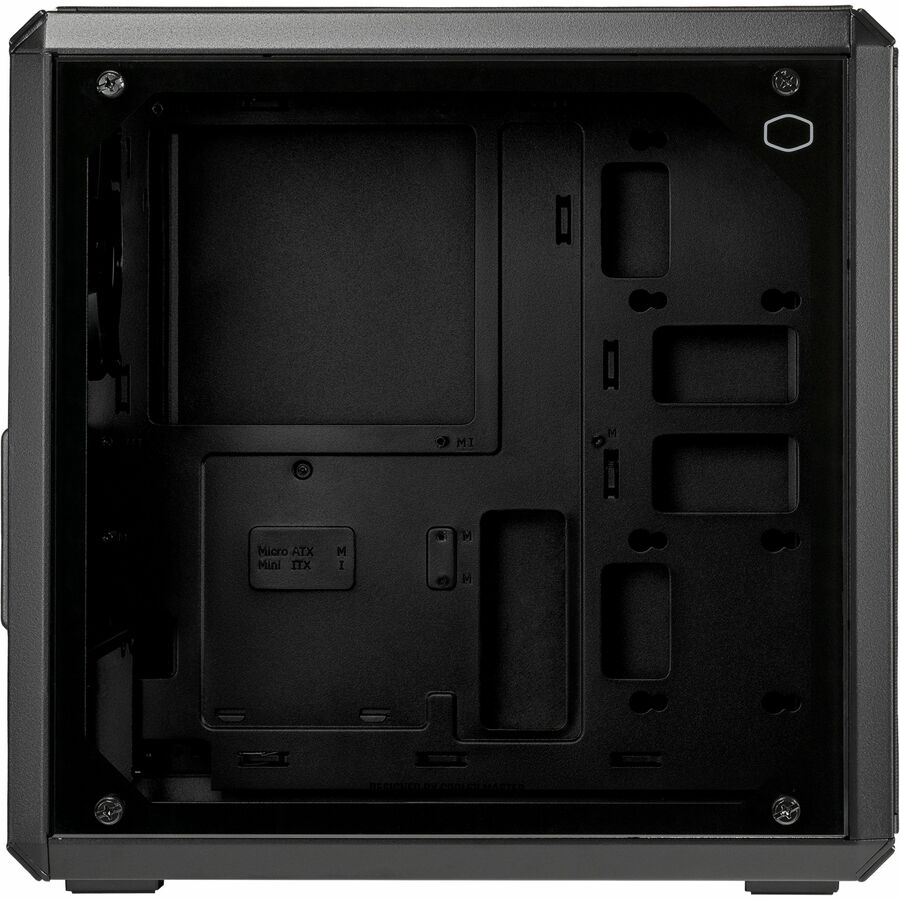

28mm of space behind the motherboard tray allow for easy and hidden cable management.
MULTIPLE POSITIONING OPTIONS
The case can be put in vertical or horizonal position.
FAN AND RADIATOR SUPPORT
The front supports up to two 140mm fans and up to a 240mm radiator. The rear supports a 120mm fan or radiator and the top two 120mm fans. All to ensure you don't have to compromise on performance.

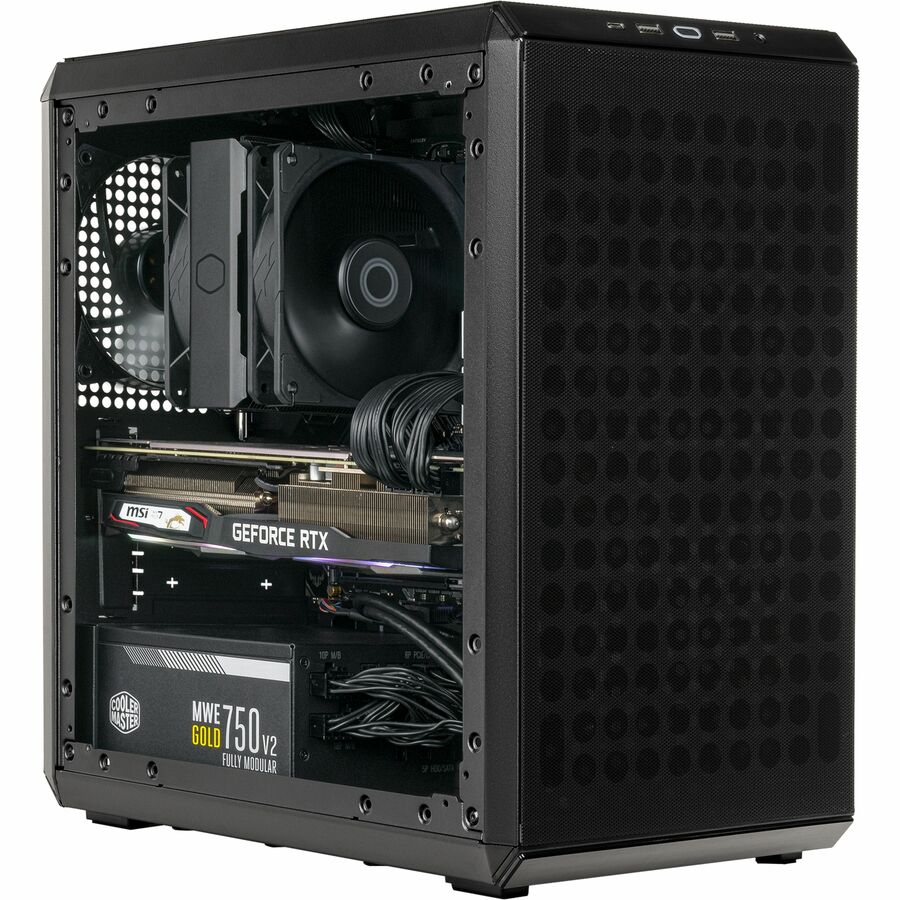

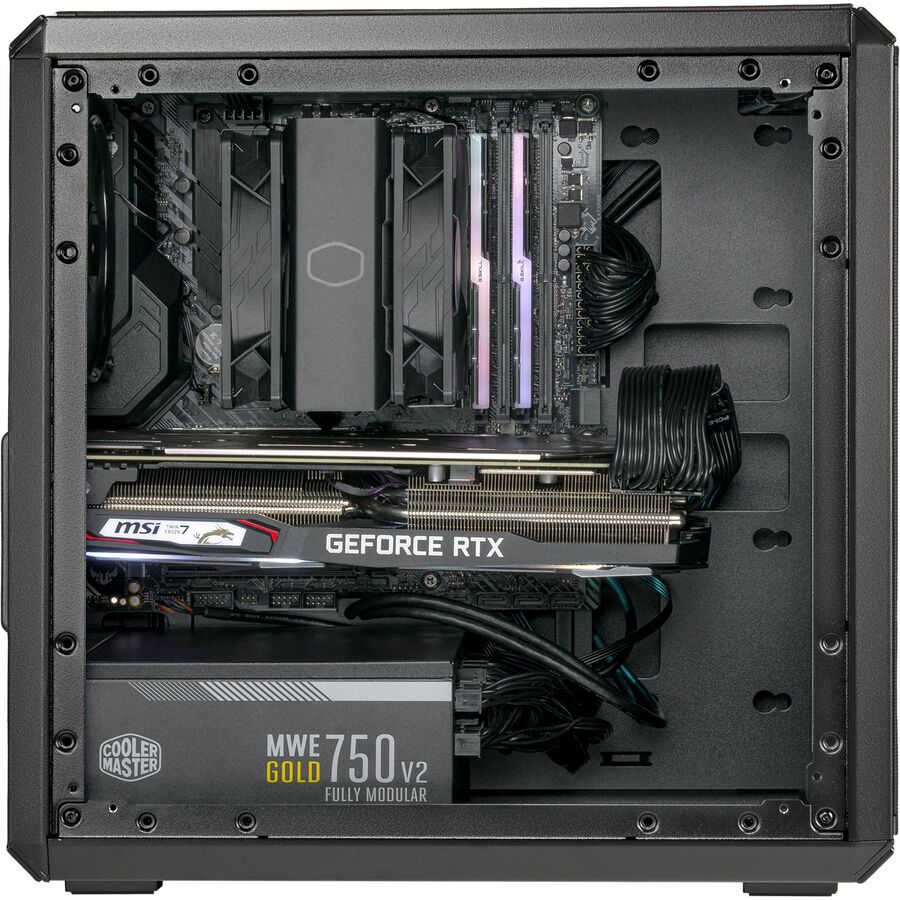

COMPONENTS CLEARANCE
The Q300L V2 case supports CPU coolers up to a height of 159mm, graphics cards up to a length of 360mm, and power supplies up to a length of 160mm.
General Information
- Manufacturer: Cooler Master Co., Ltd
- Manufacturer Part Number: Q300LV2KGNNS00
- Brand Name: Cooler Master
- Product Line: QUBE
- Product Model: Q300L V2
- Product Name: QUBE Q300L V2 Computer Case
- Product Type: Computer Case
Technical Information
- Motherboard Supported:
- Micro ATX
- Mini ITX
- Number of Fans Supported: 8
- Number of Fans Installed: 1
- Fan Size Supported:
- 4.72"
- 5.51"
- Installed Fan Size: 4.72"
- Features:
- Dust Filter
- Cable Management
Bays
- Number of Internal 3.5" Bays: 1
- Number of Internal 2.5" Bays: 2
I/O Expansions
- Total Number of Expansion Slots: 4
Interfaces/Ports
- Total Number of USB Ports: 3
- USB Port Details:
- 2 x USB 3.2 Gen 1 Type-A
- 1 x USB 3.2 Gen 2x2 Type C
- Front USB: Yes
- Total Number of Audio In Ports: 1
- Front Audio In: Yes
- Total Number of Audio Out Ports: 1
- Front Audio Out: Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Steel
- Plastic
- Tempered Glass
- Cooler Type: Fan Cooler
- Form Factor: Mini-tower
- Maximum CPU Cooler Height: 6.26"
- Maximum PSU Length: 6.30"
- Maximum GPU Length: 14.17"
- Height: 15.1"
- Width: 9.1"
- Depth: 15.2"
- Weight (Approximate): 9.59 lb
Warranty
- Limited Warranty: 2 Year
