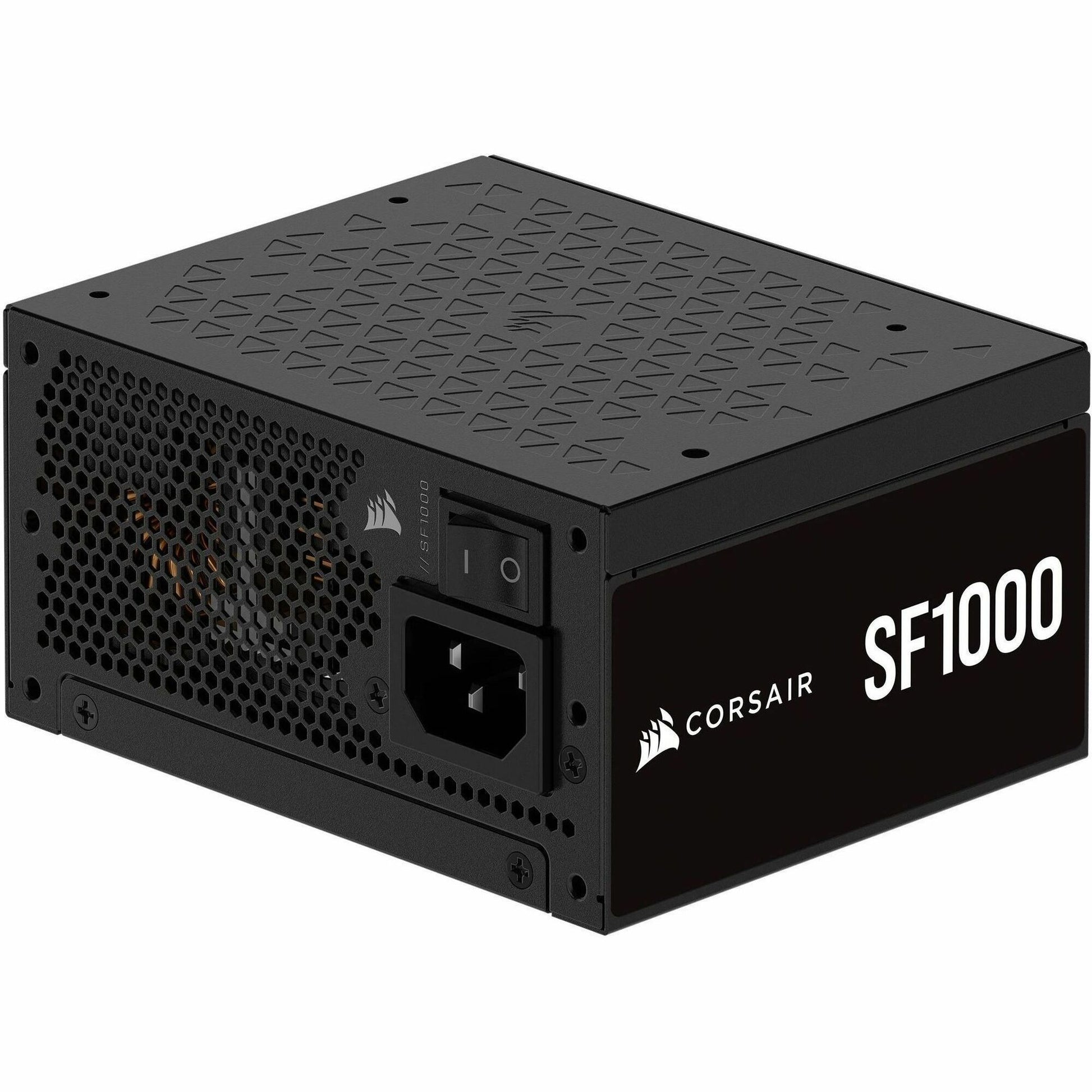

Corsair SF RPS0176 1000W Power Supply - CP-9020257-NA
Key Features
- Providing up to 1000 W maximum output power
- Supplies power to the electrical load to keep up with the power requirements
- The constant 3.3 V ensures smooth functioning
Product Overview

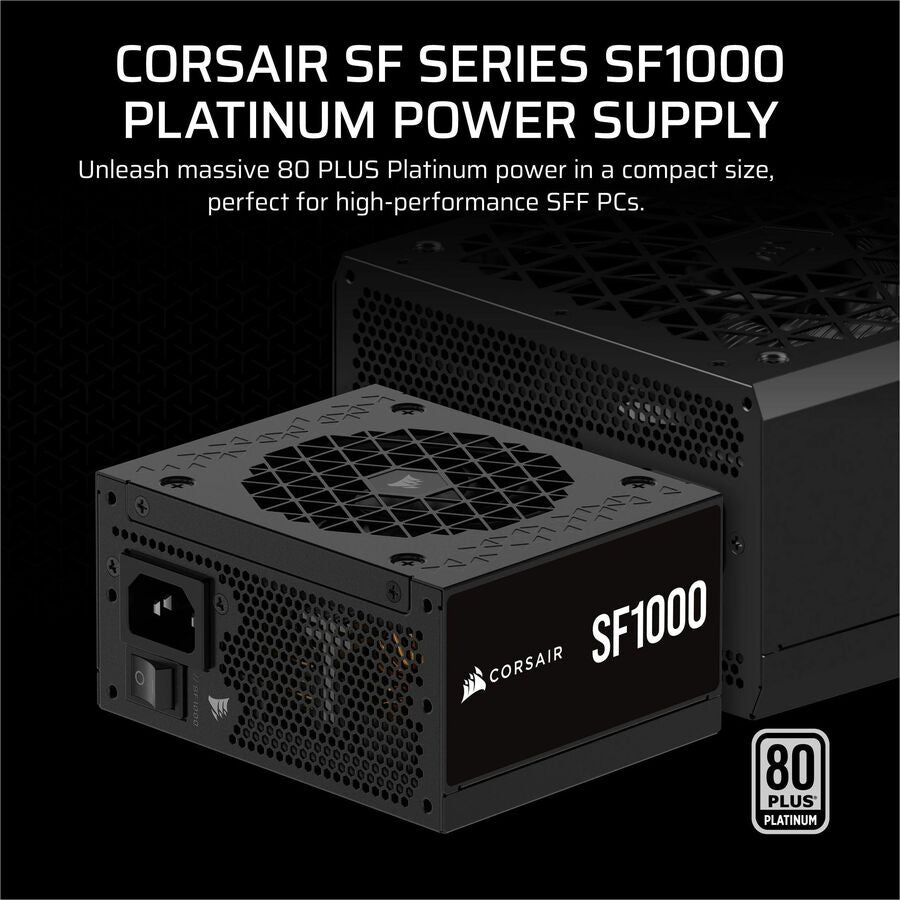

SMALL AND MIGHTY
Don't let the size fool you - this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.
50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.

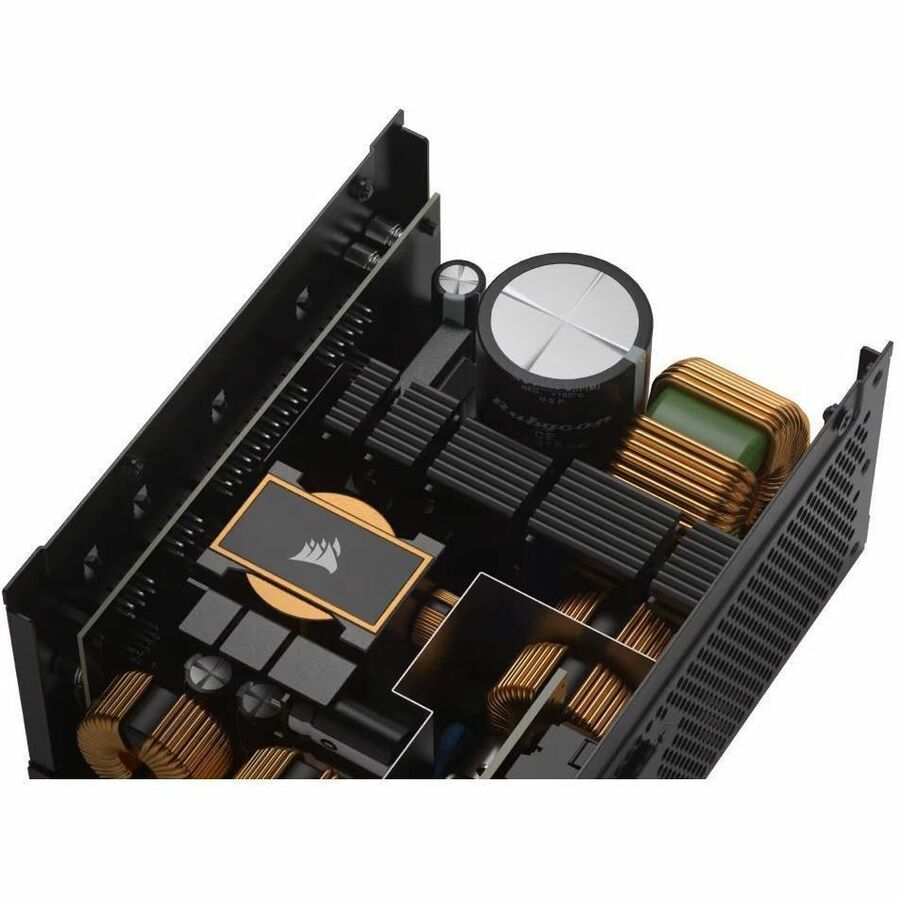

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

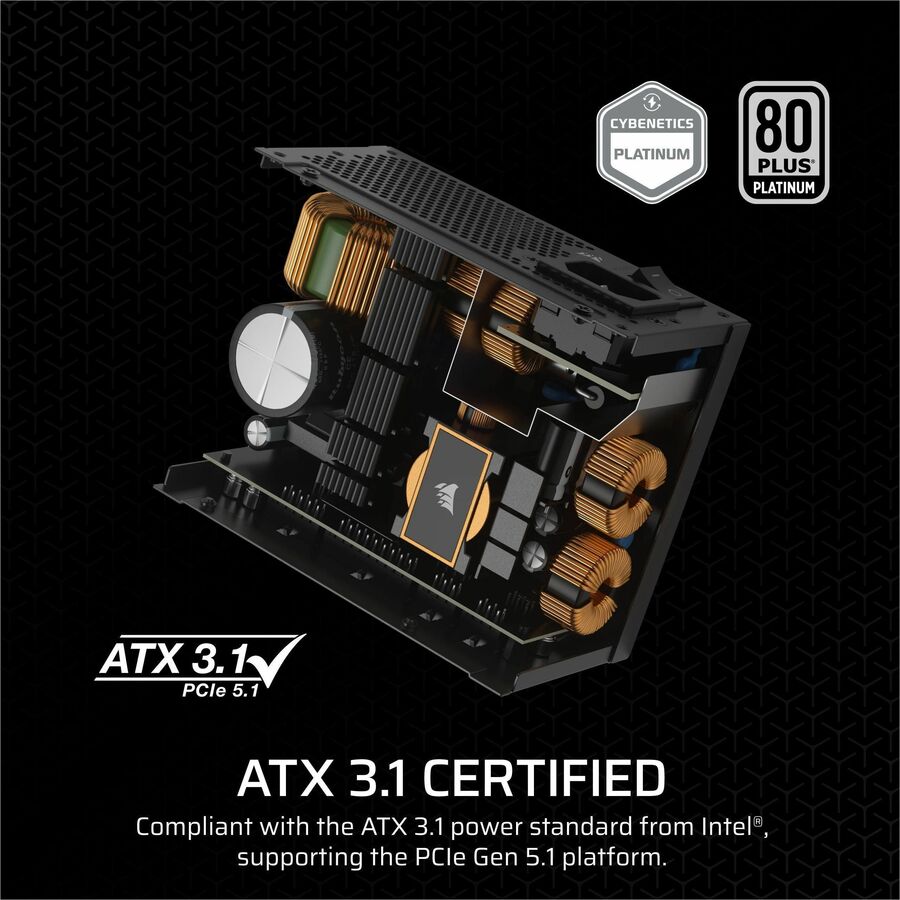

ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

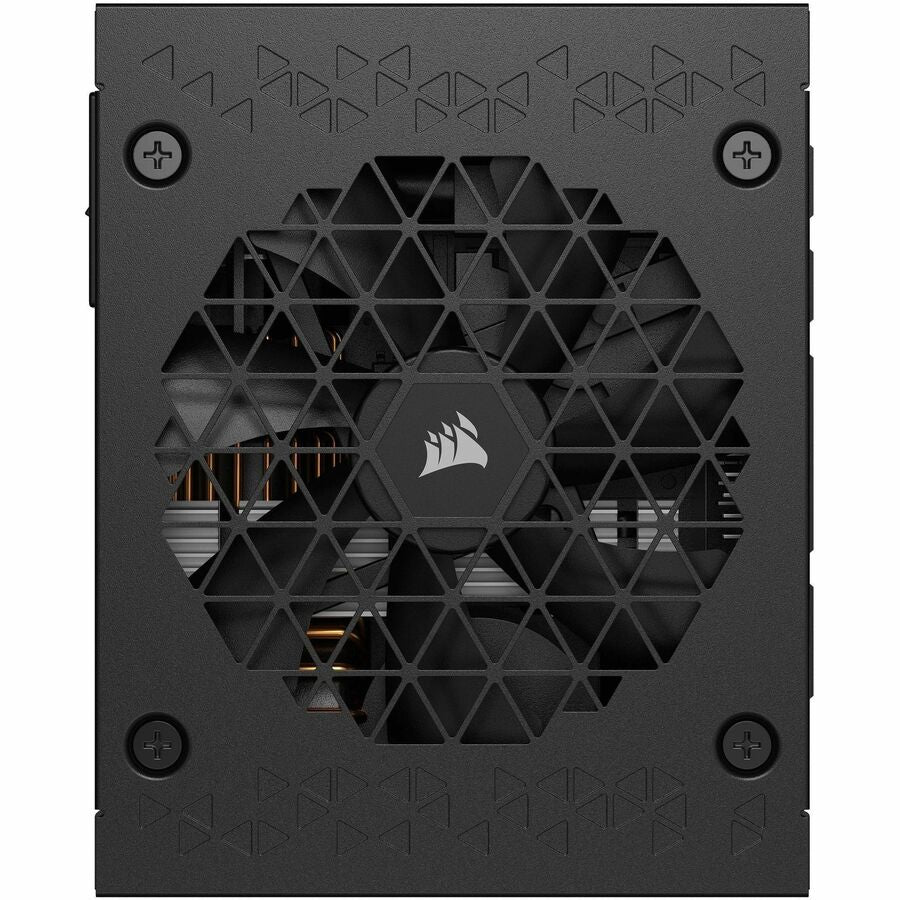

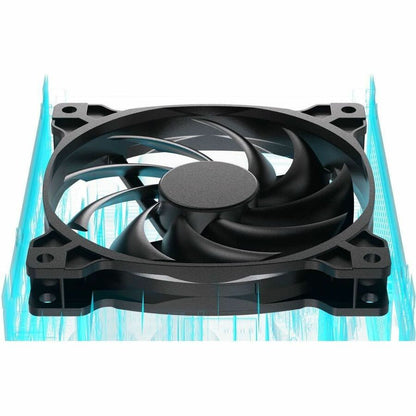

QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

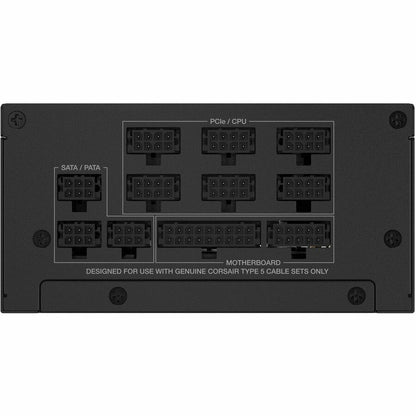

FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
General Information
- Manufacturer: Corsair
- Manufacturer Part Number: CP-9020257-NA
- Brand Name: Corsair
- Product Series: SF
- Product Model: RPS0176
- Product Name: SF RPS0176 1000W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX12V v3.1
- Number of Fans: 1
- Fan Bearing Type: Fluid Dynamic Bearing
- Fan Diameter: 92 mm
- Modular: Yes
- Modular Type: Fully Modular
- NVIDIA SLI Supported: Yes
- Features: Low Noise
Reliability
- MTBF: 100000 Hour
Power Description
- Input Voltage:
- 120 V
- 230 V
- Output Voltage:
- 3.3 V
- 5 V
- 12 V
- 5 V SB
- Output Voltage Detail:
- 3.3 V @ 20 A
- 5 V @ 20 A
- 12 V @ 83.3 A
- 5 V SB @ 3 A
- Output Current:
- 20 A
- 83.30 A
- 3 A
- Output Power: 1000 W
Interfaces/Ports
- Number of SATA Power Connectors: 8
- PCI Express Connector: Yes
- Number of (6+2 pin) PCI Express Power Connectors: 4
- Number of (4+4 pin) CPU Power Connectors: 2
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor:
- SFX
- Internal
- Height: 2.5"
- Width: 4.9"
- Depth: 3.9"
Miscellaneous
- Energy Efficiency Certification: 80 Plus Platinum
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 7 Year
