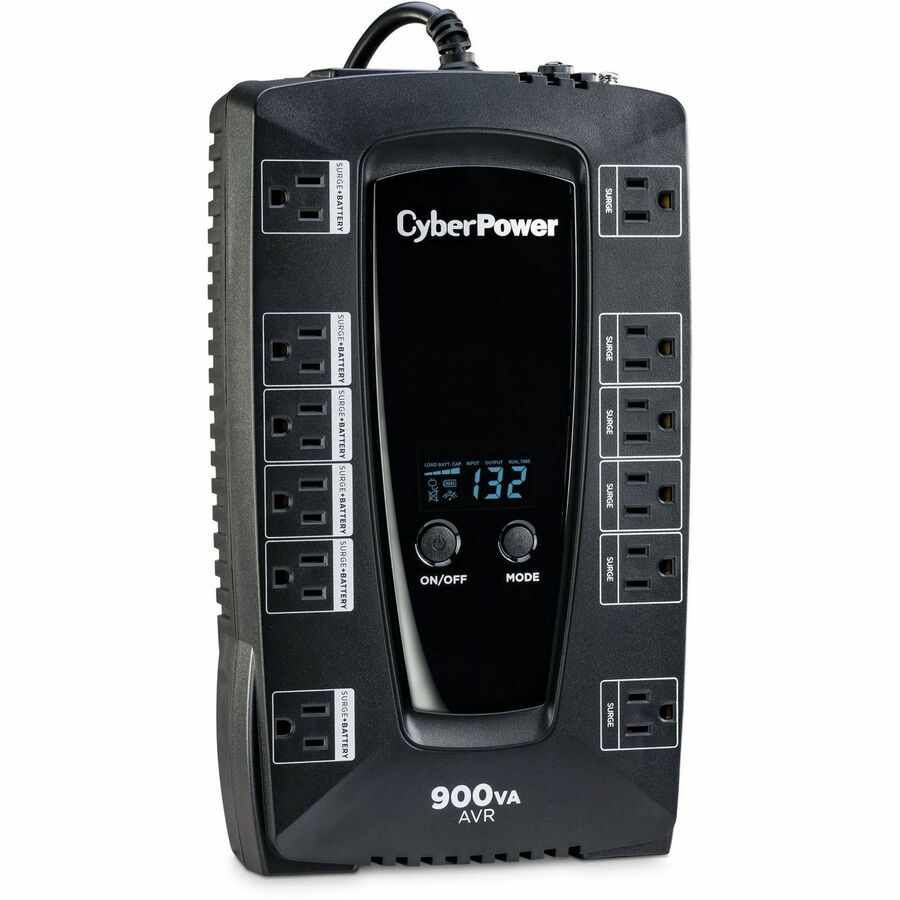

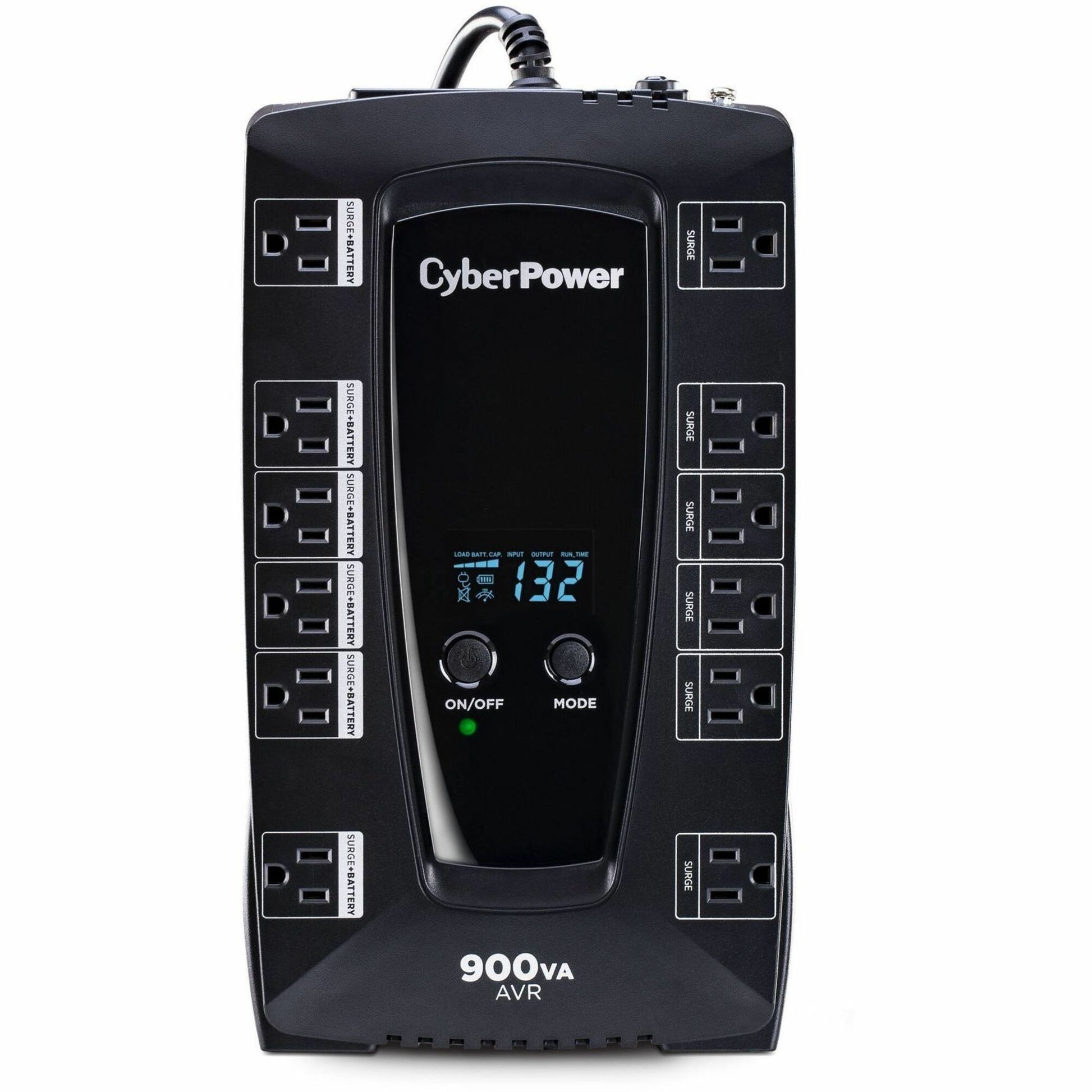

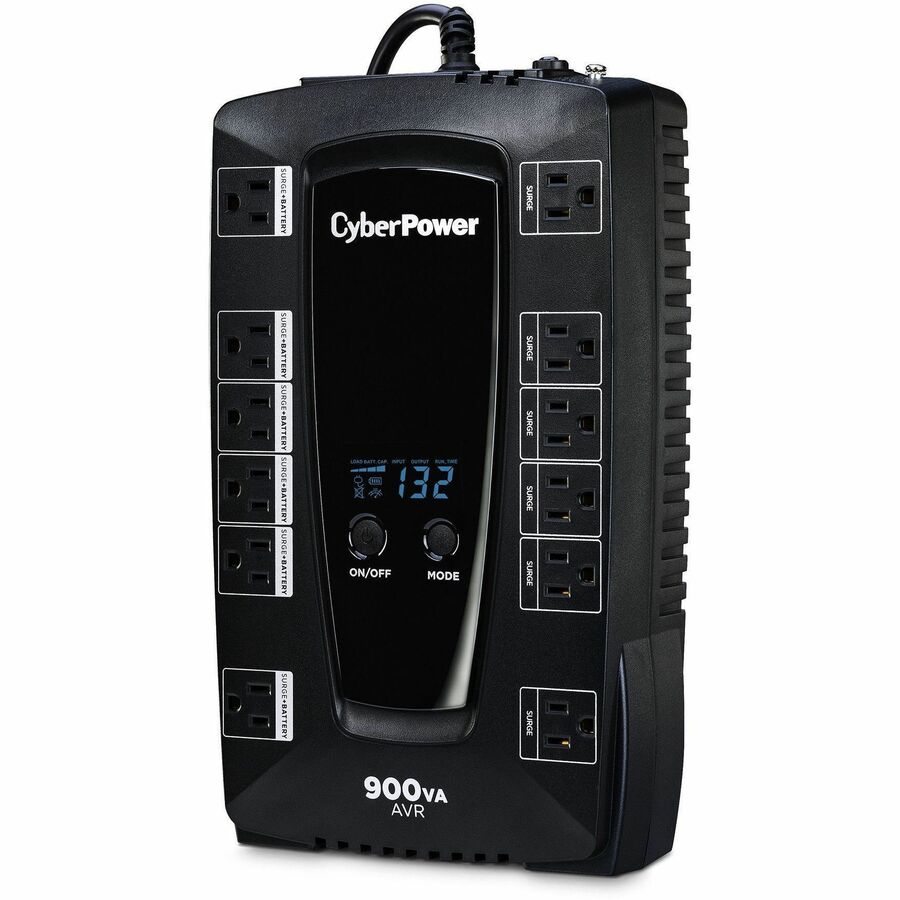

CyberPower AVRG900LCD Intelligent LCD UPS Systems - AVRG900LCD
Key Features
- Capacity: 900 VA / 480 W
- Connected Equipment Guarantee: $200,000
- Data Line Protection: Telephone
- Management Software: PowerPanel® Personal

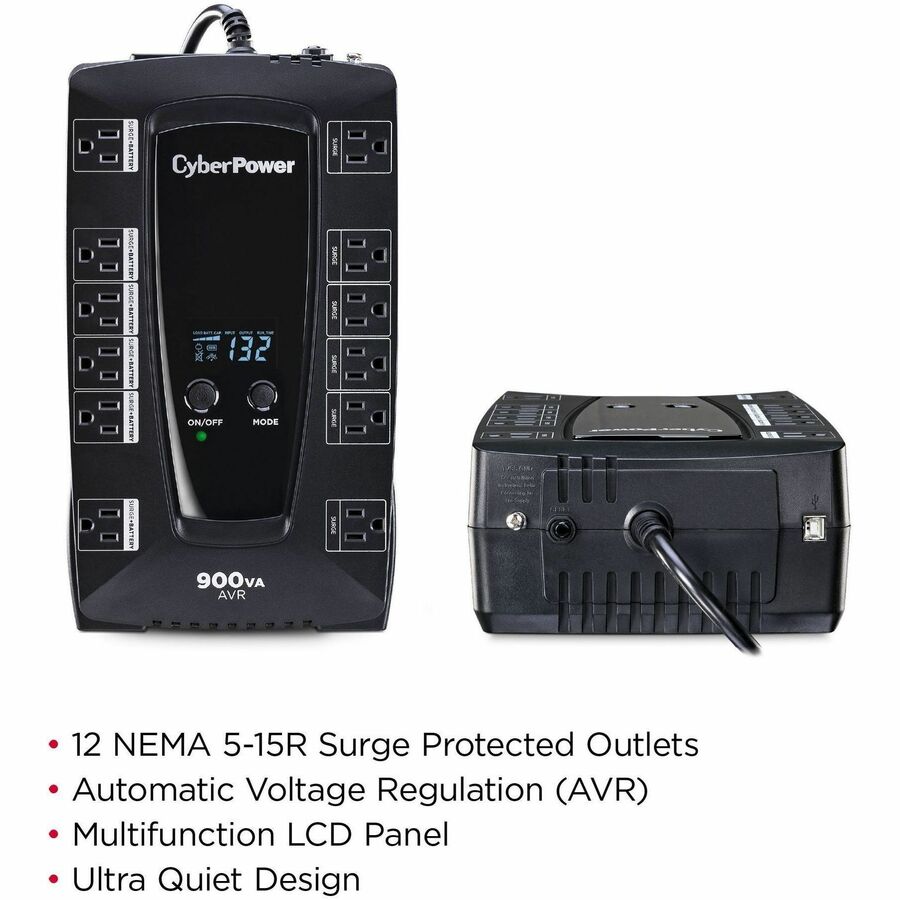

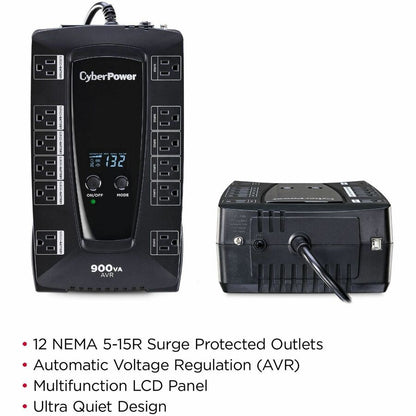

- Outlets: 12 (6 surge, 6 surge + battery backup)
- Output: 120 VAC ±5%
- Plug Type & Cord: NEMA 5-15P, 5 ft cord
- Topology: Line Interactive
- Warranty: 3 years
- Waveform: Simulated Sine Wave
Product Overview

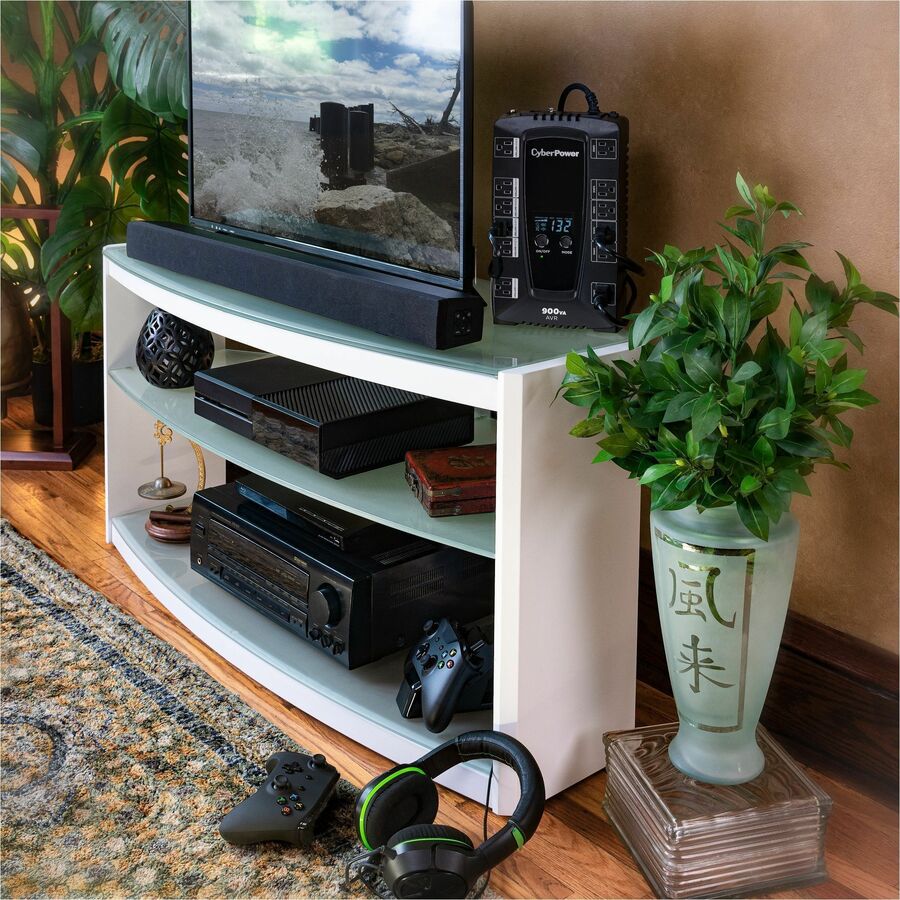

A compact UPS with line interactive topology, the CyberPower AVRG900LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG900LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG900LCD comes with a three-year warranty (including coverage of batteries) and a ,200,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: AVRG900LCD
- Brand Name: CyberPower
- Product Series: Intelligent LCD UPS
- Product Model: AVRG900LCD
- Product Name: AVRG900LCD Intelligent LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 12 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Dataline Protection: RJ-11
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Technology
- Application/Usage:
- Desktop Computer
- Workstation
- Network Device
- Home Entertainment System
- Surge Suppression: Yes
- Features: Audible Alarm
Power Description
- Load Capacity (VA): 900 VA
- Load Capacity (Watt): 480 W
- Input Voltage: 120 V AC
- Input Voltage Range: 90 V AC - 148 V AC
- Output Voltage: 120 V AC
- Input Frequency:
- 57 Hz
- 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1030 J
- Circuit Breaker: Yes
- Output Power Factor: 0.5
Display & Graphics

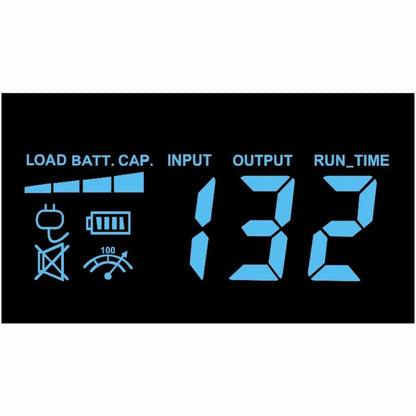

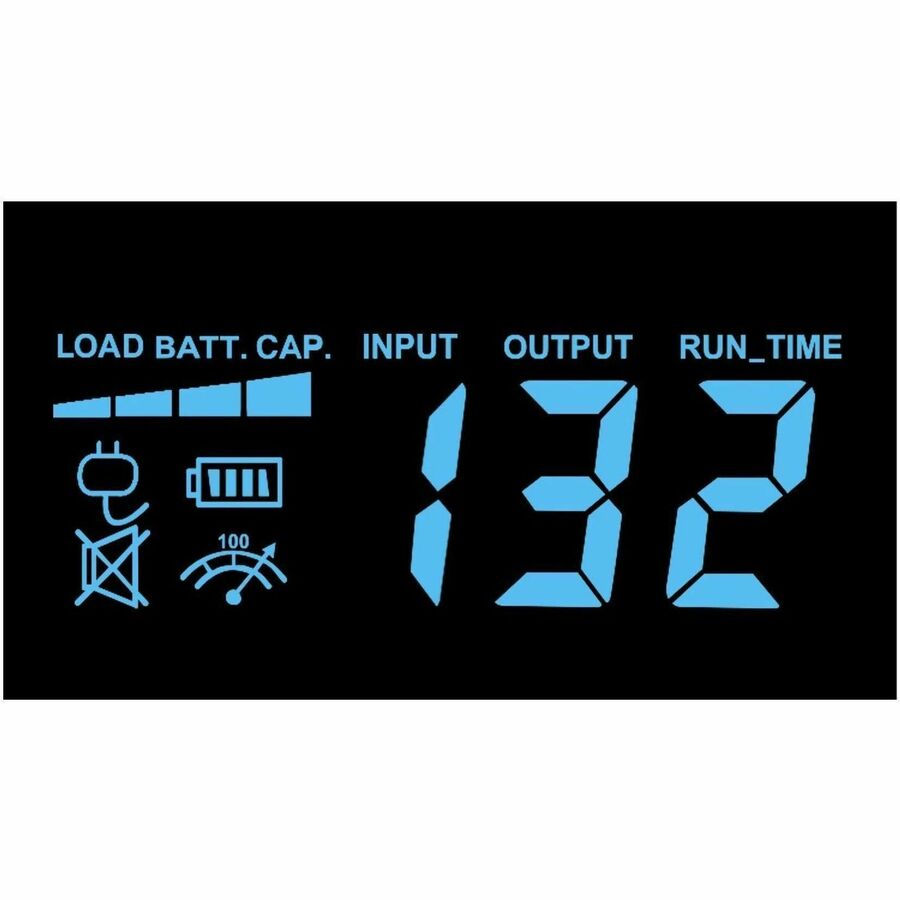

- Display: LCD
Management
- Alarm:
- Battery Mode
- On Battery
- Low Battery
- Overload
Controls/Indicators
- Status Indicators:
- Power On
- Fault
Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 1
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 10 Minute
- Hot Swappable: No
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 6562 ft
- Maximum Storage Elevation: 50000 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Height: 7"
- Width: 12.2"
- Depth: 3.5"
- Form Factor: Compact
- Weight (Approximate): 14.20 lb
Miscellaneous
- Package Contents:
- Intelligent LCD Series AVRG900LCD 900VA 480W UPS
- User Manual
- USB Cable
- PowerPanel Personal Edition Software Download Card
- Software Included: PowerPanel Personal Edition Software available for free download from cyberpowersystems.com
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information: Three-year warranty (including coverage of batteries)
