CyberPower CP1200AVR AVR UPS Systems - CP1200AVR
Key Features
- $375,000
- 10 (5 surge, 5 surge + battery backup)
- 120 VAC ± 5%
- 1200 VA / 720 W
- 3 year
- Capacity:
- Connected Equipment Guarantee:
- Data line protection:
- ENERGY STAR® qualified:
- Ethernet, Coaxial
- Line Interactive
- Management software:
- NEMA 5-15P, 6 ft. cord
- Outlets:
- Output:
- Plug type & cord:
- PowerPanel® Personal
- Simulated Sine Wave
- Topology:
- Warranty:
- Waveform:
- Yes
Product Overview
A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP1200AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP1200AVR delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1200AVR comes with a three-year warranty (including coverage of batteries) and a ,375,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: CP1200AVR
- Brand Name: CyberPower
- Product Series: AVR UPS
- Product Model: CP1200AVR
- Product Name: CP1200AVR AVR UPS Systems
- Product Type: Line-interactive UPS
Technical Information

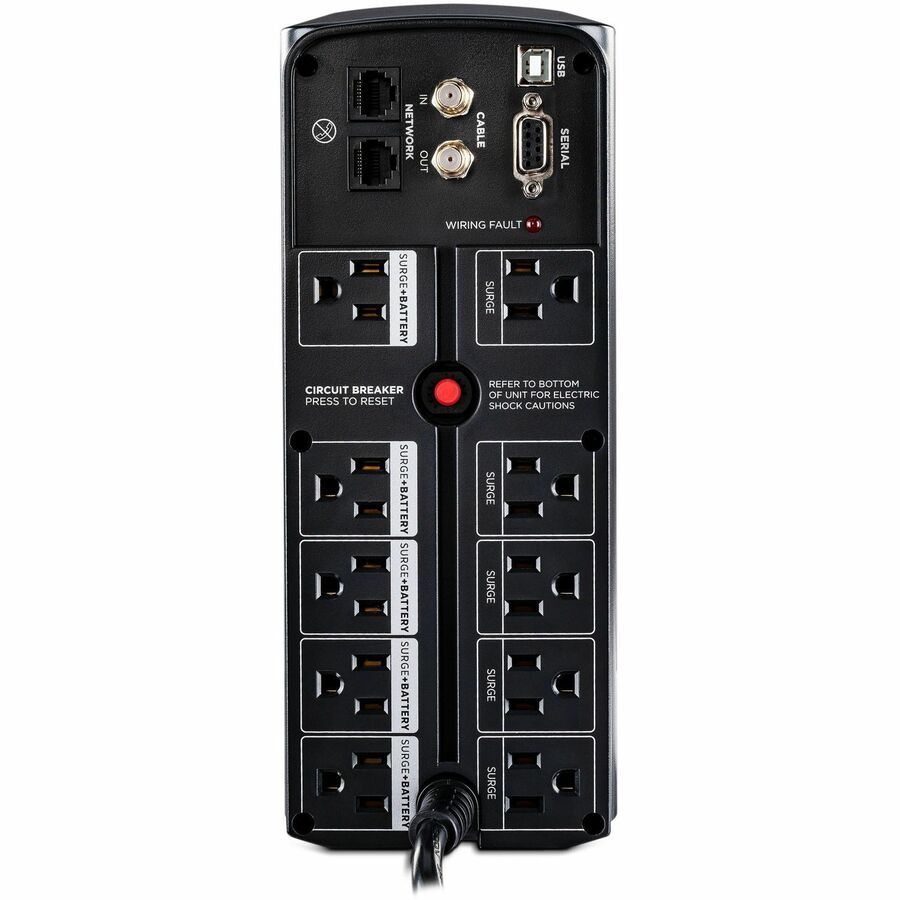

- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Dataline Protection:
- Coax
- RJ-45
- Cord Length: 6 ft
- Transfer Time: 4 ms
Power Description
- Load Capacity (VA): 1200 VA
- Load Capacity (Watt): 720 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1080 J
- Circuit Breaker: Yes
Management
- Alarm:
- Low Battery
- On Battery
- Overload

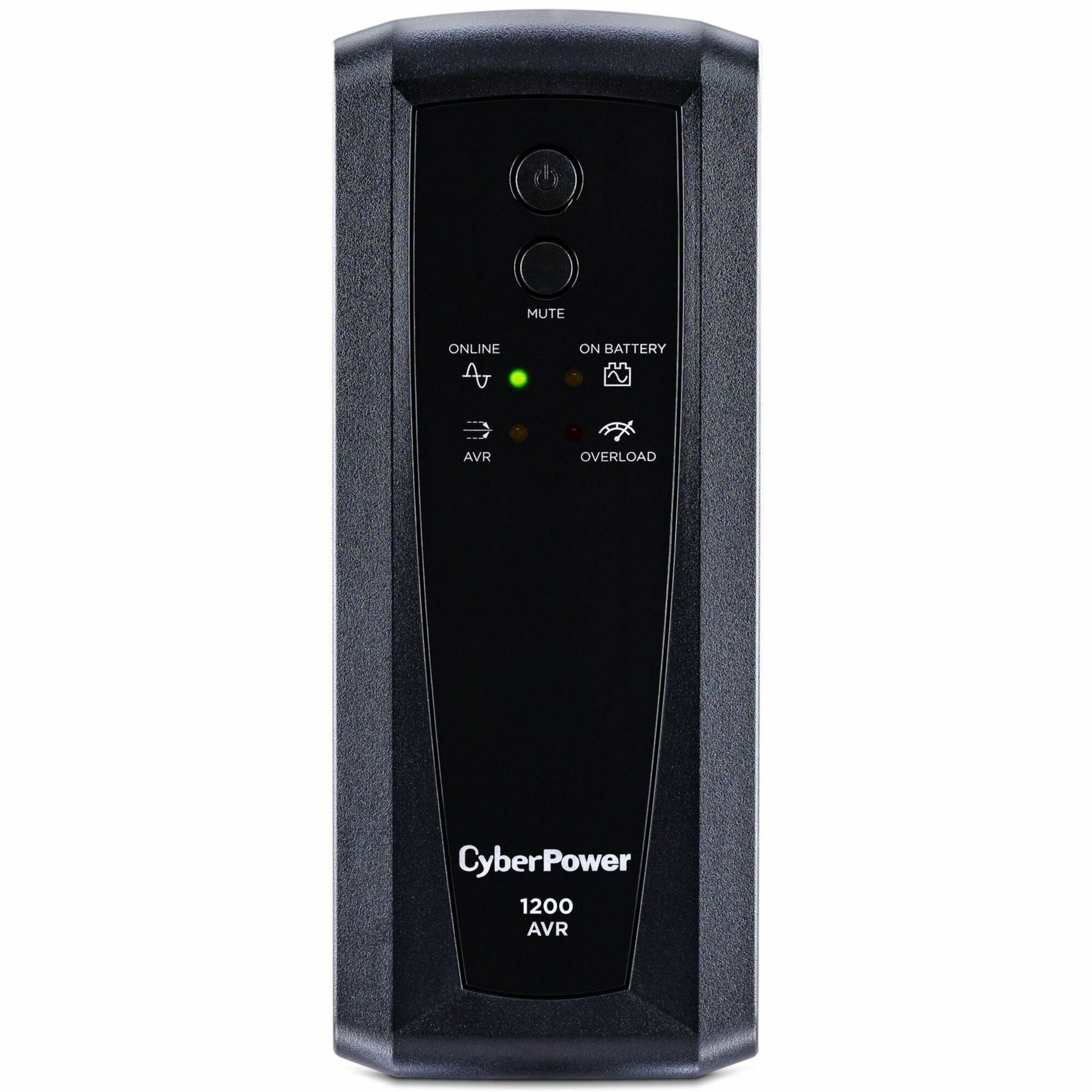

Controls/Indicators
- Status Indicators:
- Power On
- Wiring Fault
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
Battery Information
- Number of Batteries: 2
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 3 Minute
- Backup/Run Time (Half Load): 12 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 8 Hour
Environmental Conditions
- Maximum Operating Temperature: 113°F (45°C)

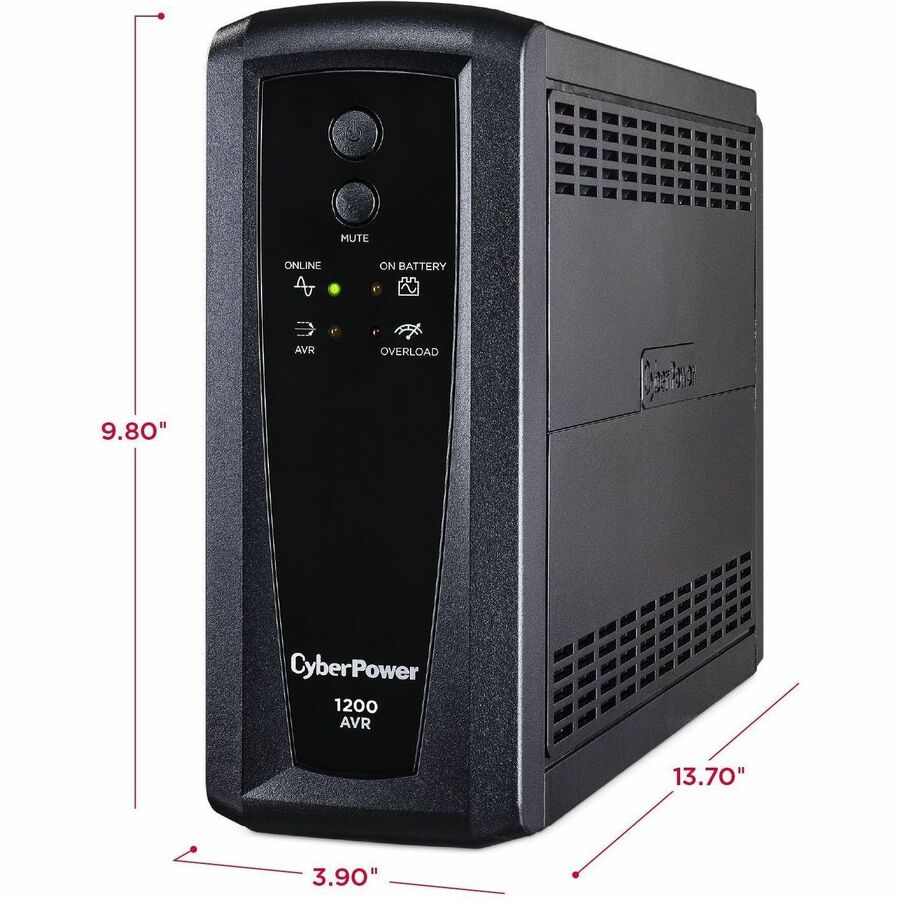

Physical Characteristics
- Product Color: Black
- Height: 9.8"
- Width: 4"
- Depth: 13.2"
- Form Factor: Tower
- Weight (Approximate): 24.30 lb
Miscellaneous
- Package Contents:
- AVR CP1200AVR 1200VA UPS
- User Manual
- Power Management Software
- Warranty Card
- Coaxial Cable
- Phone Cable
- USB Cable
- Software Included: PowerPanel PE
- Energy Star: Yes
- Country of Origin: China
- Environmentally Friendly: Yes
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
- CyberPower stands behind its products by offering an industry leading 3-year warranty
- CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge
- Connected Equipment Guarantee of
- 375,000
