CyberPower OL1K5RTHD Smart App Online UPS Systems - OL1K5RTHD
Key Features
- Capacity: 1500 VA / 1350 W

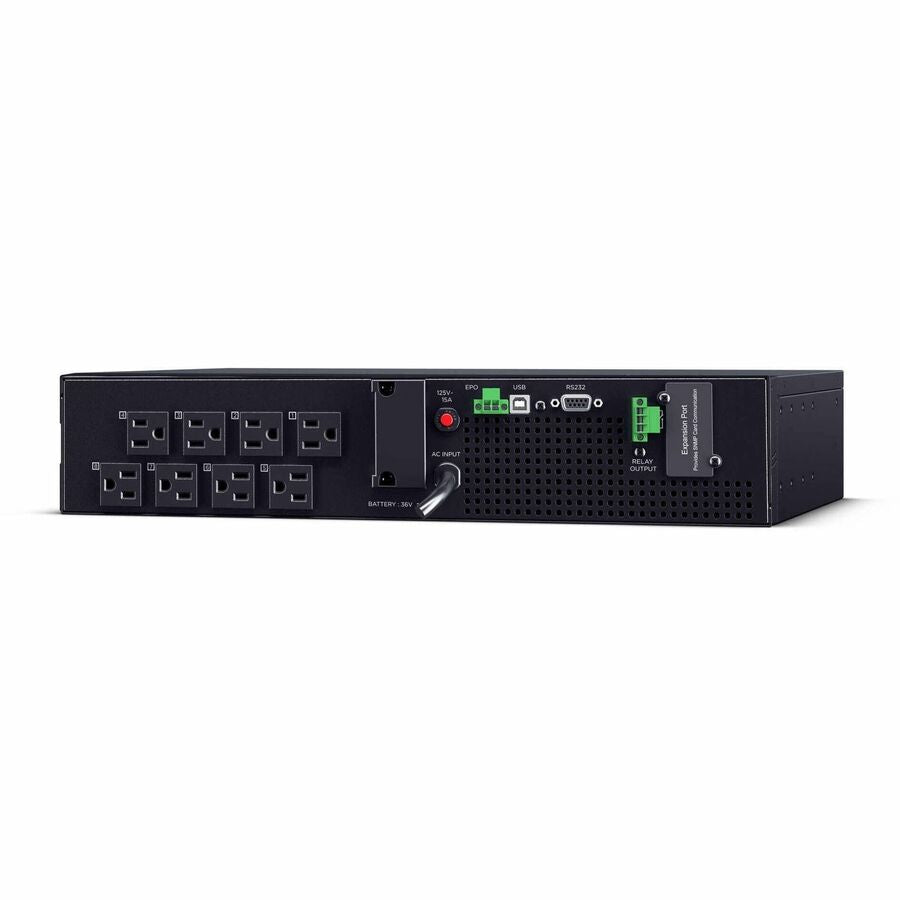

- Communication ports: USB, Serial, SNMP, EPO

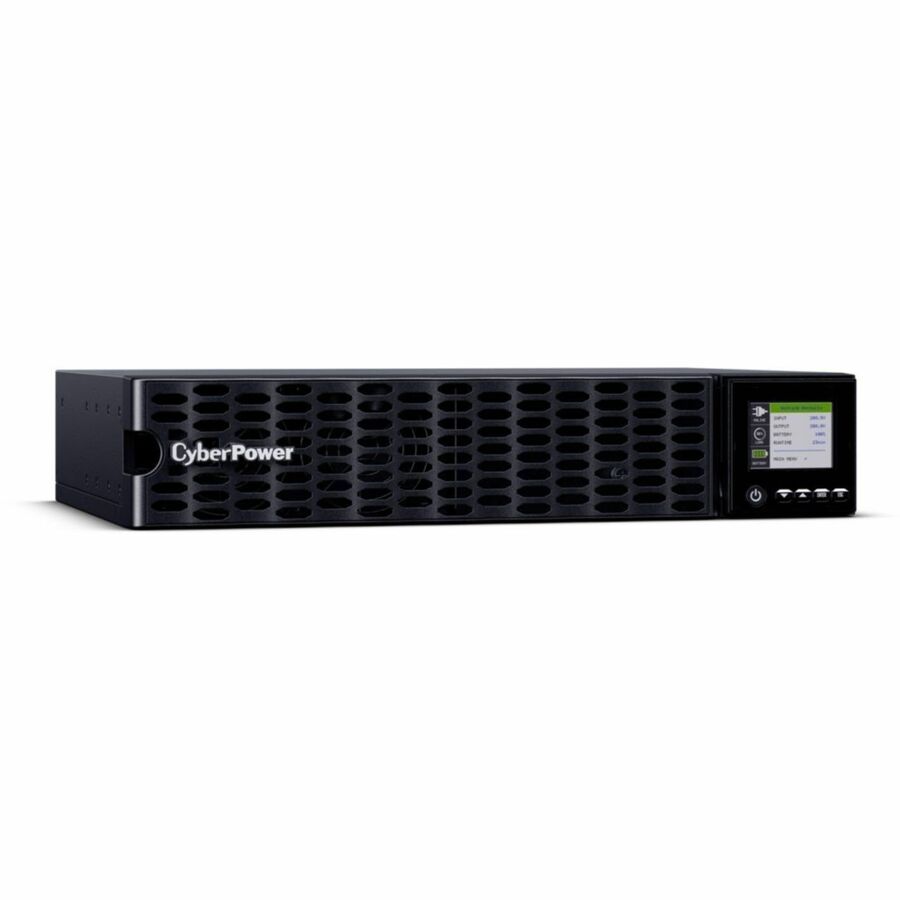

- High Density: 2U Size
- Management software: PowerPanel® Business Edition

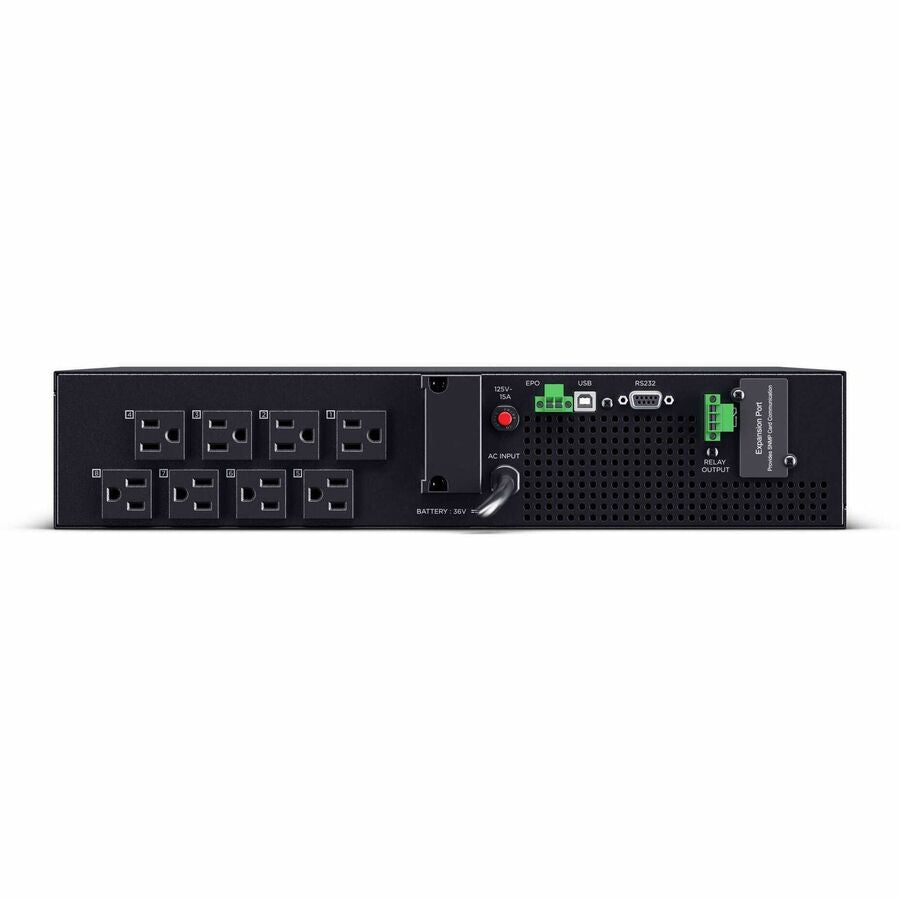

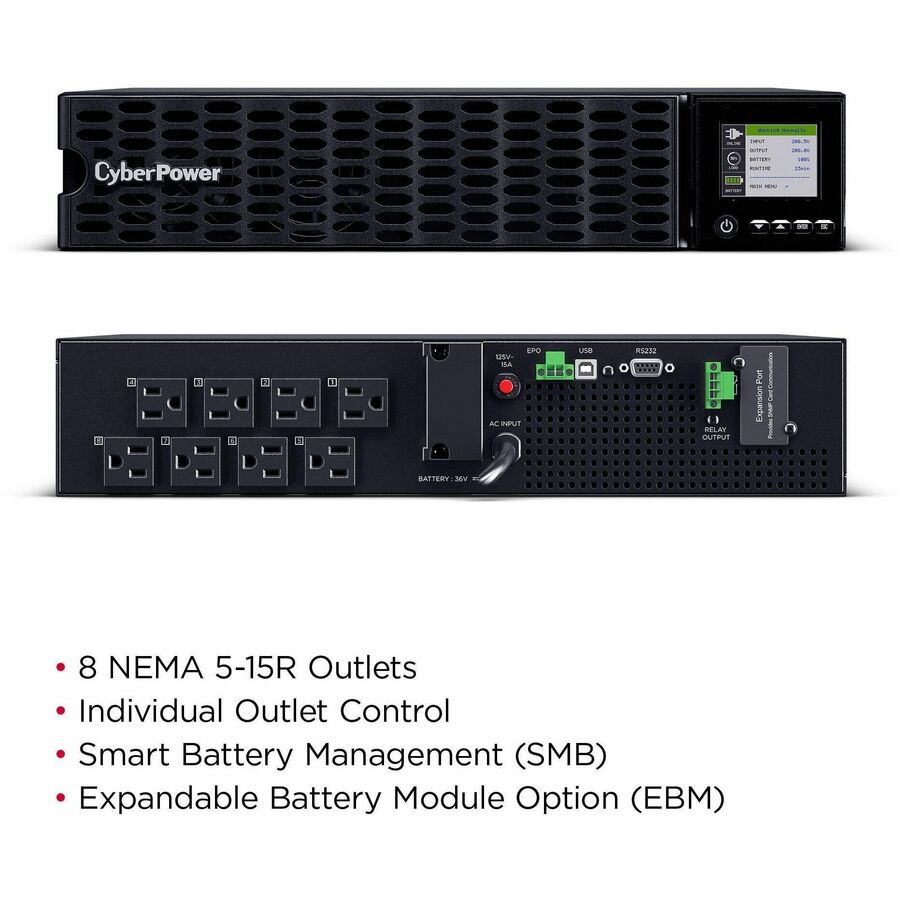

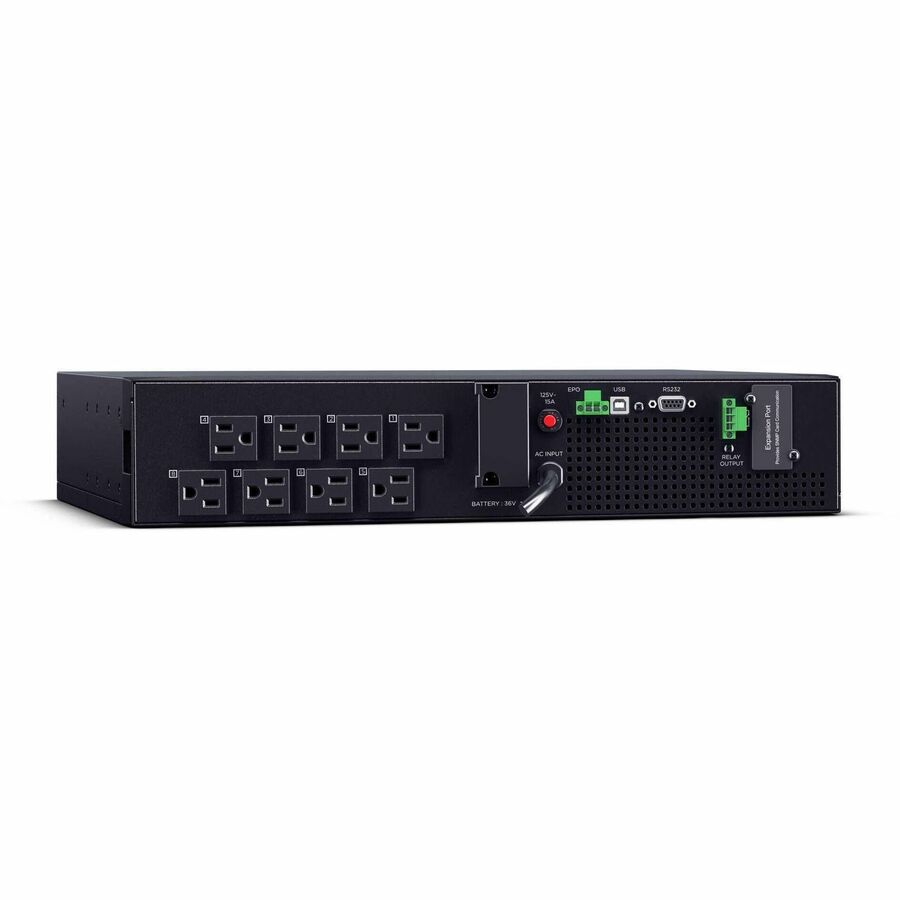

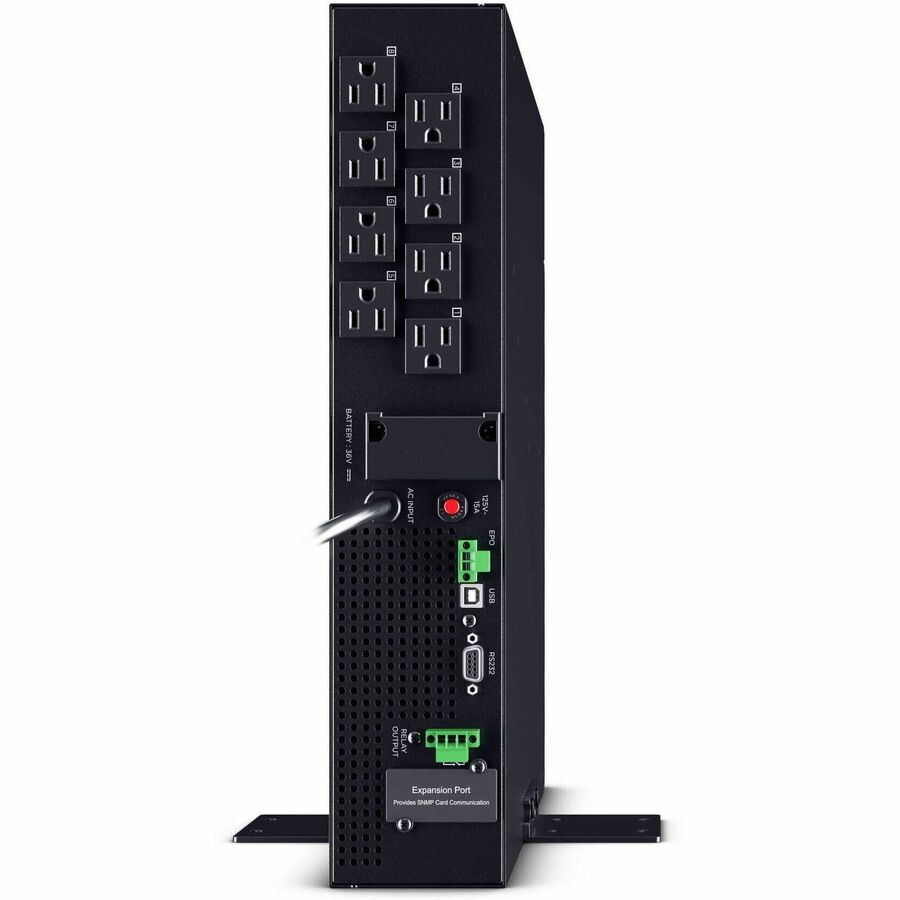

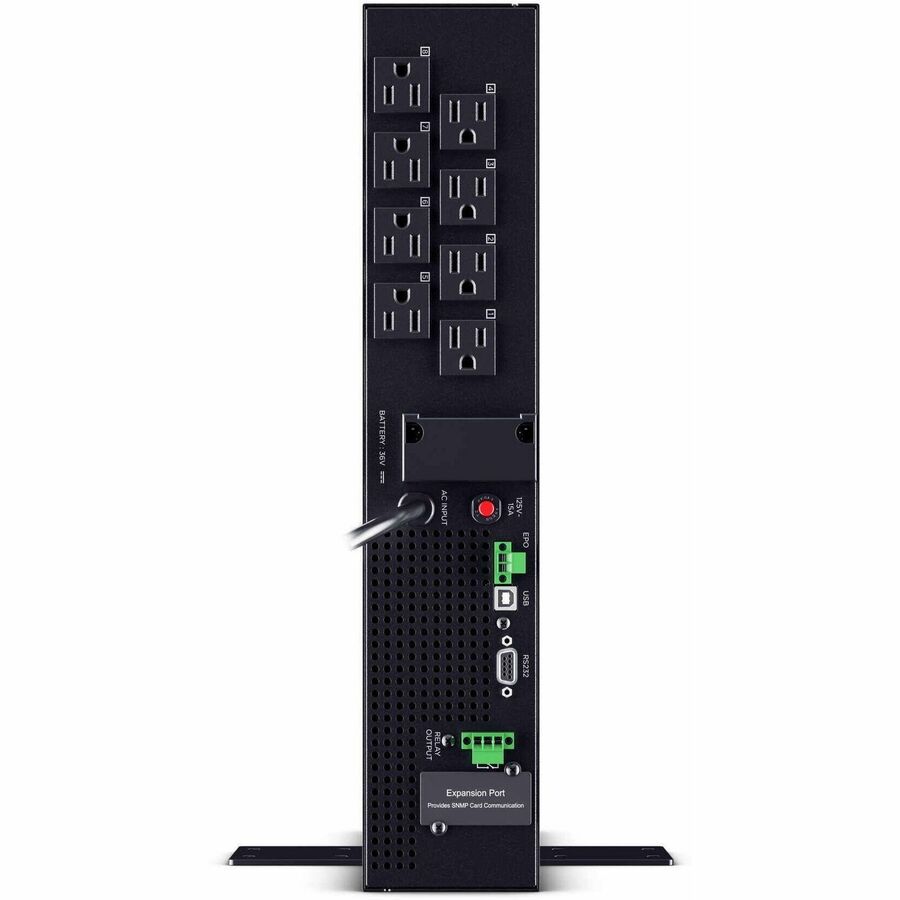

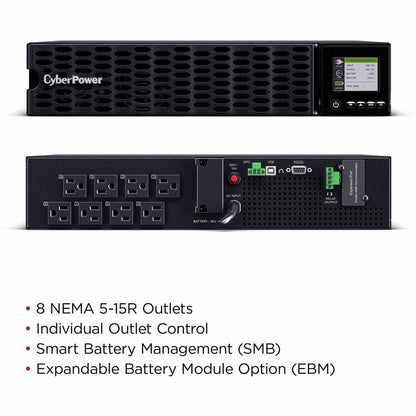

- Outlet types: 8 × NEMA 5-15R, Switchable
- Output: 100, 110, 115, 120, 125 Vac User Configurable ±2%
- Plug type & cord: NEMA 5-15P
- Power Factor (PF): 0.9
- Remote management: Yes, RMCARD205 Optional
- Runtime (half/full): 12.5 minutes / 4 minutes
- Topology: Double-Conversion
- Warranty: 3 year limited
- Waveform: Sine Wave
Product Overview
The OL1K5RTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.

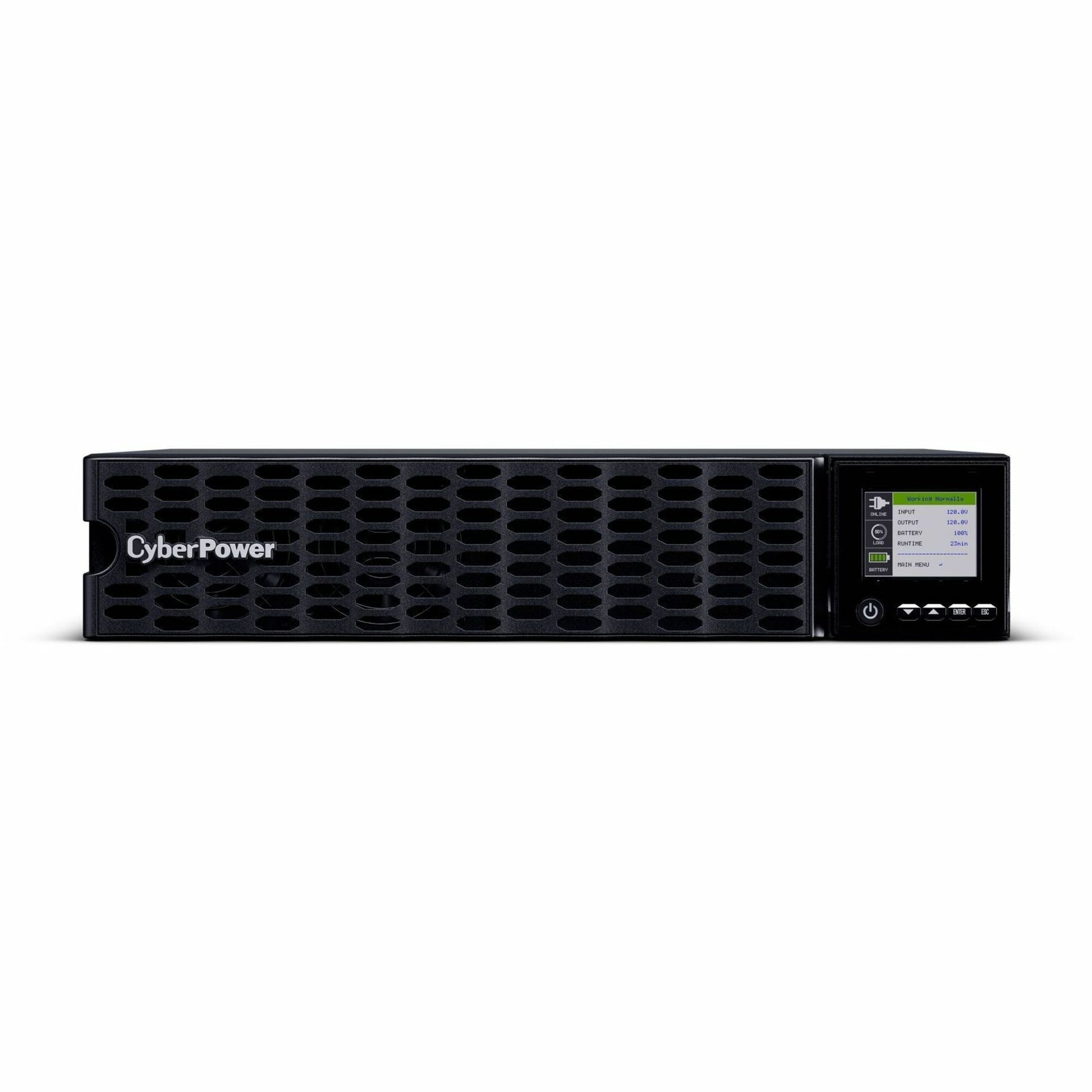

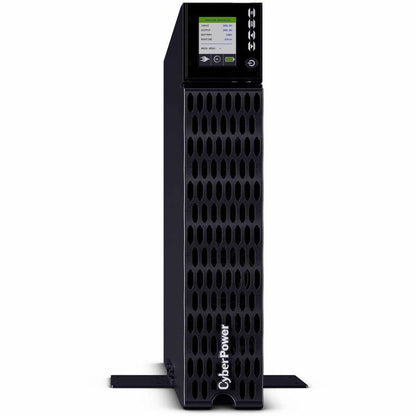

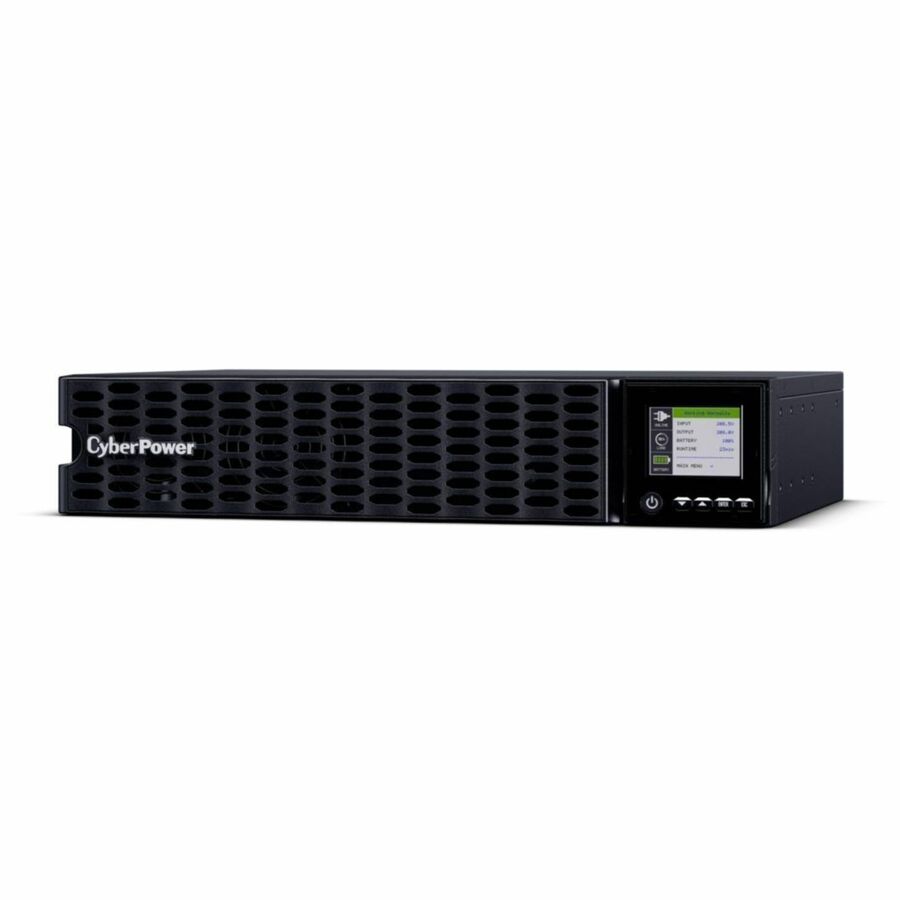

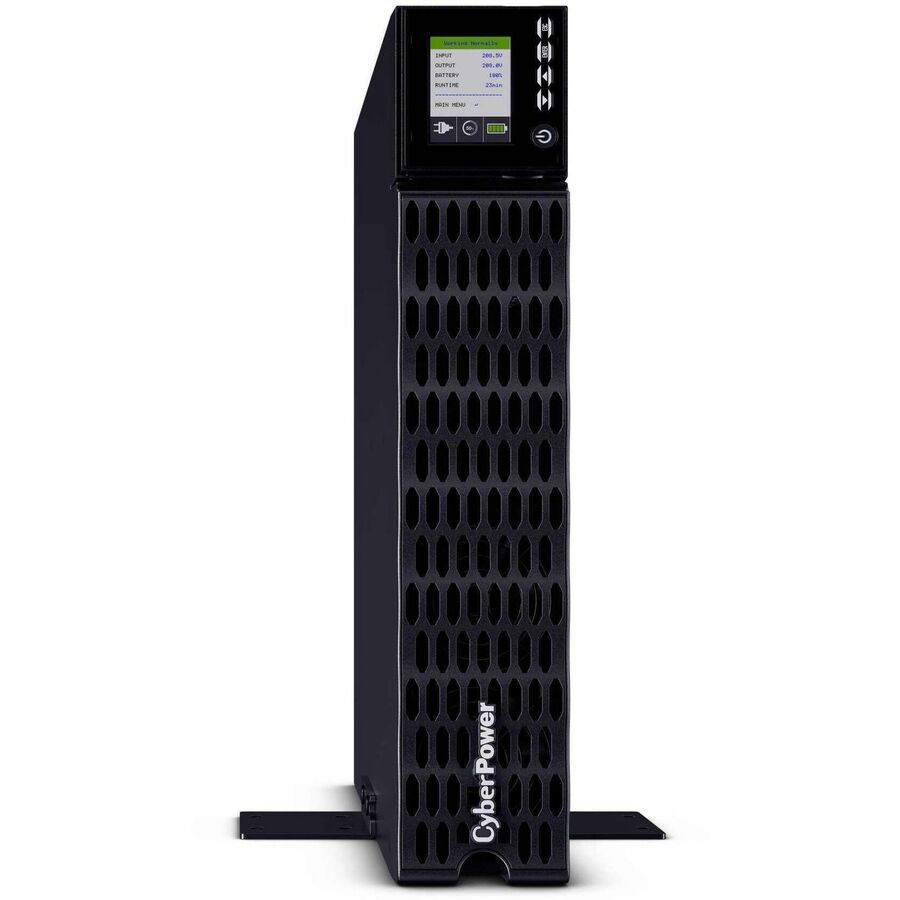

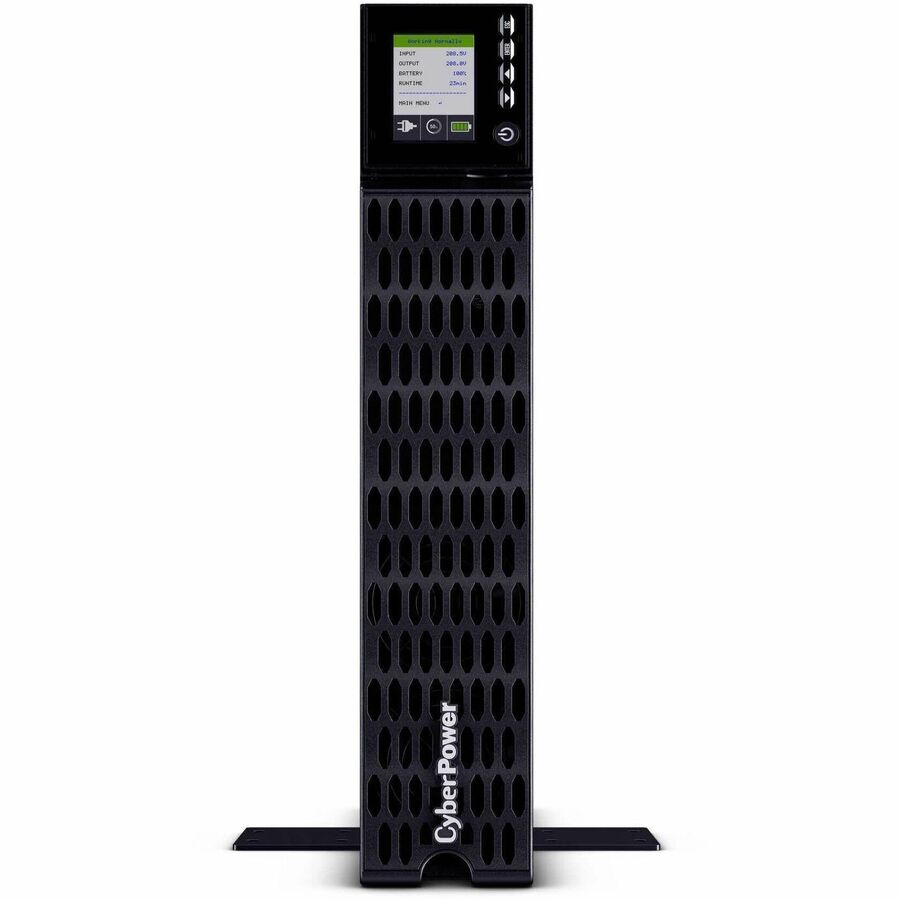

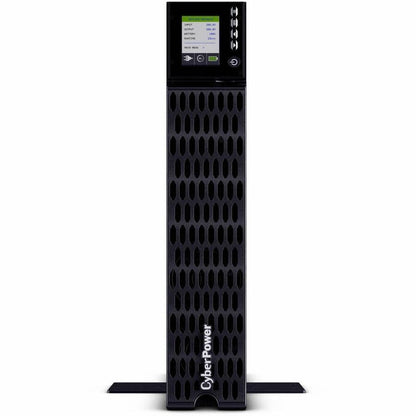

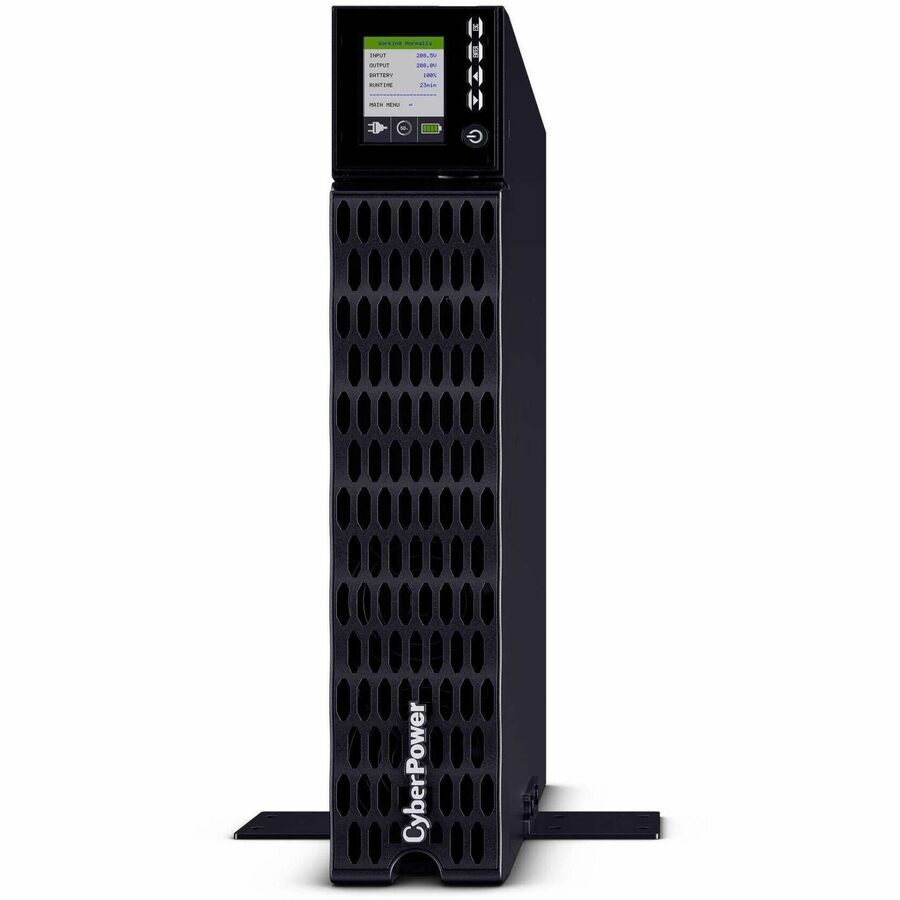

For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL1K5RTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.9. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.
The optional BP36VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year limited warranty (including batteries) and a ,400,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: OL1K5RTHD
- Brand Name: CyberPower
- Product Series: Smart App Online UPS
- Product Model: OL1K5RTHD
- Product Name: Smart App Online UPS OL1K5RTHD 1500VA Rack/Tower UPS
- Product Type: Double Conversion Online UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Overload Protection: Yes
- Cord Length: 10 ft
- Transfer Time: 0 ns
- EMI/RFI Noise Filter: Yes
- Energy Saving: ECO Mode Efficiency >96%
- Surge Suppression: Yes
- Features:
- Audible Alarm
- Built-in Bypass Switch
- Cold Start Function
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 1350 W
- Input Voltage: 120 V AC
- Input Voltage Range:
- 100 V AC - 125 V AC
- 60 V AC - 69 V AC
- Output Voltage:
- 100 V AC
- 110 V AC
- 115 V AC
- 120 V AC
- 125 V AC
- Input Frequency:
- 40 Hz
- 70 Hz
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 710 J
- Circuit Breaker: Yes
- Input Power Factor: 0.99
- Output Power Factor: 0.9
Display & Graphics
- Display: LCD
Management
- Network Management:
- Dry Contact
- SNMP/HTTP Remote Monitoring
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators:
LED Indicators:
- Power On (White)

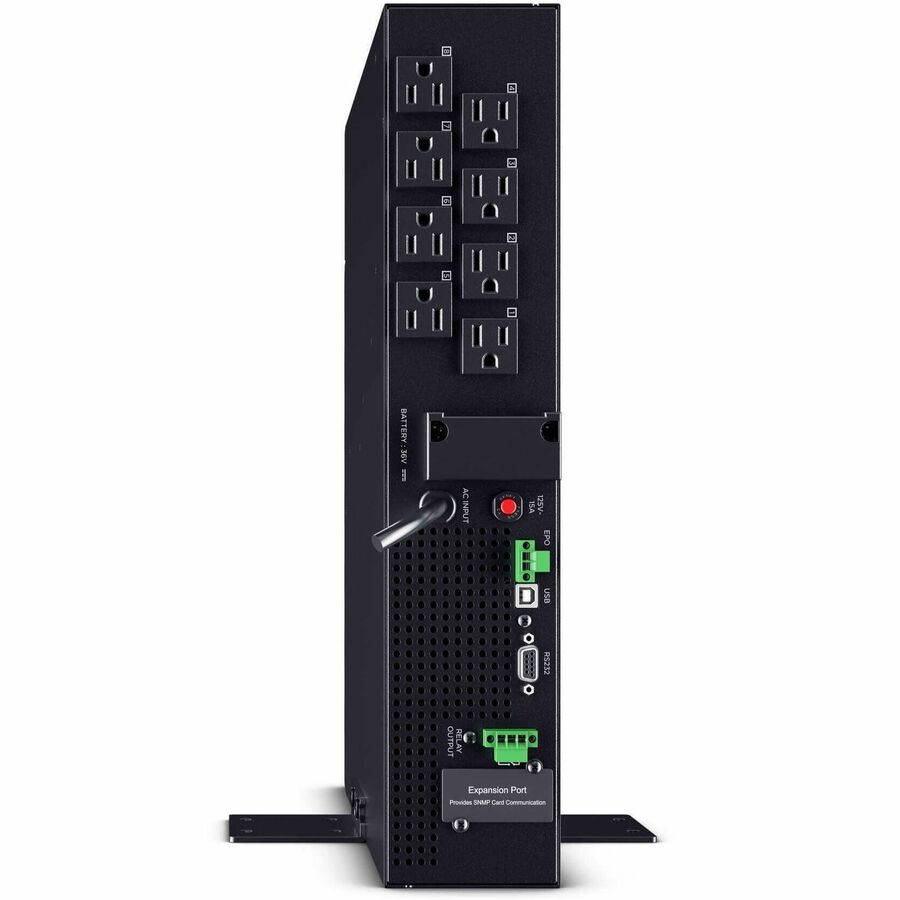

Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 3
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 4 Minute
- Backup/Run Time (Half Load): 12.50 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 4 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 9843 ft
- Maximum Storage Elevation: 49213 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity: 0% - 95%
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 47.6 dB(A)
- Thermal Dissipation: 115.76 W

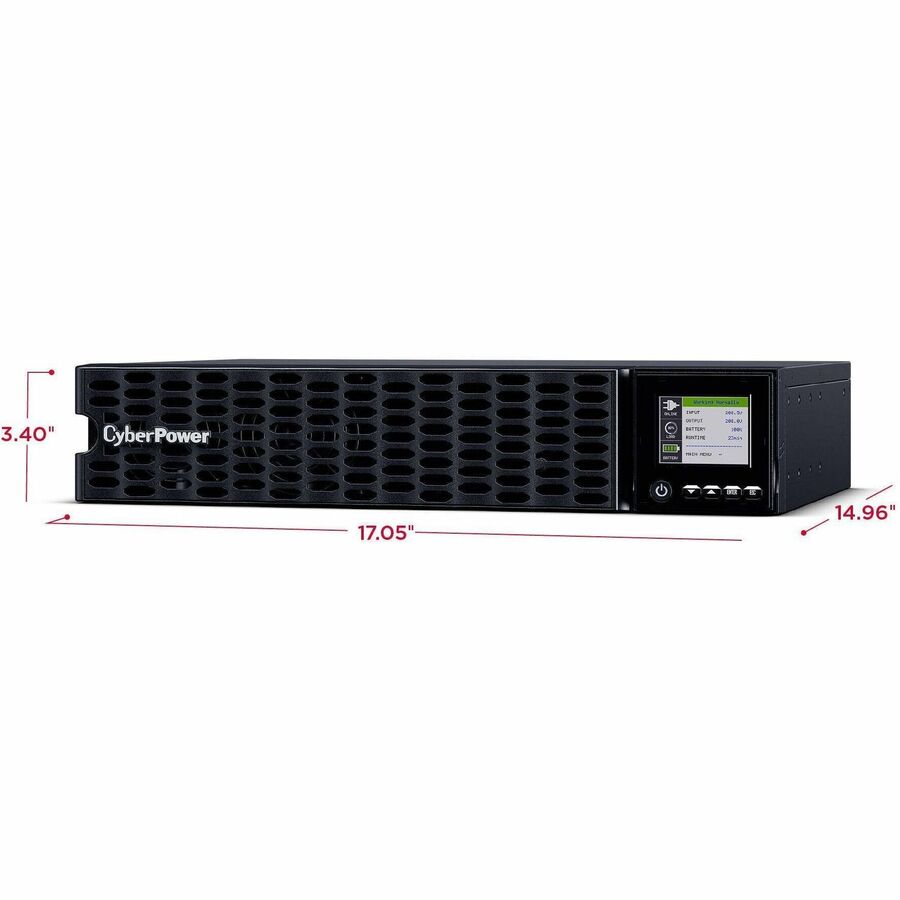

Physical Characteristics
- Product Color: Black
- Height: 3.39"
- Width: 17.05"
- Depth: 14.96"
- Rack Height: 2U
- Form Factor: Rack/Tower
- Weight (Approximate): 37.26 lb
Miscellaneous
- Energy Star: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
Three-year warranty (including batteries)
