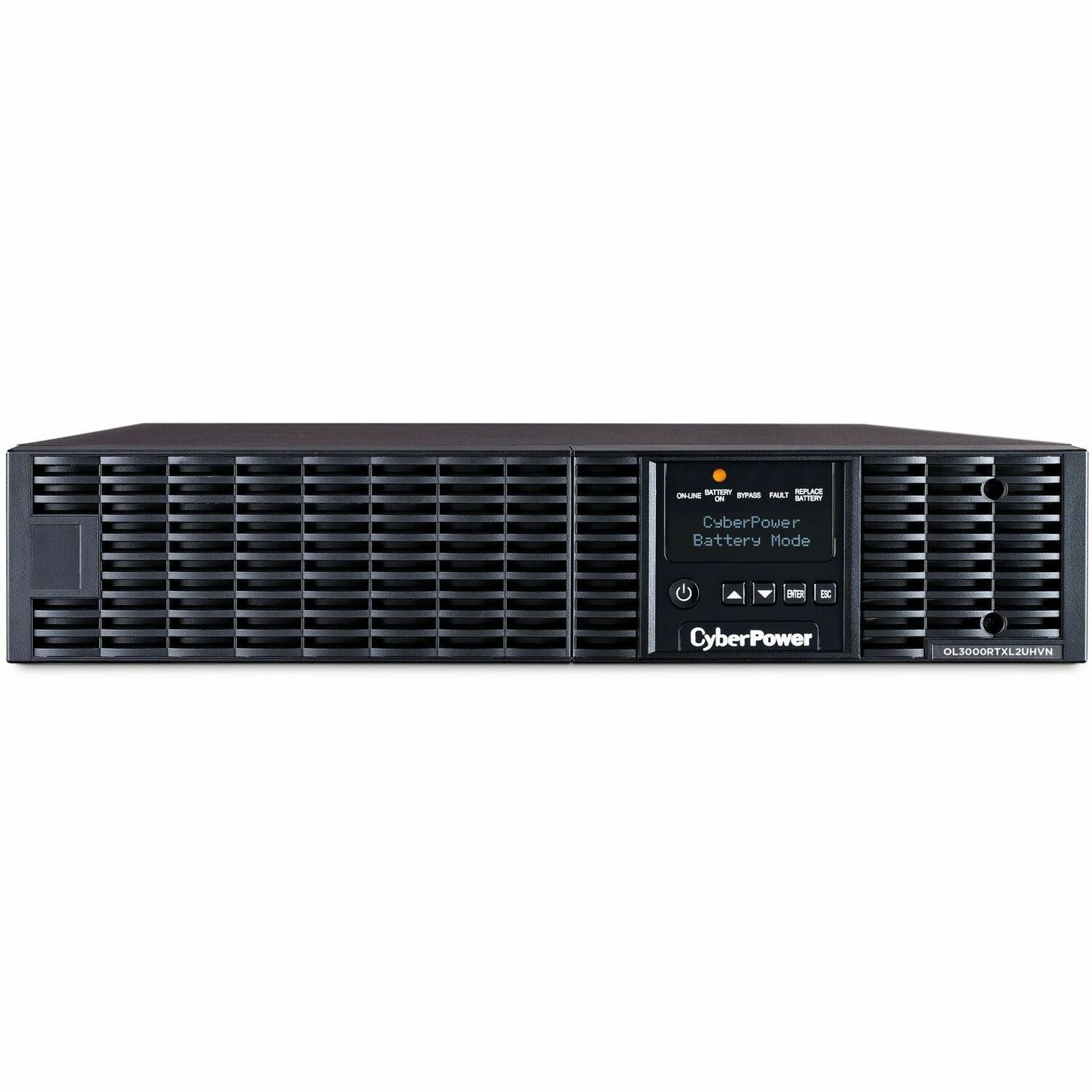

CyberPower OL3000RTXL2UHVN Smart App Online UPS Systems - OL3000RTXL2UHVN
Key Features
- Capacity: 3000 VA / 2700 W
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition

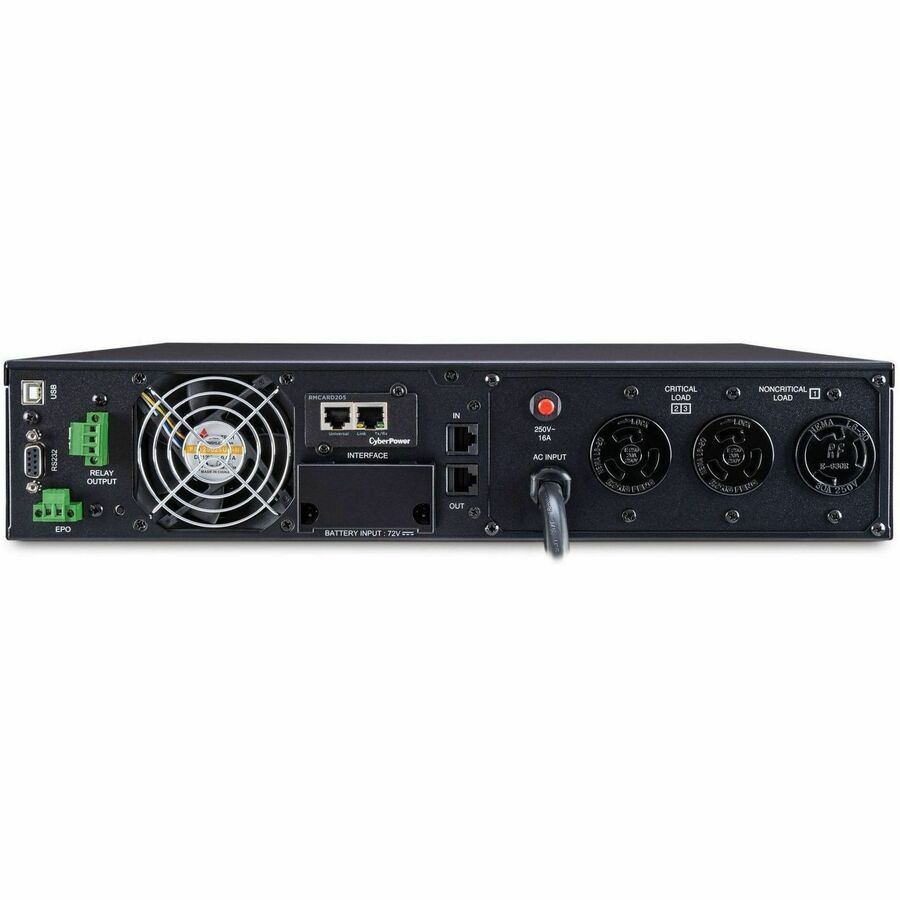

- Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO

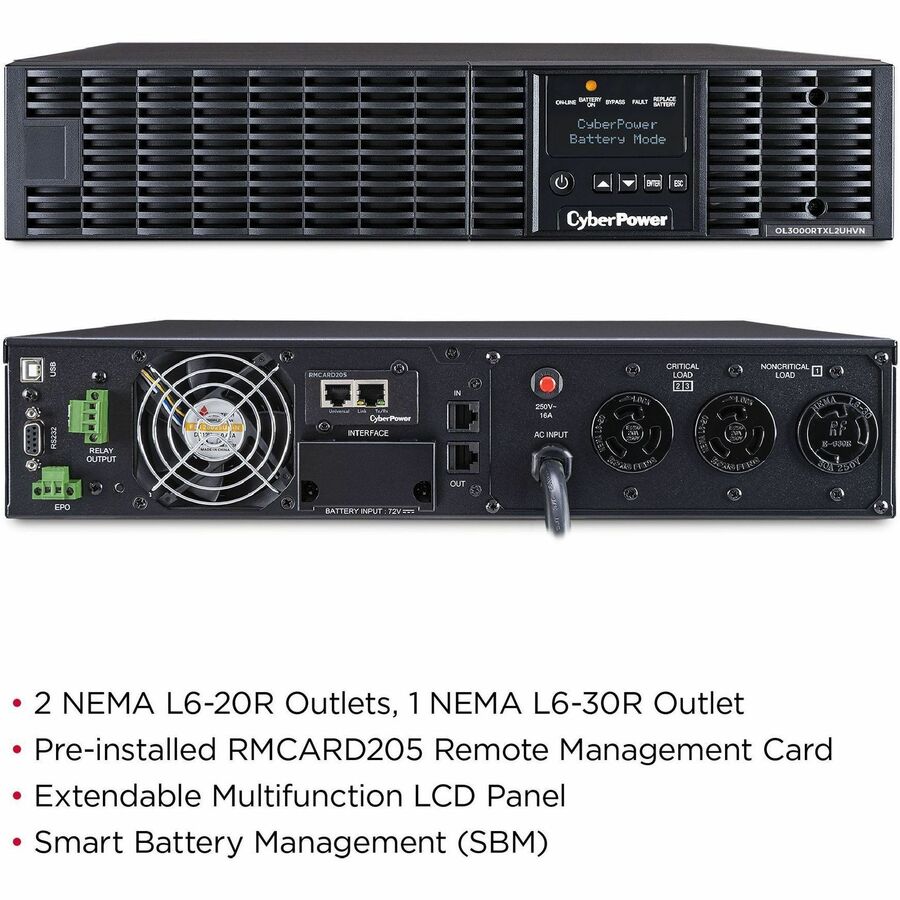

- Outlet types: 2 × NEMA L6-20R, 1 × NEMA L6-30R
- Output: 200, 208, 220, 230, 240 V ±2% (configurable)
- Plug type & cord: NEMA L6-20P, 10 ft. cord
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Warranty: 3 year
- Waveform: Sine Wave
Product Overview
Prevent business interruptions and safeguard mission-critical enterprise network equipment.

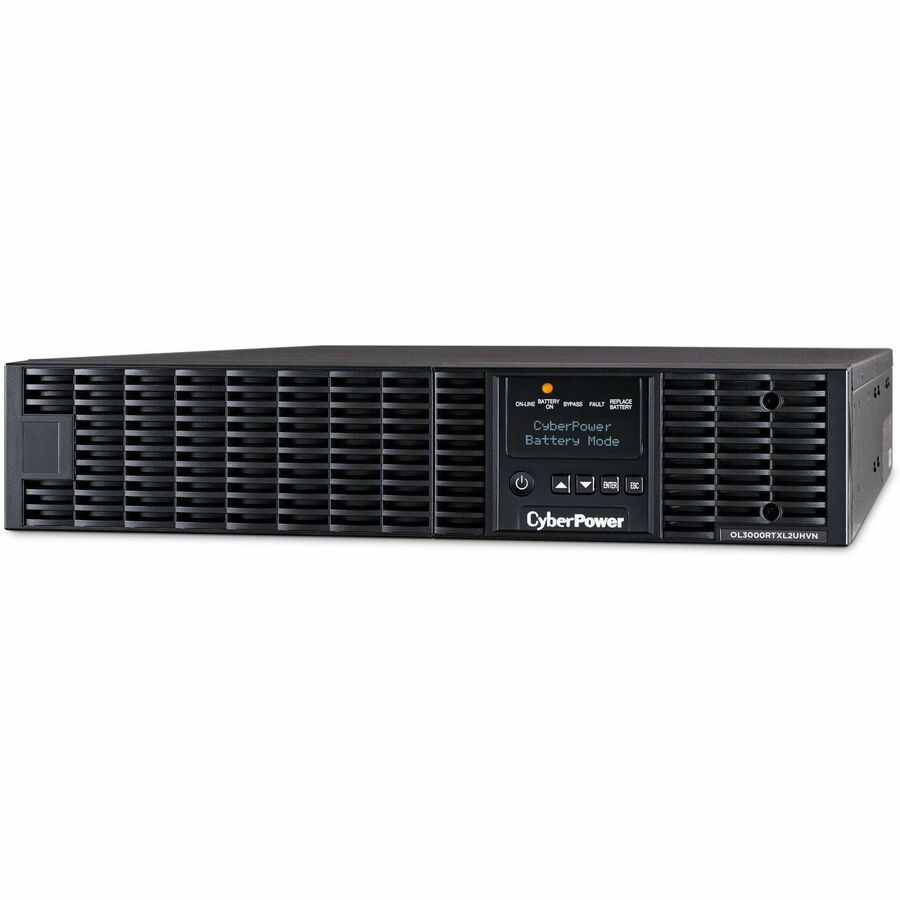

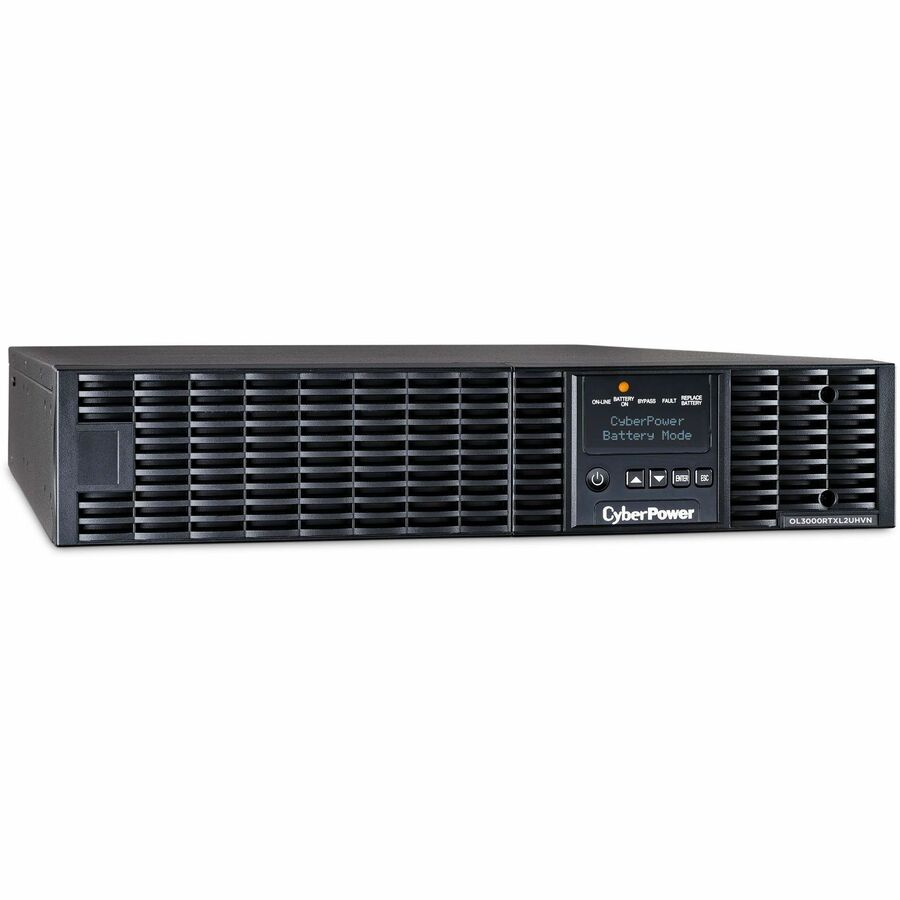

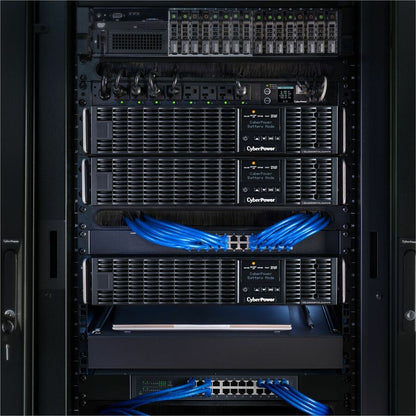

The CyberPower OL3000RTXL2UHVN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL3000RTXL2UHVN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a ,400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: OL3000RTXL2UHVN
- Brand Name: CyberPower
- Product Series: Smart App Online UPS
- Product Model: OL3000RTXL2UHVN
- Product Name: OL3000RTXL2UHVN Smart App Online UPS Systems
- Product Type: Double Conversion Online UPS
Technical Information
- Plug/Connector Type: NEMA L6-20P
- Receptacle Type:
- NEMA L6-20R
- NEMA L6-30R
- Receptacle Detail:
- 2 x NEMA L6-20R
- 1 x NEMA L6-30R
- Transfer Time: 0 ns
- Dataline Protection:
- RJ-11
- RJ-45
- Protection Type: Short Circuit
- Overload Protection: Yes
- EMI/RFI Noise Filter: Yes
- Energy Saving: ECO Mode Efficiency >97%
- Application/Usage:
- Server
- Network Device
- Lab Equipment
- Electronic Device
- High-end System Component
- Edge Computing
- PBX System
- VoIP
- Mission Critical Equipment
- Generator
- Cord Length: 10 ft
- Circuit Breaker Current Rating: 16 A
- Crest Factor: 3:1
Power Description
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 2700 W
- Input Voltage:
- 120 V AC
- 230 V AC
- Input Voltage Range:
- 120 V AC - 139 V AC
- 200 V AC - 240 V AC
- Output Voltage:
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency:
- 40 Hz
- 70 Hz
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 445 J
- Input Power Factor: 0.99
- Output Power Factor: 0.9
Display & Graphics
- Display: LCD
Management
- Network Management:
- Dry Contact
- Relay Card
- SNMP/HTTP/CLI Remote Monitoring
- Alarm:
- Battery Mode
- Low Battery
- Overload
- UPS Fault
Controls/Indicators
- Status Indicators:
- Power On (white)
- Line Mode (green)
- Battery Mode (yellow)
- Bypass Mode (yellow)
- Fault (red)
- Replace Battery (red)
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- USB (HID Compliant) Port: Yes
- EPO Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Number of Batteries: 6
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 4 Minute
- Backup/Run Time (Half Load): 12.50 Minute
- Typical Battery Recharge Time: 4 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
- Storage Temperature: -4°F (-20°C) - 113°F (45°C)
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Operating Humidity: 0% - 90%
- Storage Relative Humidity: 0% - 95%
- Sound Emission (A-Weighted): 55 dB(A)
- Thermal Dissipation: 231.53 W
Physical Characteristics
- Product Color: Black

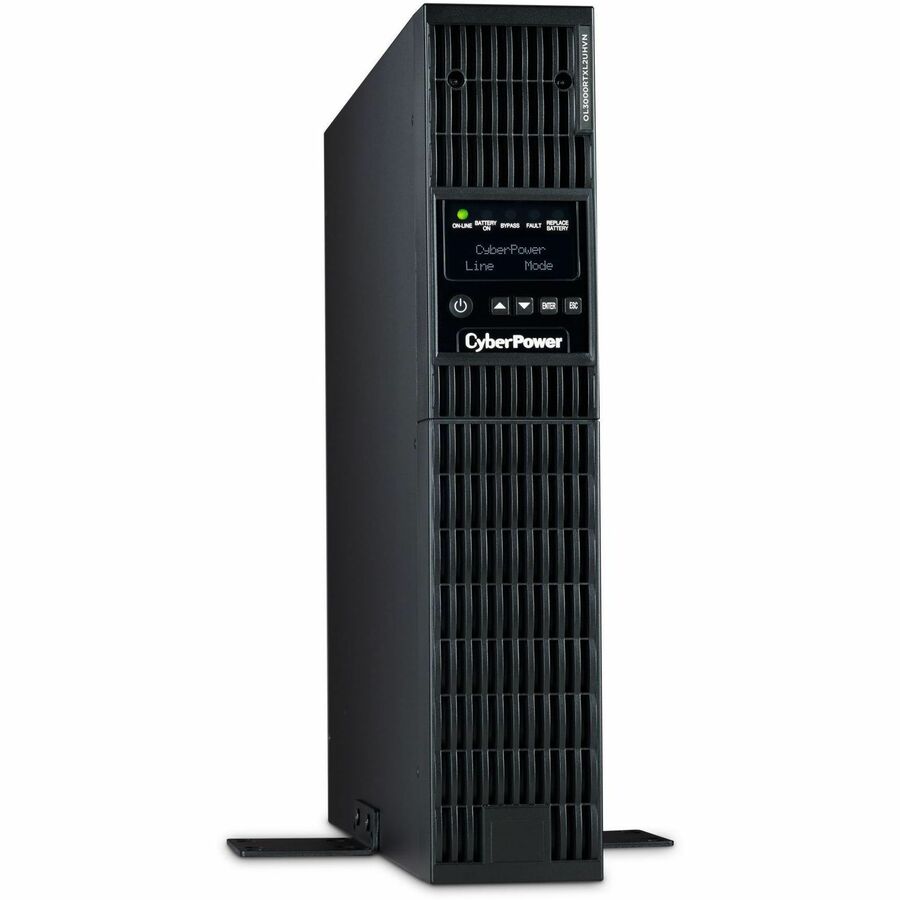

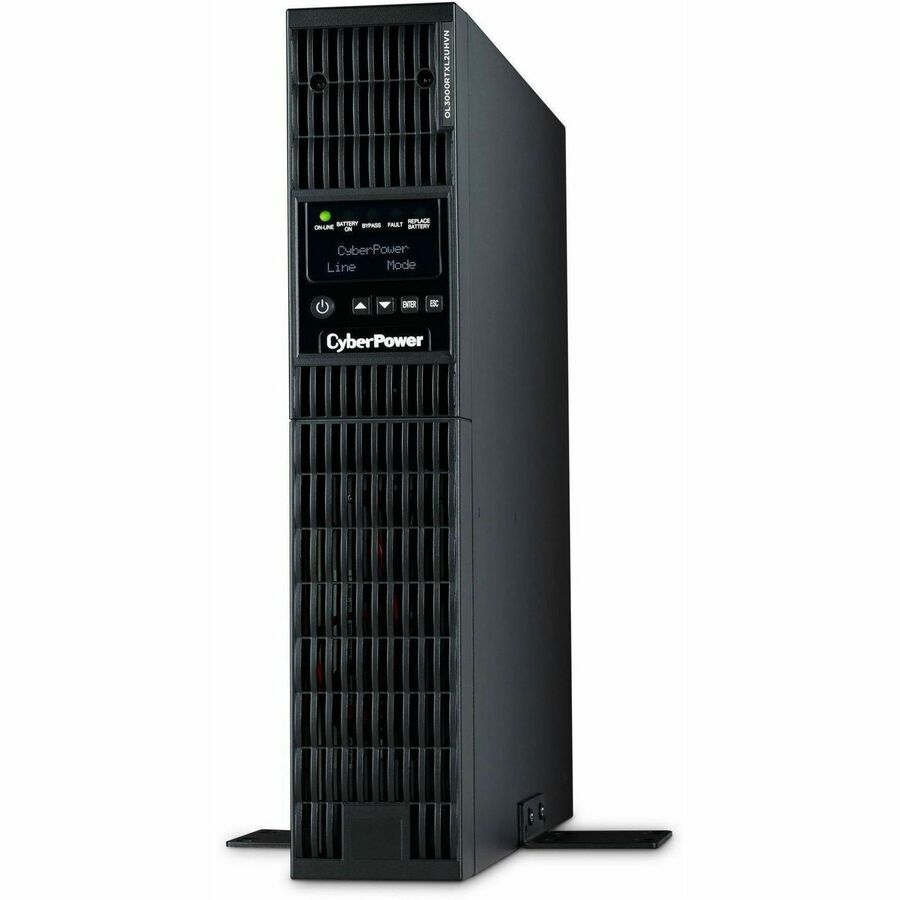

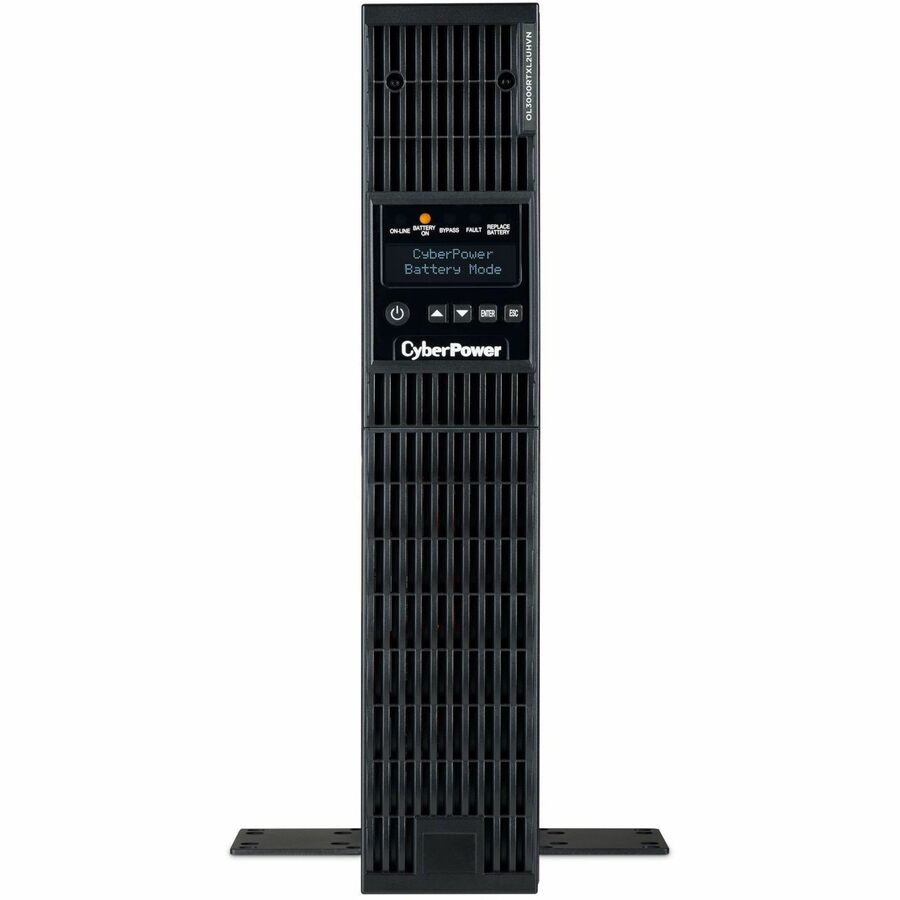

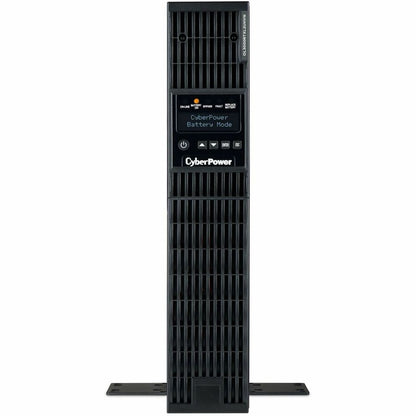

- Form Factor: Rack/Tower
- Rack Height: 2U

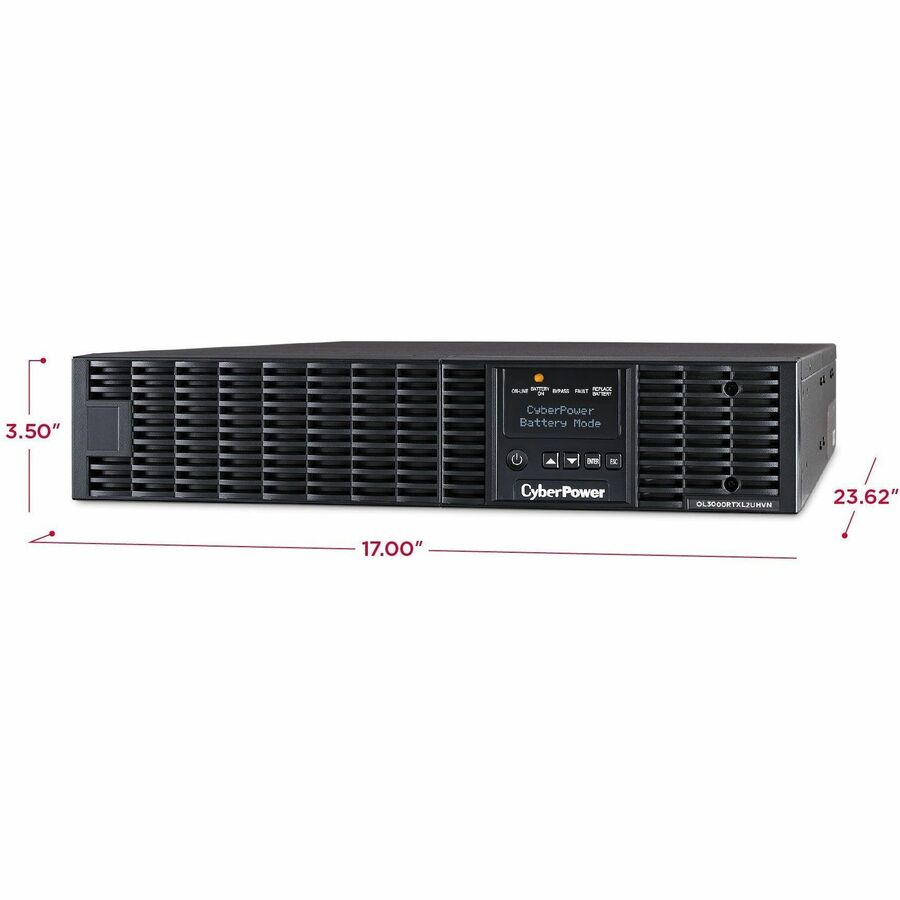

- Height: 3.5"
- Width: 17"
- Depth: 23.6"
- Weight (Approximate): 68.20 lb
Miscellaneous
- Package Contents:
- Smart App Online OL3000RTXL2UHVN 3KVA Rack/Tower UPS
- User Manual
- Registration Card
- 2 x Rackmount Rails
- 2 x Rackmount Ears
- 2 x Hanging Brackets
- Phone Line
- USB Communication Cable
- Serial Interface Cable (RS-232)
- 8 x M5X7L Black Flat Head Screws
- 12 x M5X12L Black Pan Head Screws
- 6 x M5X6L Silver Pan Head Screws
- 8 x Plastic Washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads
- Software Download Card
- Software Included: PowerPanel® Business
- Energy Star: Yes
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
