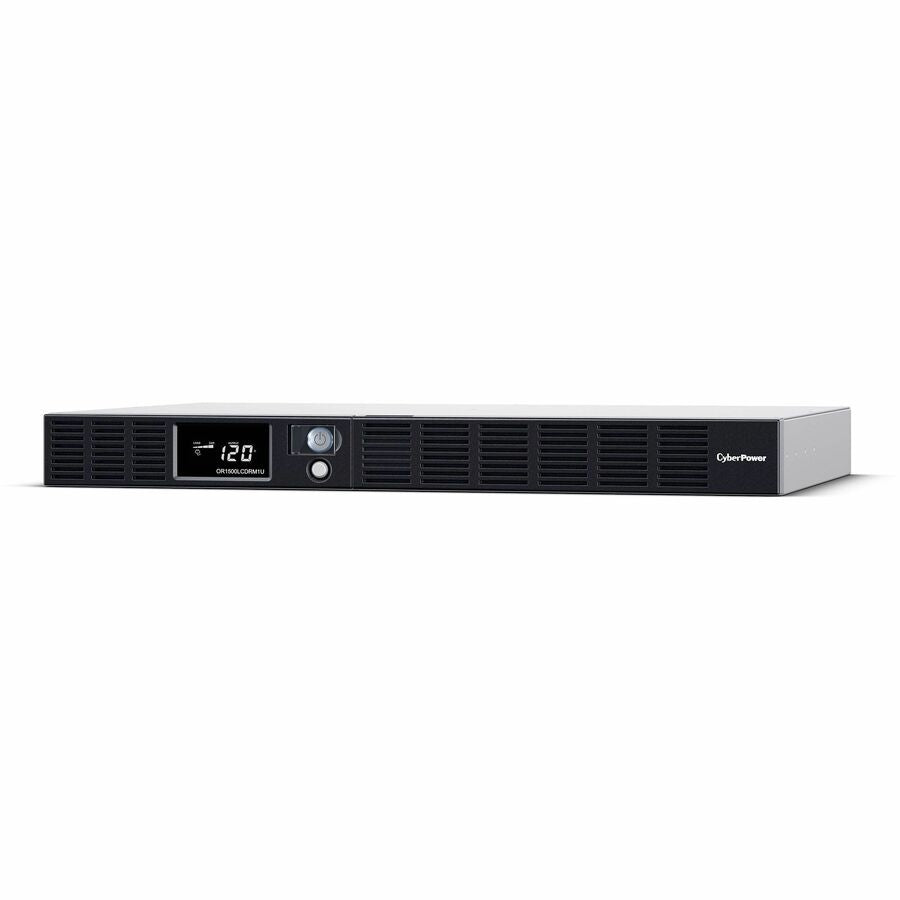

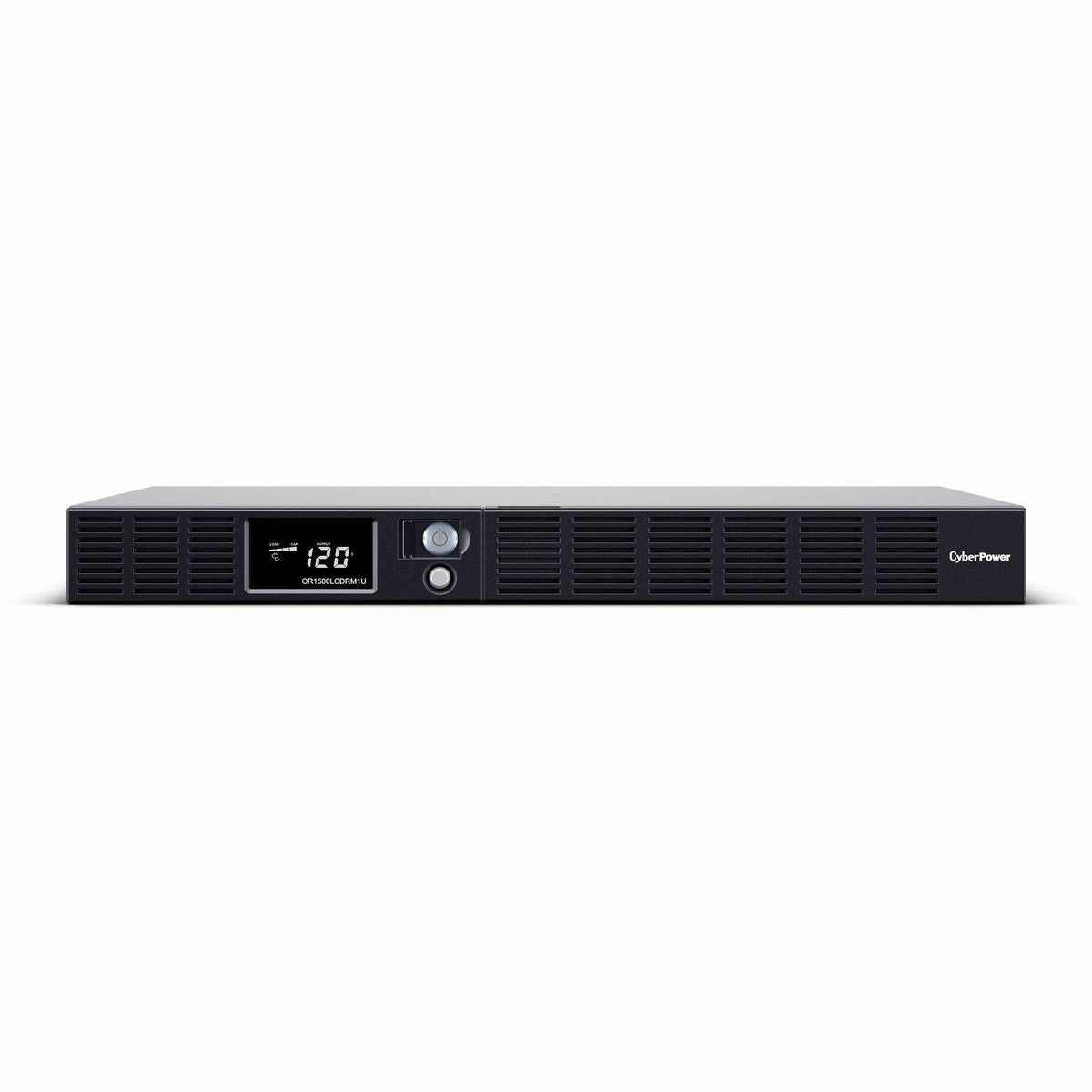

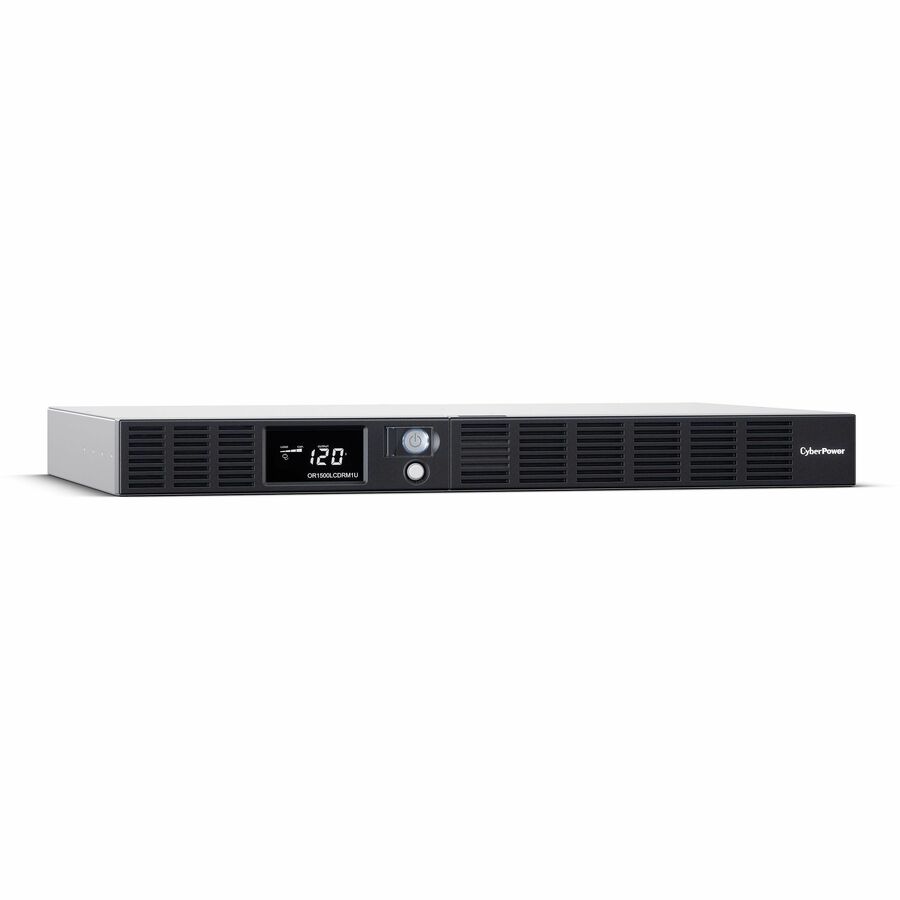

CyberPower OR1500LCDRM1U Smart App LCD UPS Systems - OR1500LCDRM1U
Key Features
- Capacity: 1500 VA / 900 W
- Communication: USB, Relay, SNMP
- Management software: PowerPanel® Business
- Outlet types: 6 × NEMA 5-15R
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Remote management: Yes, with optional RMCARD205
- Topology: Line Interactive
- Warranty: 3 year
- Waveform: Simulated Sine Wave
Product Overview
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a ,300,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: OR1500LCDRM1U
- Brand Name: CyberPower
- Product Series: Smart App LCD UPS
- Product Model: OR1500LCDRM1U
- Product Name: OR1500LCDRM1U Smart App LCD UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 6 x NEMA 5-15R
- Number of Battery & Surge Outlets: 4
- Number of Surge-only Outlets: 2
- Transfer Time: 8 ms
- Dataline Protection:
- RJ-45
- RJ-11
- Overload Protection: Yes
- EMI/RFI Noise Filter: Yes
- Energy Saving: GreenPower UPS™ Bypass Design
Power Description
- Load Capacity (VA): 1500 VA
- Input Voltage: 120 V AC
- Input Voltage Range: 90 V AC - 140 V AC
- Output Voltage: 120 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Simulated Sine Wave
- Surge Energy Rating: 1150 J
Management
- Network Management: SNMP Manageable
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators:
- Power On
- Multifunction LCD
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 6 V DC
- Number of Batteries: 4
- Battery Chemistry: Lead Acid
- Battery Size: 6V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 11 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
Physical Characteristics
- Form Factor: Rack-mountable
- Rack Height: 1U
- Height: 1.8"
- Width: 17.1"
- Weight (Approximate): 33 lb
Miscellaneous
- Software Included: PowerPanel® Business
- Energy Star: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
