CyberPower PDU41002 Single Phase 100 - 120 VAC 20A Switched PDU - PDU41002
Key Features
- 100 - 120 V
- 1U Rackmount
- 20A (Derated to 16A)
- 3 year
- 50Hz/60Hz
- 8 NEMA 5-20R
- Amps:
- Automated notifications:
- Email, SMS Text, and SNMP Trap
- Frequency:
- NEMA (L)5-20P
- Outlets:
- Phase:
- Plug type:
- Single
- Size:
- Volts:
- Warranty:
Product Overview

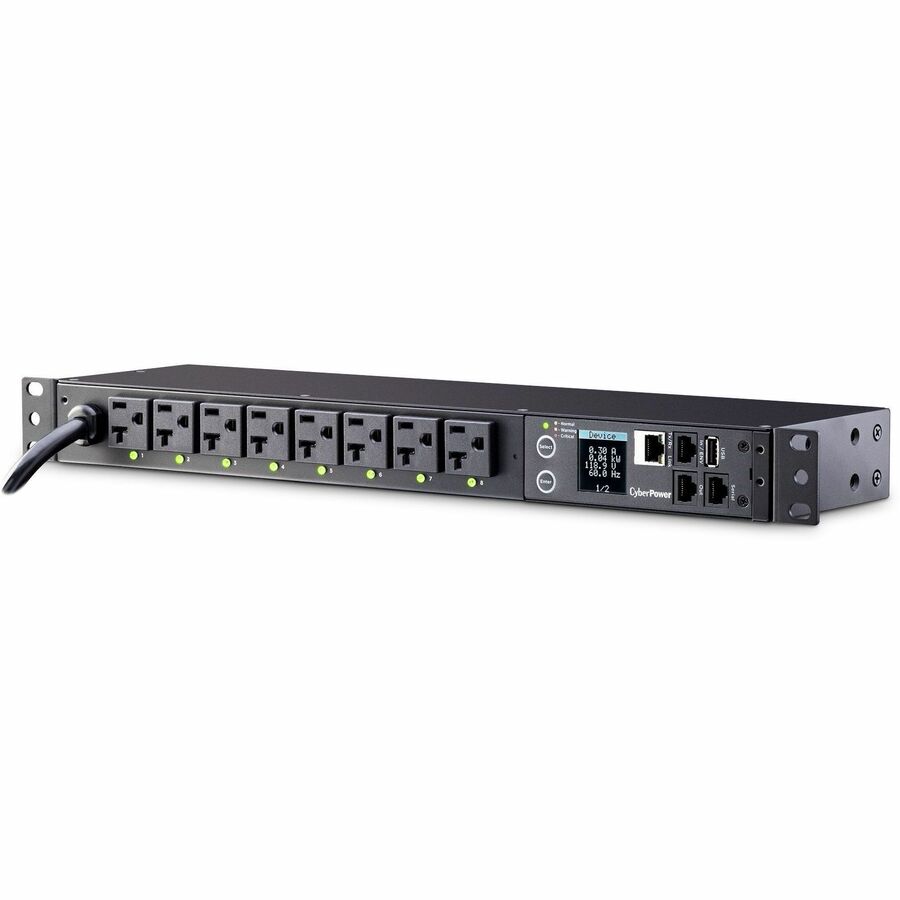

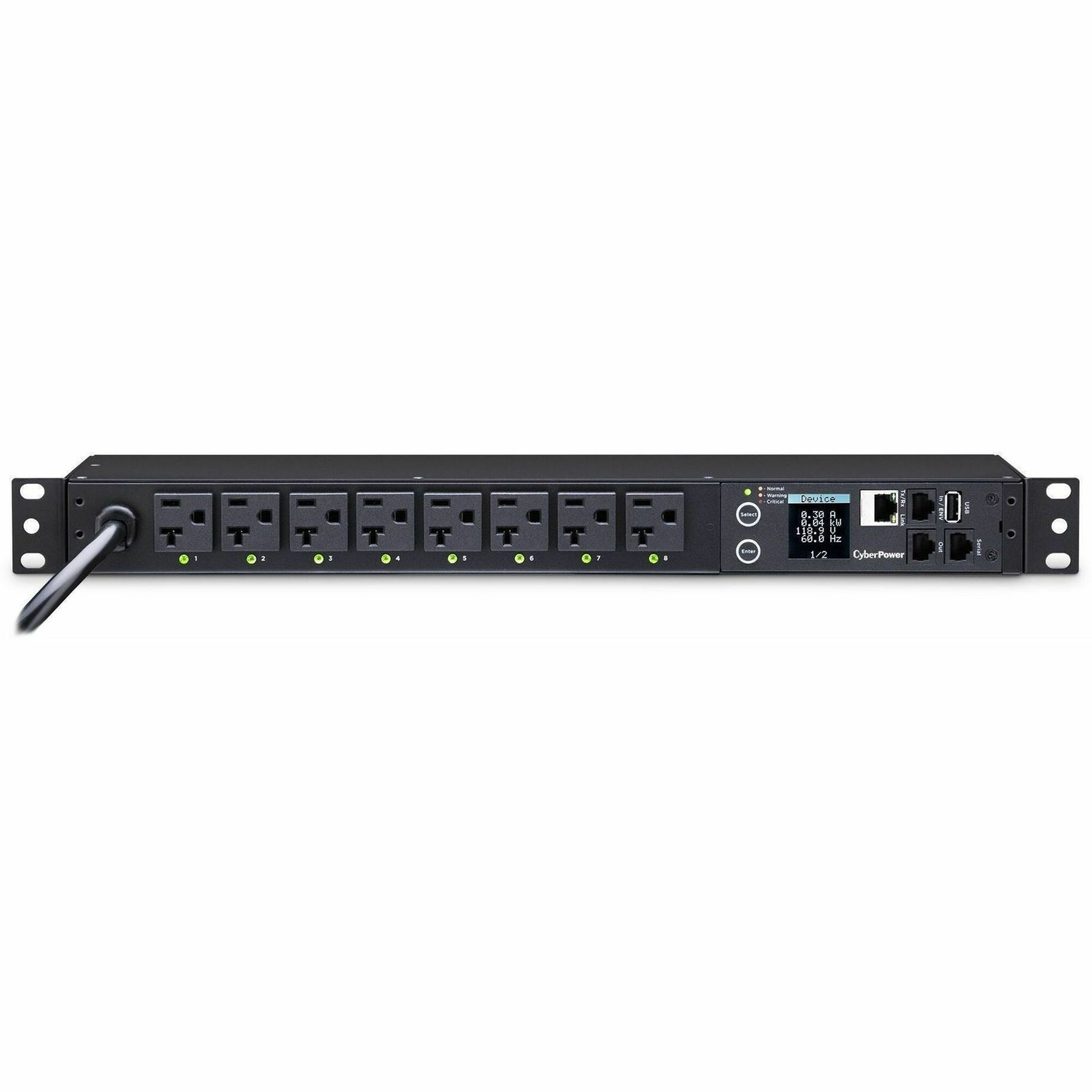

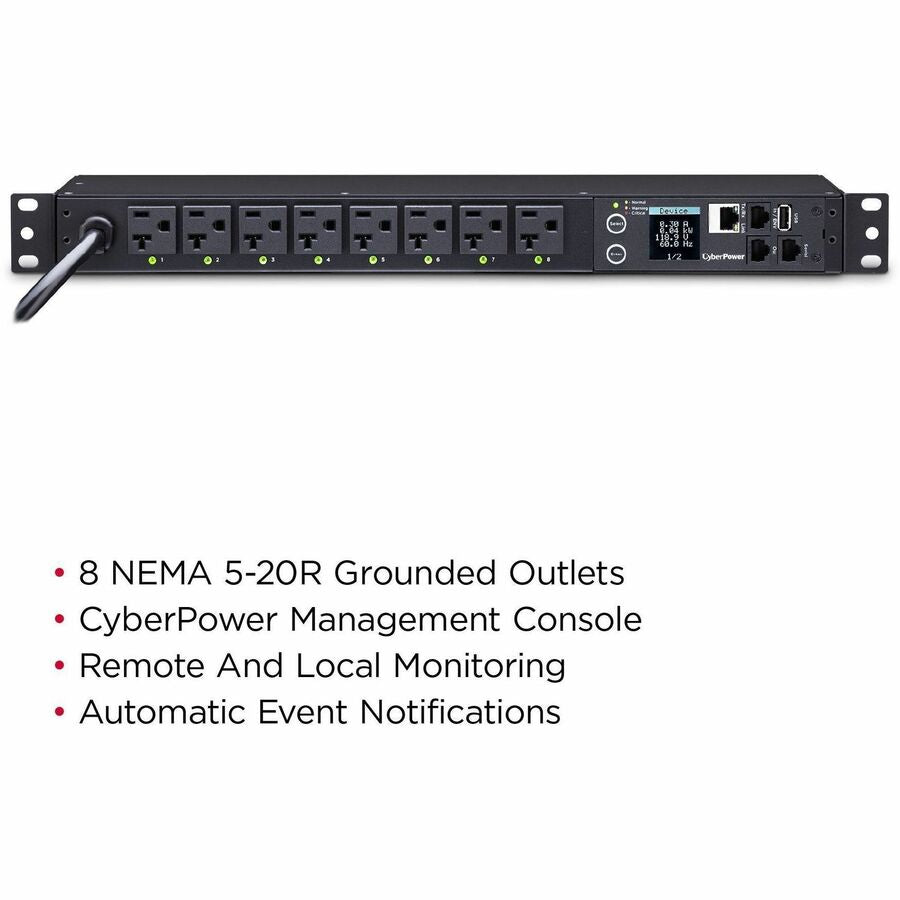

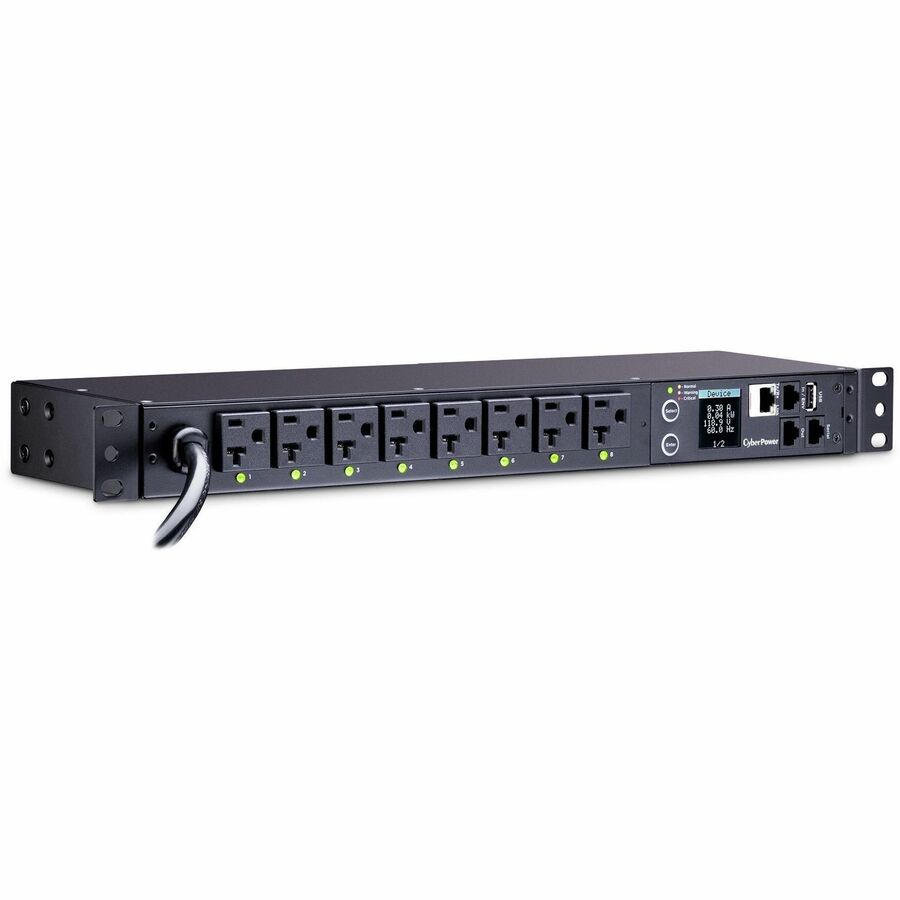

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU41002
- Brand Name: CyberPower
- Product Series: Switched PDU
- Product Model: PDU41002
- Product Name: PDU41002
- Product Type: PDU
Technical Information
- PDU Type: Switched
- Phase: Single Phase
- Plug/Connector Type: NEMA L5-20P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 8 x NEMA 5-20R
- Locking Receptacles: Cord Retention Tray
- Features:
- LED Status Indicator
- LCD Display
Power Description
- Input Voltage: 120 V AC
- Input Voltage Range: 100 V AC - 120 V AC
- Output Voltage:
- 100 V AC
- 120 V AC
- Output Voltage Range: 100 V AC - 120 V AC
- Input Current: 20 A
- Input Frequency: 60 Hz
Management
- Management: Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
- Remote Outlet Switching: Yes
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Metal
- Mounting Orientation: Horizontal/Vertical
- Mount Type:
- Rack-mountable
- Wall-mountable
- Form Factor: Rack
- Rack Height: 1U
- Cord Length: 12 ft

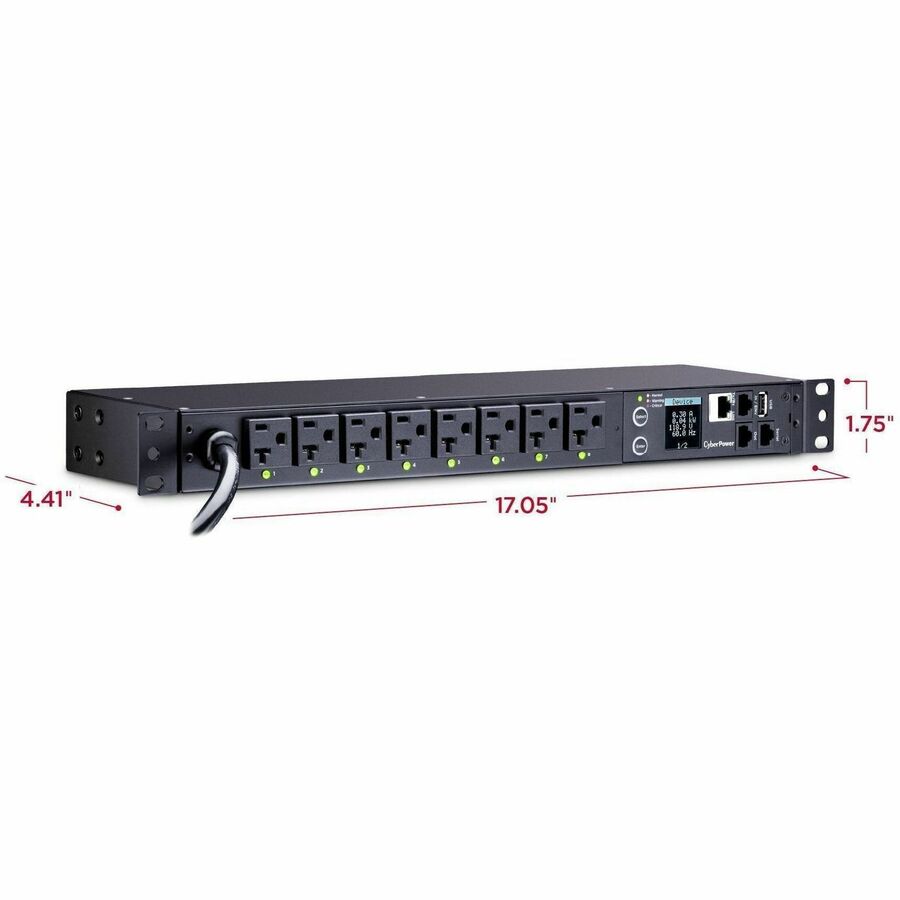

- Height: 1.8"
- Width: 17.1"
- Depth: 4.4"
- Weight (Approximate): 7.30 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 140°F (60°C)
- Minimum Storage Temperature: 5°F (-15°C)
- Maximum Storage Temperature: 149°F (65°C)
Miscellaneous
- Package Contents:
- PDU41002
- Adaptor
- Application/Usage:
- Network Device
- Server
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- UL Listed: Yes
Warranty
- Limited Warranty: 3 Year
