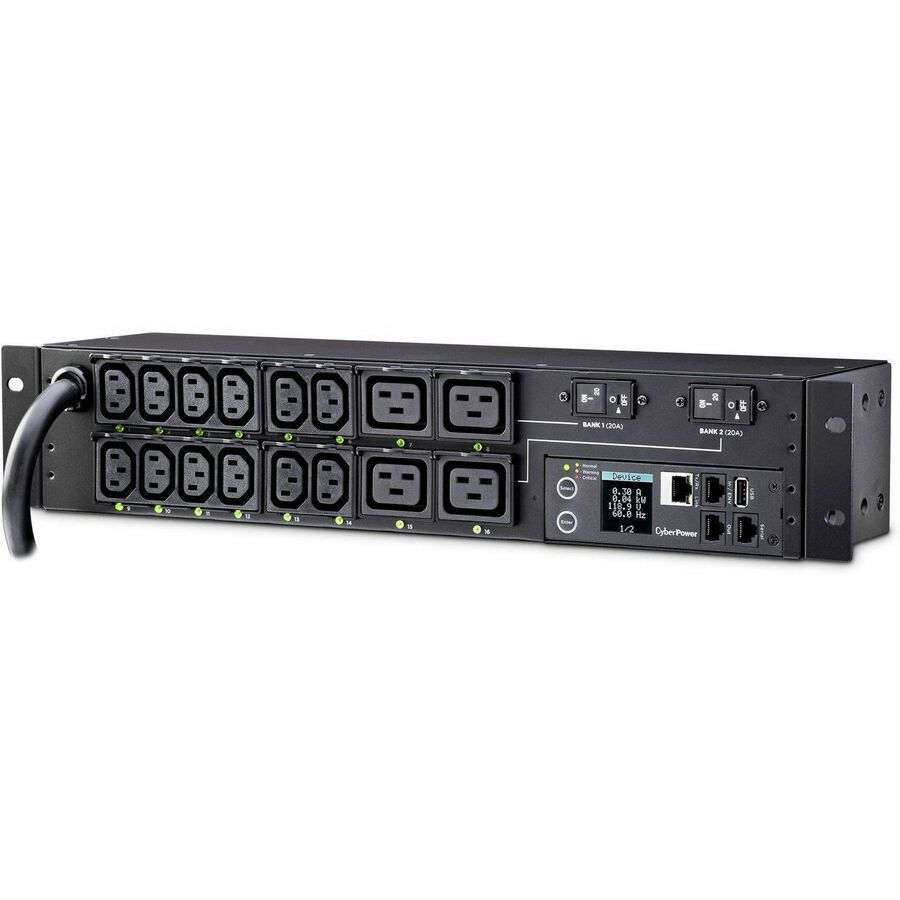

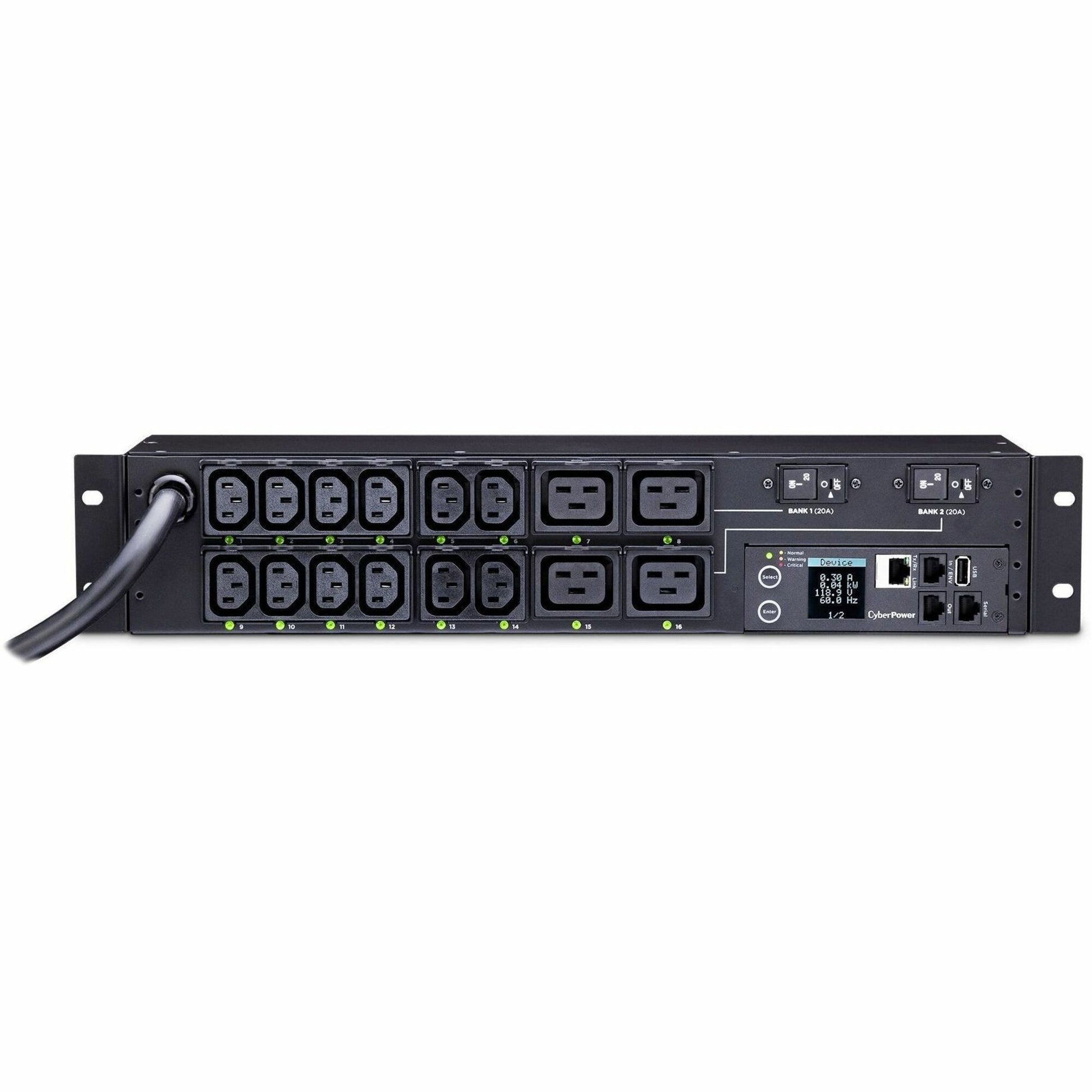

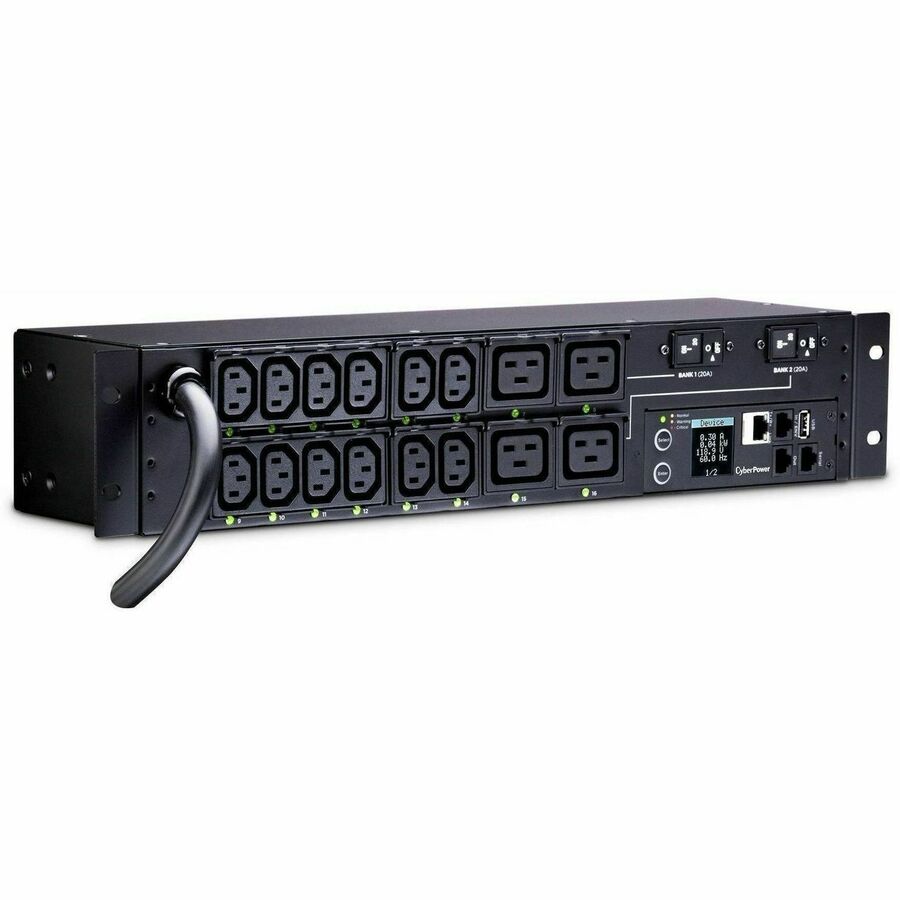

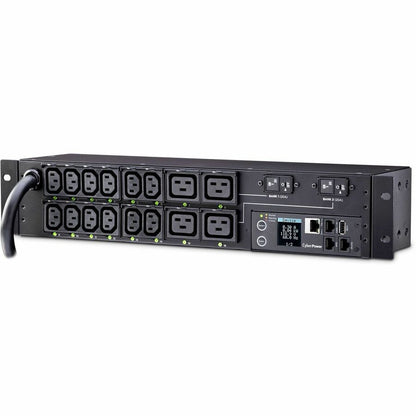

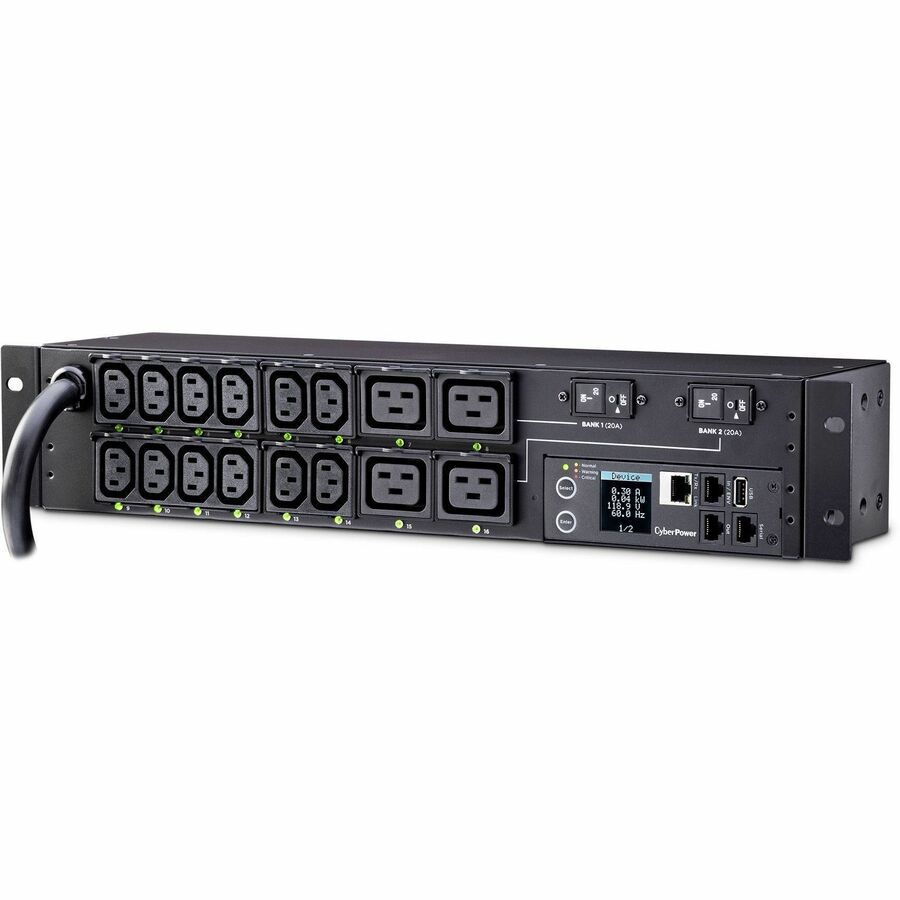

CyberPower PDU41008 Single Phase 200 - 240 VAC 30A Switched PDU - PDU41008
Key Features
- Amps: 30A (Derated to 24A)
- Automated notifications: E-mail, SMS, Text and SNMP Trap
- Cord Length (ft): 12
- Frequency: 50Hz/60Hz
- Outlet location: 16 Front
- Outlets: 12 IEC-320 C13, 4 IEC-320 C19
- Phase: Single
- Plug type: NEMA L6-30P
- Size: 2U Rackmount
- Switched PDU: SNMP Network Interface and Switchable Outlets
- Volts: 200 - 240 V
- Warranty: Three-Year
Product Overview
The CyberPower PDU41008, a 16-outlet (front), 2U rackmount switched power distribution unit (PDU), provides 200-240V 30A output. It distributes power to twelve (12) IEC C13 receptacles and four (4) IEC C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU41008
- Brand Name: CyberPower
- Product Series: Switched PDU
- Product Model: PDU41008
- Product Name: PDU41008
- Product Type: PDU
Technical Information
- PDU Type: Switched
- Phase: Single Phase
- Plug/Connector Type: NEMA L6-30P
- Receptacle Type:
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail:
- 12 x IEC 60320 C13
- 4 x IEC 60320 C19
- Protection Type: Overload Protection
- Locking Receptacles: Cord Retention Tray
- Features:
- LED Status Indicator
- LCD Display
Power Description
- Input Voltage: 230 V AC
- Input Voltage Range: 200 V AC - 240 V AC
- Output Voltage:
- 200 V AC
- 240 V AC
- Output Voltage Range: 200 V AC - 240 V AC
- Input Current: 30 A
- Input Frequency: 60 Hz
Management
- Management: Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
- Remote Outlet Switching: Yes
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Metal
- Mounting Orientation: Horizontal/Vertical
- Mount Type:
- Rack-mountable
- Wall-mountable
- Form Factor: Rack
- Rack Height: 2U
- Cord Length: 12 ft
- Height: 3.5"
- Width: 17.1"
- Depth: 4.4"
- Weight (Approximate): 9.90 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 140°F (60°C)
- Minimum Storage Temperature: 5°F (-15°C)
- Maximum Storage Temperature: 149°F (65°C)
Miscellaneous
- Application/Usage:
- Network Device
- Data Center
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- UL Listed: Yes
Warranty
- Limited Warranty: 3 Year
