CyberPower PDU41021 Single Phase 100 - 120 VAC 15A Switched PDU - PDU41021
Key Features
- Amps: 15A (Derated to 12A)
- Automated notifications: Email, SMS Text, and SNMP Trap
- Frequency: 50Hz/60Hz

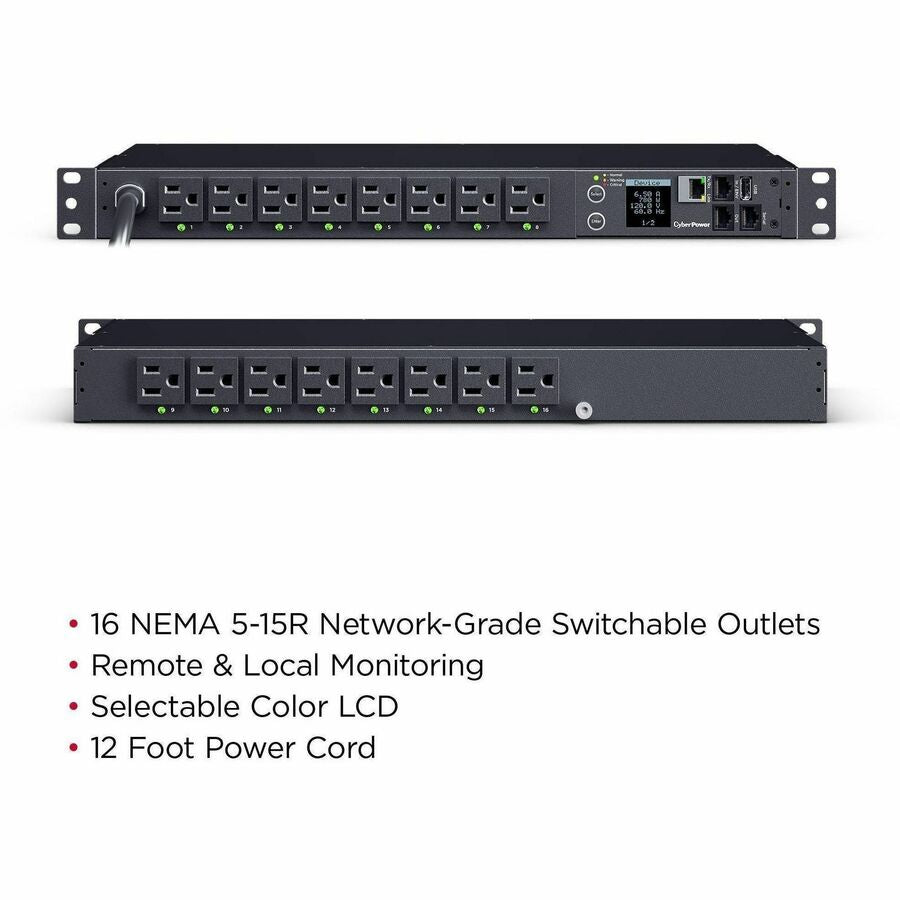

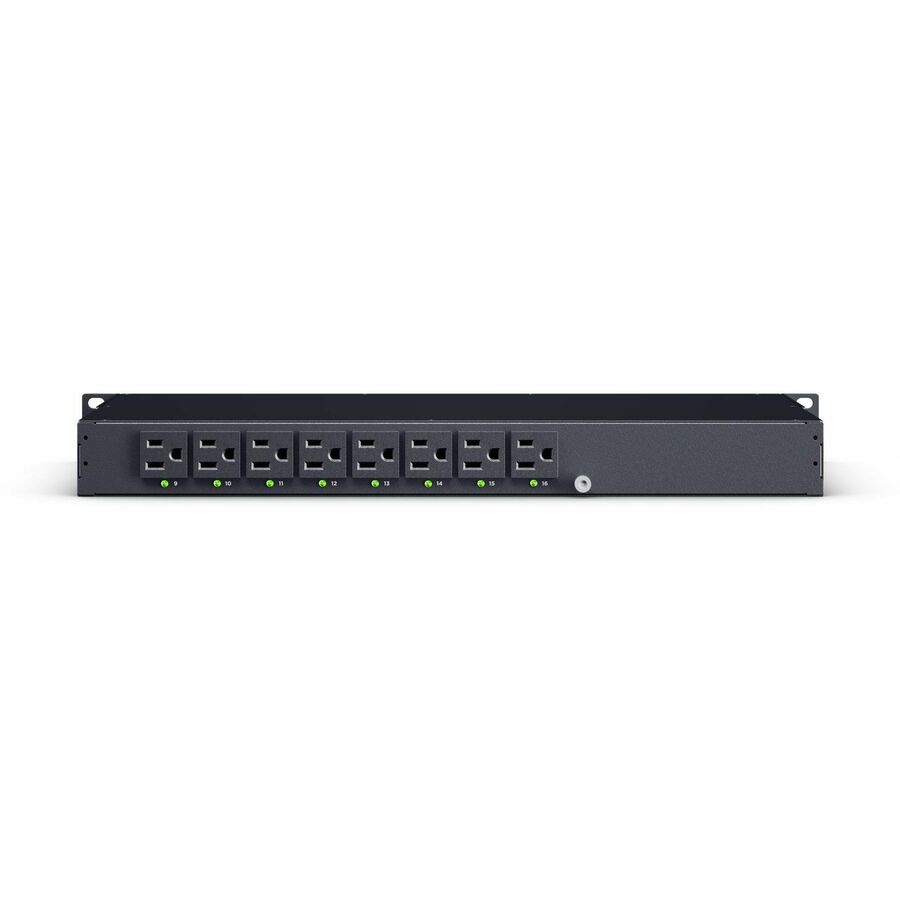

- Outlet location: 8 Front, 8 Rear
- Outlets: 16 NEMA 5-15R
- Phase: Single
- Plug type: NEMA 5-15P
- Size: 1U Rackmount
- Switched PDU: SNMP Network Interface and Switchable Outlets
- Volts: 100 - 120 V
- Warranty: 3 year
Product Overview
The CyberPower PDU41021, a 1U rackmount, switched power distribution unit (PDU) provides 100-120Vac, 15A output via sixteen (16) NEMA 5-15R receptacles from a single NEMA 5-15P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU41021
- Brand Name: CyberPower
- Product Series: Switched PDU
- Product Model: PDU41021
- Product Name: PDU41021
- Product Type: PDU
Technical Information
- PDU Type: Switched
- Phase: Single Phase
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 16 x NEMA 5-15R
- Protection Type: Overload Protection
- Locking Receptacles: Cord Retention Tray
- Features:
- LCD Display
- LED Status Indicator
Power Description
- Output Voltage: 120 V AC
- Output Voltage Range: 100 V AC - 120 V AC
- Input Current: 15 A
- Input Frequency: 60 Hz
Management
- Management:
- IPv4/v6
- SNMPv1/v3
- HTTP/HTTPs
- TCP/IP
- UDP
- DHCP
- NTP
- DNS
- SMTP
- SSH
- SSL
- TLS
- Telnet
- FTP
- Syslog
- RADIUS
- LDAP
- LDAPS
- Windows AD
- Remote Outlet Switching: Yes
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Metal
- Mounting Orientation: Horizontal/Vertical
- Mount Type: Rack-mountable
- Form Factor: Rack
- Rack Height: 1U
- Cord Length: 12 ft

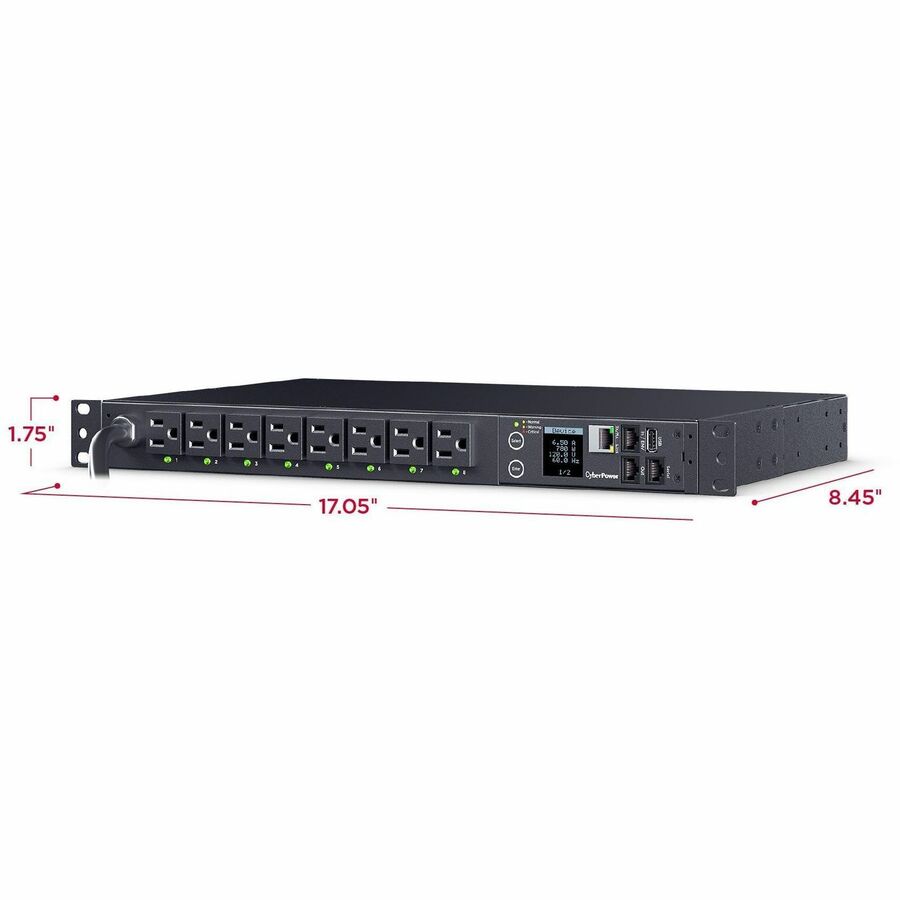

- Height: 1.8"
- Width: 17.1"
- Depth: 8.5"
- Weight (Approximate): 8.40 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 140°F (60°C)
- Minimum Storage Temperature: 5°F (-15°C)
- Maximum Storage Temperature: 149°F (65°C)
Miscellaneous
- Application/Usage:
- Data Center
- Network Closet
- VoIP Phone System
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- UL Listed: Yes
Warranty
- Limited Warranty: 3 Year
