CyberPower PDU81001 100 - 120 VAC 15A Switched Metered-by-Outlet PDU - PDU81001
Key Features
- 100-120 V
- 12
- 15A (Derated to 12A)

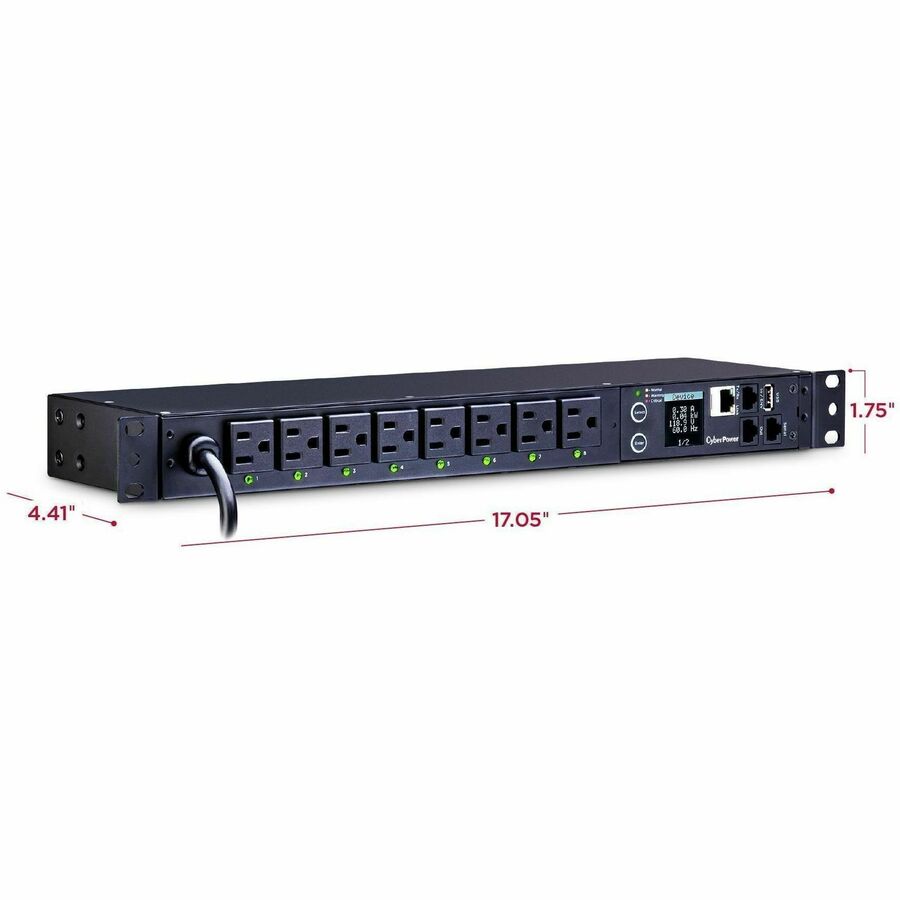

- 17.05W x 1.75H x 4.41D
- 1U Rackmount
- 3 year
- 50Hz/60Hz
- 8 NEMA 5-15R
- Amps:
- Cord length (ft.):
- Dimensions (in):
- Email, SMS Text
- Frequency:
- Input plug type:
- Metered-by-Outlet
- Monitoring Level:
- NEMA 5-15P
- Notifications:
- Outlets:
- Phase:
- Single
- Size:
- Volts:
- Warranty:
Product Overview
Streamline capacity planning and power management with the CyberPower PDU81001 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81001 is protected by a three-year limited warranty.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU81001
- Brand Name: CyberPower
- Product Series: Switched Metered-by-Outlet PDU
- Product Model: PDU81001
- Product Name: PDU81001
- Product Type: PDU
Technical Information
- PDU Type: Switched with Metered-by-Outlet
- Phase: Single Phase
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Features:
- LCD Display
- LED Status Indicator
- Load Capacity (Watt): 1800 W
Power Description
- Input Voltage: 120 V AC
- Input Voltage Range: 100 V AC - 120 V AC
- Output Voltage:
- 100 V AC
- 120 V AC
- Output Voltage Range: 100 V AC - 120 V AC
- Input Current: 15 A
- Input Frequency: 60 Hz
Management
- Management: Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
- Remote Outlet Switching: Yes
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Metal
- Mounting Orientation: Horizontal
- Mount Type: Rack-mountable
- Form Factor: Rack
- Rack Height: 1U
- Cord Length: 12 ft
- Height: 1.8"
- Width: 17.1"
- Depth: 4.4"
- Weight (Approximate): 5.73 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 140°F (60°C)
- Minimum Storage Temperature: 5°F (-15°C)
- Maximum Storage Temperature: 149°F (65°C)
Miscellaneous
- Package Contents:
- PDU81001
- 2 x Short Mounting Brackets
- 2 x Long Mounting Brackets
- 12 x M4x8 Screws
- 6 x M5X12 Screws/Washers
- Cord Retention Tray
- 6 x M3x6 Screws
- 12 x Cable Ties
- RJ45/DB9 Serial Cable
- User's Manual
- Registration & Download Cards
- Application/Usage:
- Data Center
- Network Closet
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- UL Listed: Yes
Warranty
- Limited Warranty: 3 Year
