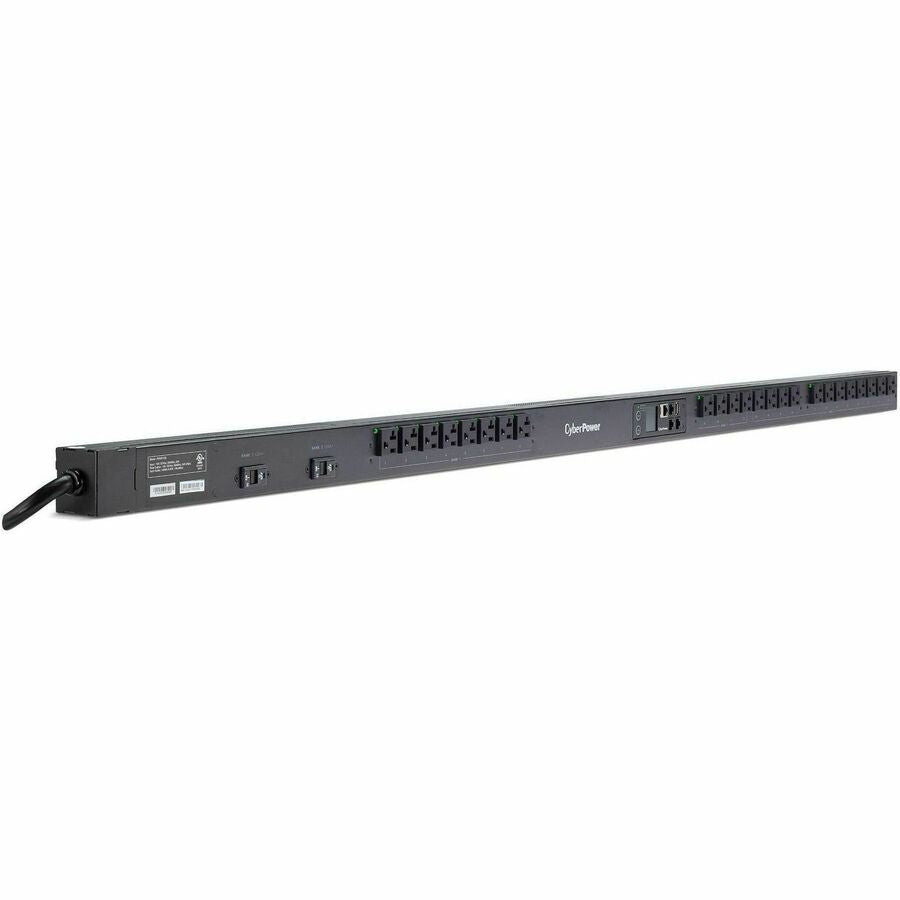

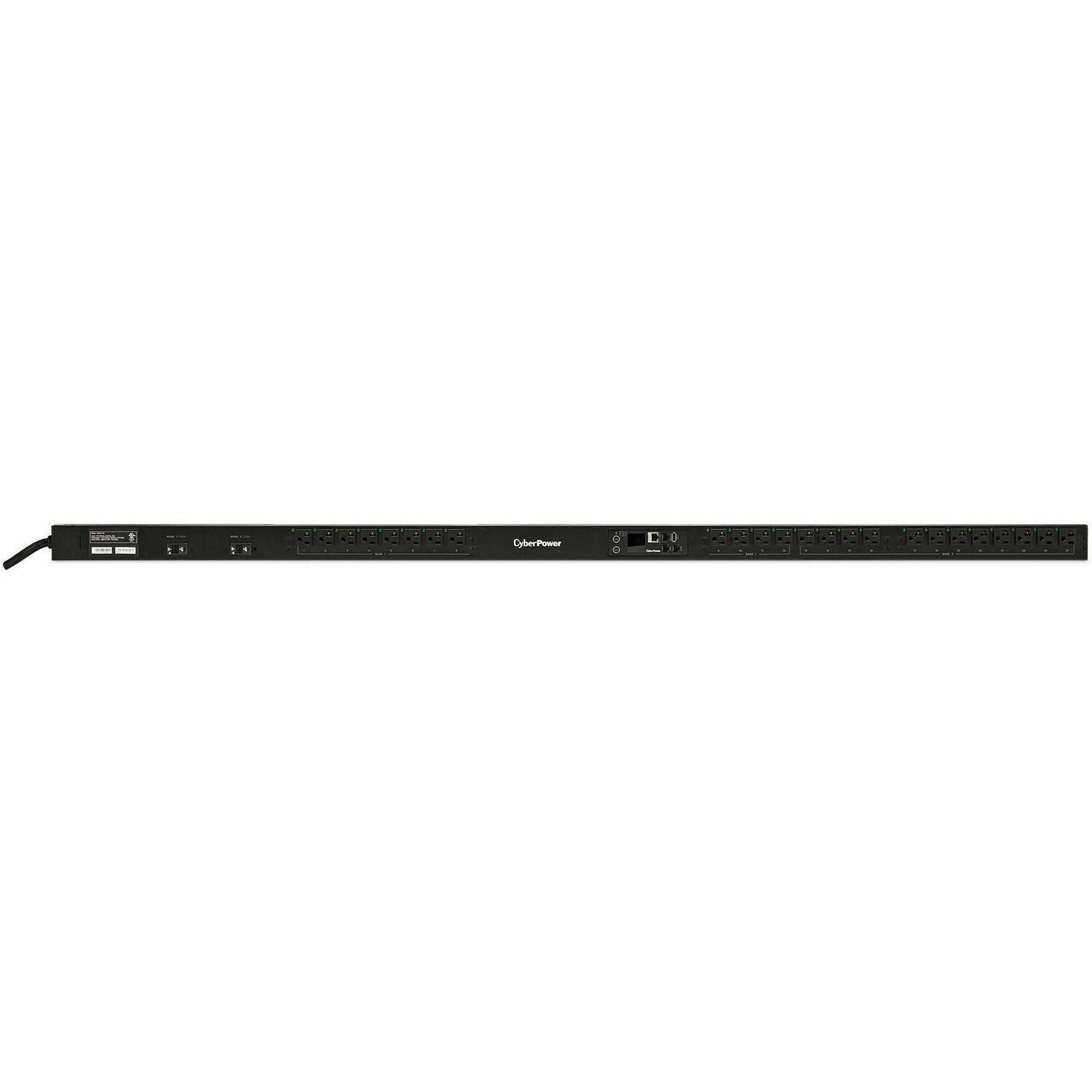

CyberPower PDU81102 100 - 120 VAC 30A Switched Metered-by-Outlet PDU - PDU81102
Key Features
- 0U Rackmount
- 10
- 100-120 V
- 2.2W x 65.6H x 1.89D
- 24 NEMA 5-20R
- 3 year
- 30A (Derated to 24A)
- 50Hz/60Hz
- Amps:
- Cord length (ft.):
- Dimensions (in):
- Email, SMS Text
- Frequency:
- Input plug type:
- Metered-by-Outlet
- Monitoring Level:
- NEMA L5-30P
- Notifications:
- Outlets:
- Phase:
- Single
- Size:
- Volts:
- Warranty:
Product Overview
Streamline capacity planning and power management with the CyberPower PDU81102 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
The PDU81102 supports inputs between 100-120V and includes 24 NEMA 5-20R outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81102 is protected by a three-year limited warranty.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PDU81102
- Brand Name: CyberPower
- Product Series: Switched Metered-by-Outlet PDU
- Product Model: PDU81102
- Product Name: PDU81102
- Product Type: PDU
Technical Information
- PDU Type: Switched with Metered-by-Outlet
- Phase: Single Phase
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type: NEMA 5-20R
- Receptacle Detail: 24 x NEMA 5-20R
- Protection Type:
- Accidental Power Shutdown
- Overload Protection
- Features: LCD Display
Power Description
- Input Voltage: 120 V AC
- Input Voltage Range: 100 V AC - 120 V AC
- Output Voltage:
- 100 V AC
- 120 V AC
- Output Voltage Range: 100 V AC - 120 V AC
- Input Current: 30 A
- Input Frequency: 60 Hz
Management
- Management: Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
- Remote Outlet Switching: Yes
Interfaces/Ports
- Network (RJ-45): Yes
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Metal
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Form Factor: Rack
- Rack Height: 0U
- Cord Length: 10 ft
- Height: 65.6"
- Width: 2.2"
- Depth: 1.9"
- Weight (Approximate): 17.20 lb
Environmental Conditions
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 140°F (60°C)
- Minimum Storage Temperature: 5°F (-15°C)
- Maximum Storage Temperature: 149°F (65°C)
Miscellaneous
- Package Contents:
- PDU81102 24-Outlet PDU
- 2 x Mounting Brackets
- 6 x M4x5 Screws
- 6 x M5x12 Screws/Washers
- 6 x M3x6 Screws
- Cord Retention Tray
- Cable Ties
- RJ45/DB9 Cable
- User's Manual Registration
- Download Cards
- Application/Usage:
- Data Center
- Server
- Network Device
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- UL Listed: Yes
Warranty
- Limited Warranty: 3 Year
