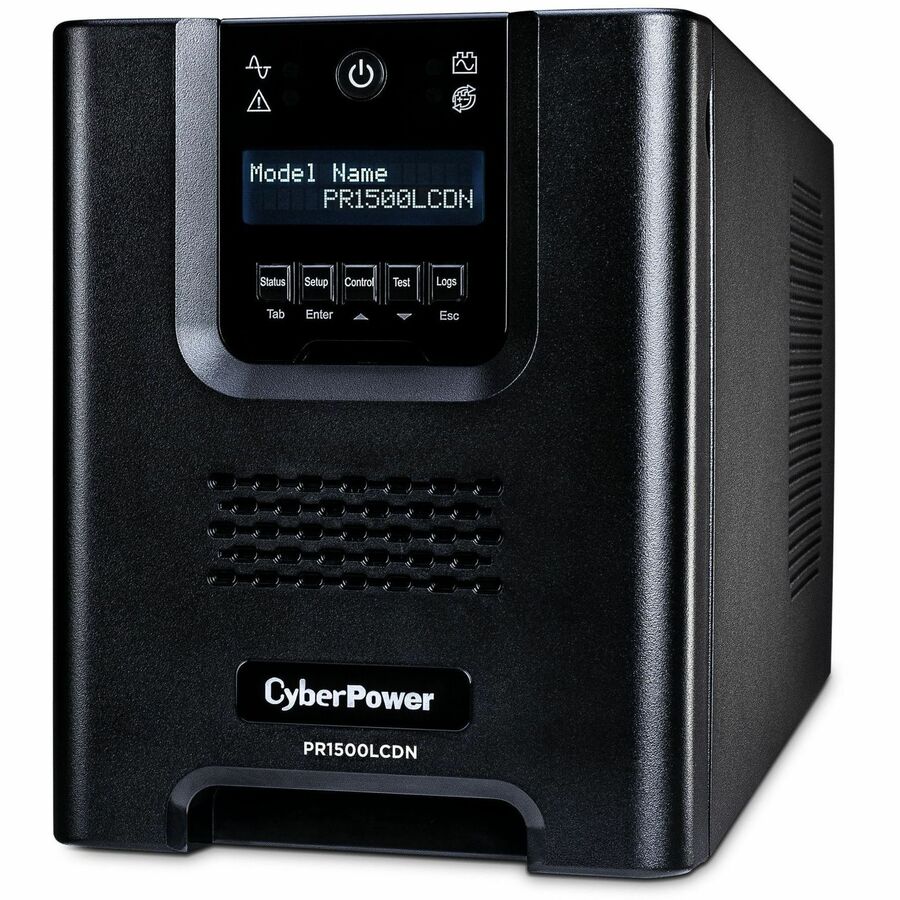

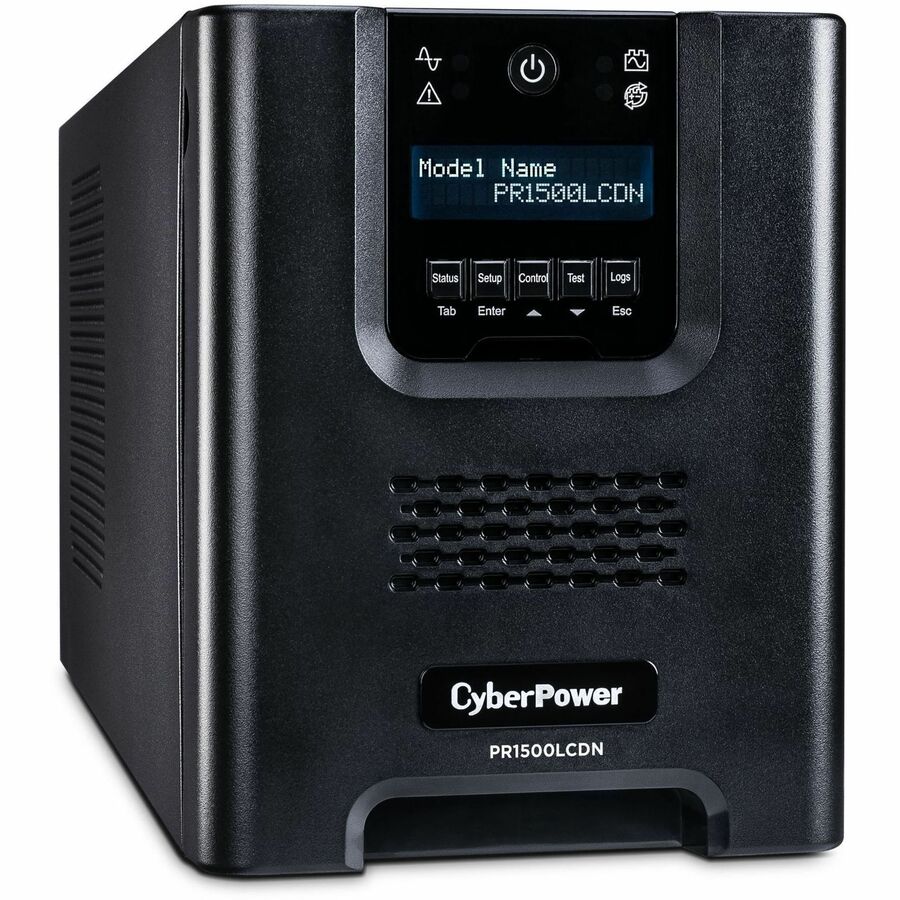

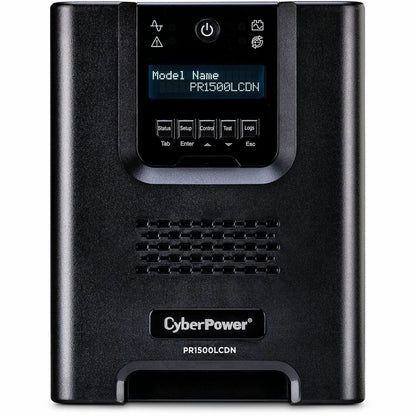

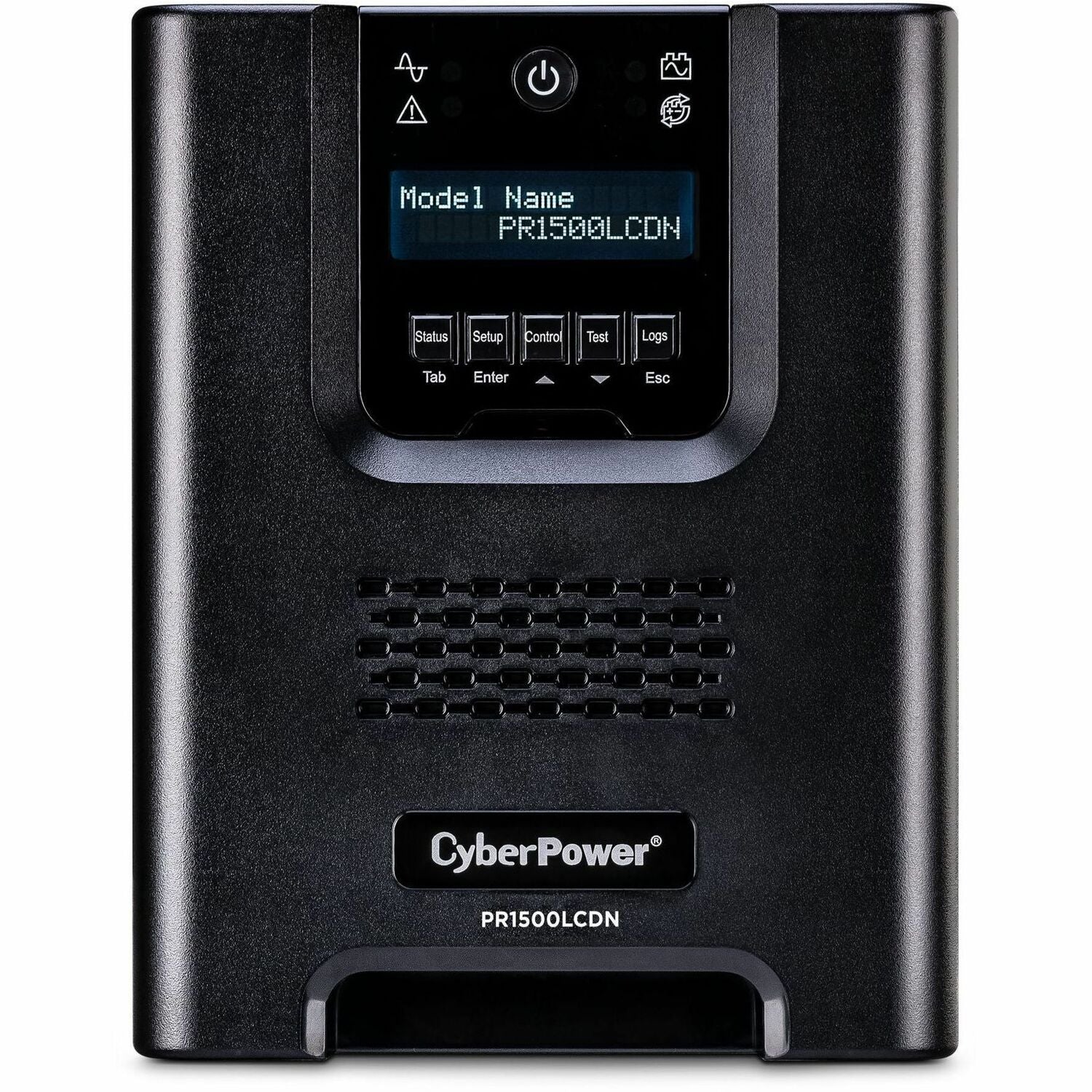

CyberPower PR1500LCDN Smart App Sinewave UPS Systems - PR1500LCDN

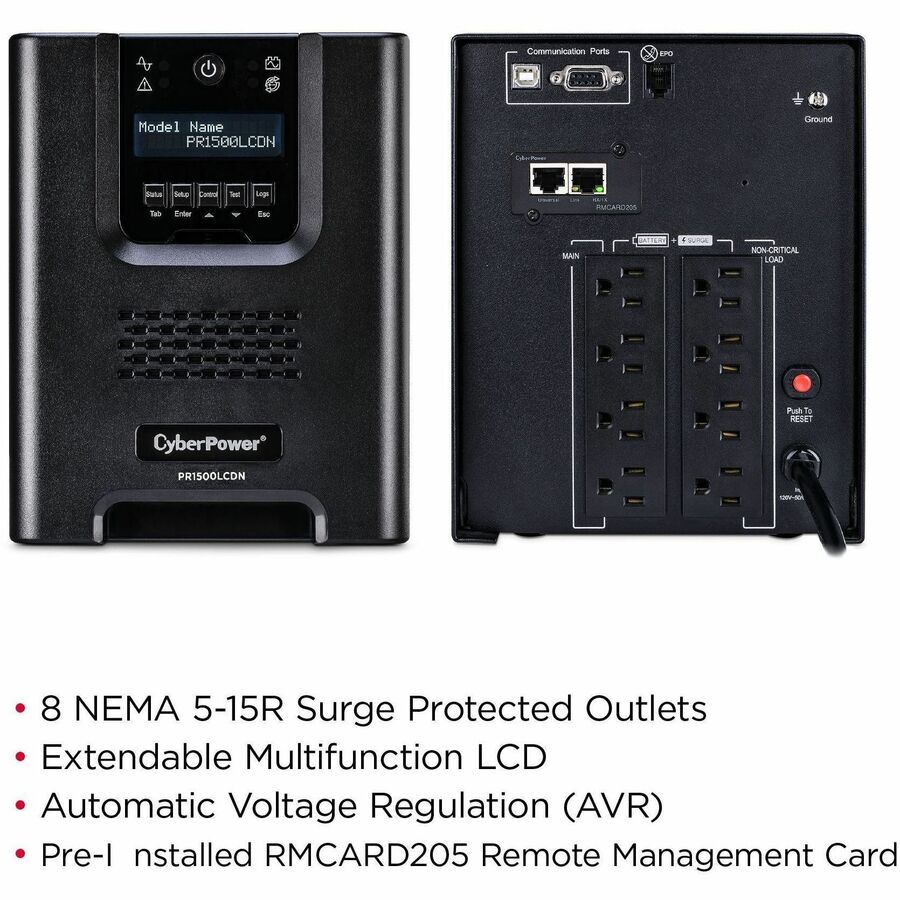

Key Features
- Capacity: 1500 VA / 1500 W
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Outlet types: 8 × NEMA 5-15R
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Remote management: RMCARD205 included
- Topology: Line Interactive
- Warranty: 3 year
- Waveform: Sine Wave
Product Overview
A mini-tower UPS with line interactive topology and a pre-installed SNMP card, the CyberPower Smart App Sinewave PR1500LCDN provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCDN uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The RMCARD205, a remote management card that provides remote management and configuration of the UPS via a standard Web browser or network management system (NMS) comes installed. The PR1500LCDN comes with a three-year warranty and a ,375,000 Connected Equipment Guarantee.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR1500LCDN
- Brand Name: CyberPower
- Product Series: Smart App Sinewave UPS
- Product Model: PR1500LCD
- Product Name: PR1500LCDN Smart App Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Number of Battery & Surge Outlets: 8
- Number of Critical Load Outlets: 4
- Transfer Time: 4 ms
- Overload Protection: Yes
- Energy Saving: GreenPower UPS™ Bypass
- Application/Usage:
- Server
- Corporate
- Network Device
- Storage Device
- Telecommunication
Power Description
- Load Capacity (VA): 1500 VA
- Input Voltage: 120 V AC
- Input Voltage Range: 78 V AC - 149 V AC
- Output Voltage: 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 1030 J
Management
- Network Management: SNMP/HTTP Remote Monitoring
- Alarm:
- Battery Mode
- Overload
- Low Battery
- UPS Fault
- Replace Battery

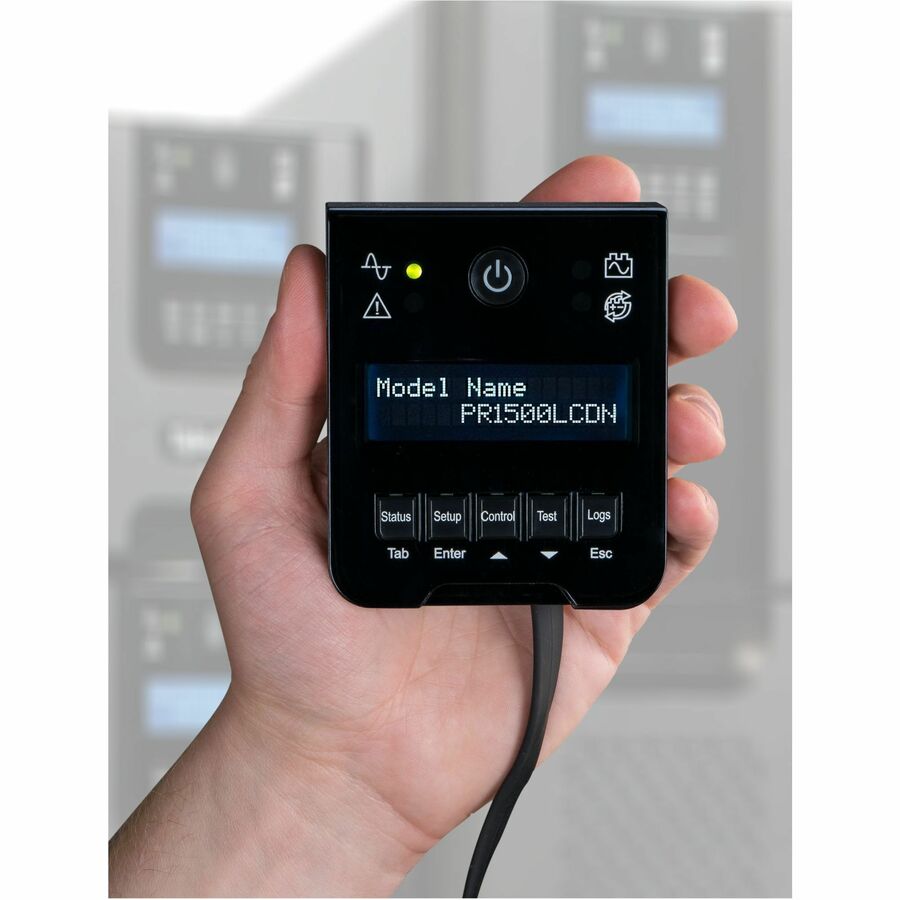

Controls/Indicators
- Status Indicators: LED Indicators:
- Power On
- Online
- On Battery
- Wiring fault
- Replace Battery

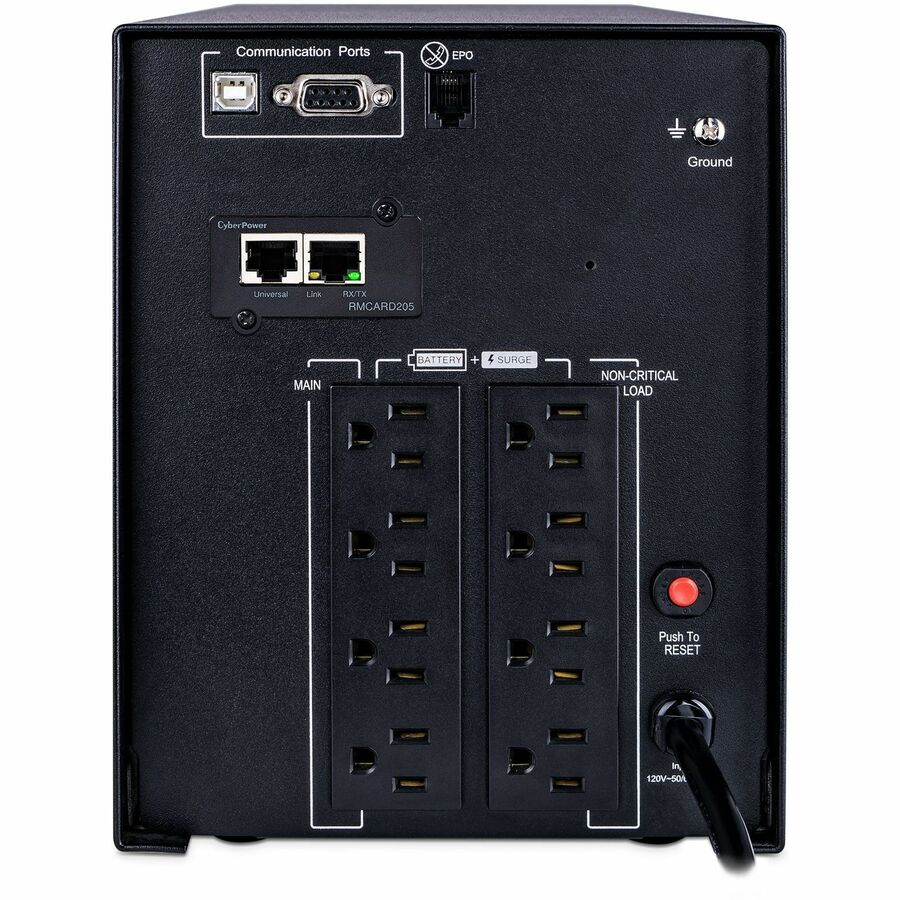

Interfaces/Ports
- Serial Port: Yes
- USB (HID Compliant) Port: Yes
- EPO Port: Yes
Battery Information
- Number of Batteries: 2
- Battery Characteristics: Maintenance-free/Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 17000 mAh

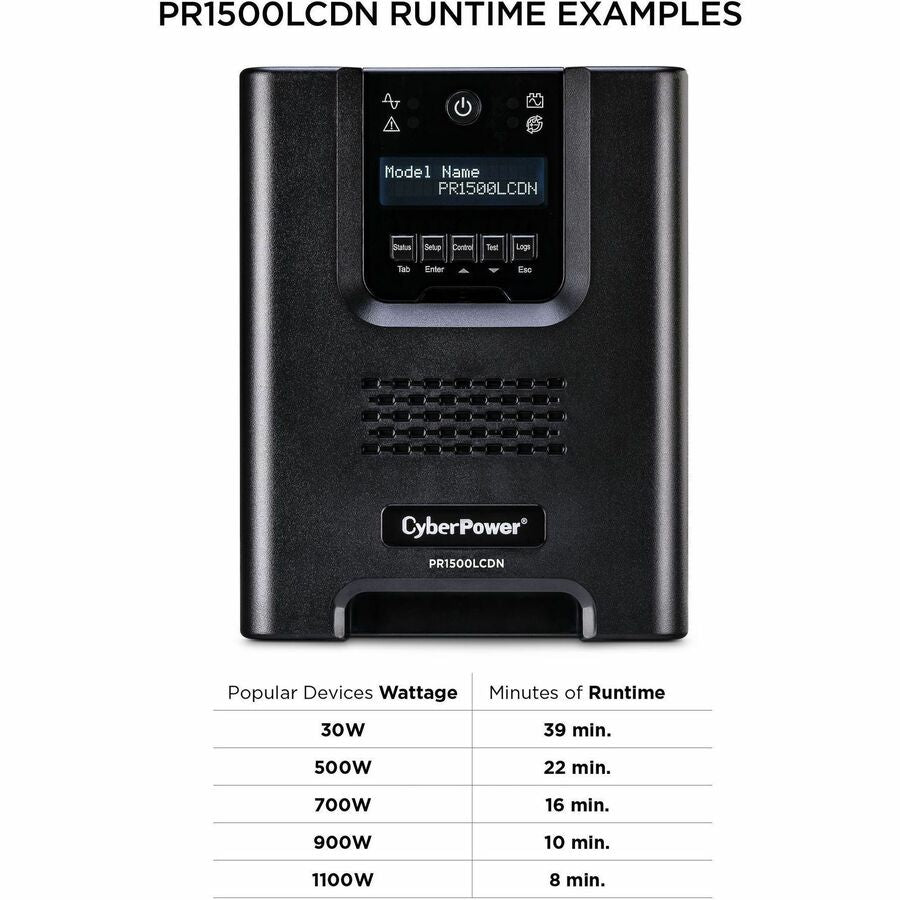

- Backup/Run Time (Full Load): 4.70 Minute
- Backup/Run Time (Half Load): 15.10 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
- Maximum Operating Elevation: 10000 ft
- Maximum Storage Elevation: 50000 ft
- Storage Relative Humidity: 0% - 95%

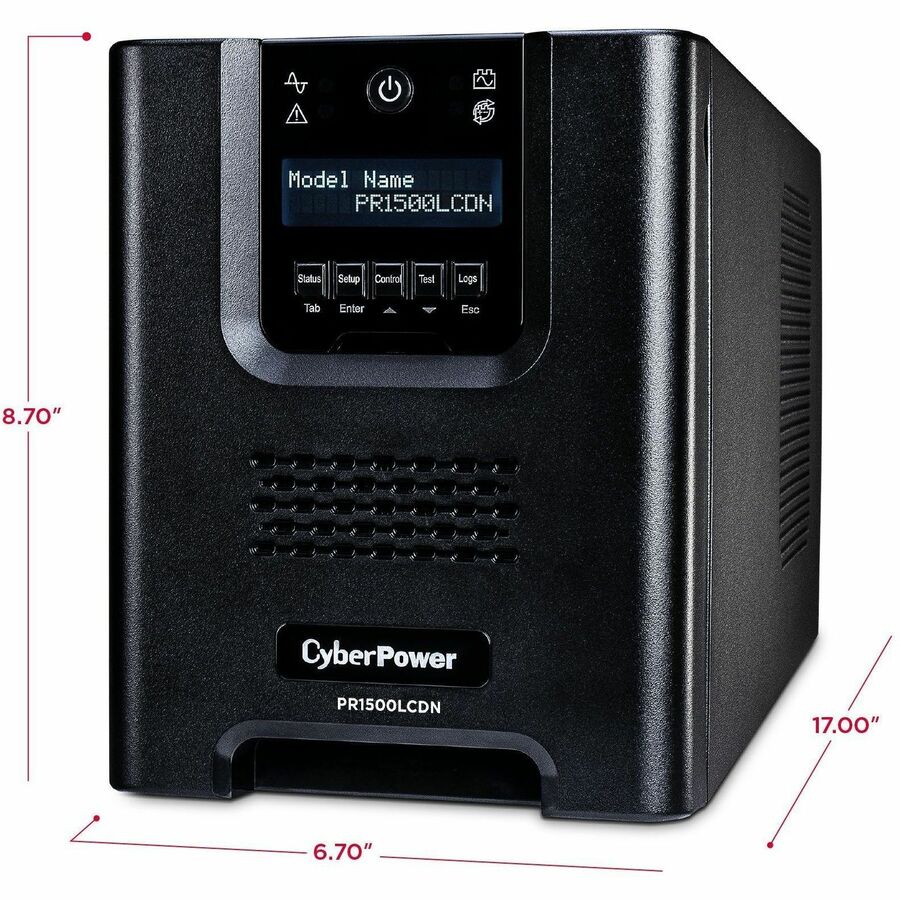

Physical Characteristics
- Product Color: Black
- Form Factor: Mini-tower
- Height: 8.7"
- Width: 6.7"
- Depth: 17"
- Weight (Approximate): 54 lb
Miscellaneous
- Package Contents:
- Smart App Sinewave PR1500LCD 1500VA Mini-Tower UPS
- User Manual
- Emergency Power Off Cable (gray)
- PowerPanel Business Edition Software CD
- Serial Interface Cable (DB-9)
- USB A+B Type Cable
- Warranty Registration Card
- Function Setup Guide
- Software Included: PowerPanel Business Edition
- Energy Star: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
