CyberPower PR3000RT2UCN Smart App Sinewave UPS Systems - PR3000RT2UCN
Key Features
- $400,000
- 100-120 VAC ± 5%
- 3 year
- 3000 VA / 3000 W
- 5.5 minutes / 1.5 minutes

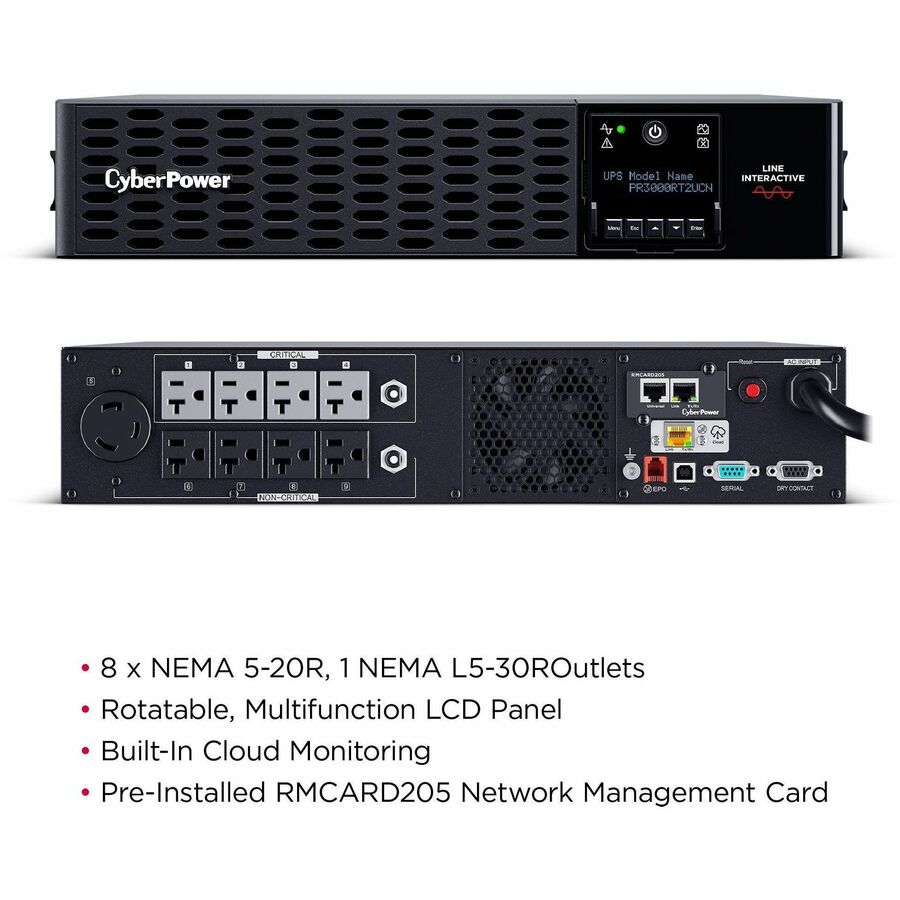

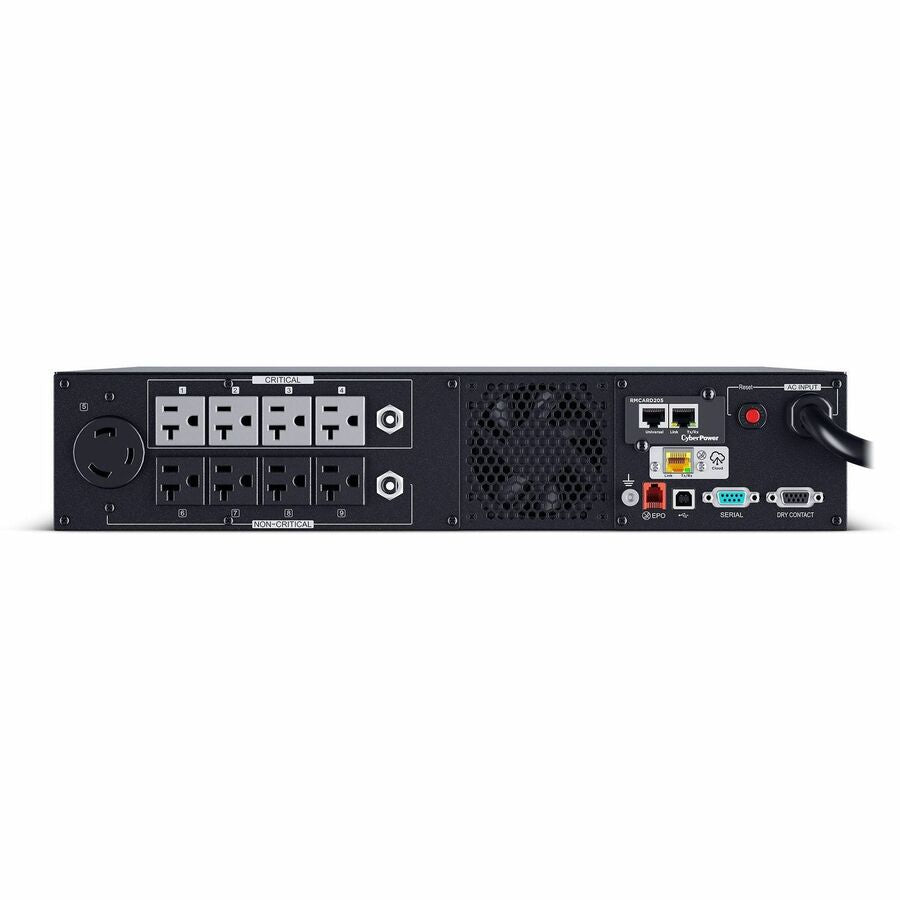

- 8 × NEMA 5-20R; 1 x NEMA L5-30R
- 9 surge + battery backup
- Capacity:
- Communication:
- Connected Equipment Guarantee:
- ENERGY STAR® certified:
- Line Interactive
- Management software:
- NEMA L5-30P, 10 ft. cord
- Outlet types:
- Outlets:
- Output:
- Plug type & cord:
- PowerPanel® Business
- Remote management:
- Runtime (half/full):
- Sine Wave
- Topology:
- USB, Serial, SNMP, Relay, EPO
- Warranty:
- Waveform:
- Yes
- Yes, pre-installed RMCARD205 and built-in cloud monitoring

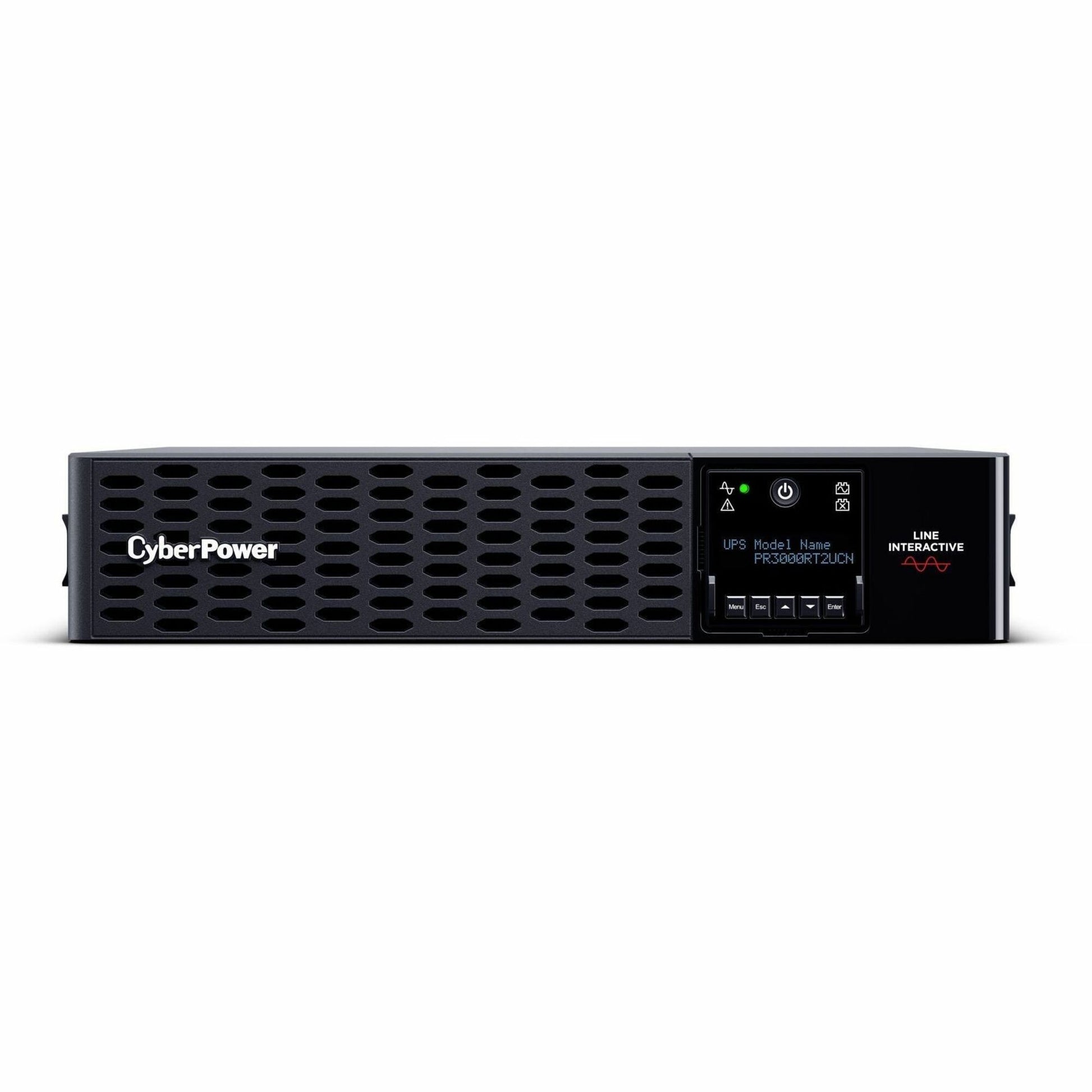

Product Overview
The PR3000RT2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

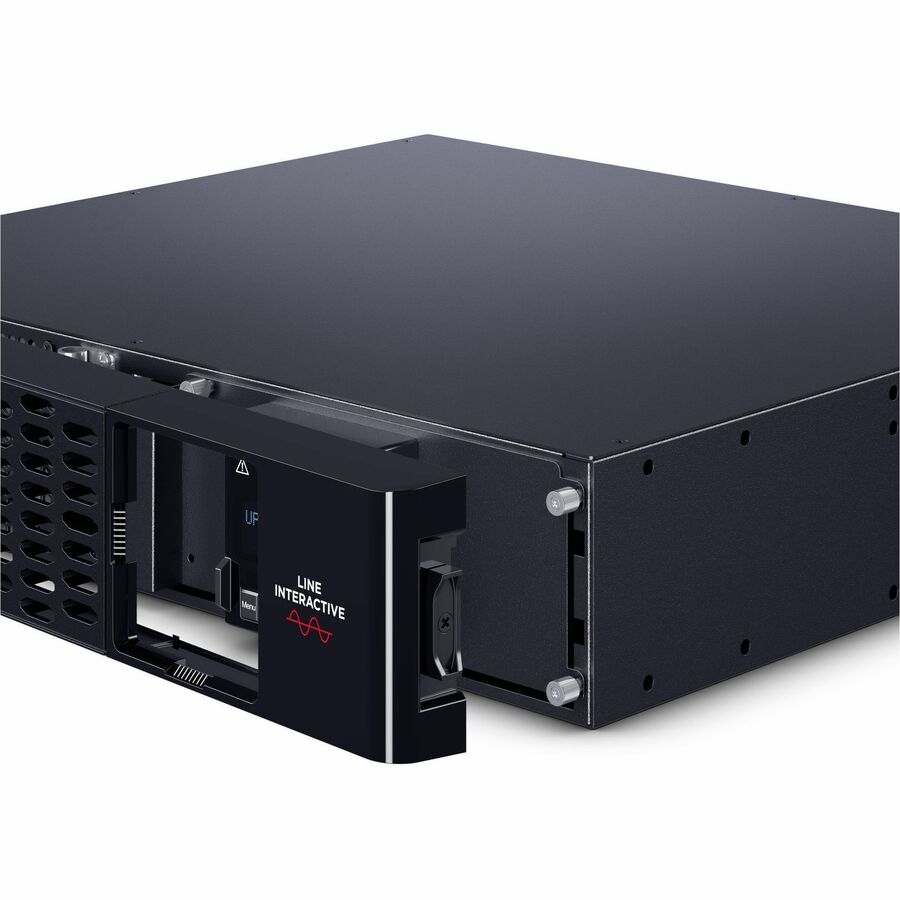

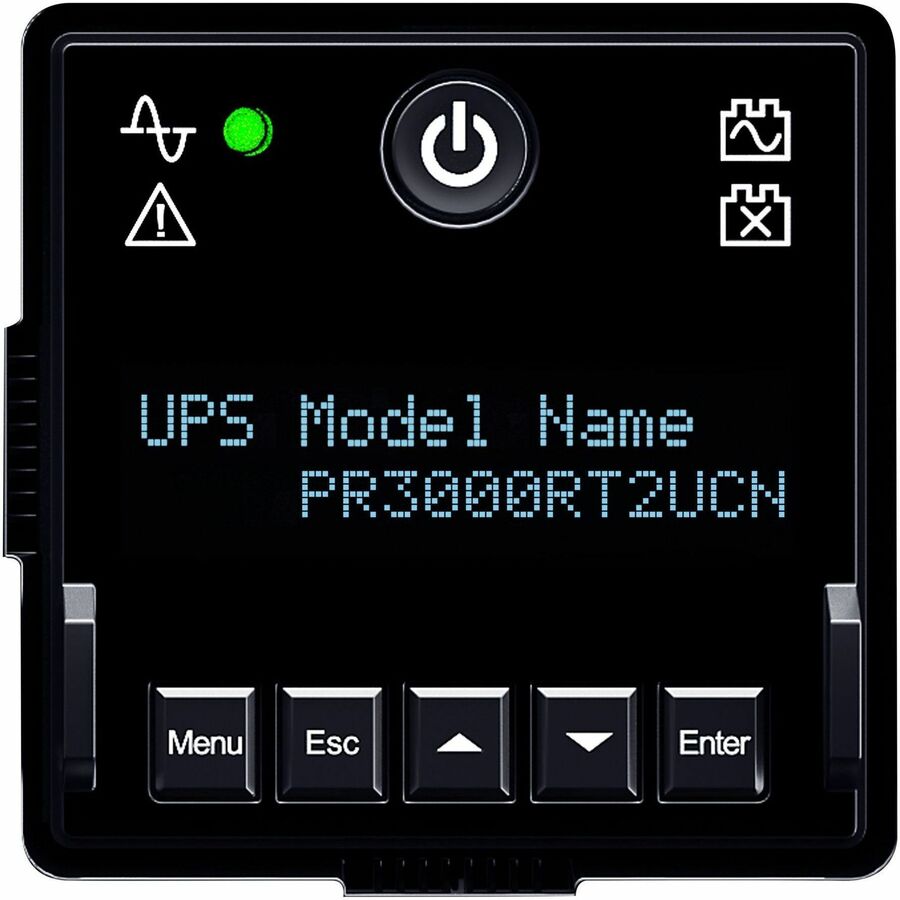

The Smart App Sinewave PR3000RT2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RT2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a ,400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RT2UCN.
General Information
- Manufacturer: CyberPower Systems, Inc
- Manufacturer Part Number: PR3000RT2UCN
- Brand Name: CyberPower
- Product Line: Smart App Sinewave
- Product Model: PR3000RT2UCN
- Product Name: PR3000RT2UCN Smart App Sinewave UPS Systems
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA L5-30P
- Receptacle Type:
- NEMA 5-20R
- NEMA L5-30R

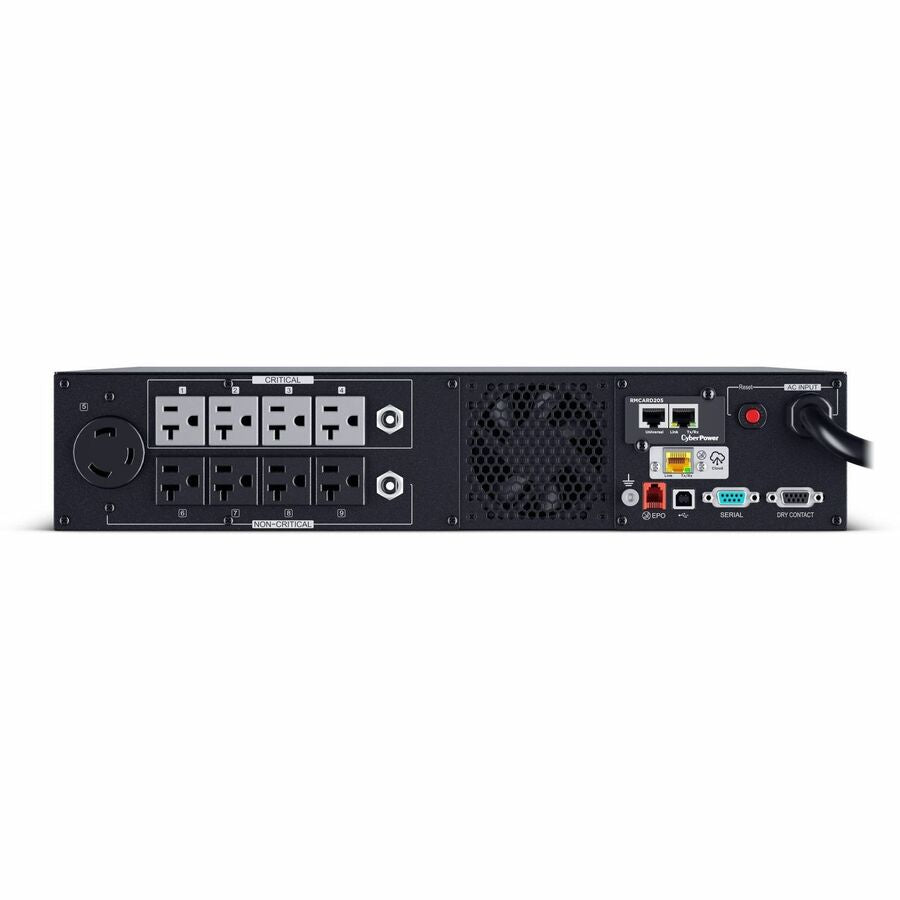

- Receptacle Detail:

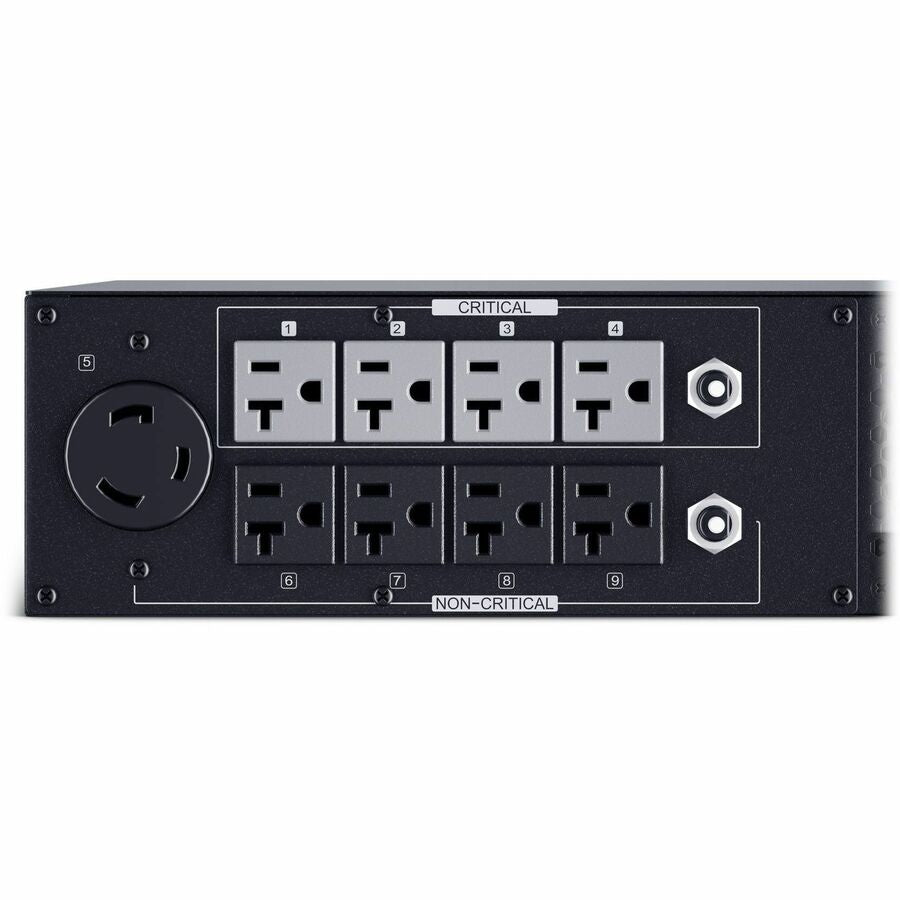

- 8 x NEMA 5-20R
- 1 x NEMA L5-30R
- Number of Battery & Surge Outlets: 9
- Number of Critical Load Outlets: 4
- Overload Protection: Yes
- Cord Length: 10 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
Power Description
- Load Capacity (VA): 3000 VA
- Load Capacity (Watt): 3000 W
- Input Voltage: 120 V AC
- Input Voltage Range: 70 V AC - 155 V AC
- Output Voltage:
- 100 V AC
- 110 V AC
- 120 V AC
- Input Frequency: 63 Hz
- Output Frequency: 60 Hz
- Waveform Type: Sine Wave
- Surge Energy Rating: 2430 J
- Circuit Breaker: Yes
- Output Power Factor: 1
Display & Graphics
- Display: LCD
Management
- Network Management:
- SNMP/HTTP Remote Monitoring
- Relay-MS Card
- Network Card
- Alarm: Battery Mode
Controls/Indicators
- Status Indicators:
LED Indicators:
- Power On
Interfaces/Ports
- Serial Port: Yes
- USB: Yes
- EPO Port: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- Number of Batteries: 4
- Battery Characteristics: Sealed
- Battery Chemistry: Lead Acid
- Battery Size: 12V
- Battery Capacity: 9000 mAh
- Backup/Run Time (Full Load): 1.50 Minute
- Backup/Run Time (Half Load): 5.50 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 3 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Maximum Operating Elevation: 9842.52 ft
- Maximum Storage Elevation: 49209.32 ft
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Operating Humidity: 0% - 95%
- Storage Relative Humidity: 0% - 95%
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Sound Emission (A-Weighted): 57.5 dB(A)
- Thermal Dissipation: 56.42 W
Physical Characteristics
- Product Color: Black
- Height: 10.8"
- Width: 22"
- Depth: 19.7"
- Length: 24.5"
- Rack Height: 2U

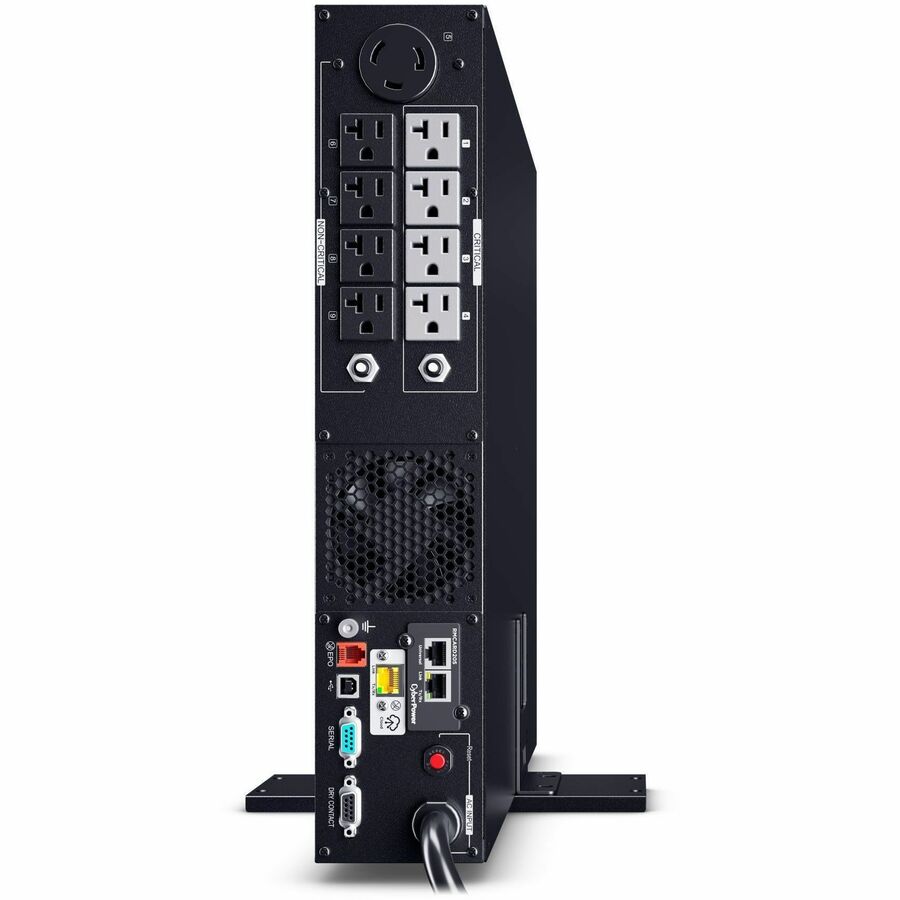

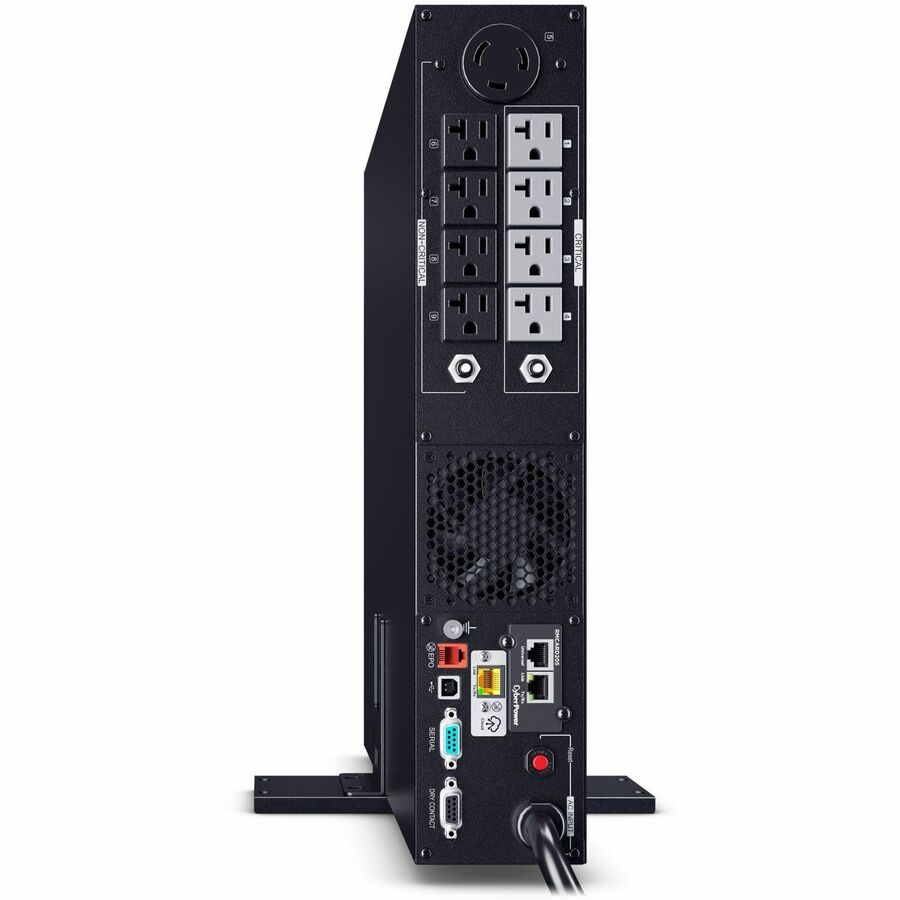

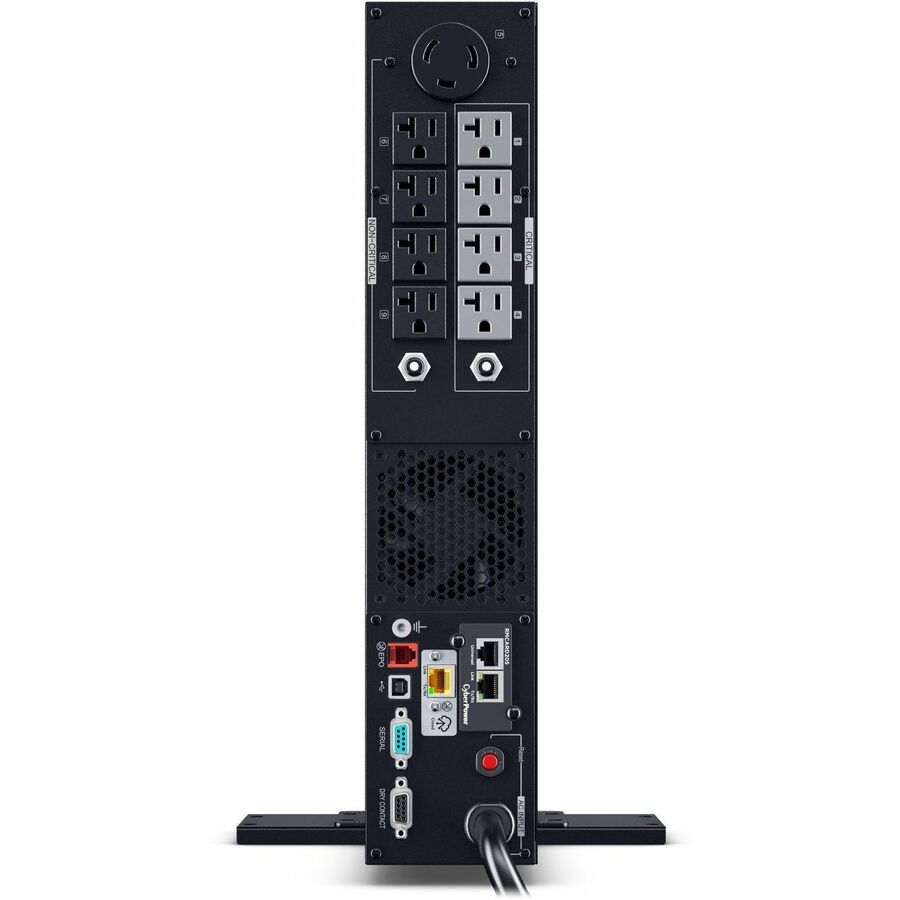

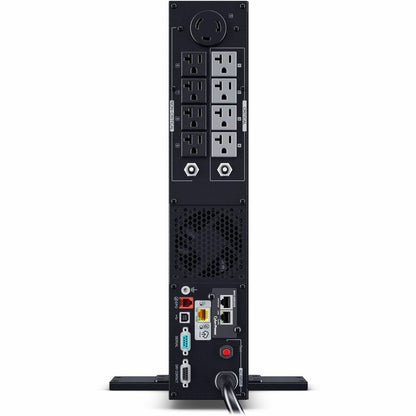

- Form Factor: Tower/Rack Convertible
- Weight (Approximate): 84.20 lb
Miscellaneous
- Energy Star: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
- Connected Equipment Guarantee: Lifetime
- Connected Equipment Guarantee:
- 400,000
