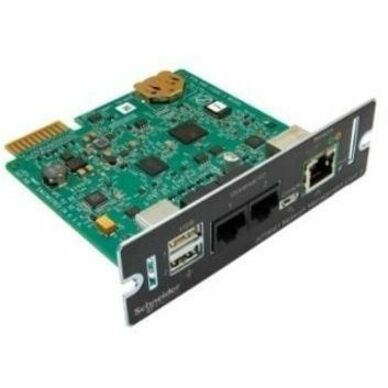

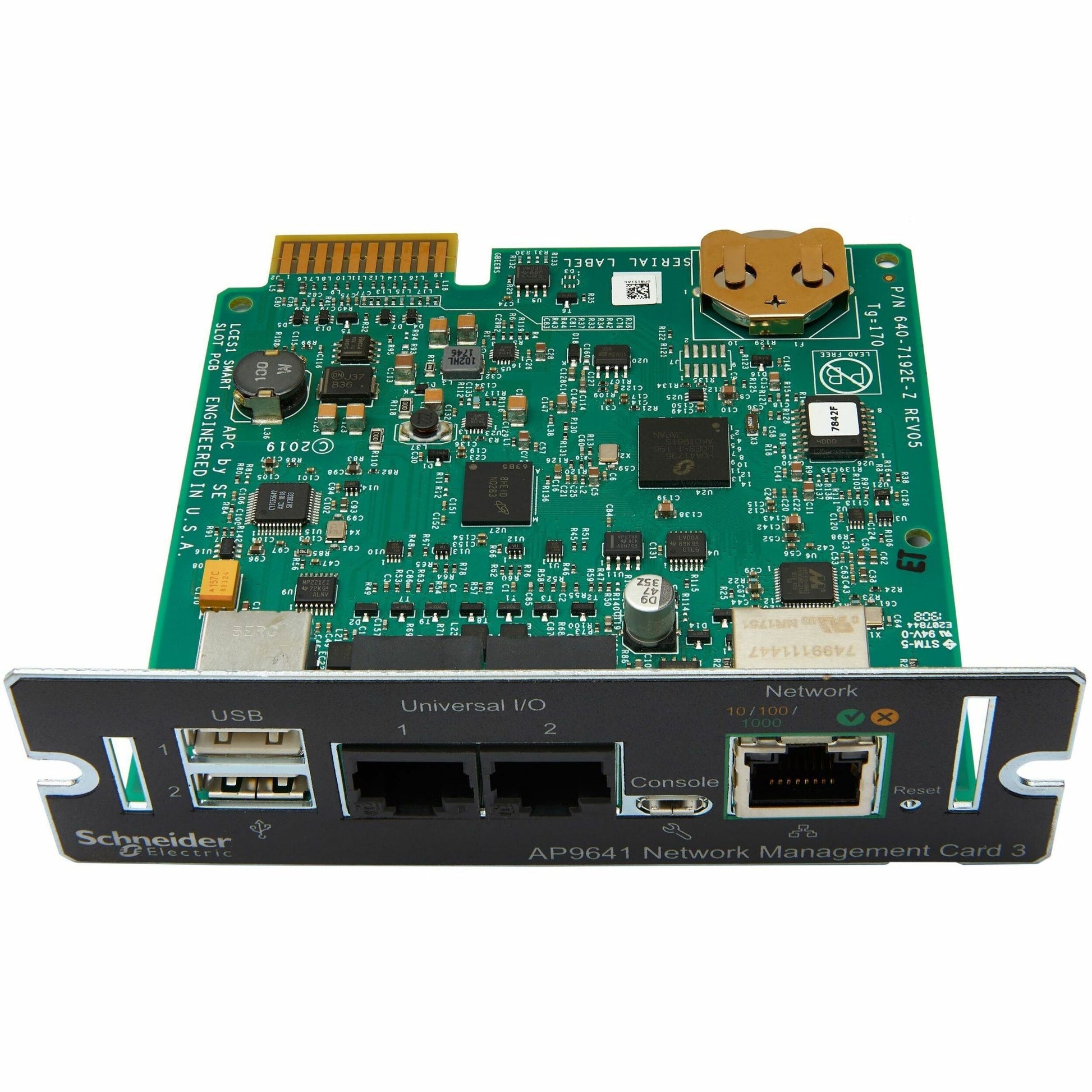

Device monitoring and management, Network Management Cards, NMC3 with Environmental Monitoring, secure remote UPS monitoring and management - AP9641
Key Features
- Enables mission critical remote remote UPS monitoring and management
- Real-time event notification maximizes uptime and improves efficiency
- Reliable network-based shutdown of multiple servers
- Stay up-to-date with an included 1-Year Secure NMC System subscription
- Take proactive actions and troubleshoot easily with detailed data and event logs
Product Overview
The Network Management Card 3 enables essential and secure remote monitoring and management of a UPS, giving you mission-critical visibility. The included Universal I/O (UIO) ports enable support for environmental monitoring. The high-speed processor provides a fast and powerful experience offering Gigabit Ethernet connectivity and simultaneous multiple user logins to the easy-to-use web user interface or Command Line Interface. Take proactive actions and troubleshoot easily with detailed data and event logging for timely resolution. Advanced technology and features keep sensitive data secure with the newest and best-in-class security compliance. The Network Management Card includes a 1-year Secure NMC Subscription which provides access to the latest firmware which is independently certified to the IEC 62443-4-2 standard. Integrates with EcoStruxure IT for efficient management of your equipment, PowerChute Network Shutdown for graceful shutdown, unattended start-up and VM migration options for disaster avoidance and business continuity, and with other SNMP-enabled systems.
General Information
- Manufacturer: Schneider Electric SA
- Manufacturer Part Number: AP9641
- Brand Name: APC by Schneider Electric
- Product Model: AP9641
- Product Name: AP9641 UPS Management Adapter
- Product Type: UPS Management Adapter
Technical Information
- Management: UPS Monitoring
- Protocols:
- Telnet
- HTTP
- HTTPS
- IPv4
- IPv6
- NTP
- SMTP
- SNMP v1
- SNMP v2c
- SNMPv3
- SSHv2
- SSL
- TCP/IP
- SSHv1
Interfaces/Ports
- USB: Yes
- Network (RJ-45): Yes
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Physical Characteristics
- Height: 1.5"
- Width: 4.8"
- Depth: 4.5"
- Weight (Approximate): 3.20 oz
Miscellaneous
- Package Contents:
- AP9641 UPS Management Adapter
- Temperature sensor
- USB cable
- User manual
- Country of Origin: Philippines
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
