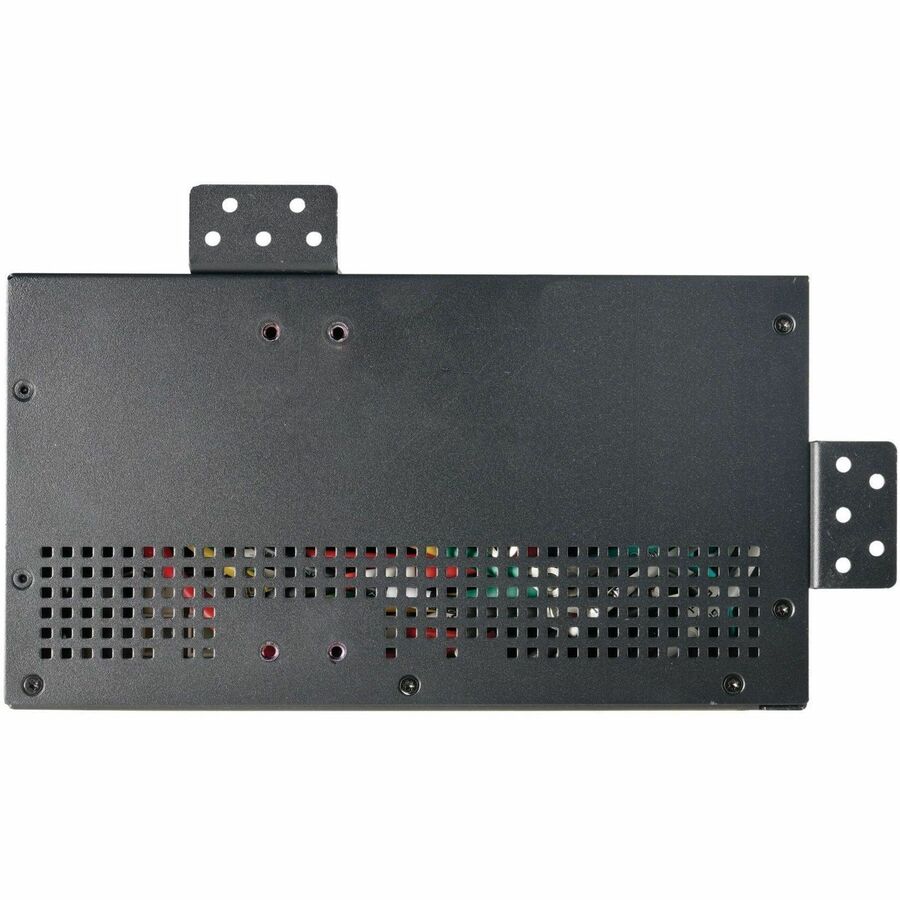

Eaton 9PX G2 Maintenance Bypass for Select 3kVA to 6kVA UPS Systems, Hardwired Input/Output, 2 L6-20R and 2 L6-30R Outlets, 0U Rack/Tower/Wall - MBP6K208G2
Key Features
- 3-year limited warranty
- Compatible with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems
- Designed for 0U rear rack mounting, tower or wall mounting using the included hardware
- Isolates UPS from connected loads for maintenance without powering down equipment
Product Overview
Features | Compatible with Select Eaton 3kVA/5kVA/6kVA UPS Systems
The MBP6K208G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. The bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.
Versatile Connection and Installation Options

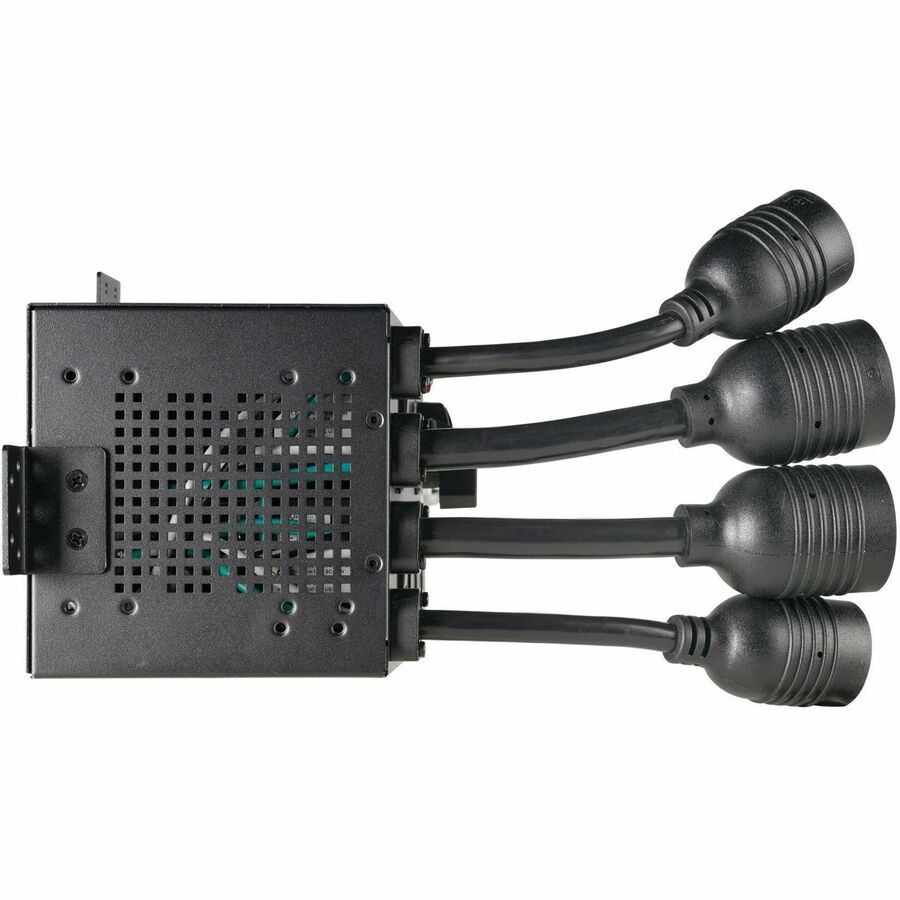

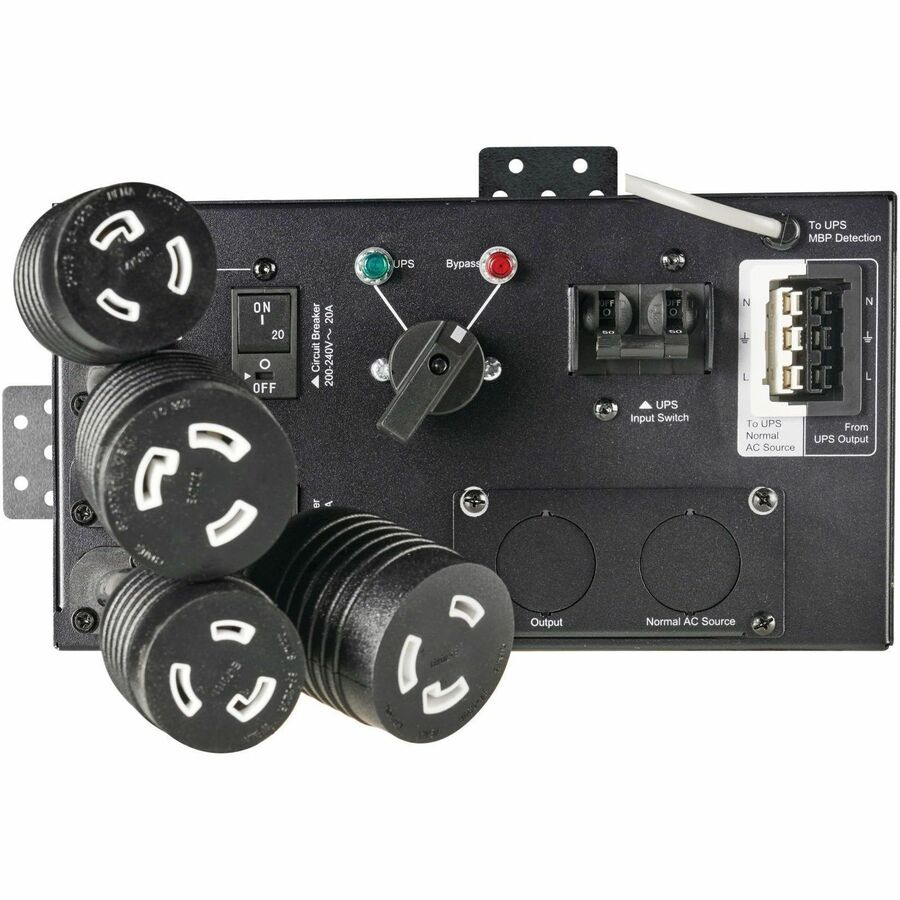

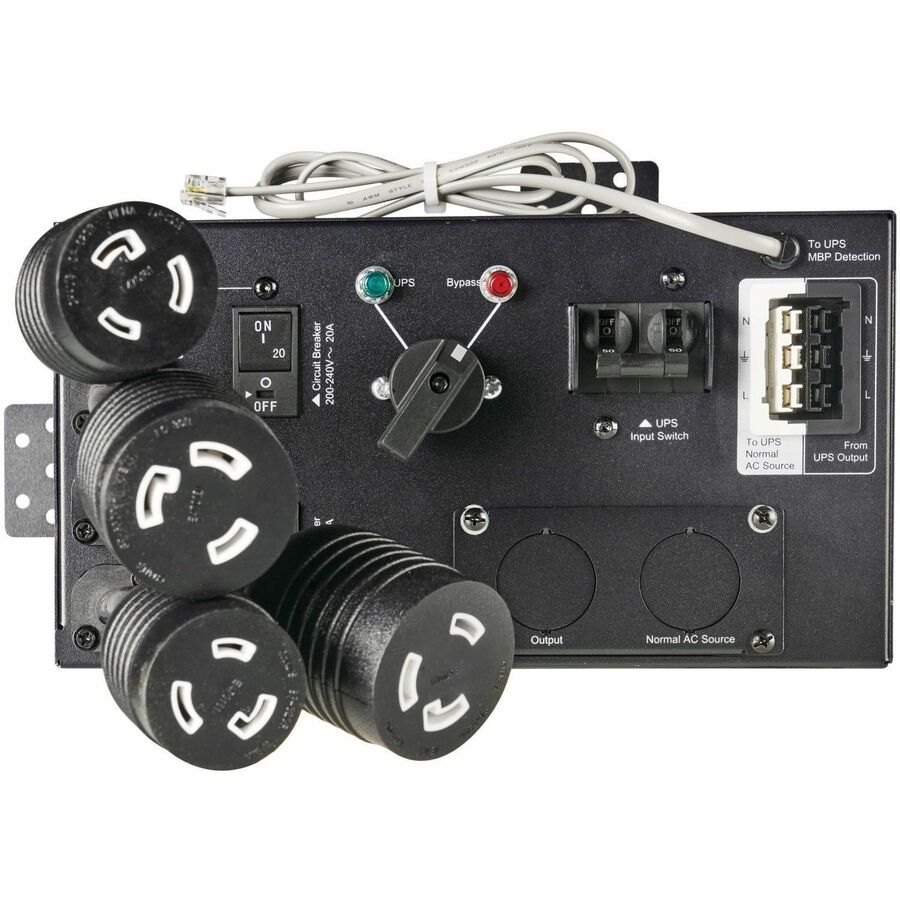

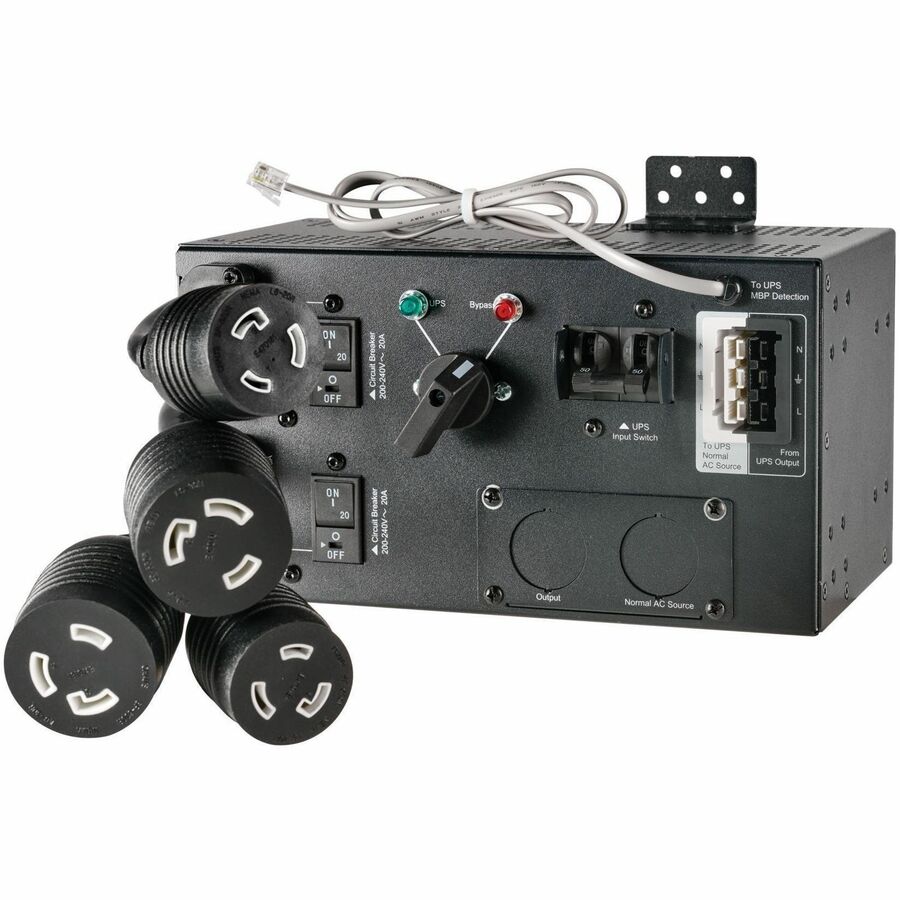

The MBP6K208G2 features hardwired input and output connections, as well as two NEMA L6-20R and two NEMA L6-30R outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: MBP6K208G2
- Brand Name: Eaton
- Product Model: MBP6K208G2
- Product Name: MBP6K208G2 Bypass Switch
- Product Type: Bypass Switch
Technical Information
- Plug/Connector Type:
- Hardwired
- NEMA L6-30P
- Receptacles:
- 1 x Hardwired
- 2 x NEMA L6-20R
- 2 x NEMA L6-30R
Power Description
- Load Capacity (VA): 6000 W
- Load Capacity (Watt): 6000 W
- Output Voltage:
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
Physical Characteristics
- Form Factor: Rackmount/Tower/Wall-mountable
- Rack Height: 0U
- Height: 5.1"
- Width: 9.4"
- Depth: 4.9"
Miscellaneous
- Package Contents:
- MBP6K208G2 Bypass Switch
- Input/output UPS Cable Set
- 2 x Cable Glands
- Mounting Hardware
- Compatibility:
Eaton 9PX G2 UPS Systems:
- 9PX3K3UG2
- 9PX3K3UNTF5G2
- 9PX5KG2
- 9PX5KTF5G2
- 9PX6K-L
- 9PX6KG2
- 9PX6KTF5G2
- Country of Origin: Philippines
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
