Eaton 9PX G2 PowerPass Distribution Module for 3kVA to 6kVA 9PX G2 UPS Systems, L6-30P Input, 1x L6-30R, 1x L14-30R and 6x 5-20R Outlets, 3U Rack/Tower - 9PXPPDM1G2

Key Features

• 100 V AC output voltage for maximum dependability and added productivity
• 230 V AC input voltage for optimal performance with maximum usability
• NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
• NEMA L6-30P plug/connector type for efficient connectivity and feasible power output
• Single Phase phase PDU for reliable performance with maximum productivity

Product Overview

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

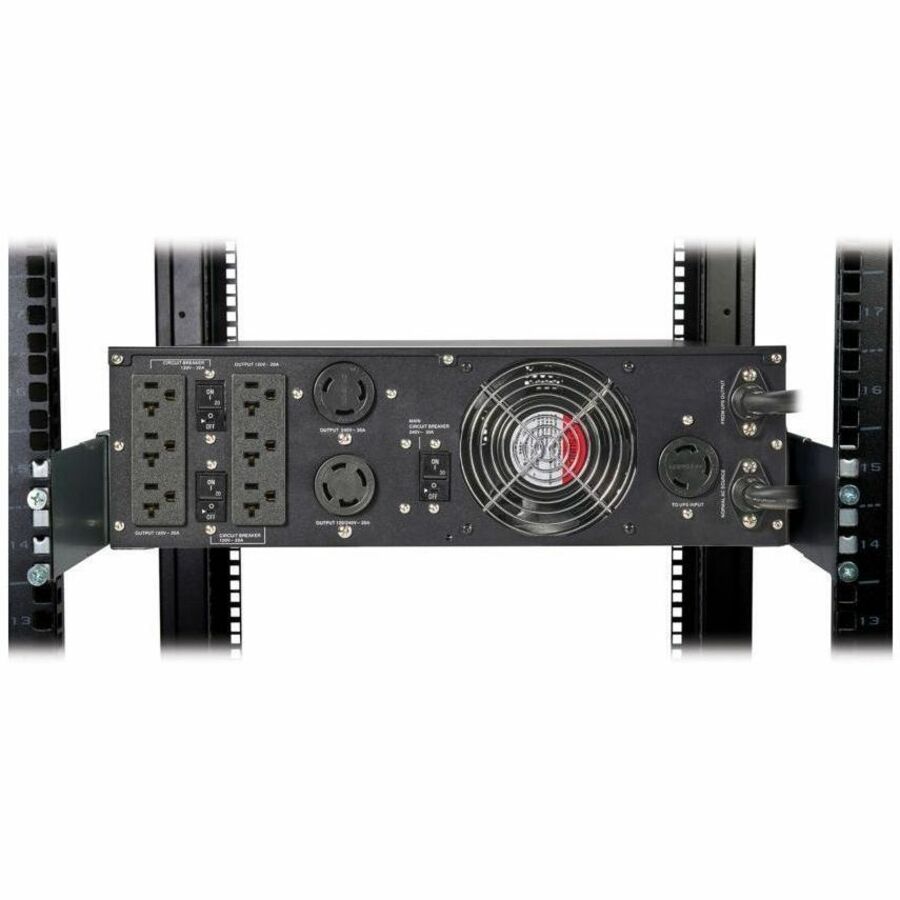

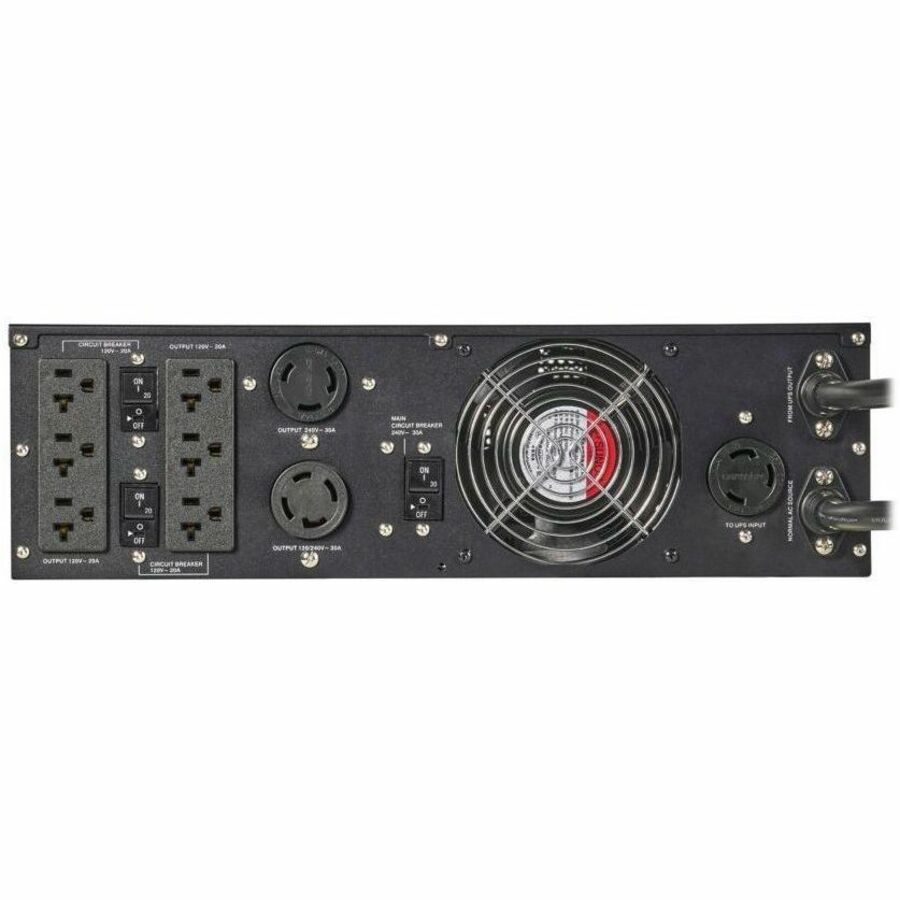

The 9PXPPDM1G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features one L6-30R, one L14-30R and six NEMA 5-20R outlets for connecting equipment. Resettable 30A circuit breakers protect against overload conditions.

Compatible with Select Eaton UPS Systems

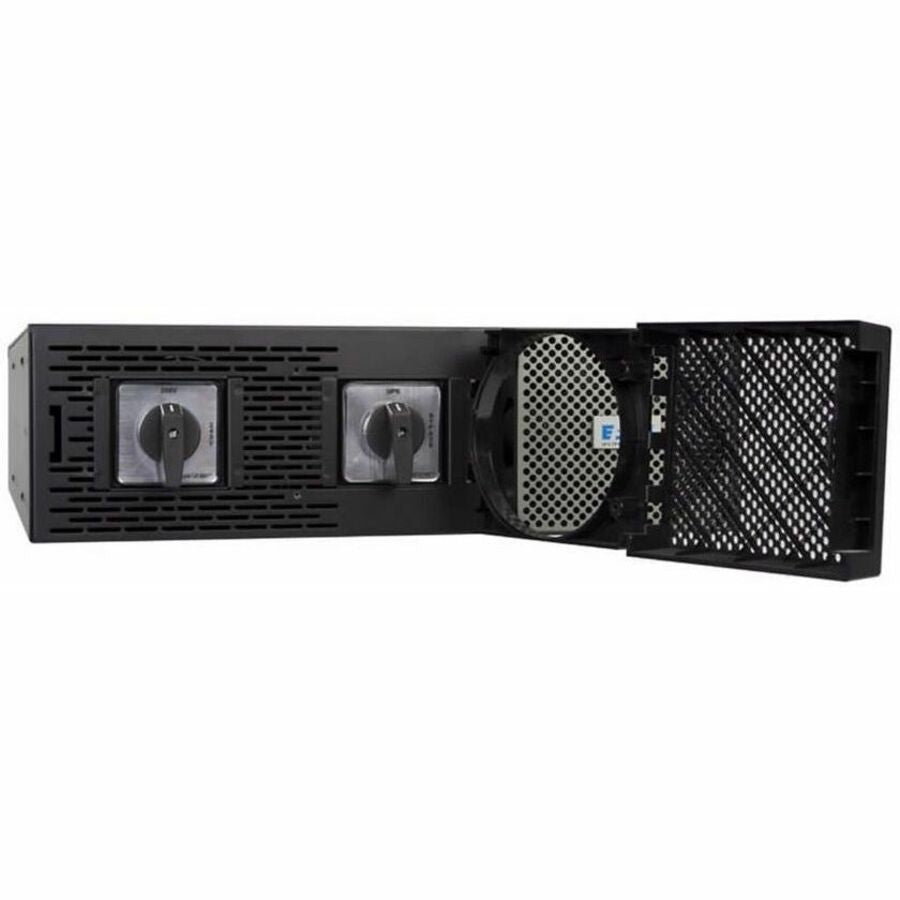

The 9PXPPDM1G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present.

Versatile Installation Options

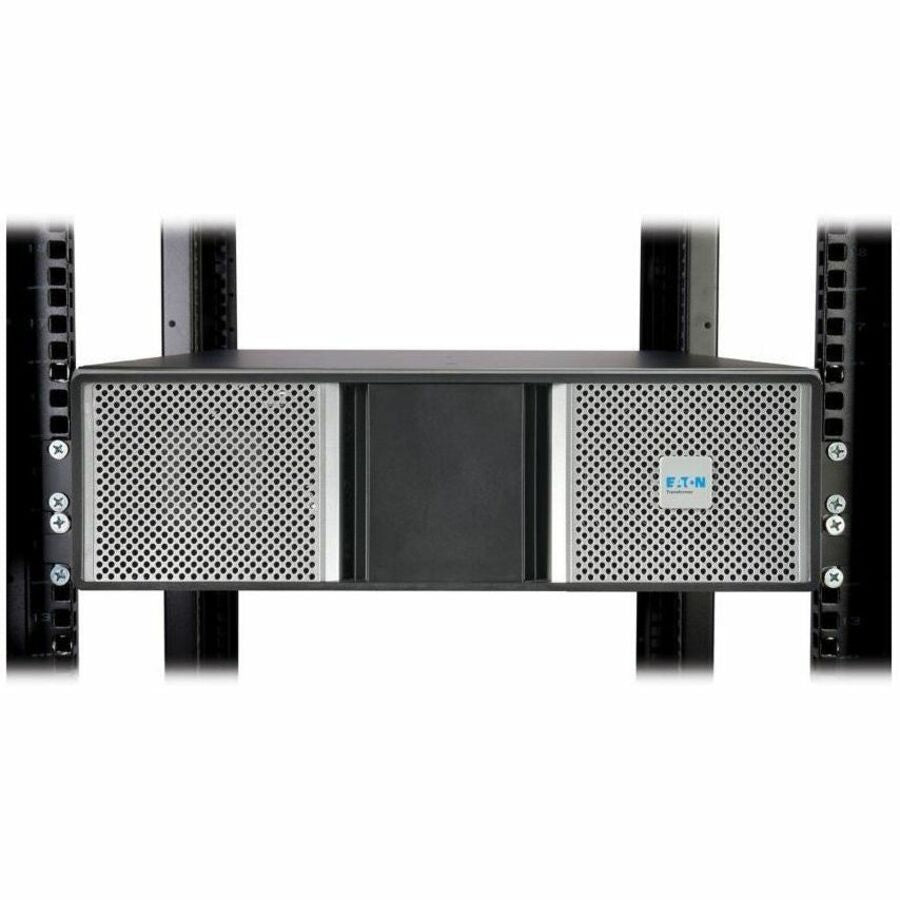

You can mount the 9PXPPDM1G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The 10-foot power cord with L6-30P plug connects to a compatible AC outlet.
