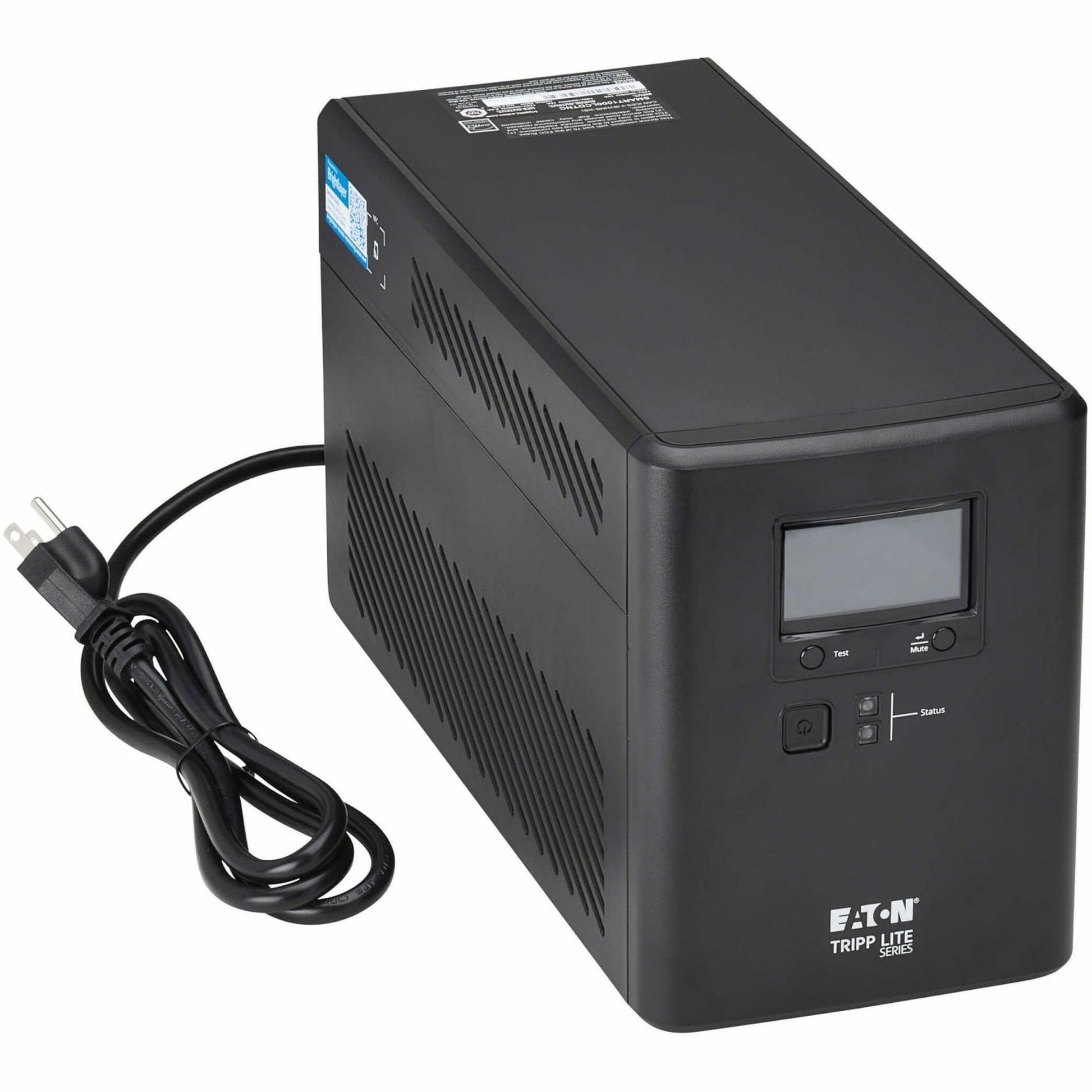

Eaton Tripp Lite Series 1000VA 600W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (5 Surge + 5 Surge and Battery Backup), LCD, 5-15P Plug, Tower - SMART1000LCDTNC
Key Features
- $250,000 Ultimate Lifetime Insurance
- 3-year limited warranty
- Auto-restart with input power, regardless of the battery's low charge or if its completely absent
- Cloud-based dashboard allows 24/7 remote monitoring via browser or mobile app
- Cloud-connected UPS sets up in minutes to start protecting your devices
- Create account with two-factor authentication for an additional layer of security
- NFC technology allows easy configuration of network settings from your mobile device
- Switchable load banks let you shut down or reboot devices using the mobile app
Product Overview
1kVA/600W/120V Battery Backup for Network and Retail Point-of-Sale Applications
The SMART1000LCDTNC Line-Interactive cloud-connected UPS system regulates incoming voltage and provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges, and Line noise. Its compact tower form factor is suitable for desktop, floor placement, under workstations and other locations where a taller "Rack/Tower" unit may not fit. It's recommended for Home/office, Point-of-sale workstations, digital signage equipment, and gaming equipment.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer

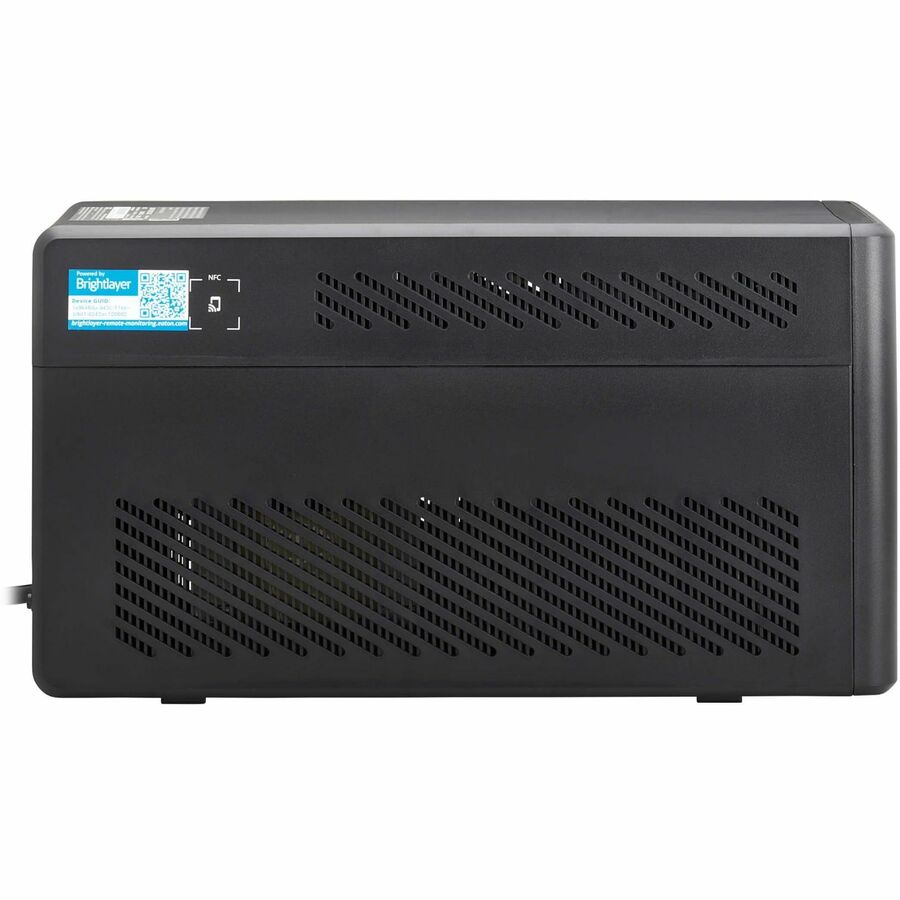

Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (Near-Field Communication) feature lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts, the SMART1000LCDTNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART1000LCDTNC restarts automatically, regardless of battery charge level, saving you a costly site visit.

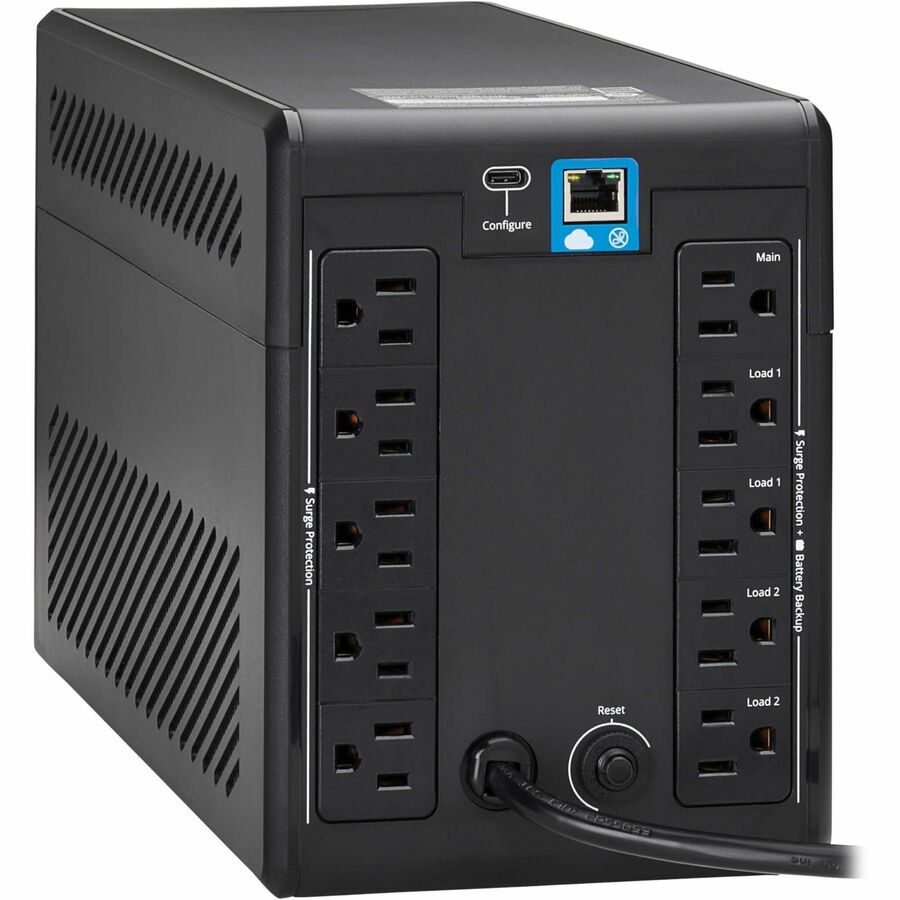

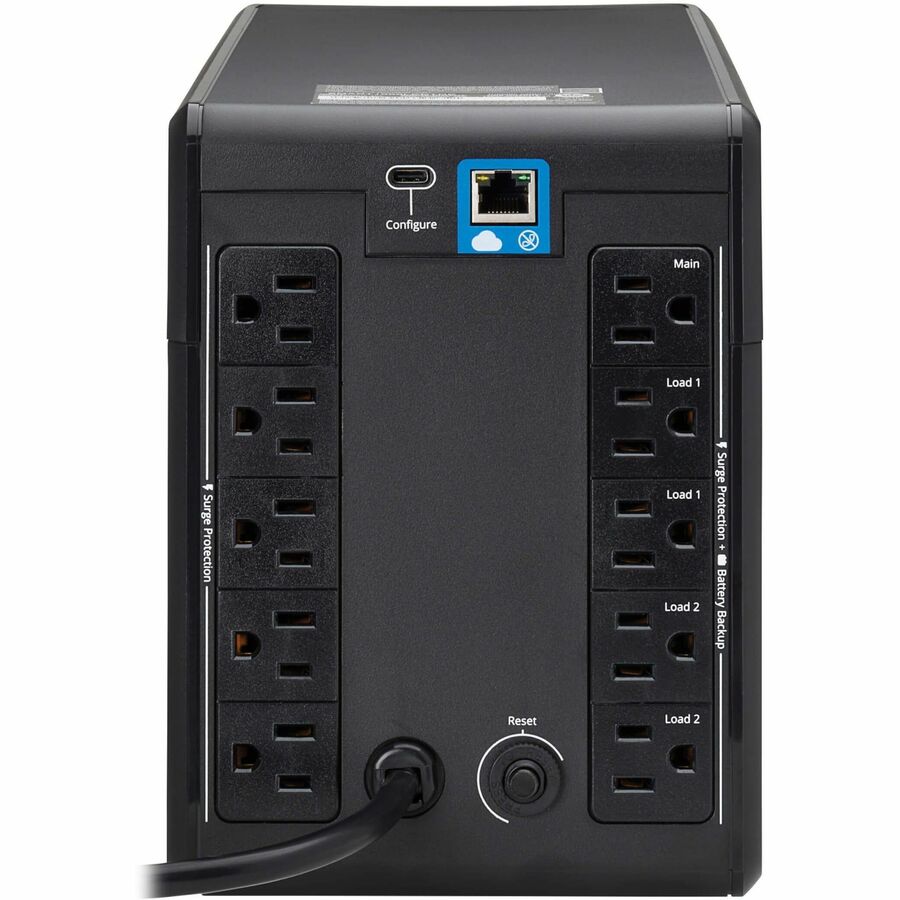

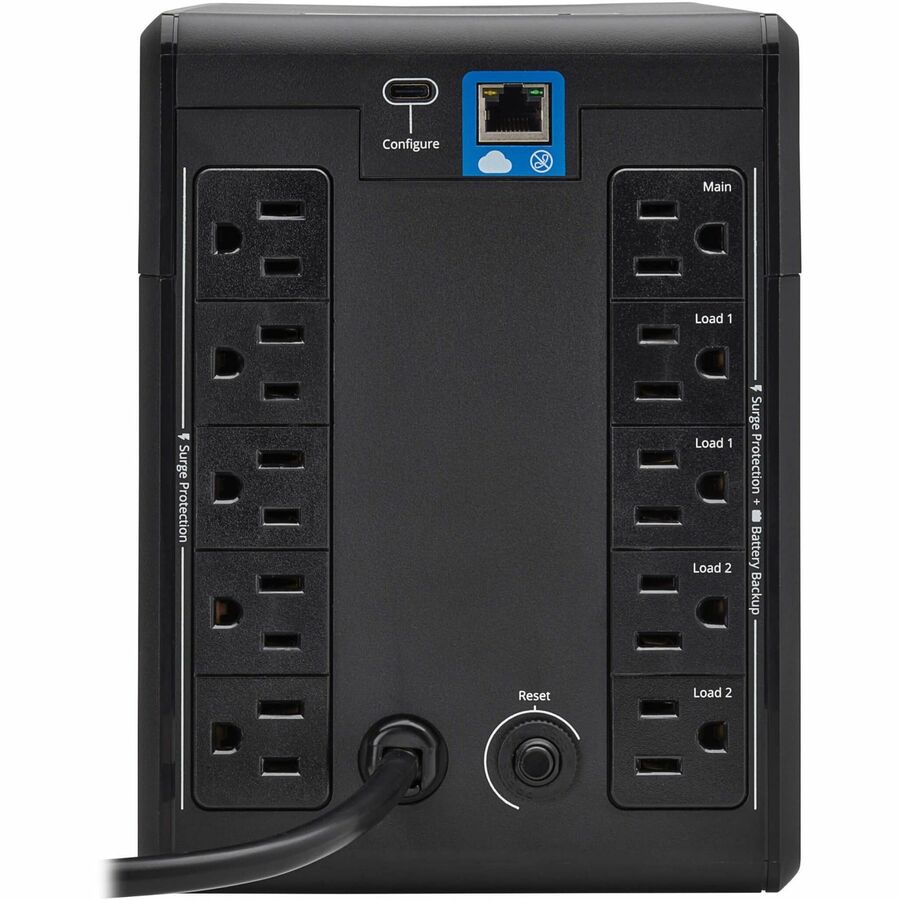

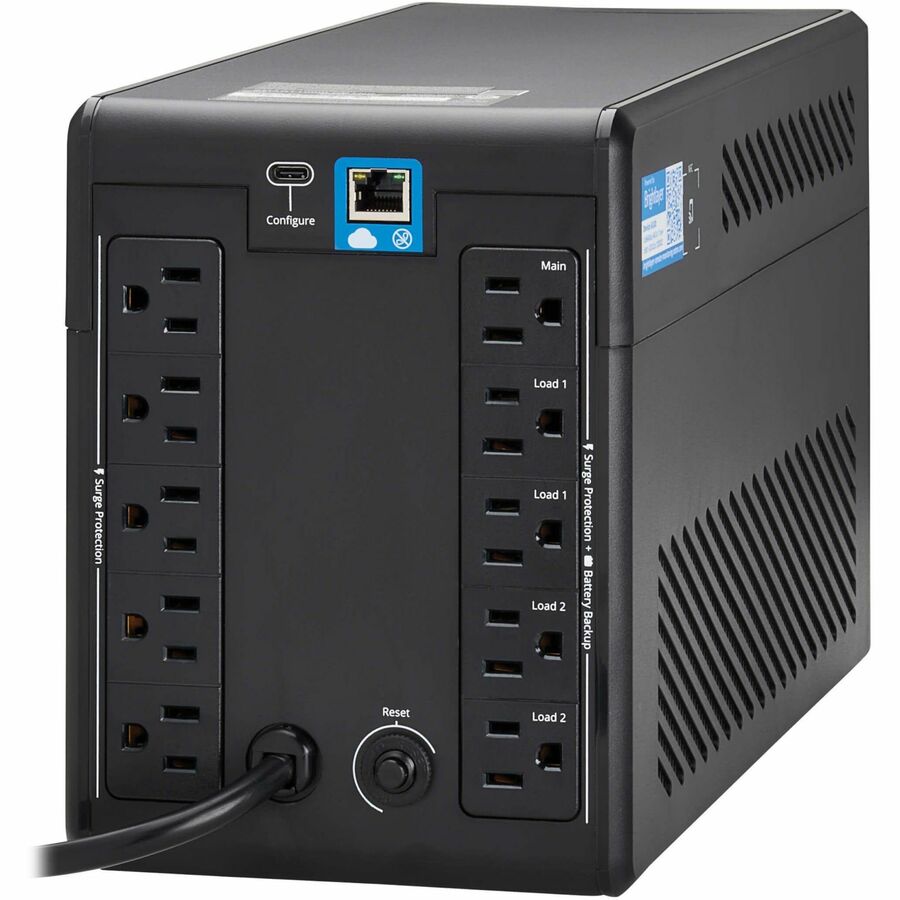

NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components
Five 5-15R outlets provide battery backup and surge protection for your computer, monitor, security camera and other crucial equipment. The other five 5-15R outlets provide surge suppression only for desk lamps, speakers and other equipment regarded as non-essential during a blackout. Eaton's remote monitoring application enables individual control of two switchable load banks, allowing them to be powered on, off, or cycled remotely. This remote functionality facilitates the rebooting of equipment that is not responding, thereby eliminating the need for expensive and time-consuming on-site visit.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1000LCDTNC can correct brownouts as low as 92V and overvoltages as high as 150V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Easy Preventative Maintenance and Initial Troubleshooting
The SMART1000LCDTNC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker on the rear of the UPS helps prevent dangerous system overloads.

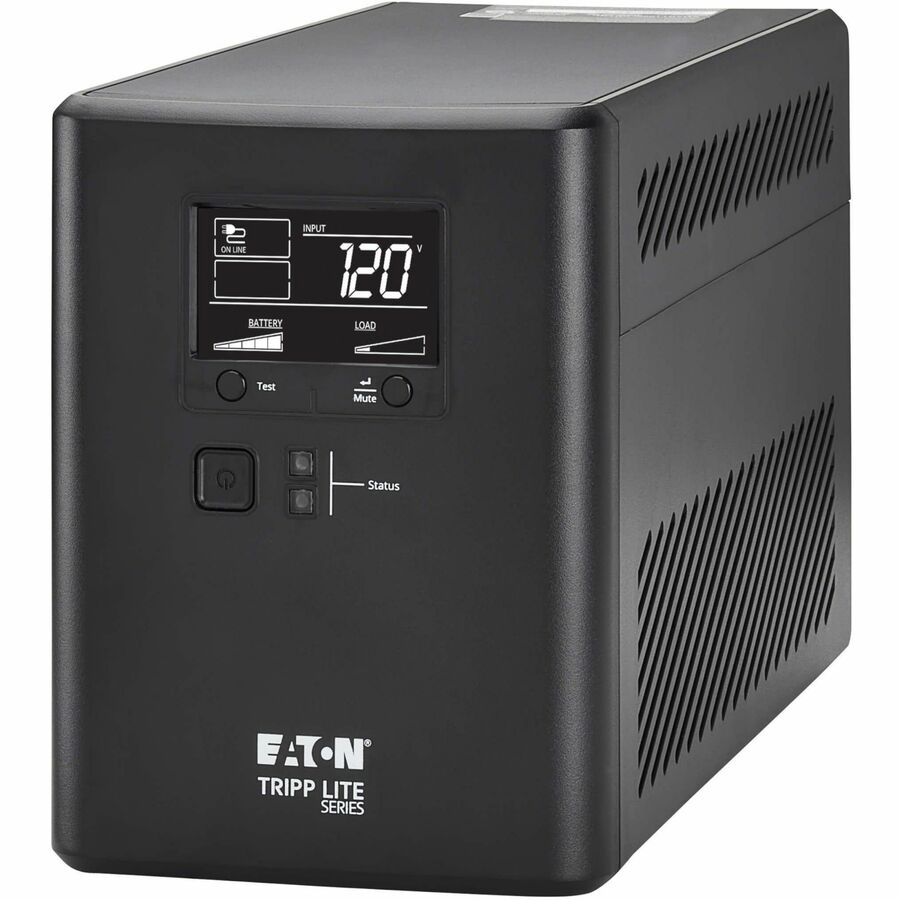

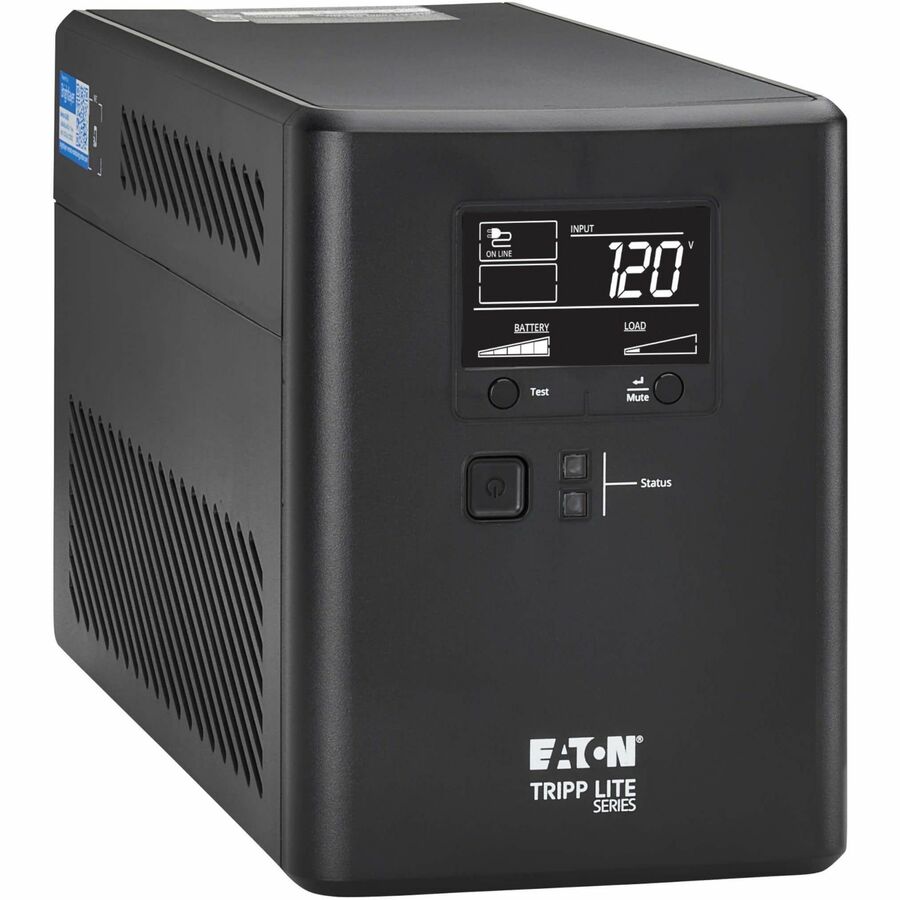

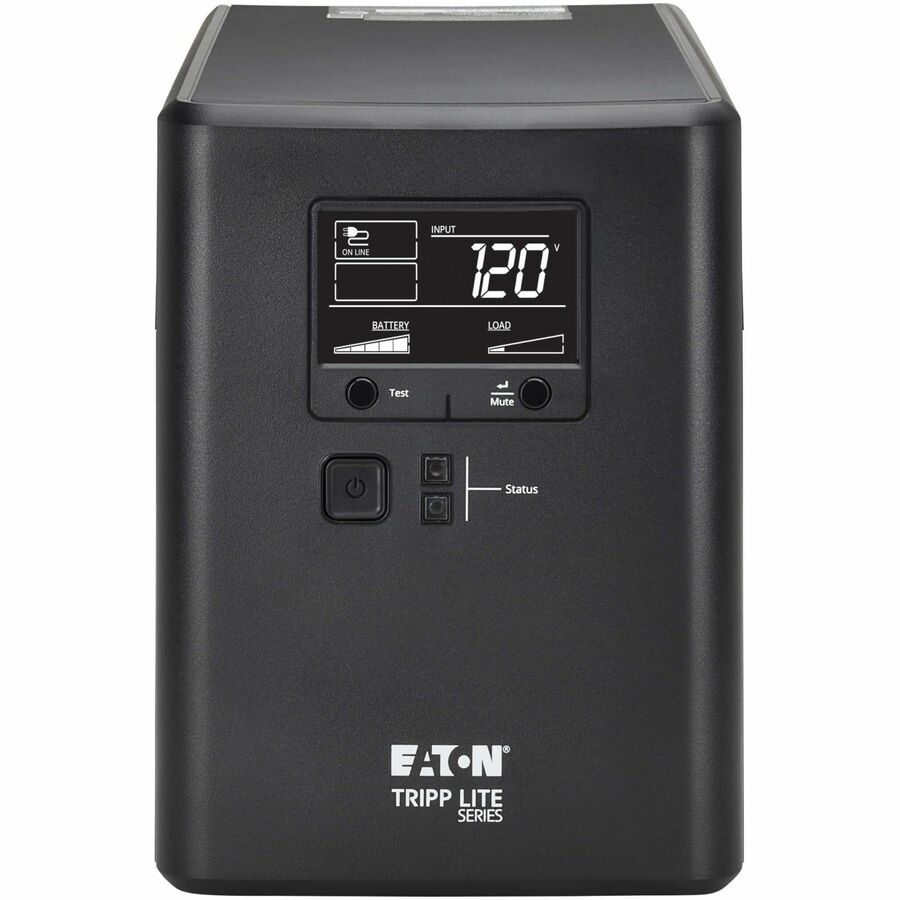

Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The easy-to-read LCD and two diagnostic LEDs provide vital status information, including voltage, battery level, load level and power usage. The audible alarm indicates low-battery and fault conditions. It can be disabled via the LCD or the remote monitoring app, which will still respond to silenced alarms via the app.
Communications Ports
The UPS features an RJ45 port for Ethernet connectivity, enabling the use of a cloud-based remote monitoring application. Additionally, a USB-C port is provided for direct connection to the UPS's Comman
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMART1000LCDTNC
- Brand Name: Tripp Lite series
- Product Model: SMART1000LCDTNC
- Product Name: SMART1000LCDTNC 1000VA Compact tower UPS
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 10 x NEMA 5-15R
- Number of Battery & Surge Outlets: 5
- Number of Surge-only Outlets: 5
- Overload Protection: Yes
- Cord Length: 5 ft
- Transfer Time: 4 ms
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Energy Saving: Greater than 95% efficiency - GREEN UPS
- Application/Usage:
- Network
- Retail
- POS
- Home
- Office
- Workstation
- Digital Signage
- Equipment
- Computer
- Monitor
- Security
- Camera
- Desk Lamp
- Speaker
- Desktop
- Audio/Video Equipment
- Hospital
- Surge Suppression: Yes
- Features:
- Audible Alarm
- Cold Start Function
- Auto Restart
- Self Test
Power Description
- Load Capacity (VA): 1000 VA
- Load Capacity (Watt): 600 W
- Input Voltage: 120 V AC
- Input Voltage Range: 92 V AC - 145 V AC
- Input Current: 10 A
- Output Voltage: 120 V AC
- Input Frequency:
- 50 Hz
- 60 Hz
- Output Frequency:
- 50 Hz
- 60 Hz
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 380 J
- Circuit Breaker: Yes
- Output Power Factor: 0.6
Display & Graphics
- Display: LCD
Management
- Alarm:
- Low Battery
- Fault
Controls/Indicators
- Status Indicators:
LCD Display:
- Input Voltage
- Output Voltage
- Frequency (Hz)
- AVR Boost / Cut Status
- Output Load in Watts
- Output Load Percentage
- Battery Voltage
- Estimated Runtime
LEDs Indictors:
- AC Power
- Battery Fully Charged
- Running on AC power
- Battery Charging
- Fault
Interfaces/Ports
- USB: Yes
- Network (RJ-45): Yes
Battery Information
- DC System Voltage: 24 V DC
- Battery Characteristics: Valve-regulated
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 4 Minute
- Backup/Run Time (Half Load): 14.30 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Storage Temperature: 5°F (-15°C) - 122°F (50°C)
- Minimum Operating Temperature: 32°F (0°C)
- Maximum Operating Temperature: 104°F (40°C)
- Thermal Dissipation: 9.09 W
Physical Characteristics
- Height: 7.9"
- Width: 5.7"
- Depth: 14.6"
- Rack Height: 0U
- Form Factor: Compact Tower
- Weight (Approximate): 22.92 lb
Miscellaneous
- Package Contents:
- SMART1000LCDTNC 1000VA Compact tower UPS
- Quick Start Guide
- Energy Star: Yes
- Country of Origin: Vietnam
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
