Eaton Tripp Lite Series 1000VA 600W 120V Pure Sine Wave Gaming UPS Battery Backup - LCD, AVR, RGB LEDs, USB Charging, Power Saving - SMART1000PSGLCD
Key Features
- Keeps power running during outages to allow time for game saves and safe shutdown
- Maintains continuous 120V nominal output during low- and high-voltage conditions
- Not for sale in California until further notice.
- Programmable RGB LED banks offer more than 16 million color combinations
- Protects your gaming equipment against blackouts, brownouts and surges
- USB charging ports keep your smartphone, tablet and other devices at capacity
Product Overview
Not for sale in California until further notice.
Purpose-Built Gaming UPS Protects Your Equipment and Provides Pure Sine Wave Output
This 120V line-interactive UPS provides pure sine wave output in both AC and battery backup modes to keep your gaming PC or gaming console reliably powered. It also protects connected equipment against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART1000PSGLCD is ideal protection for high-end gaming systems powered by Active PFC power supplies, as well as routers, modems and other network equipment in your computer room, game room or home theater.
Reliable Battery Backup Keeps You Playing Through Power Outages
The field-replaceable, hot-swappable internal battery keeps your gaming rig fully operational without interruption during power failures and other severe power conditions. With a typical 250W gaming system connected, the SMART1000PSGLCD provides 9 minutes of independent runtime. This allows you to play through short power failures, avoid streaming interruptions and safely save your game and shut down your system in case of a prolonged blackout.

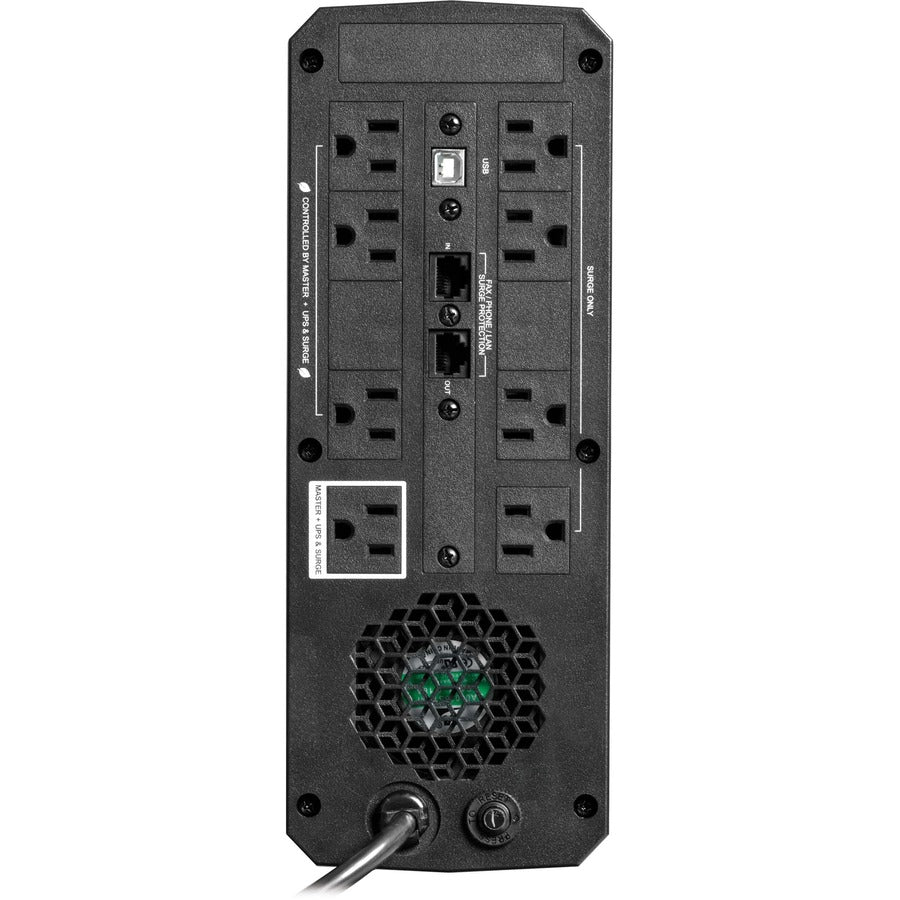

8 NEMA 5-15R Outlets Protect Your Connected Components and Monitor Load Conditions
Three 5-15R energy-saving outlets provide battery backup and network-grade surge protection for your gaming rig and connected desktop and network components. Four outlets are surge-only to connect peripherals not requiring battery backup, such as a printer or desk lamp. One battery- and surge-supported master outlet controls the energy-saving outlets and reports the wattage drawn by the PC or other connected device. If the device connected to the master outlet shuts down or enters standby, the three energy-saving outlets also turn off.
Dynamic Lighting Adds Excitement to Your Gaming Experience
The SMART1000PSGLCD is purpose-built for gaming, including RGB color LEDs you can program yourself. Controllable via the detachable front-panel LCD or free downloadable software utility (https://tripplite.eaton.com/products/management-utilities), two separate LED banks come with seven preset lighting modes and 16.7 million possible color combinations. You can program a variety of color and motion effects or configure the lights to respond to power consumption changes on the master outlet.

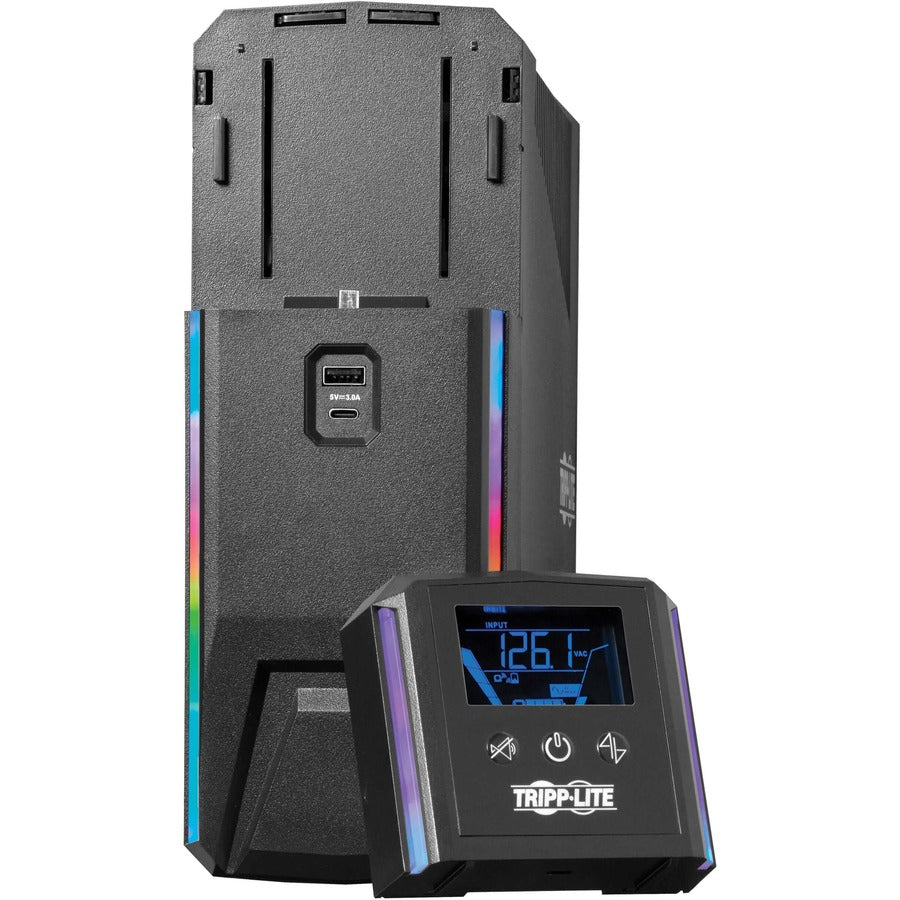

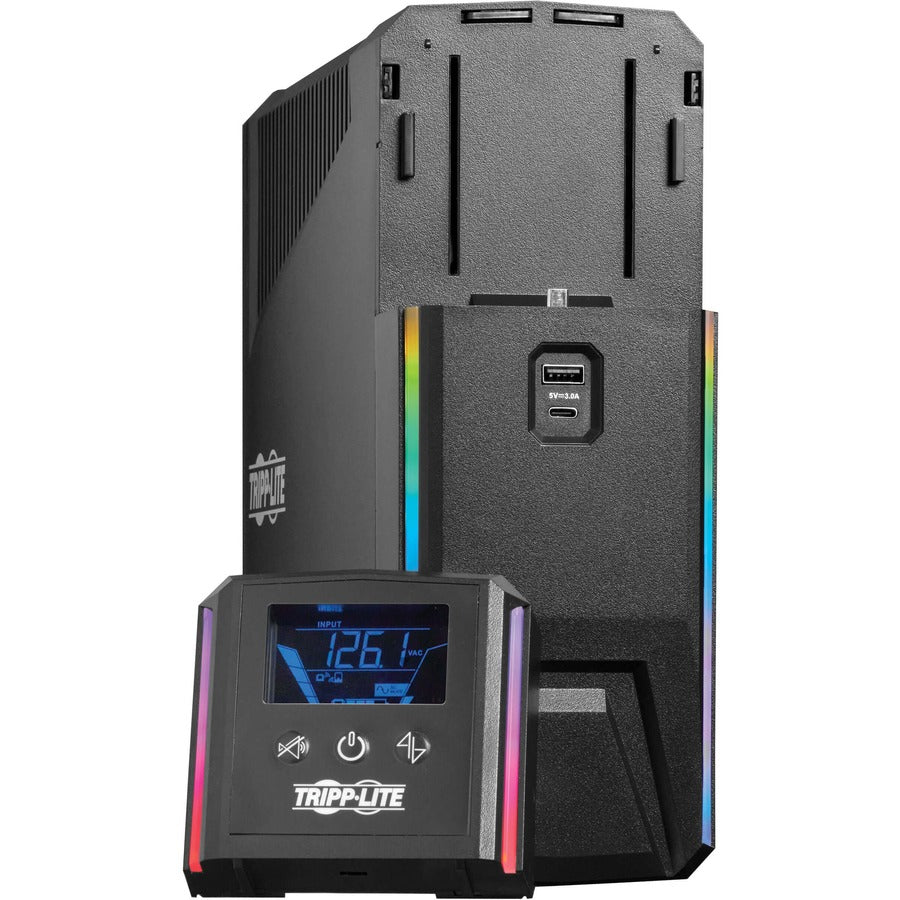

Detachable Wireless LCD Reports Real-Time Status
The front-panel LCD displays a wide range of UPS and power conditions, including operating mode, voltage, frequency, battery level and load level. It detaches from the UPS system and operates wirelessly up to 20 feet (6 meters) away for as many as 12 hours.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SMART1000PSGLCD
- Brand Name: Tripp Lite series
- Product Model: SMART1000PSGLCD
- Product Name: SMART1000PSGLCD 1000VA Tower UPS
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 8 x NEMA 5-15R
- Number of Surge-only Outlets: 4
- Transfer Time: 6 ms
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Energy Saving: Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
- Application/Usage:
- Gaming Console
- Router
- Modem
- Network Equipment
- Computer Room
- Home Theater
- Gaming PC
- Desk Lamp
Power Description
- Load Capacity (VA): 1000 kVA
- Load Capacity (Watt): 600 W
- Input Voltage: 120 V AC
- Output Voltage: 120 V AC
- Output Frequency: 60 Hz
- Waveform Type: Pure Sine Wave
- Surge Energy Rating: 316 J
Display & Graphics
- Display: LCD
Management
- Alarm:
- Battery Mode Full Charge
- Battery Mode Low Charge
- Replace Battery
- Fault
Controls/Indicators
- Status Indicators:
STATUS INFORMATION:
- Input Voltage
- Input Frequency
- Battery Voltage
- Battery Capacity
- Estimated Runtime
- Output Voltage
- Output Frequency
- Output Watts
- Output Load %
- Master Outlet Power Consumption (Watts)
- Detachable LCD Module Battery Voltage
- Firmware Revision
CONFIGURATION OPTIONS:
- Eco-mode Off
- Eco-mode On
- Alarm Disable
- LED Lighting Configurations
ERROR MESSAGES:
- Replace Battery
- Overload
- Critical Fault
Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 24 V DC
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 2 Minute
- Backup/Run Time (Half Load): 7 Minute
- Hot Swappable: Yes
- Typical Battery Recharge Time: 7 Hour
Environmental Conditions
- Storage Temperature: 5°F (-15°C) - 122°F (50°C)
- Maximum Operating Temperature: 104°F (40°C)
- Thermal Dissipation: 28.72 W
Physical Characteristics
- Product Color: Black
- Height: 11"
- Width: 3.9"
- Depth: 12.1"
- Form Factor: Tower
- Weight (Approximate): 19.80 lb
Miscellaneous
- Package Contents:
- SMART1000PSGLCD 1000VA Tower UPS
- USB Cable
- Owner's Manual
- Energy Star: Yes
- Country of Origin: Vietnam
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
