Eaton Tripp Lite Series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 24-C13), L6-30P, 10 ft. (3.05 m) Cord, 0U Vertical - PDUMV30HV
Key Features
- 30 outlets (6 C19, 24 C13) in two separately breakered load banks
- Attached 10ft / 3m cord with NEMA L6-30P input plug
- Metered single phase 30A 208/240V, 0U 63.75in / 162cm vertical rackmount PDU
- Pair of digital meters report output current in amps for each load bank
Product Overview

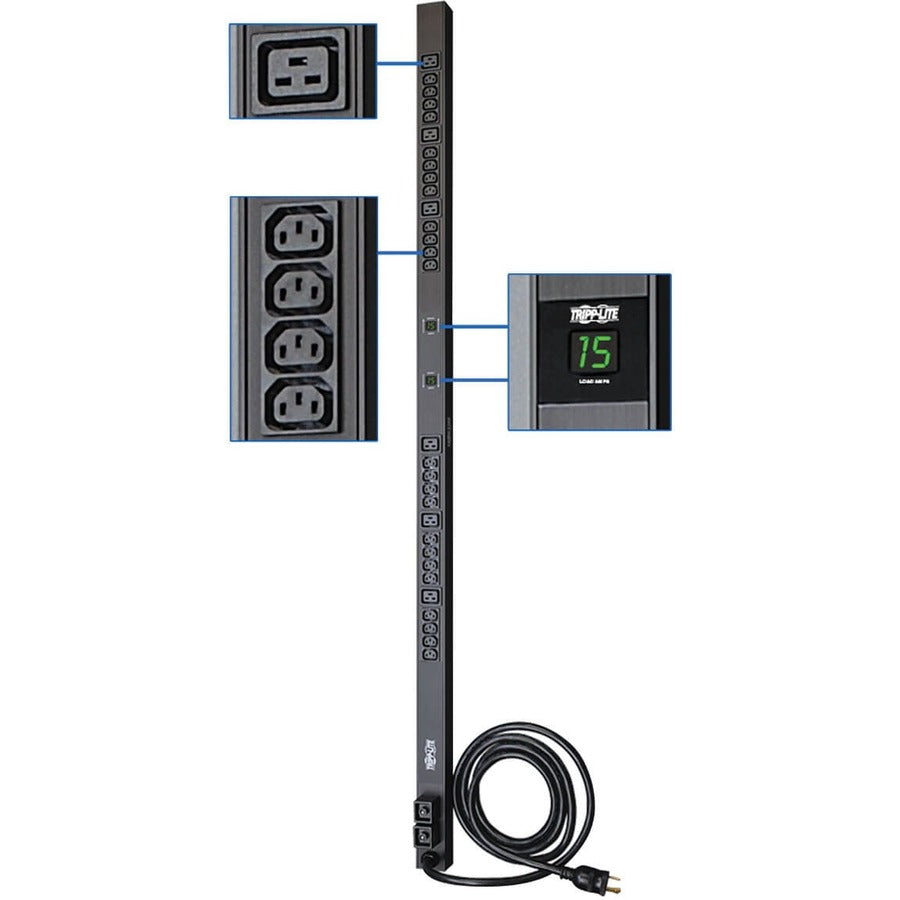

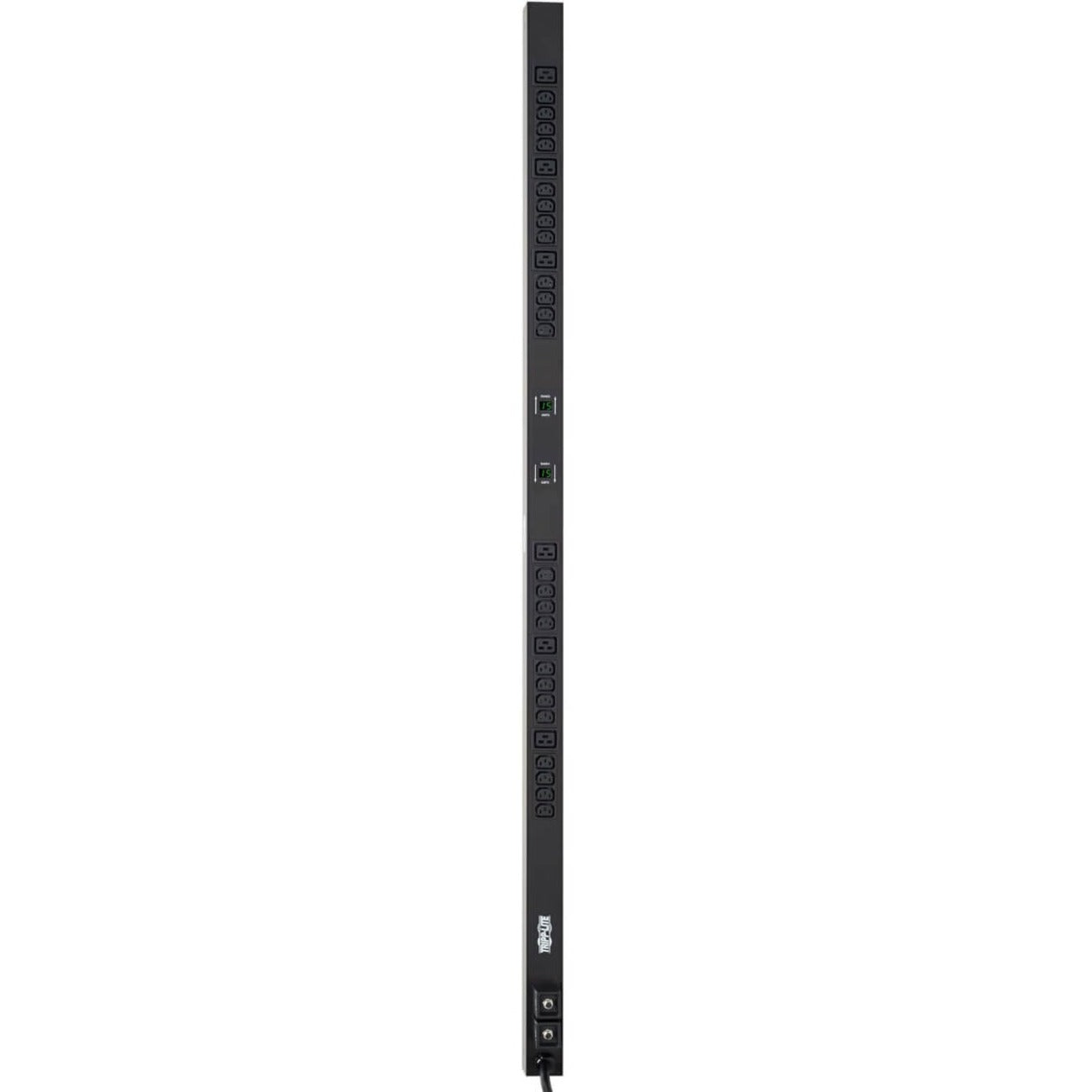

PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: PDUMV30HV
- Brand Name: Tripp Lite series
- Product Model: PDUMV30HV
- Product Name: PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
- Product Type: PDU
Technical Information
- Plug/Connector Type: NEMA L6-30P
- Receptacle Type:
- IEC 60320 C19
- IEC 60320 C13
- Receptacle Detail:
- 6 x IEC 60320 C19
- 24 x IEC 60320 C13
- Protection Type:
- Overload Protection
- Short Circuit Protection
Power Description
- Input Voltage: 230 V AC
- Input Voltage Range: 208 V AC - 240 V AC
- Output Voltage:
- 208 V AC
- 240 V AC
Physical Characteristics
- Mounting Orientation: Vertical
- Mount Type:
- Wall-mountable
- Rack-mountable
- Height: 63.8"
- Width: 2.3"
- Depth: 3.8"
- Weight (Approximate): 8 lb
Miscellaneous
- Package Contents:
- PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet
- PDUMV30HV 63.75 inch basic PDU with owner's manual
- Set of 2 bolt-on plug retention brackets and installation hardware
- Set of mounting brackets and installation hardware
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
