Eaton Tripp Lite Series 5.8kW 200-240V Single-Phase Basic PDU - 16 C13 & 4 C19 Outlets, L6-30P Input, 15 ft. (4.6 m) Cord, 1U Rack-Mount - PDU1230
Key Features
- 1U horizontal rackmount installation
- 20 outlets (4 C19, 4 C13 front / 12 C13 rear)
- Basic single phase 30A 208/240V PDU
- NEMA L6-30P input; 15 ft. / 4.5m line cord
Product Overview

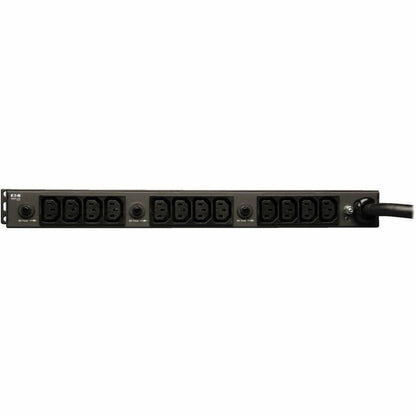

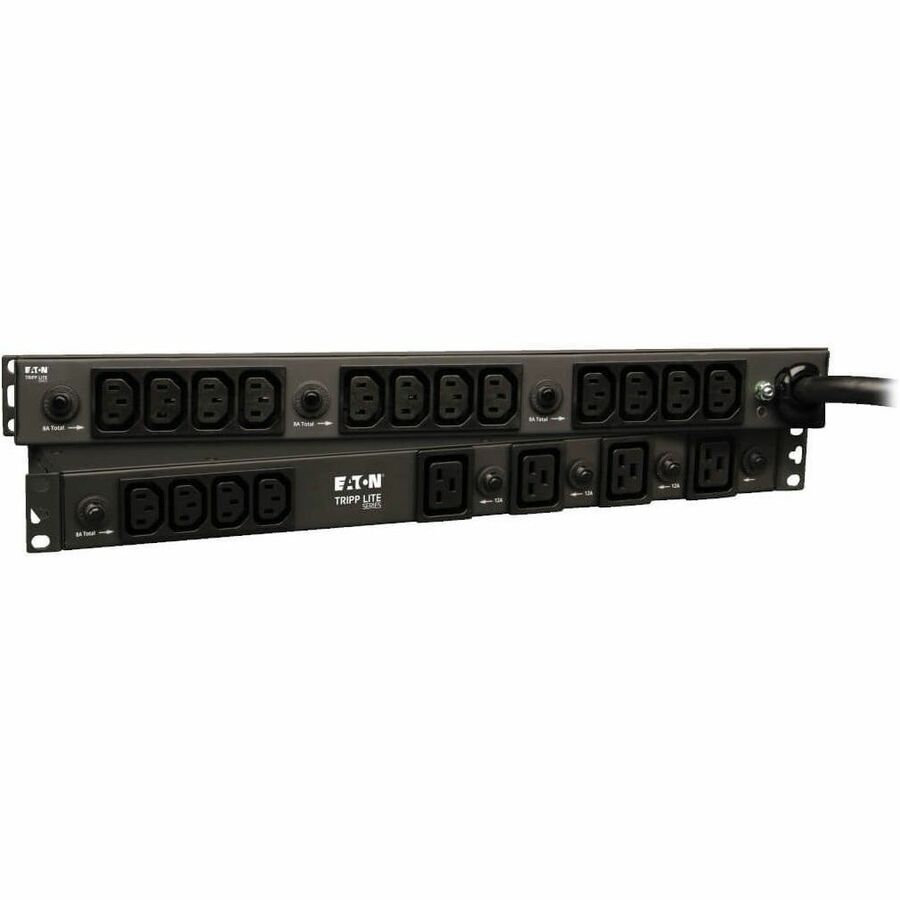

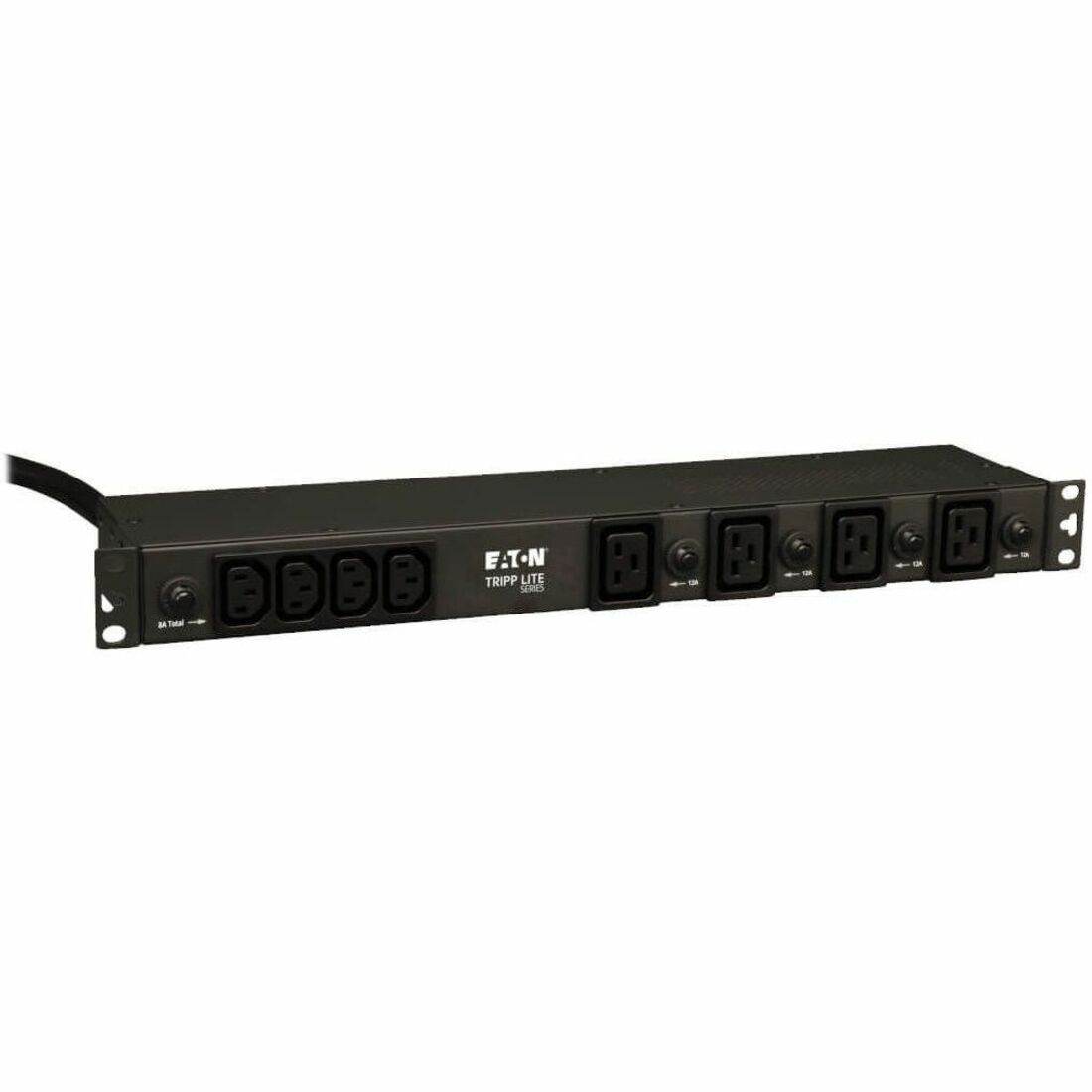

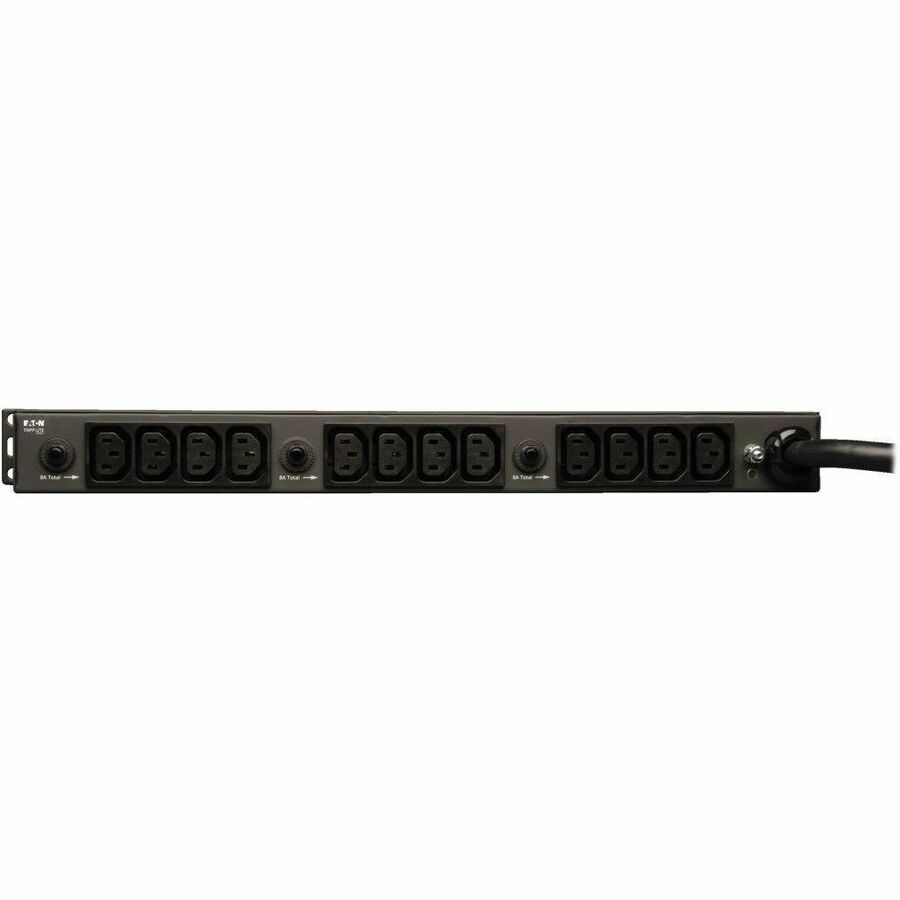

Tripp Lite's PDU1230 offers 208/240V power distribution with L6-30P input plug, 15-foot cord and 20 total output receptacles. Features 4 front-panel C19 outlets, each protected by separate 15A circuit breakers, 4 front-panel C13 outlets and 12 rear-panel C13 outlets protected in banks of 4 by 4 separate 10A circuit breakers. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19-inch rack, with the potential for 0U vertical mounting in the cable area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with 8 front-facing and 12 rear-facing outlets measures only 5.2 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDU1230 ideal for distributing alternate waveform UPS or generator power in rack enclosures.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: PDU1230
- Brand Name: Tripp Lite series
- Product Model: PDU1230
- Product Name: PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
- Product Type: PDU
Technical Information
- PDU Type: Basic
- Plug/Connector Type: NEMA L6-30P
- Receptacle Detail: 20
Power Description
- Input Voltage: 230 V AC
- Input Voltage Range: 208 V AC - 240 V AC
- Output Voltage:
- 208 V AC
- 240 V AC
- Power Rating (VA): 4990 VA
Physical Characteristics
- Mounting Orientation: Vertical
- Mount Type: Rack-mountable
- Rack Height: 1U
- Height: 1.8"
- Width: 17.5"
- Depth: 5.2"
- Weight (Approximate): 7.50 lb
Miscellaneous
- Package Contents:
- PDU1230 PDU Basic 208V / 240V 30A 20 Outlet
- Instruction Manual with Warranty Information
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
