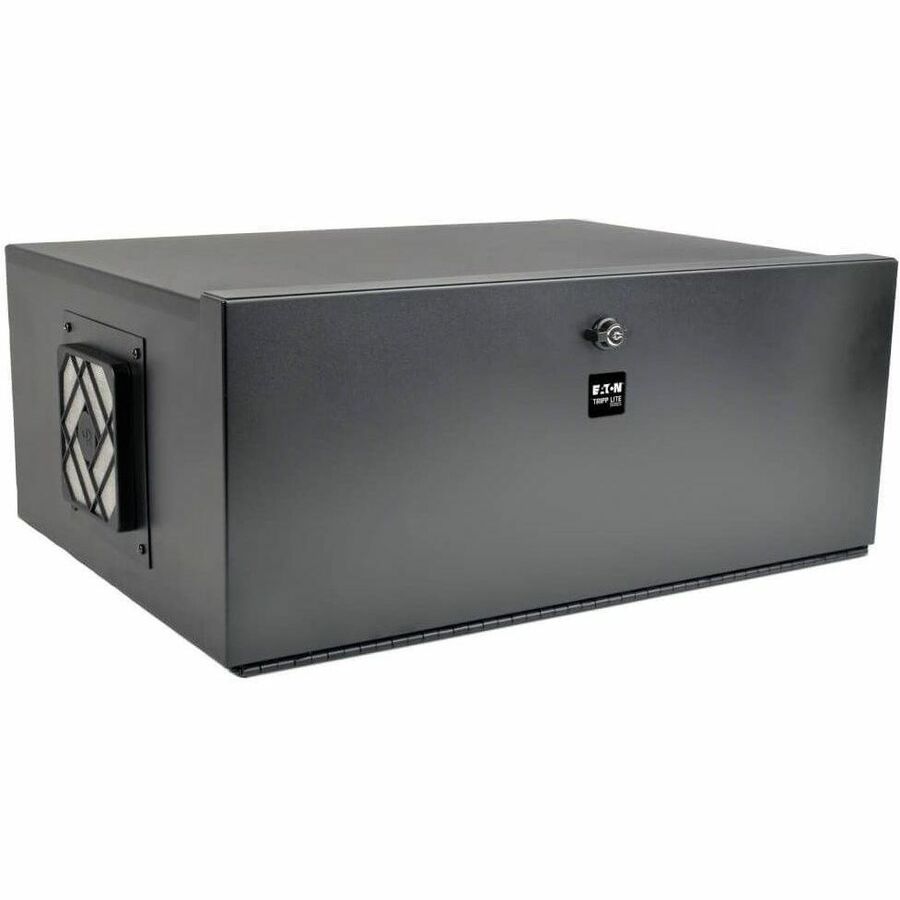

Eaton Tripp Lite Series 5U Security DVR Lockbox Enclosure - SRDVRLB
Key Features
- Fully assembled and ready to mount to wall, floor or table
- Locks securely to help prevent damage, tampering or theft
- Maximum load capacity of 60 lb.
- Preinstalled cooling fan with filter promotes ample airflow
- Vertical mounting rails adjust from 1 to 16 in. deep
Product Overview

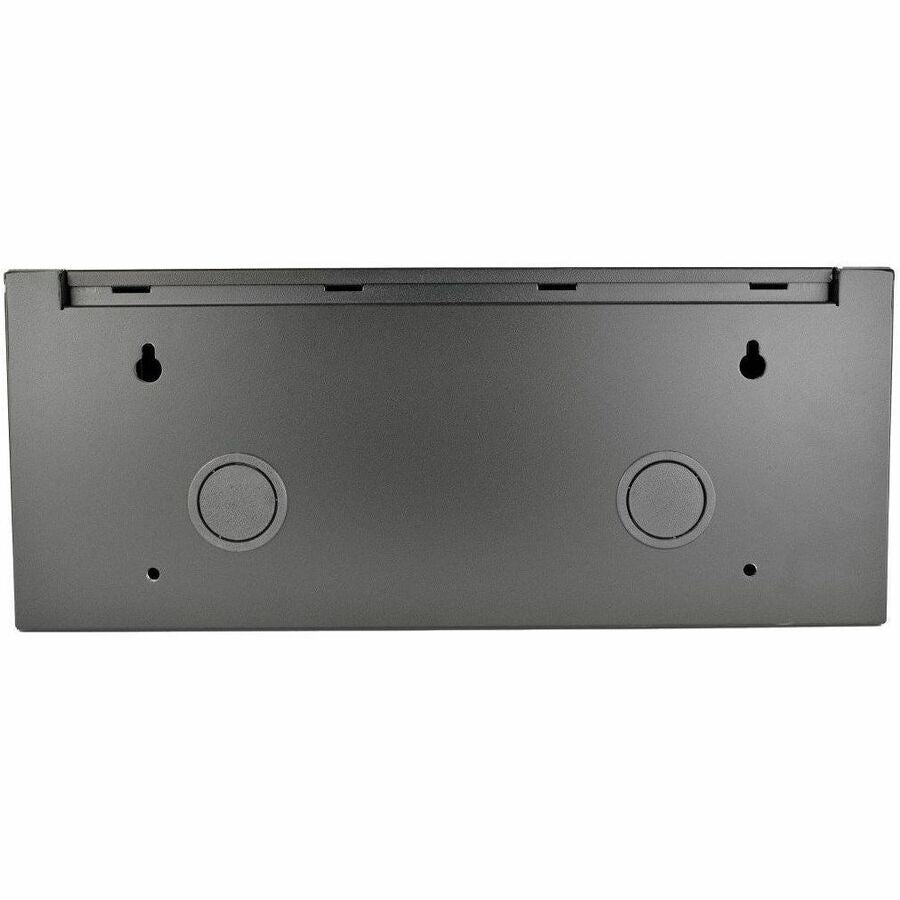

The SRDVRLB 5U Security DVR Lockbox Enclosure is an all-in-one solution for securely storing and cooling your security digital video recorder (DVR) to protect it from damage, tampering or theft. It's ideal for network closets, retail outlets, warehouses, offices, classrooms and other locations where you need a DVR to be securely protected from unauthorized access. Constructed from heavy-duty steel in a durable black powder-coat finish, the SRDVRLB has a maximum load capacity of 60 pounds.To ensure your valuable DVR data stays safe and secure, the front door locks with the included keys. The edges of the door wrap around the left and right sides of the enclosure and the removable top panel to ensure the DVR's safety. The right side panel is ventilated to allow air to flow freely through the cabinet. The left side panel includes a preinstalled cooling fan with washable air filter that blows cool air onto the DVR and prevents dust and airborne particles from entering the enclosure. Convenient rear and bottom ports with removable covers allow easy cable routing through the enclosure.

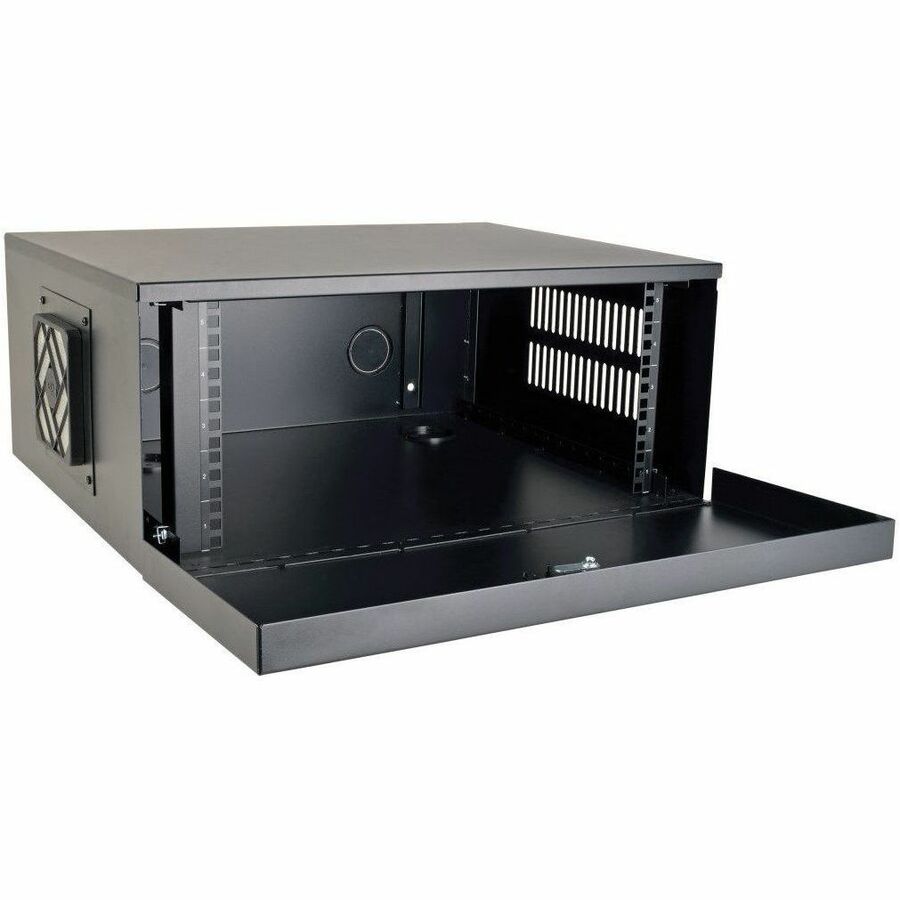

The SRDVRLB comes fully assembled and ready to mount on a wall, floor or tabletop. Installing a security DVR within the enclosure is easy with its removable top panel, square mounting holes and numbered rack spaces. The front and rear mounting rails adjust in 1-inch increments to accommodate equipment from 1 to 16 inches deep.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: SRDVRLB
- Brand Name: Tripp Lite series
- Product Model: SRDVRLB
- Product Name: 5U Security DVR Lockbox Enclosure
- Product Type: Rack Cabinet
Technical Information
- Rack Type: Enclosed Cabinet
- Application/Usage: DVR
- Features:
- Lockable Front Door
- Removable Panel
- Cooling Fan
- Vented Side
Physical Characteristics
- Form Factor:
- Rack-mountable
- Floor Standing
- Tabletop
- Color Family: Black
- Product Color: Black
- Product Material: Steel
- Static/Stationary Weight Capacity: 60 lb
- Height: 10"
- Width: 24.3"
- Depth: 18.4"
- Rack Height: 5U
- Rack Depth: 16.25"
- Weight (Approximate): 28.66 lb
Miscellaneous
- Package Contents:
- 5U Security DVR Lockbox Enclosure
- 20 x M6 Screws
- 20 x M6 Cage Nuts
- 20 x M6 Cup Washers
- 6 x 10/32 Screws
- 6 x 10/32 Nuts
- 2 x Keys
- Owner's Manual
- Assembly Required: No
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
