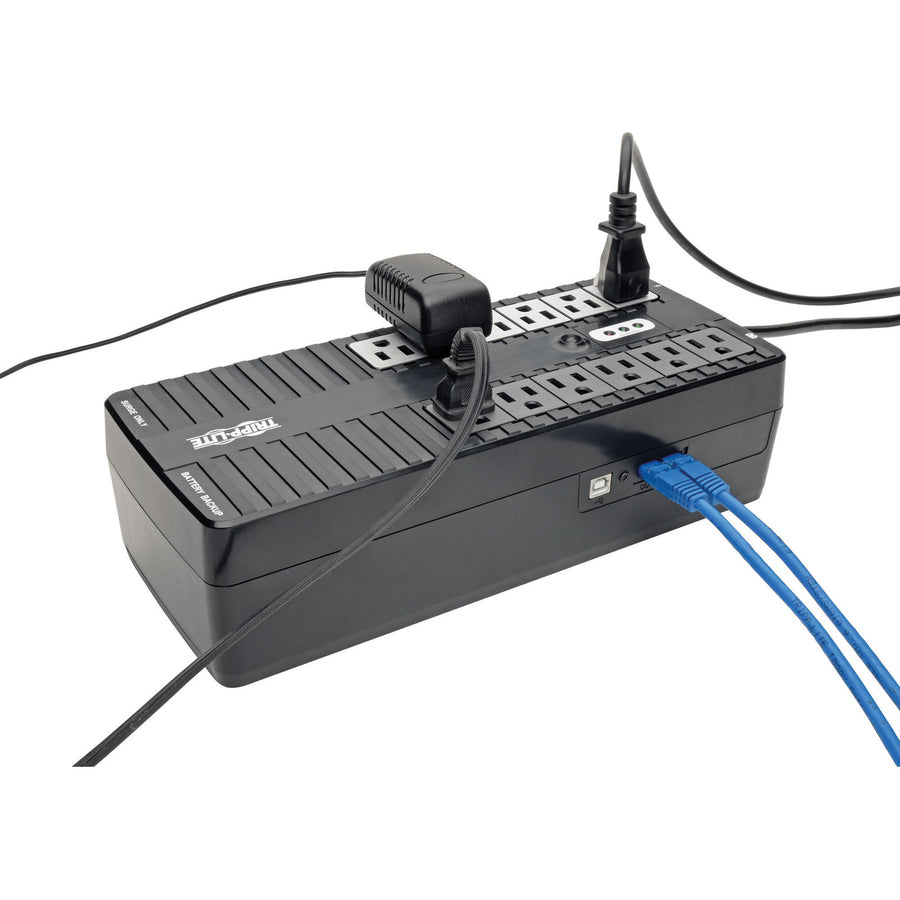

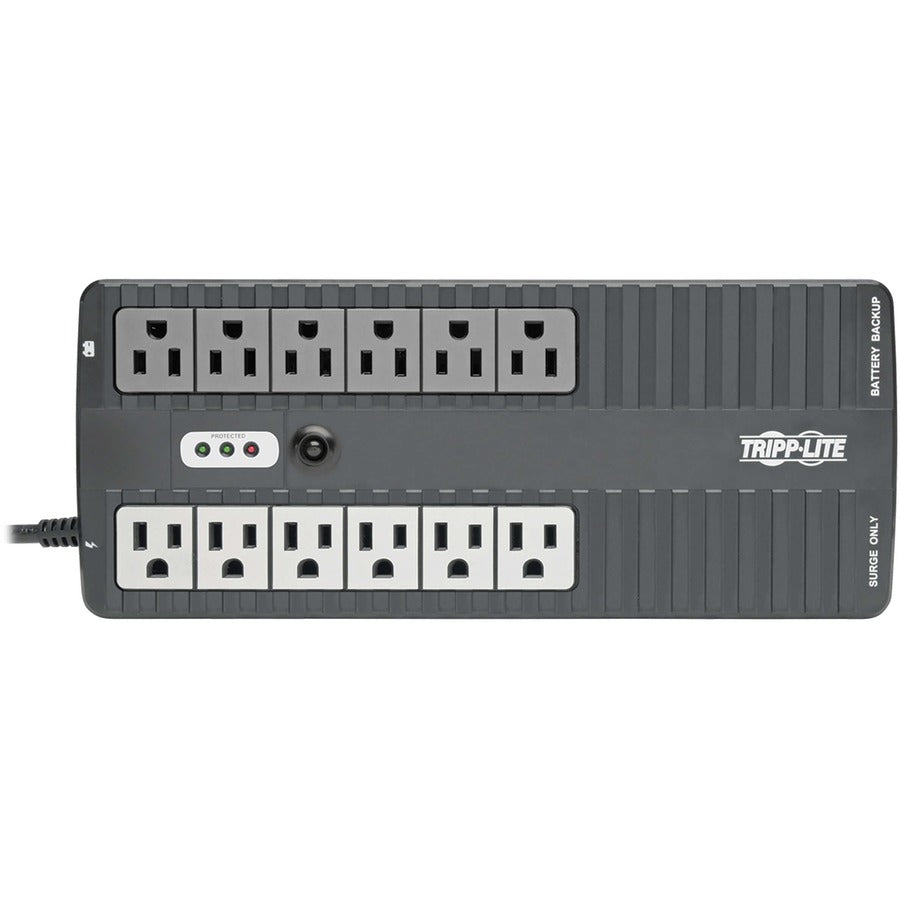

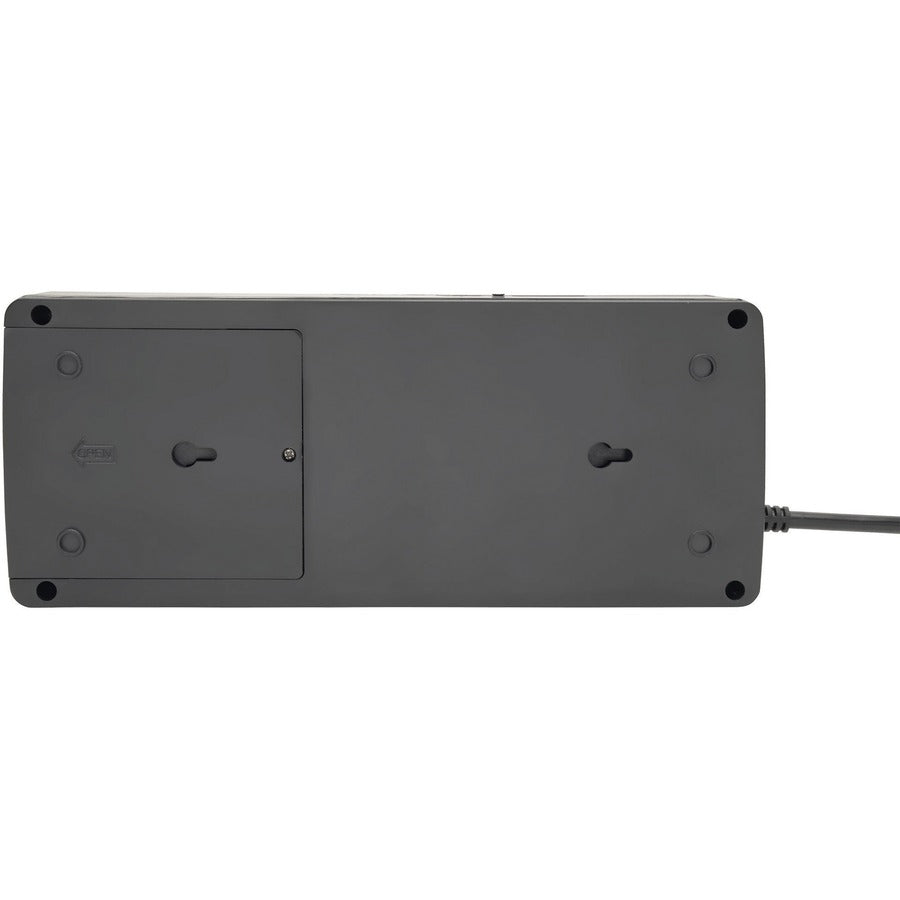

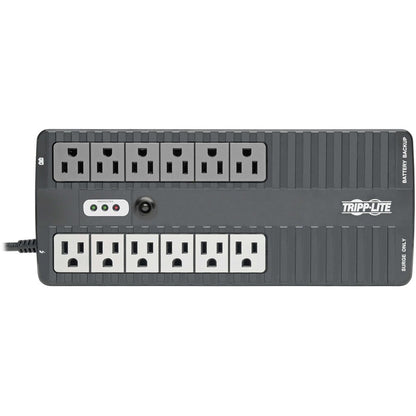

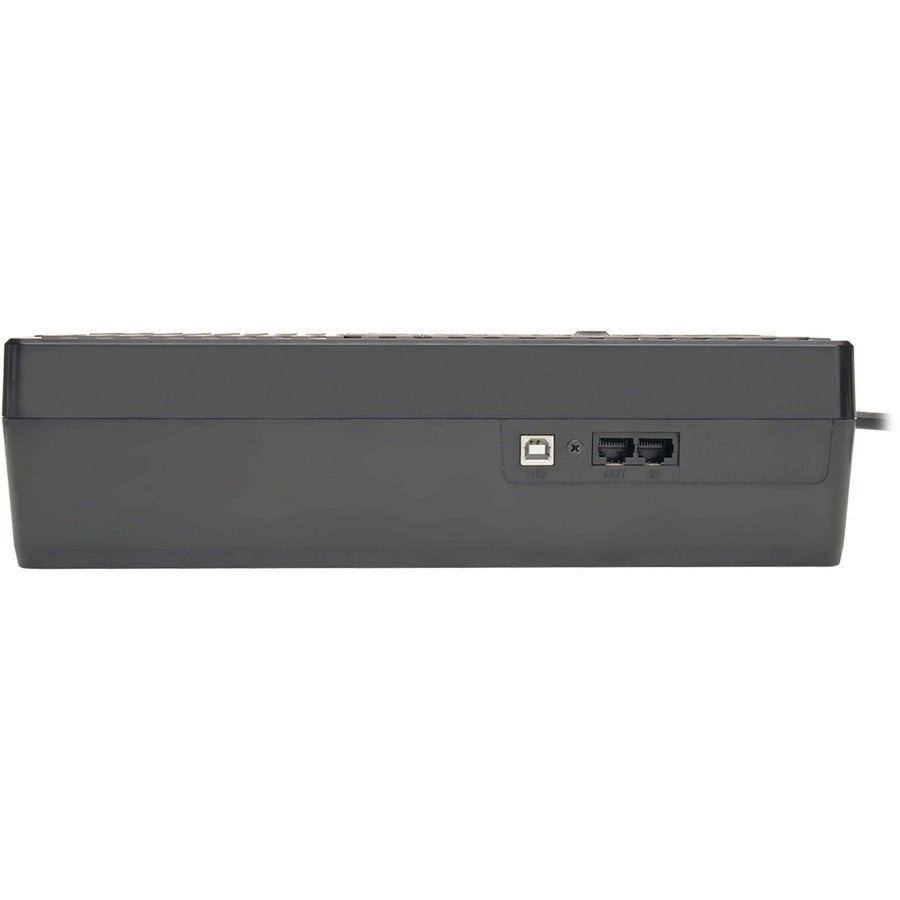

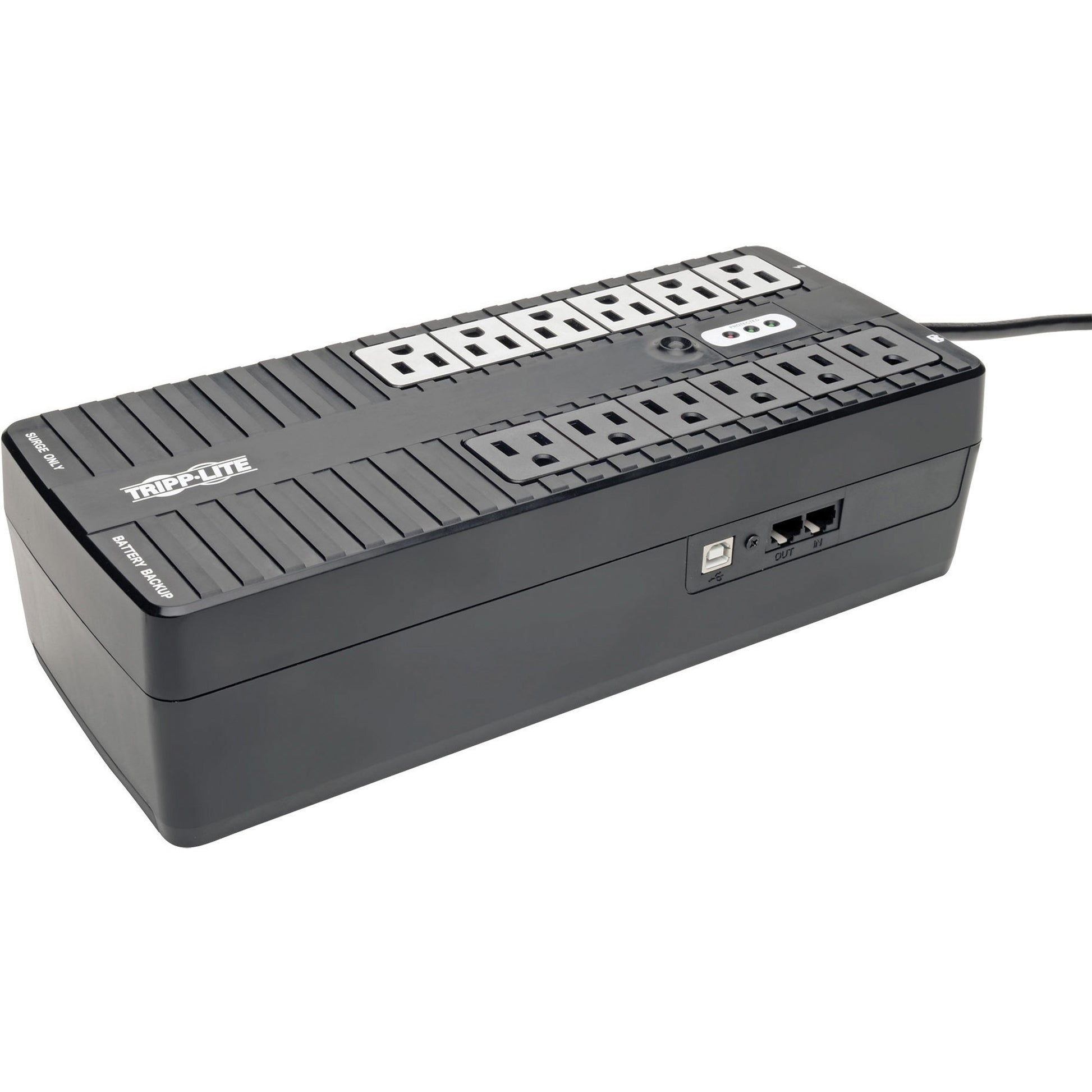

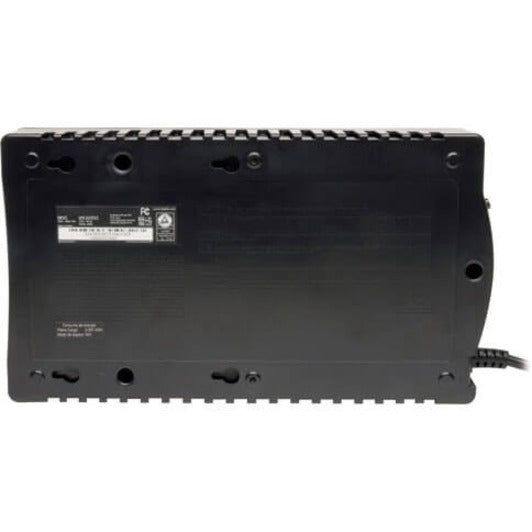

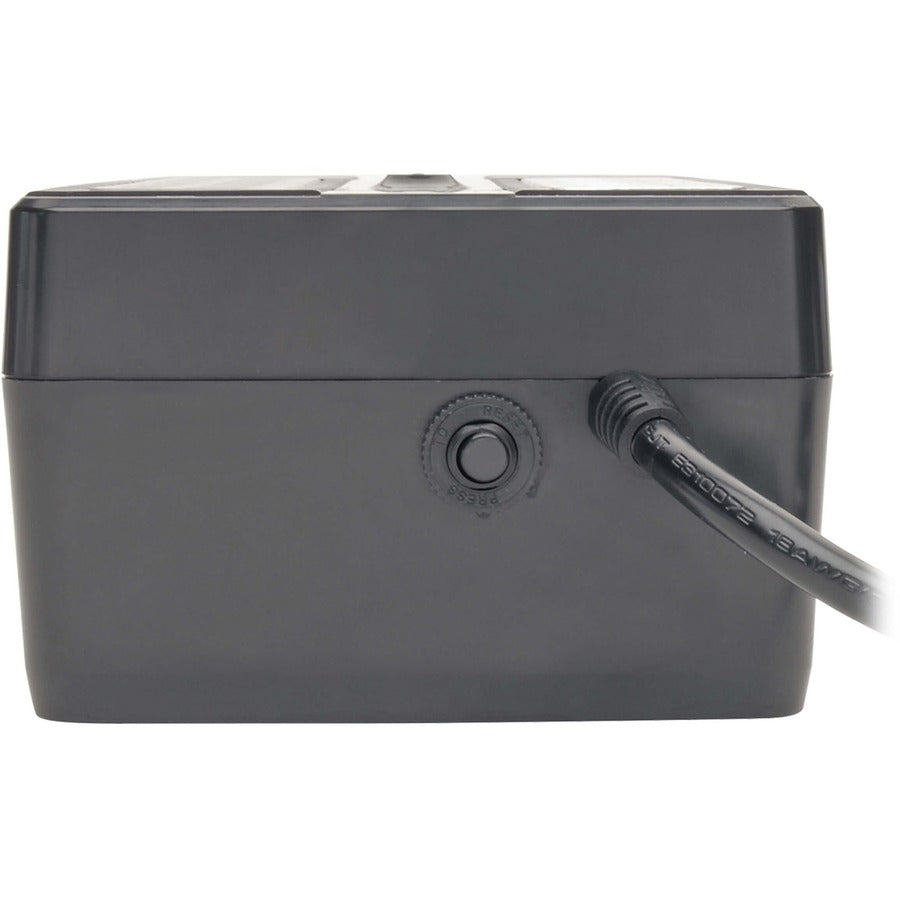

Eaton Tripp Lite Series 750VA 450W Standby UPS - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount - INTERNET750U
Key Features
- $100,000 Ultimate Lifetime Insurance
- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- 3-year limited warranty
- Compact desktop UPS with silent alarm provides battery backup support for your home/office network system or digital signage components.
- High >98% efficiency with low BTU ratings saves electricity and lowers your energy costs
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
Product Overview
UPS offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. Ultra-compact, wall-mountable UPS includes 12 widely spaced, output receptacles to accommodate large transformer plugs. 6 outlets provide full battery support and surge suppression for computers, monitors and other vital system components. 6 additional, surge suppression-only outlets are ideal for printers and other accessories not requiring battery support. Single-line, telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection. HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X. Audible alarm and front panel LEDs offer status information regarding line and battery power operation. 750VA/450 watt power handling ability supports entry-level PCs for up to 45 minutes during power failures.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: INTERNET750U
- Brand Name: Tripp Lite series
- Product Model: INTERNET750U
- Product Name: 750VA 6UPS/Surge and 6 Surge UPS System
- Packaged Quantity: 1 Each
- Product Type: Standby UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 12 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Dataline Protection: RJ-11
- Cord Length: 5 ft
- Transfer Time: 4 ms
- Application/Usage:
- Home/Office
- Media Center
- Commercial
- Desktop Computer
- Router
- Printer
- Server
- TV
- Gaming Console
- Blu-ray Player
- Audio System
- DVR
- Media Player
- Home Theater
- Digital Signage
Power Description
- Load Capacity (VA): 750 VA
- Load Capacity (Watt): 450 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 380 J
Management
- Alarm:
- On Battery
- Self-test Operation
Controls/Indicators
- Status Indicators: 2 LEDs indicate on/off and overload/check battery
Interfaces/Ports
- USB: Yes
Battery Information
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 2.50 Minute
- Backup/Run Time (Half Load): 11 Minute
- Battery Life: 6 Year
- Hot Swappable: Yes
- Typical Battery Recharge Time: 4 Hour
Environmental Conditions
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Product Color: Black
- Height: 4"
- Width: 12"
- Depth: 7"
- Form Factor: Ultra-compact Desk-mount
- Weight (Approximate): 15.50 lb
Miscellaneous
- Package Contents:
- Internet Office 750VA UPS
- USB cable and phone cord
- Instruction manual with warranty information
- Software Included: PowerAlert Software
- Country of Origin: China
- Energy Efficiency Certification: ENERGY STAR 2.0
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
2-year warranty;
- 100,000 connected equipment insurance (USA & Canada only).
