Eaton Tripp Lite Series 850VA 425W Standby UPS - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, LCD, ENERGY STAR, Desktop/Wall - ECO850LCD
Key Features
- $100,000 Ultimate Lifetime Insurance
- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- 3-year limited warranty
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Touchscreen LCD displays important voltage, load and battery data in real time
Product Overview

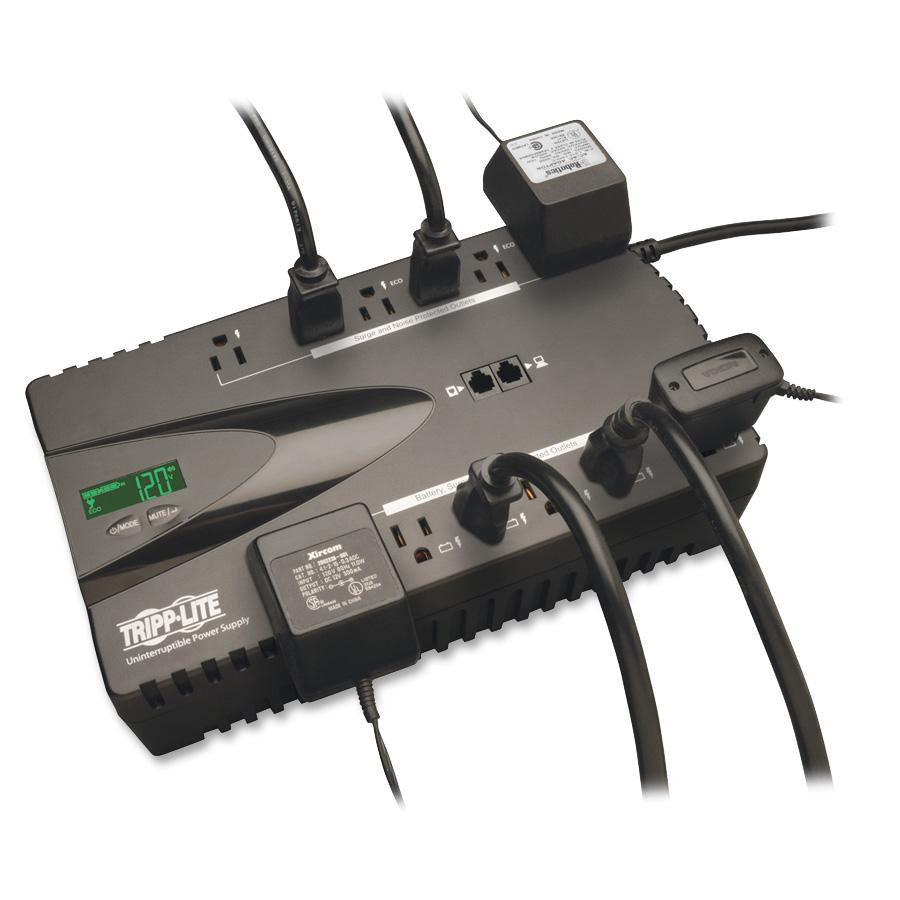

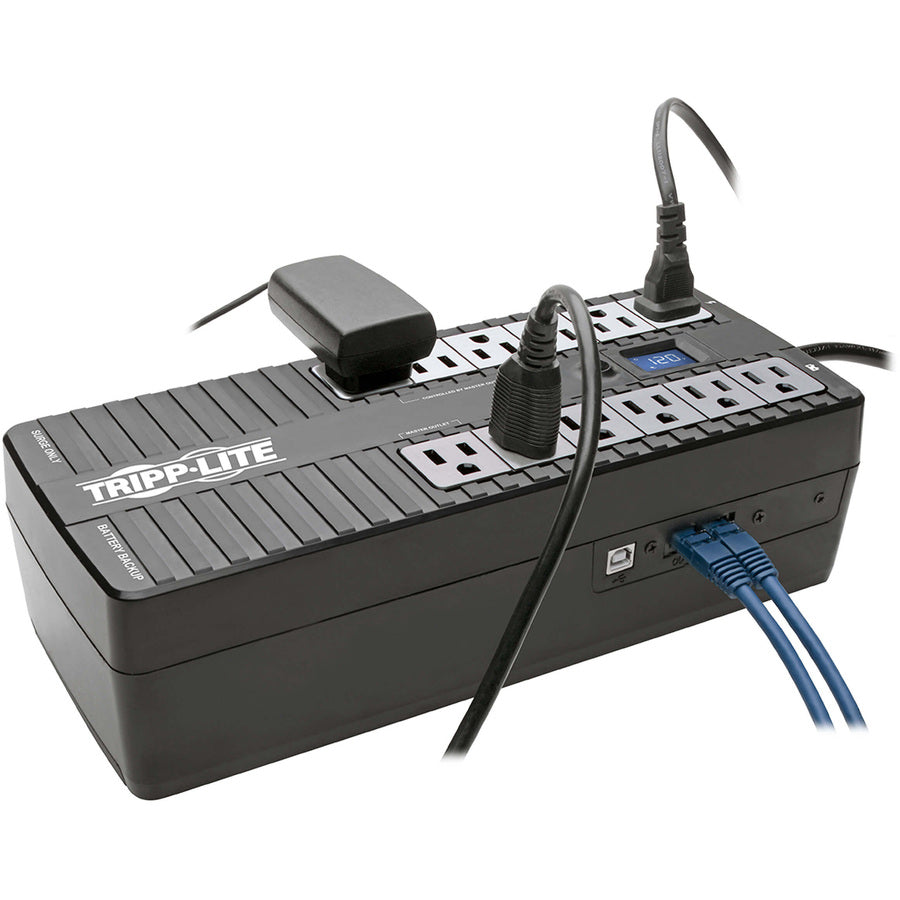

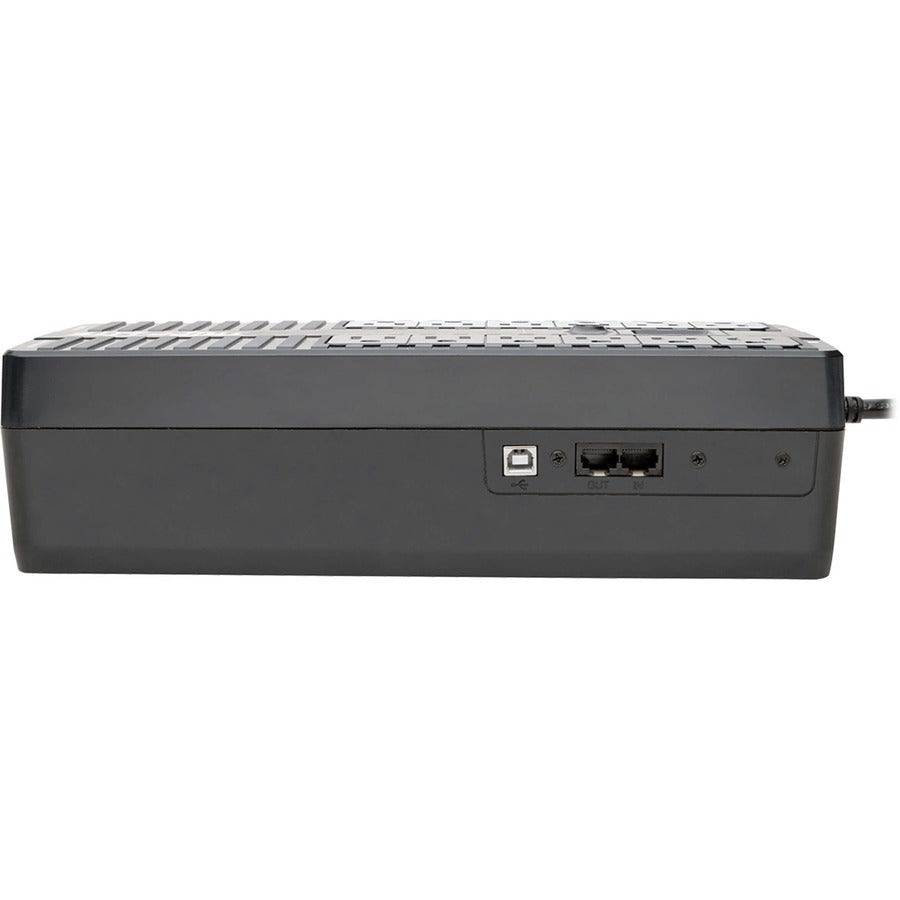

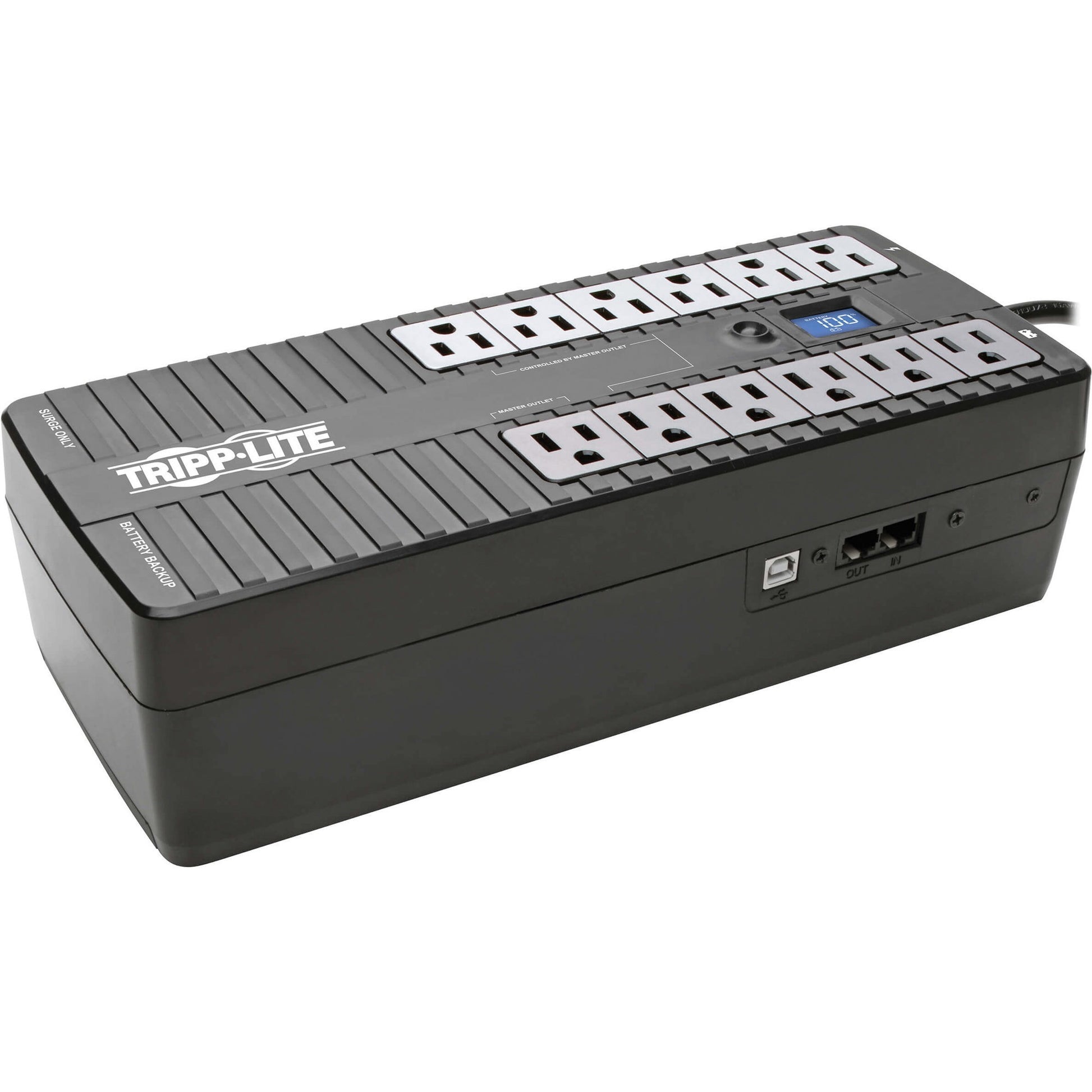

Ultra-compact, green UPS system is the ideal green solution for complete protection against blackouts, brownouts and power surges. Its 850VA/425-watt power handling capacity supports entry-level PC systems for up to 45 minutes during blackouts. With a power efficiency rating of 99 percent, this UPS offers energy savings plus cooler operation by limiting UPS power consumption. Interactive LCD screen displays operating conditions and lets you change settings. Design also features six battery-supported outlets for computer and peripherals plus six surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are ECO outlets that can be configured to automatically power off unused computer accessories. Built-in, single-line, tel/DSL (RJ11) jacks protect a modem, fax machine or phone. One USB port (USB cable included) plus free PowerAlert software enables unattended system shutdown without data loss in the case of an extended power failure.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: ECO850LCD
- Brand Name: Tripp Lite series
- Product Series: ECO
- Product Model: ECO850LCD
- Product Name: 850VA Ultra-compact Green LCD UPS Systm
- Packaged Quantity: 1 Each
- Product Type: Standby UPS
Technical Information
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R

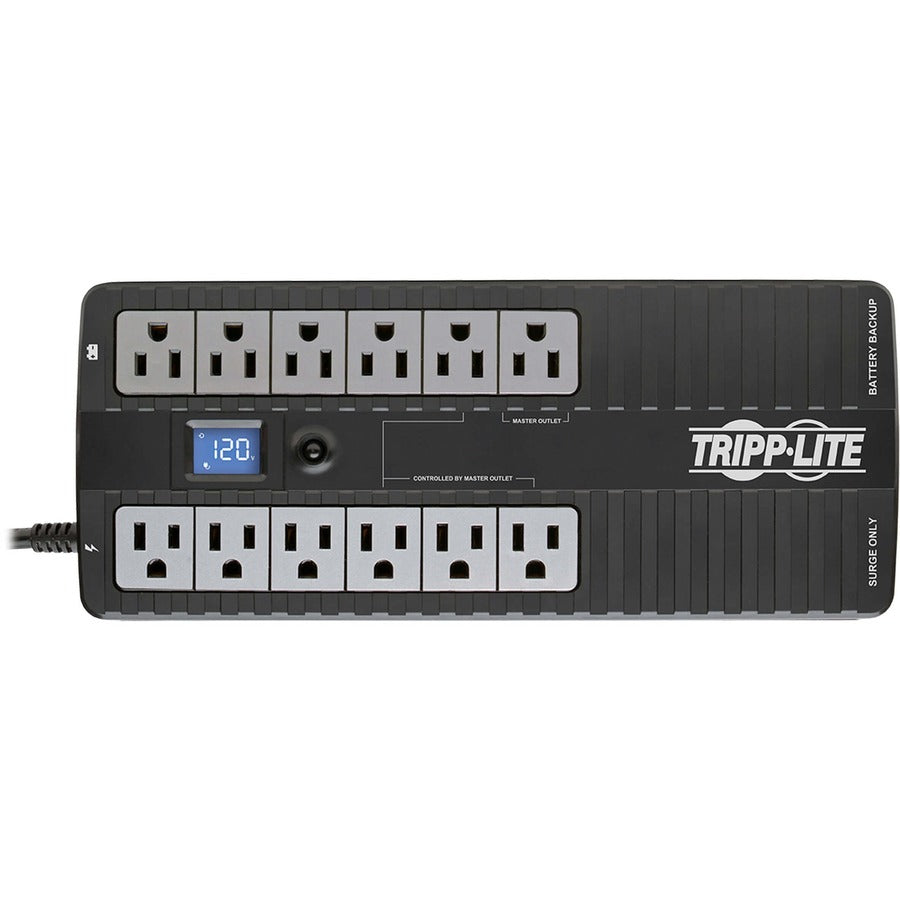

- Receptacle Detail: 12 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Dataline Protection: RJ-11
- Transfer Time: 6 ms
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
- Application/Usage:
- Home/Office
- Media Center
- Kiosk
- Desktop Computer
- Home Theater
- Digital Signage
- Router
- Printer
- TV
- Blu-ray Player
- Gaming Console
- ATM
- Security System
Power Description
- Load Capacity (VA): 850 VA
- Load Capacity (Watt): 425 W
- Input Voltage: 120 V AC
- Input Current: 10 A
- Output Voltage:
- 110 V AC
- 115 V AC
- 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 316 J
Management
- Alarm:
- Battery Backup
- Fault
- Low Battery
- Overload
- Replace Battery
Controls/Indicators
- Status Indicators:

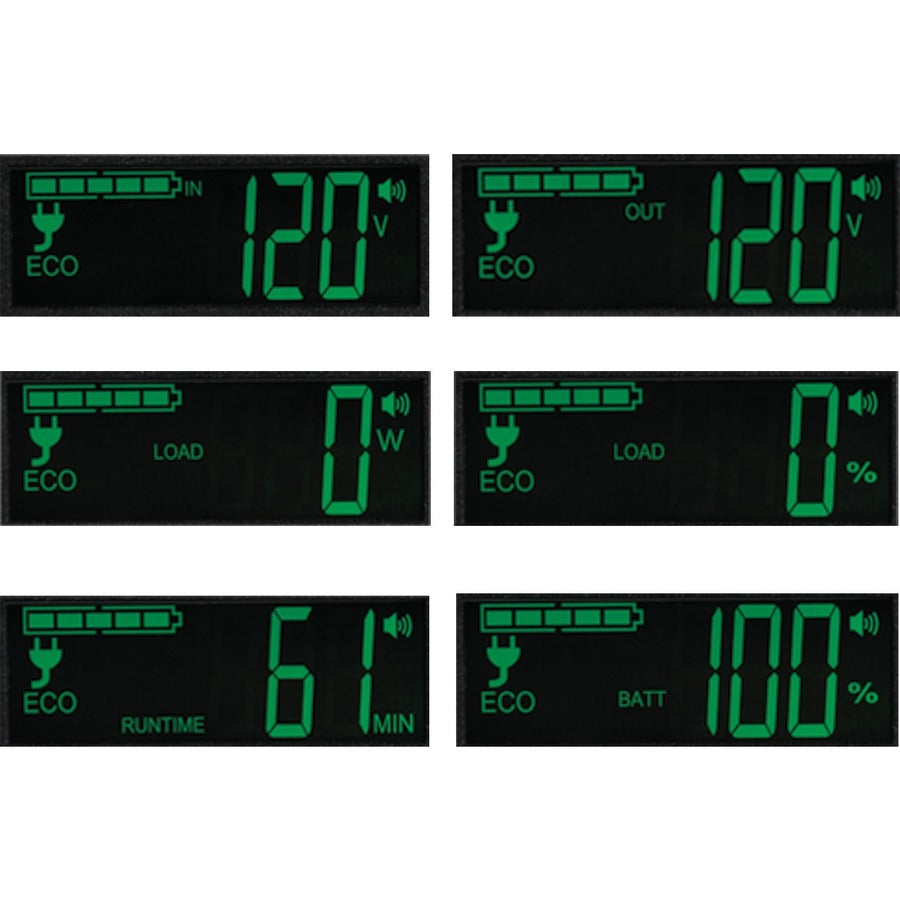

Touchscreen LCD reports operating mode, input/output voltage, input/output frequency and load capacity
Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Backup/Run Time (Full Load): 2.30 Minute
- Backup/Run Time (Half Load): 9 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Product Color: Black
- Height: 3.5"
- Width: 5.1"
- Depth: 12.2"
- Form Factor: Ultra-compact Desktop/Tower/Wall Mount
- Weight (Approximate): 6.81 lb
Miscellaneous
- Package Contents:
- ECO850LCD 850 VA Desktop UPS
- USB Cable
- Instruction Manual
- Energy Star: Yes
- Country of Origin: China
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
3 year warranty.
- 100,000 connected equipment insurance (USA, Puerto Rico, & Canada Only).
