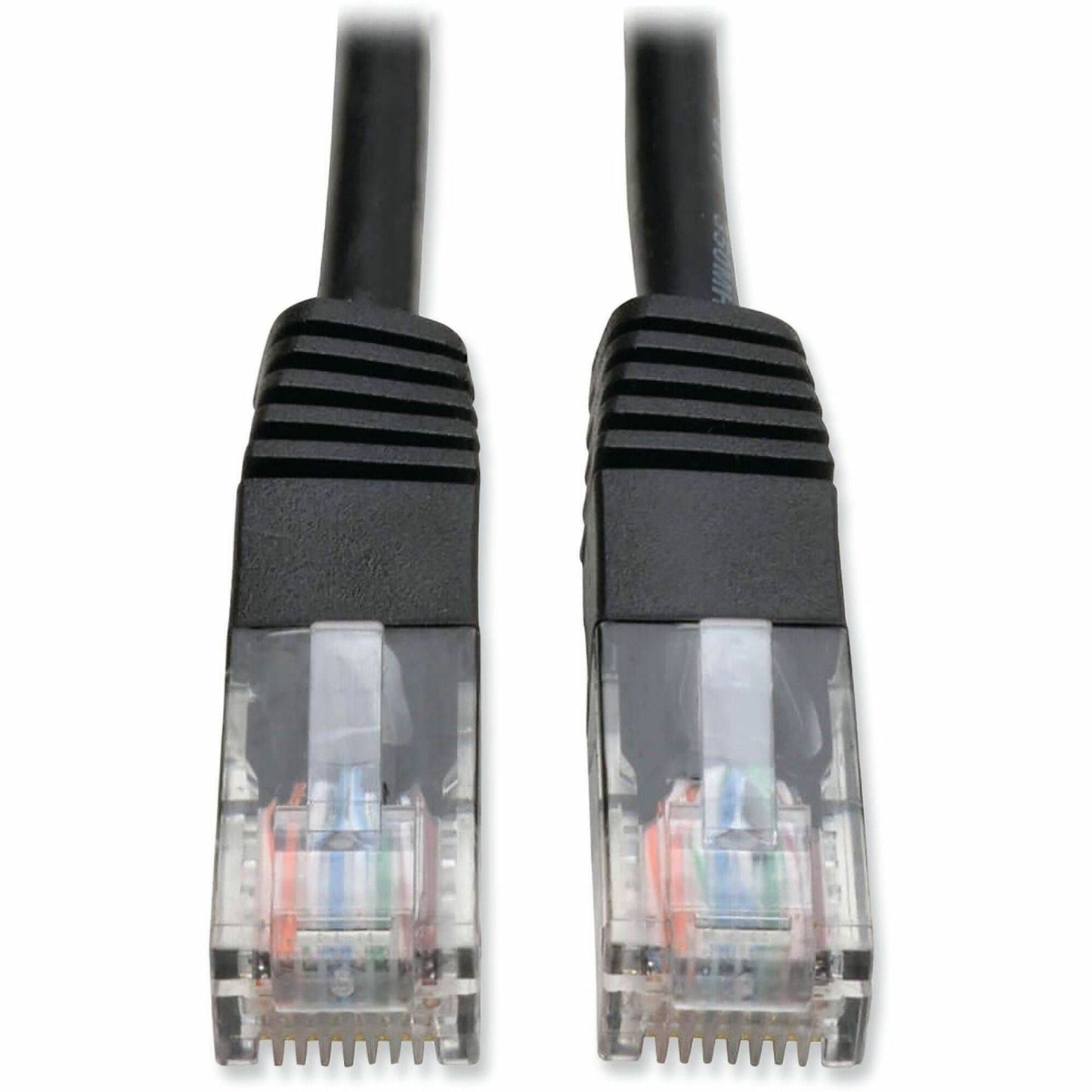

Eaton Tripp Lite Series Cat5e 350 MHz Molded (UTP) Ethernet Cable (RJ45 M/M), PoE - Black, 10 ft. (3.05 m) - N002-010-BK
Key Features
- Also available - Cat6 cables (N201 series)
- Also available in a snagless design (N001 series) to protect the locking tabs on the RJ45 connectors from being damaged or snapped off during installation
- Available in other colors and lengths
- Cabling for category 5 (Cat5) and 5e (Cat5e) applications
- Feature molded connectors with integral strain relief
- Length: 10-ft. (3.05 m) Color: black Connectors: RJ45 male
- Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 5e draft 11)
- PVC 4-pair stranded UTP
- Rated for 350MHz/ 1Gbps communication
Product Overview
10' category 5e (Cat5e) patch cable is rated for 350 MHz/1 Gbps communication. Two standard RJ45 molded male connectors feature integral strain relief to offer reliable performance. Cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring Type3 applications.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: N002-010-BK
- Brand Name: Tripp Lite series
- Product Model: N002-010-BK
- Product Name: Cat5e UTP Patch Network Cable
- Packaged Quantity: 1 Each
- Product Type: Network Cable
Technical Information
- Cable Type: Category 5e
- Cable Characteristic: Patch Cable
- Cable Length: 10 ft
- Connector Type on First End: RJ-45 Network - Male
- Connector on First End Details: 1 x RJ-45 Network - Male
- Connector Type on Second End: RJ-45 Network - Male
- Connector on Second End Details: 1 x RJ-45 Network - Male
- Contact Plating: Gold
- Shielding: No
- Jacket Type: CM
- Device Supported:
- Network Device
- ATM
- American Wire Gauge: 26 AWG
- Data Transfer Rate: 1 Gbit/s
- Boot Type: Snagless
- Number of Pairs: 4
- Features:
- Damage Resistant
- Strain Relief
- Molded
- Stranded
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Jacket Color: Black
- Product Material: Copper
- Jacket Material: Polyvinyl Chloride (PVC)
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
