Eaton Tripp Lite Series External 48V 2U Rack-mount Battery Pack Enclosure + DC Cabling for select UPS Systems (BP48V24-2U) - BP48V24-2U
Key Features
- Extends the runtime of compatible 48V Tripp Lite UPS Systems
- Options for 2 post rackmount, tower and wallmount installation available
- Supports 2U rackmount installation; 4 post installation accessories included
Product Overview

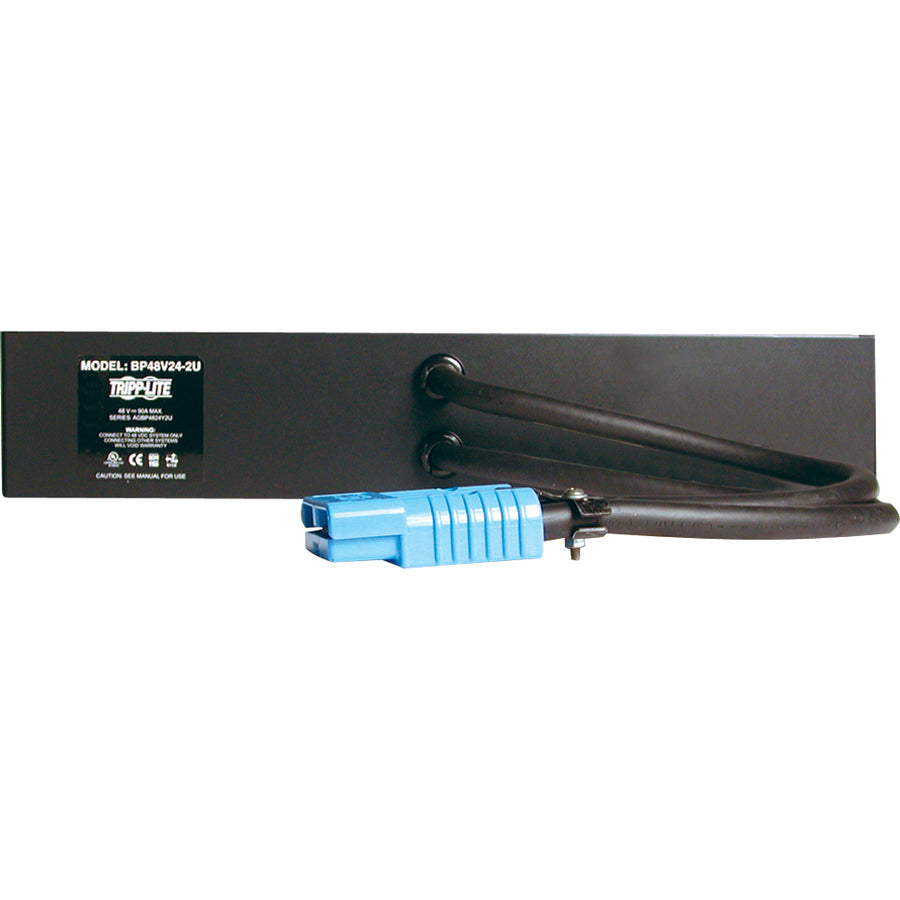

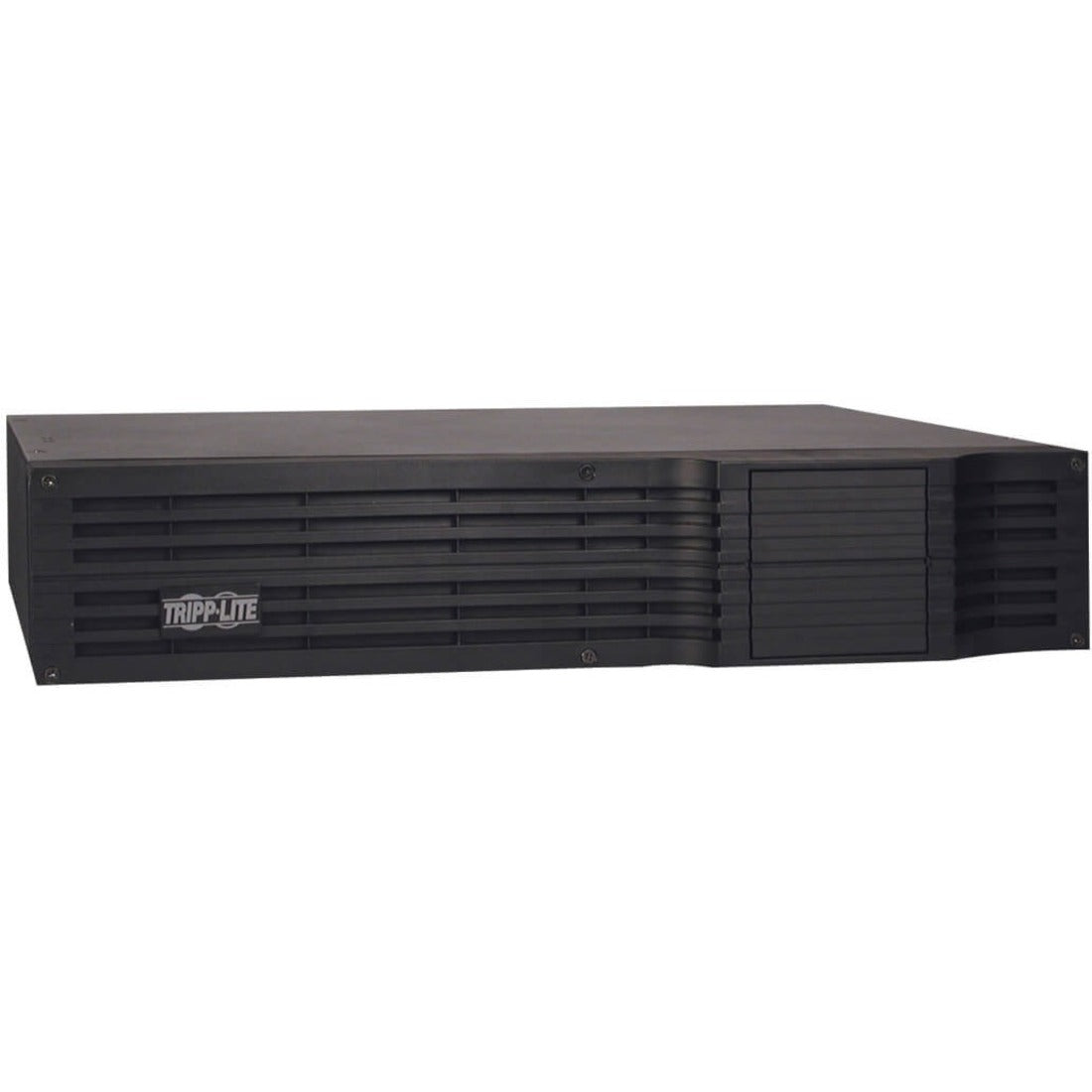

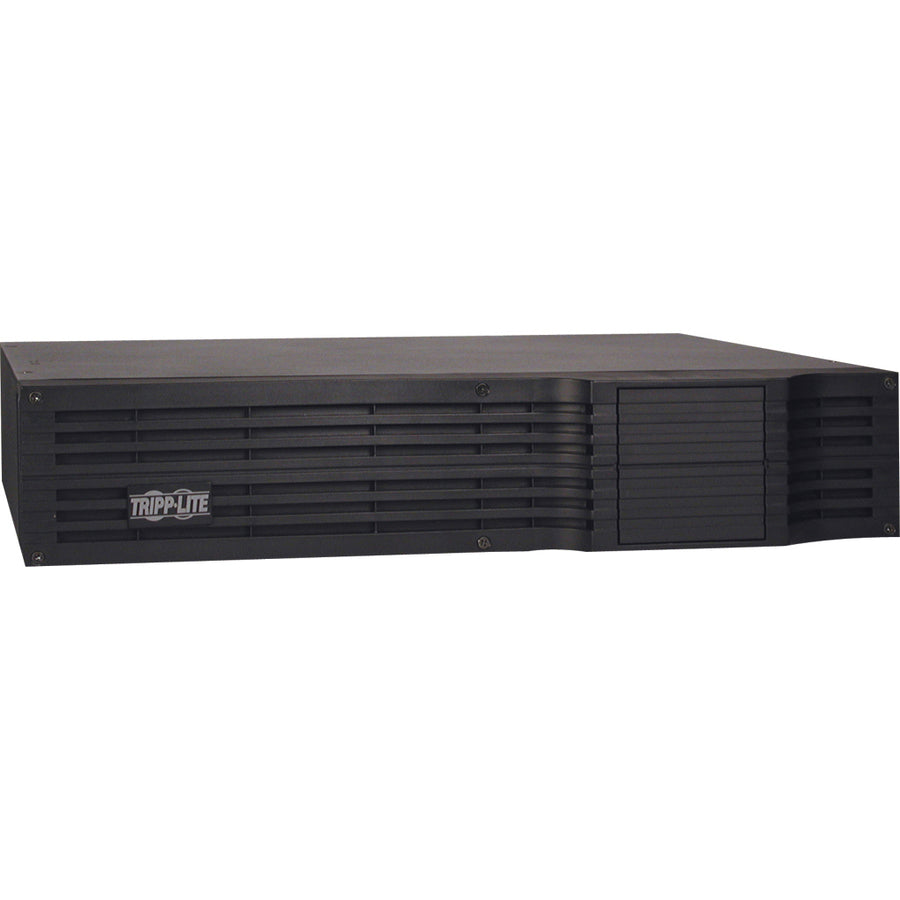

BP48V242U rack/tower external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite systems. Multi-use form factor supports configuration in stacking, upright tower and rackmount applications using only 2 rack spaces (2U). Includes heavy gauge cabling with high current DC connector for simple installation.Compatible UPS Systems - SMART2200RMXL2U, SMART2600RM2U & SMART3000RM2U and other Tripp Lite UPS systems that specify the use of this battery pack.
General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: BP48V24-2U
- Brand Name: Tripp Lite series
- Product Name: External Battery Pack
- Product Type: External Battery Pack
Technical Information
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Lead Acid
- Minimum Battery Life: 4 Year
- Maximum Battery Life: 6 Year
- Maximum Battery Recharge Time: 4 Hour
- Output Voltage: 48 V DC
Physical Characteristics
- Height: 3.5"
- Width: 17.5"
- Depth: 13.5"
- Weight (Approximate): 63 lb
Miscellaneous
- Package Contents:
- External Battery Pack
- BP48V242U external battery pack
- Mounting hardware
- Warranty information
- Instruction manual
- Compatibility:
- SMART2200RMXL2U
- SMART2600RM2U
- SMART3000RM2U
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 2 Year
